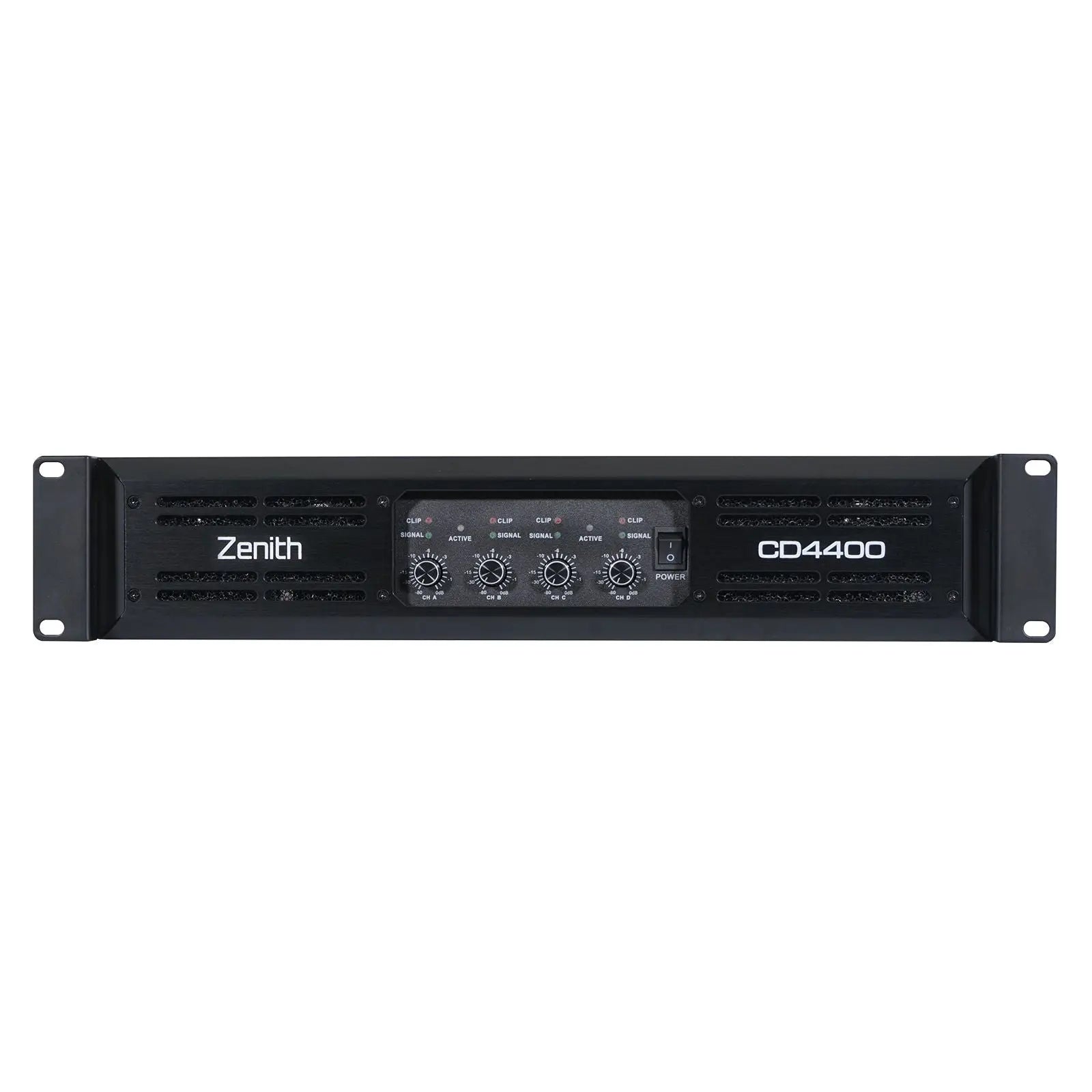

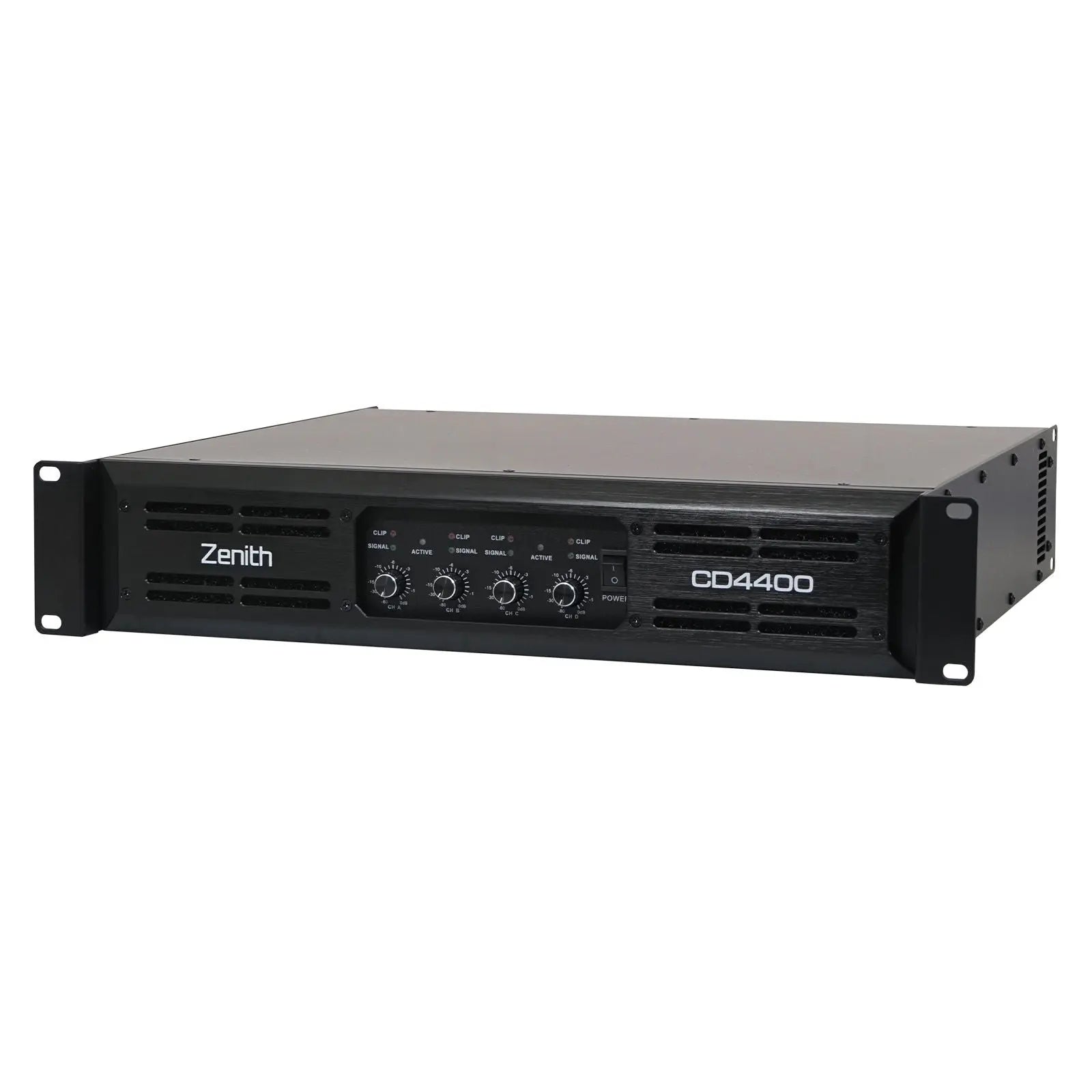

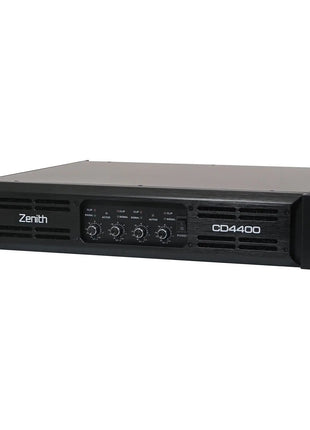

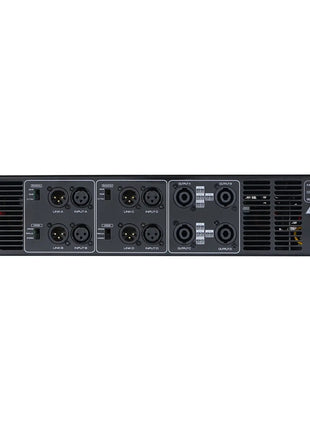

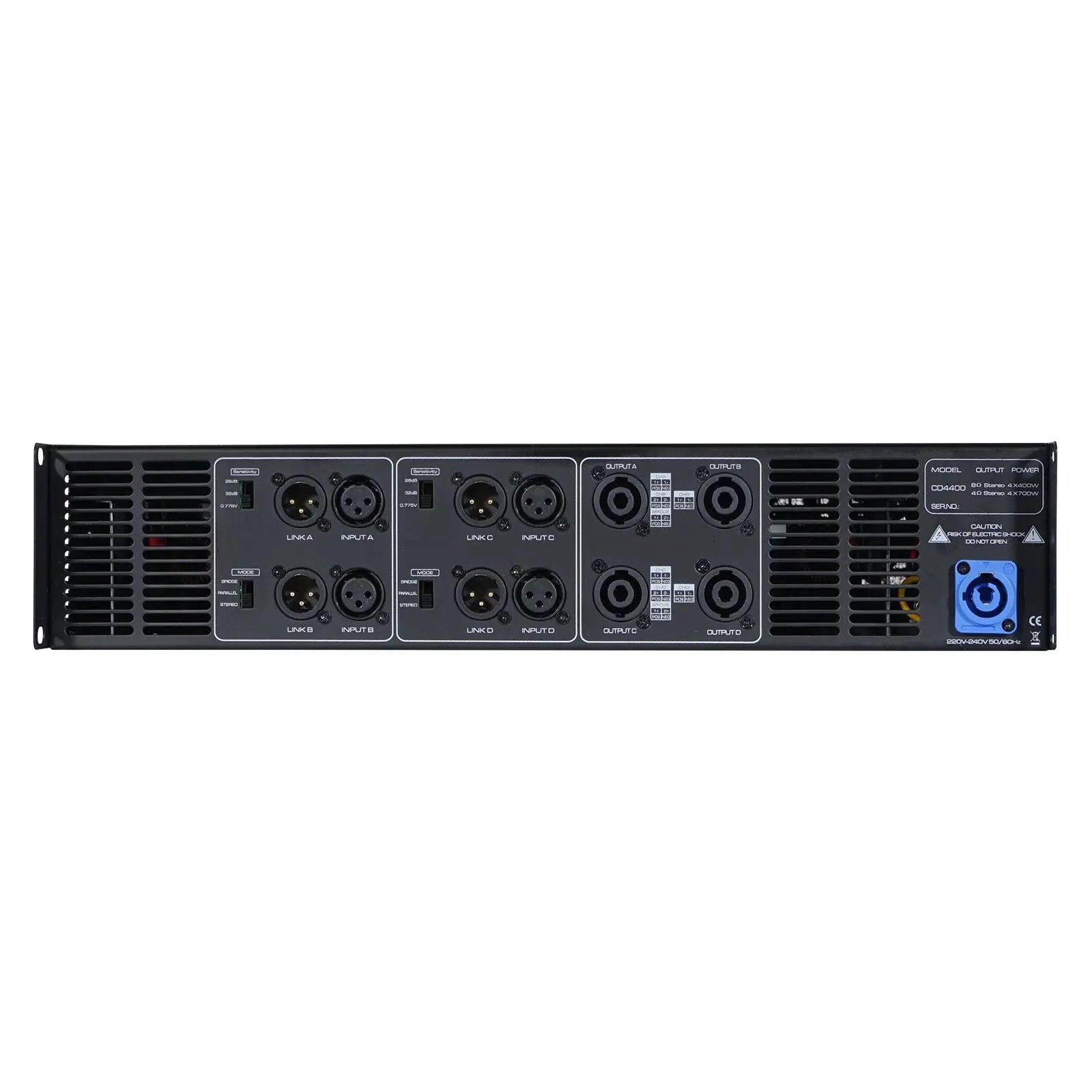

The CD series feature high output power outstanding sound quality and superior stability for a wide range of installed sound systems as well as portable live sound applications. Available in two and four channel versions and with an RMS wattage of up to 8000W this series feature class D technology in a compact 2U package. Automatic clip limiting along with high efficiency tunnel cooling and DC fans ensure reliability time after time. Power output @ 8Ω: 4 x 400Wrms Power output @ 4Ω: 4 x 700Wrms Power output bridge @ 8Ω: 2 x 1200Wrms Frequency response: 20Hz to 20kHz Input sensitivity: 0.775V 32dB or 26dB Damping factor: 250 Slew rate: 12V/uS Min. Load impedance (Stereo): 4Ω Min. Load impedance (Bridge): 8Ω Protection circuits: Soft start limit thermal short circuit overload DC fault protection and AC power supply fuse LED indicators: Active signal and clip Input connections: 4 x XLR sockets 1 x powerCON input Output connections: 4 x speakON connectors Additional features: Switchable stereo parallel and bridge
