Description

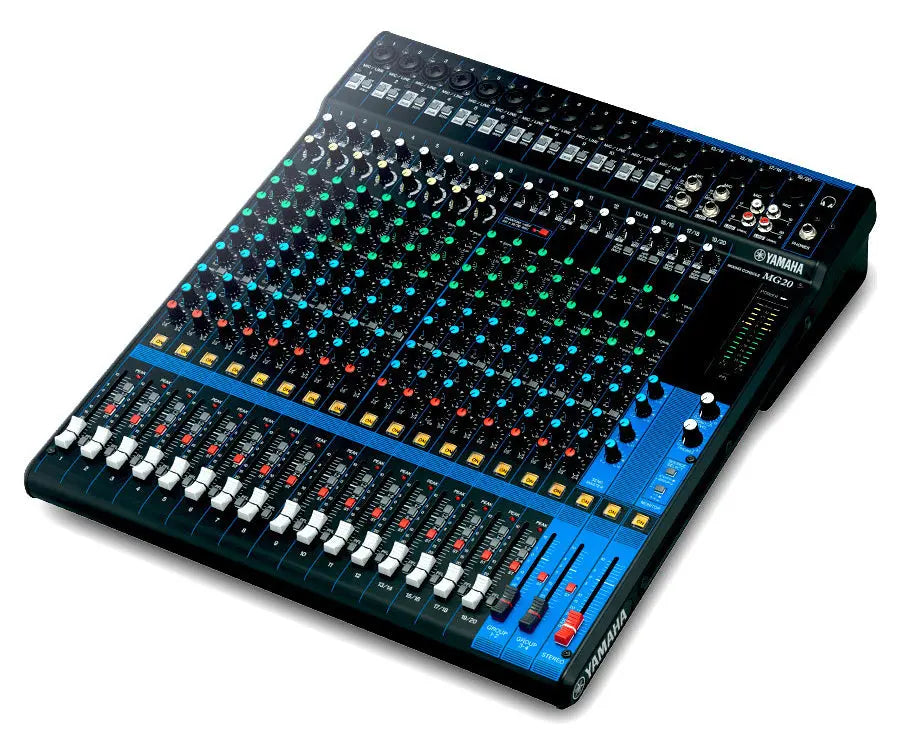

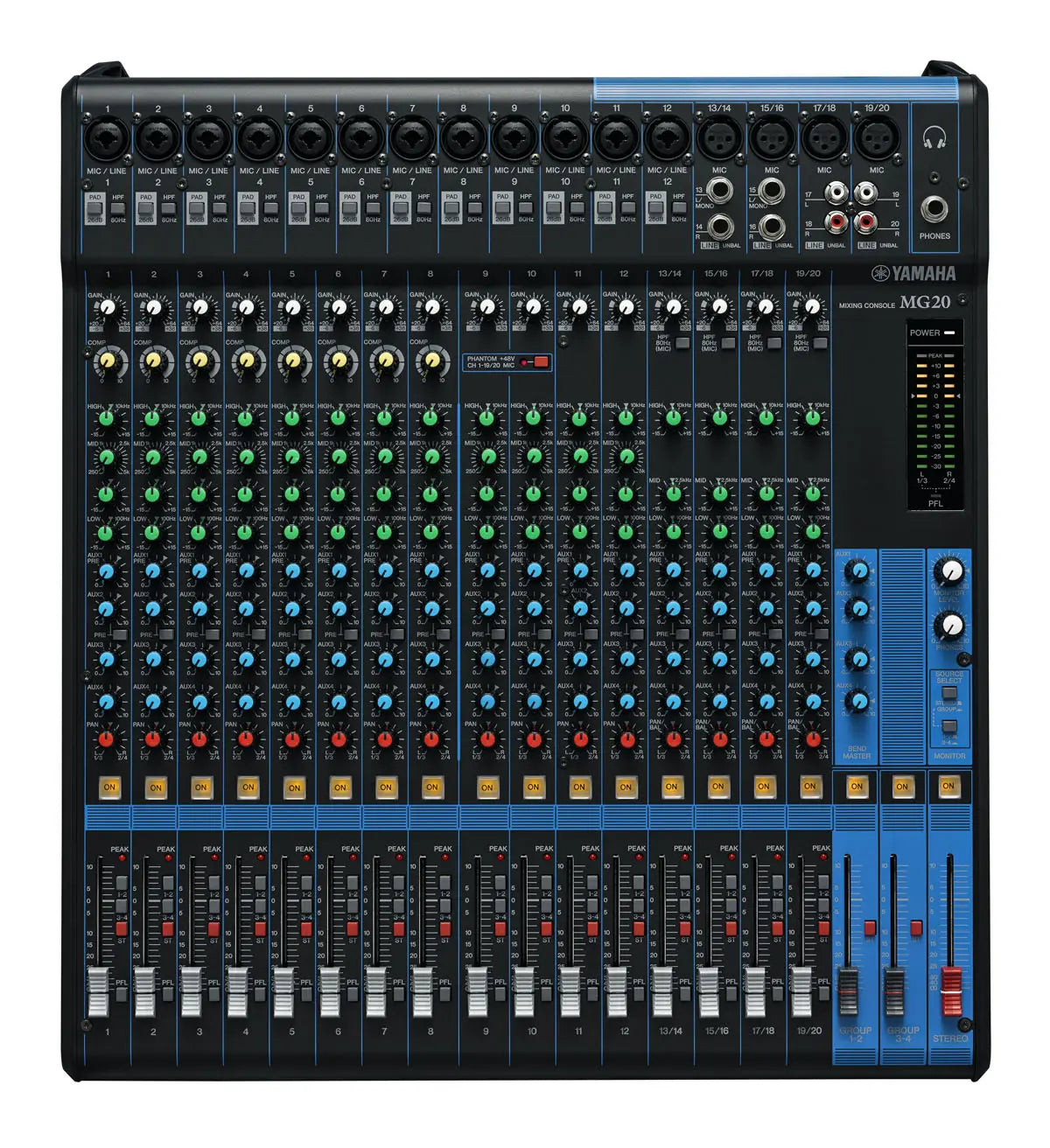

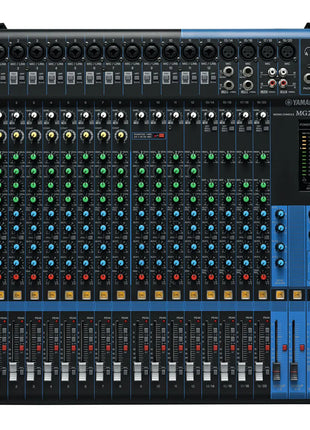

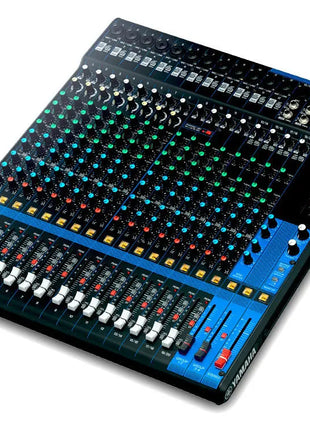

The Yamaha MG20 Analog Mixer brings flawless sound to every setup, from bands and touring artists to large groups and ensembles. Plug in and perform with confidence. With 20 premium channels on board, you've got everything you need to put on a great show.
For the audiophile who demands the best. The MG20 gets its flawless sound from D-PRE microphone preamps. Enjoy fully immersive audio from mono and stereo channels. And when you're ready to mix, take control of four GROUP and one stereo bus. This is everything you need to take your performance to the next level.
Take the world by storm. Whether you're touring your local circuit or gigging overseas, the MG20 is ready for anything. With 48V+ phantom power and universal power supply onboard, you can perform anywhere. And thanks to its solid construction, you're fully covered from transport to break down.
Features
- Professional mixing capabilities for bands and large groups with 20 channels onboard
- Precise sound from 12 mono and 4 stereo channels
- Perfect for vocals, instruments, and more with 16 microphone/20 line inputs
- Total control of your mix with 4 group buses and 1 stereo bus
- Full range of connectivity with 4 AUX including FX
- Pristine signal integrity from D-PRE mic preamps with an inverted Darlington circuit
- Tame your frequencies with 1-knob compressors
- Easy to prevent clipping and peaks thanks to PAD switch on mono inputs
- Flawless operation via +48V phantom power
- Crystal clear connection via XLR balanced outputs
- Worldwide use thanks to an internal universal power supply
- Install in your rack with ease thanks to the included rack mount kit
- Impact resistant metal chassis that’s perfect for the rigours of the road
Specifications
-
Inputs:
-
Mono: 12 Mic/Line
-
Mono/Stereo: 4
-
Output Channels:
-
Stereo: 2
-
Monitors: 1
-
Headphones: 1
-
Aux Send: 4
-
Group: 4
-
Buses:
-
Stereo: 1
-
GROUP: 4
-
AUX: 4
-
Frequency Response: 20Hz - 20kHz, +0.5dB/-1.5dB
-
Crosstalk: -78dB
-
Pad: 26dB (Mono)
-
HPF: 80Hz, 12dB/Oct (Mono/Stereo: Mic Only)
-
Comp: 1-Knob Compressor (Gain/Threshold/Ratio)
-
Threshold: +22dBu to -8dBu
-
Ratio: 1:1 to 4:4
-
Output Level: 0dB to 7dB
-
Attack Time: 25msec
-
Release Time: Approx. 300msec
-
EQ High:
-
Frequency: 10kHz Shelving
-
Gain: +15dB/-15dB
-
EQ Mid:
-
Mono Frequency: 250Hz - 5kHz, Peaking
-
Stereo Frequency: 2.5kHz, Peaking
-
Gain: +15dB/-15dB
-
EQ Low :
-
Frequency: 100Hz Shelving
-
Gain: +15dB/-15dB
-
Level Meter: 2 x 12-Segment LED Meter
-
Phantom Power: +48V
-
Power Requirements: AC 100V - 240V, 50Hz/60Hz
-
Power Consumption: 36W
-
Dimensions: 444mm x 130mm x 500mm (W x H x D)
-
Weight: 6.9kg
