Yamaha DXR10mkII | 10" 2-Way Active 1100W PA Speaker
Compact versatility with stadium-grade power. The DXR10mkII takes the portable PA concept to a new level. By integrating a high-output 1100W Class-D amplifier with a newly designed 1.75-inch Neodymium compression driver, Yamaha has created a speaker that offers exceptional high-frequency definition and high-volume stability. The 10-inch woofer provides a tight, controlled low-end that is ideal for front-of-house applications or high-energy floor monitoring. With advanced DSP and Yamaha's proprietary FIR-X tuning, the DXR10mkII delivers a linear frequency response and unmatched vocal clarity, ensuring your performance is heard exactly as intended.
Why Choose the Yamaha DXR10mkII?
-
Exceptional Power-to-Size Ratio: Delivers 1100W of peak power and 132 dB SPL from a cabinet that is easy to transport and mount.
-
Upgraded 1.75" Neodymium HF Driver: Larger compression driver than the previous generation for improved high-frequency headroom and detail.
-
Advanced FIR-X Tuning: Proprietary digital processing uses linear phase FIR filters to optimize phase response and time alignment.
-
Intelligent D-CONTOUR Compression: Multi-band dynamics processing with "FOH/MAIN" and "MONITOR" modes to optimize the EQ for any setup.
-

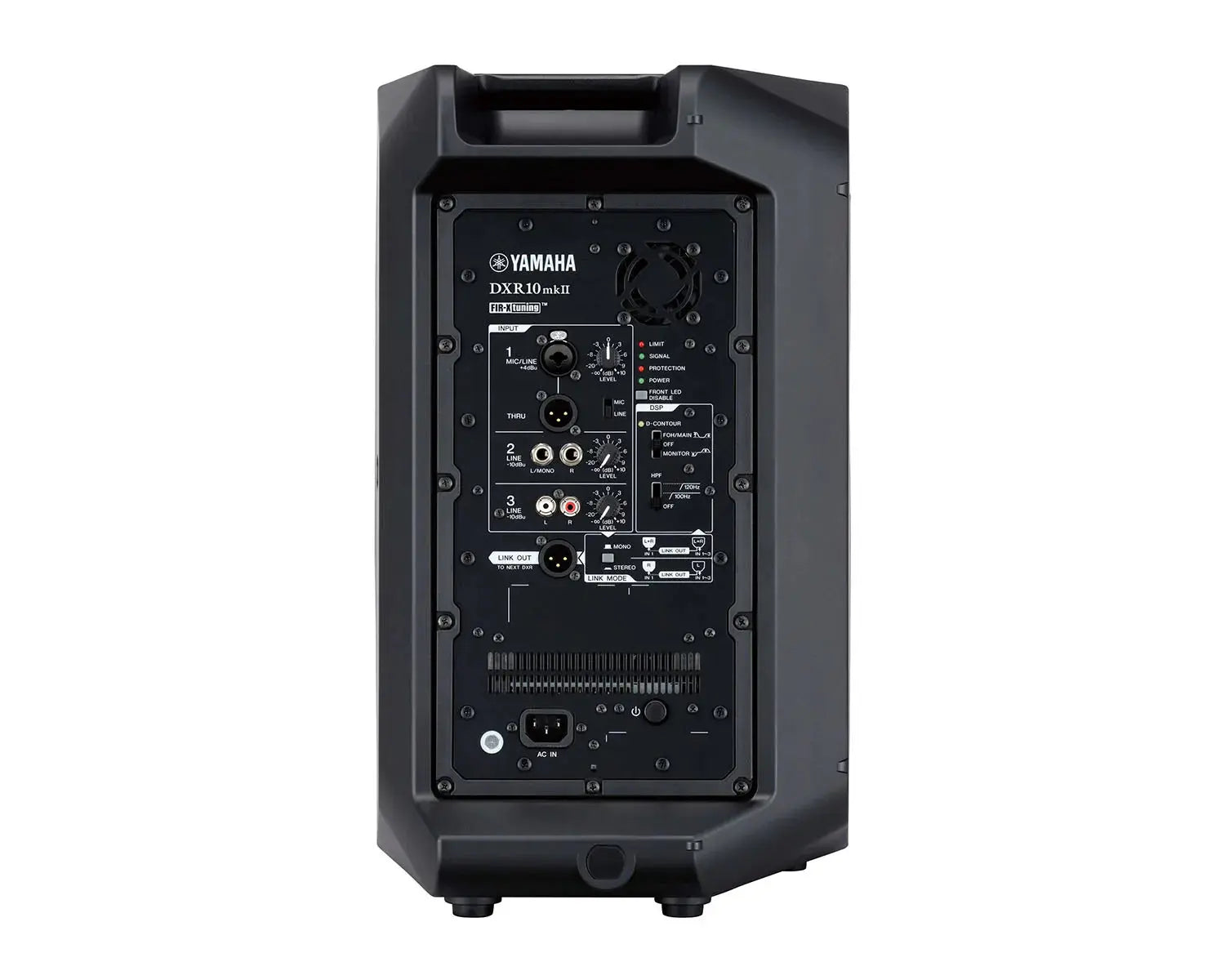

Integrated 3-Channel Mixer: Onboard mixer allows for direct connection of microphones, line-level instruments, and stereo media players (XLR/TRS/RCA).
-
Symmetrical Floor Monitoring: The cabinet angle allows for mirrored stage monitor placement, perfect for creating a wide, coherent sweet spot for performers.
-
Dual-Angle Pole Mount: Includes a 35mm socket with two positions (0° and 7°) to direct audio toward the audience and away from reflective surfaces.
-
Built for Rigour: Housed in a non-resonant ABS enclosure that is scratch-resistant and highly durable for life on the road.
-
Professional Protection: Extensive DSP-controlled protection for the power supply, power amp, and individual drivers to ensure long-term reliability.
Professional Sonic Engineering
Crystal Clear Definition The DXR10mkII is renowned for its "transparent" sound. While many 10-inch speakers can sound strained at high volumes, Yamaha’s DSP management ensures that the transition between the woofer and the tweeter remains seamless. This makes it a top-tier choice for vocalists and presenters who cannot afford to have their speech "muffled" by speaker distortion.
The Ultimate Stage Monitor Because of its compact size and symmetrical design, the DXR10mkII is often cited as the perfect floor wedge. Its high SPL allows it to cut through noisy stages, while the D-CONTOUR "MONITOR" mode prevents the bass build-up that often causes feedback in live microphone setups.
Technical Specifications
-
Speaker Type: 10" 2-way, Bi-amped Active Speaker
-
Frequency Range: 56Hz – 20kHz
-
Max SPL: 132 dB
-
Amplifier Class: Class-D
-
Power Rating: 1100W (950W LF + 150W HF)
-
Coverage Angle: 90° x 60° (Constant Directivity Horn)
-
Inputs: 1 x XLR, 2 x 1/4" Phone, 2 x RCA Pin
-
Pole Socket: 35mm with 2-way feature (0 or 7 degrees)
-
Weight: 13.9 kg
-
Dimensions: 502 x 305 x 310 mm
What is In The Box?
Why Buy From djkit?
At djkit, we recommend the Yamaha DXR10mkII for those who need a professional, reliable "all-rounder." Whether you are building a small PA system or adding high-quality monitors to a touring rig, the DXR10mkII is an investment in quality that lasts. With our fast shipping and specialist support, we help you get the most out of your audio setup.
