Description

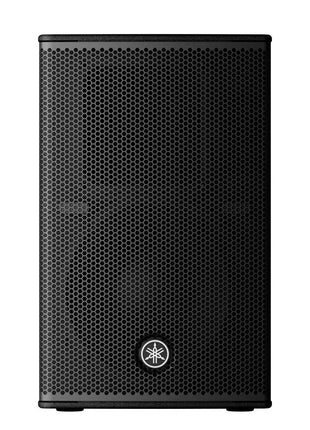

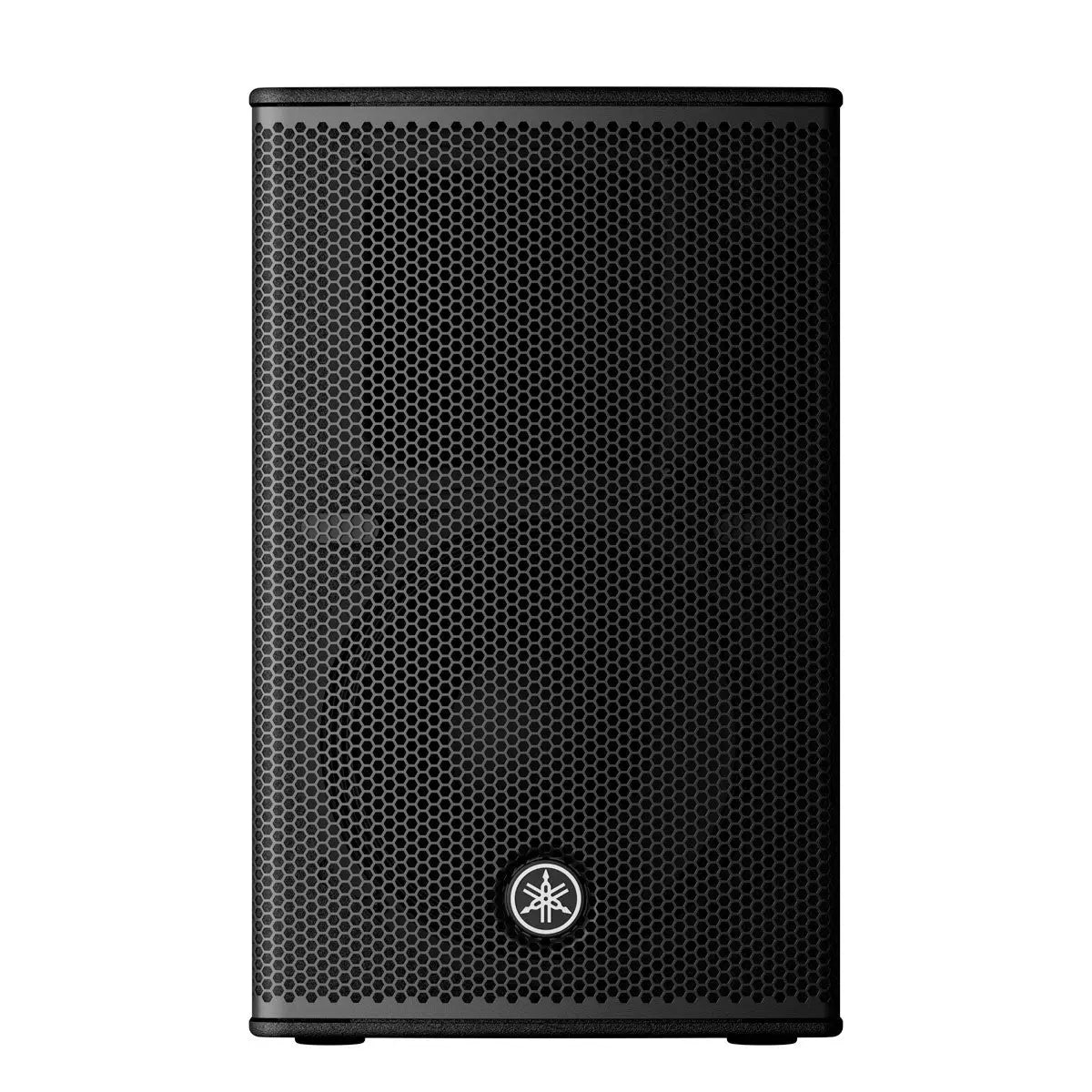

Yamaha DHR10 - 10" Active PA Speaker
The Yamaha DHR10 is an active 10" PA speaker designed to elevate sound reinforcement with professional quality, accuracy, and performance. It features a durable plywood cabinet, powered by a 700W Class-D amplifier, capable of producing a respectable 127dB SPL. This model is specifically optimized for fixed installation and utility applications, offering stunning sound quality and clarity.
Key Features
-
Plywood Cabinet: Premium plywood enclosure finished in a tough polyurea coating for outstanding durability and acoustic performance.
-
High-Efficiency Class-D Amplifier: Powered by a 700W Class-D amplifier, delivering a respectable 127dB SPL.
-

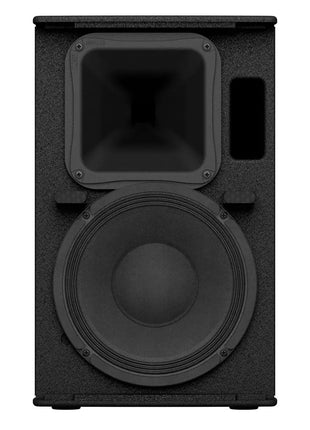

Custom Designed Transducers: Features a high power output woofer for well-defined, powerful bass with minimal distortion, and a 1.4" precision compression driver for accurate mid-range and high frequencies.
-
Optimized Cabinet Design: The 10" model is equipped with rotating horns and a dedicated U-bracket for use in fixed installations and utility.
-

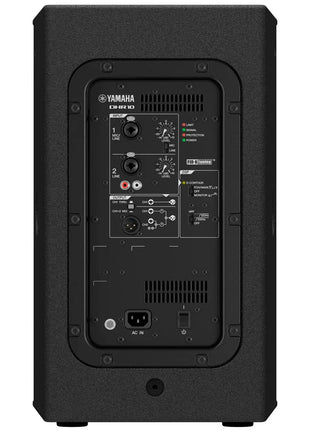

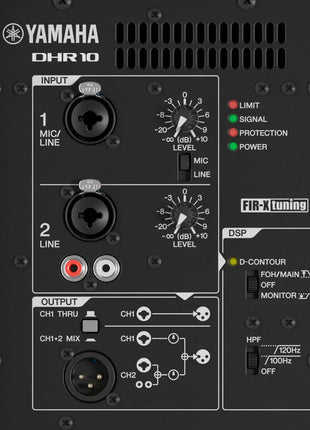

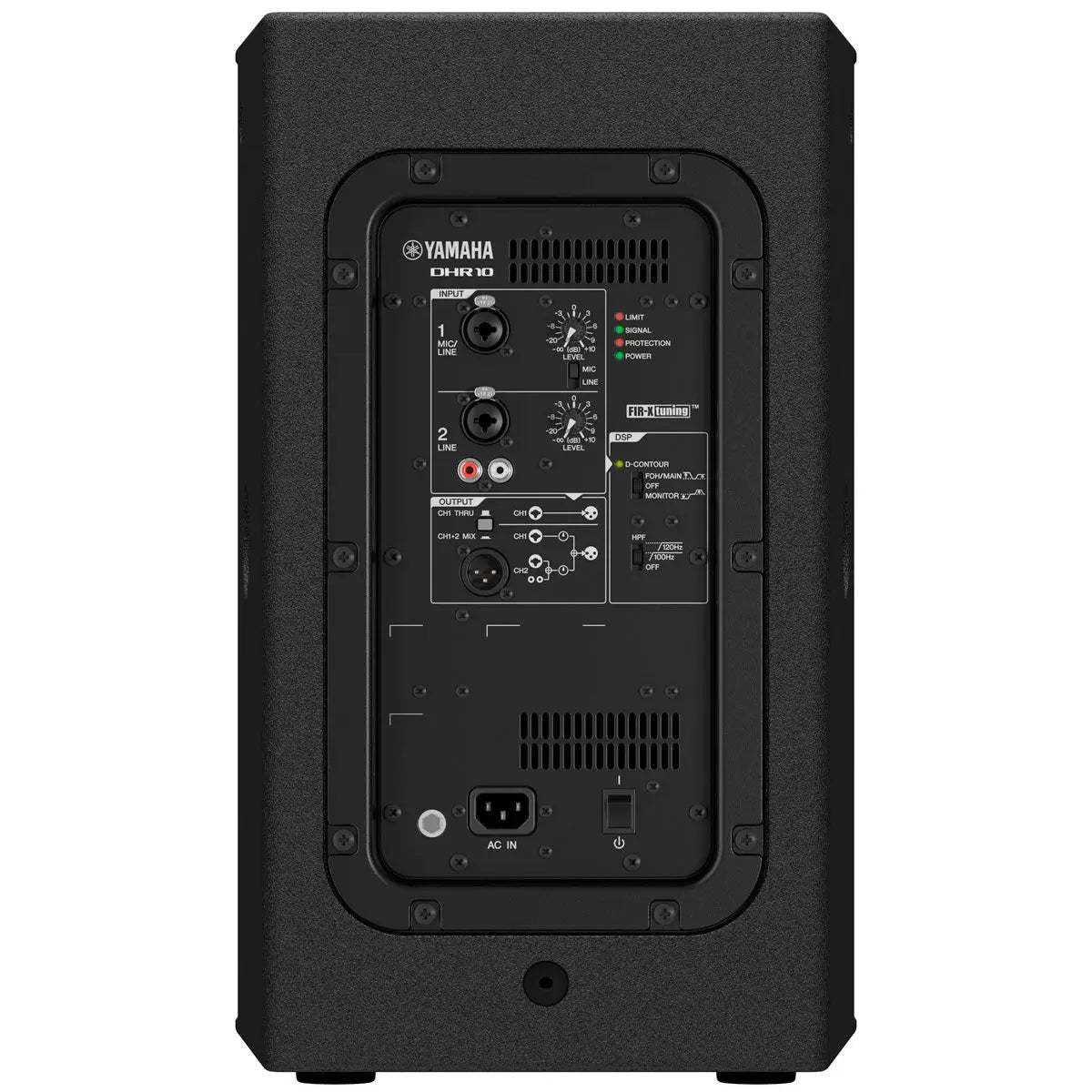

Easy-to-use Onboard 2-Channel Mixer:
- CH1: Combo jack (XLR or TRS Phone) for mic or line level input signals.
- CH2: Combo jack (XLR or TRS Phone) and a pair of RCA pin Jacks for CD players or other stereo line-level sources.
- Selectable CH1+2 MIX or CH1 THRU output.
-
DSP-Equipped: Custom transducers are driven by DSP-equipped Class-D power amplifiers.
Technical Specifications
-
Speaker Type: Active 10" PA speaker.
-
Amplifier Type: Class-D.
-
Amplifier Output (DHR10): 700W.
-
Max SPL (DHR10): 127dB.
-
Woofer: 10" high power output.
-
Compression Driver: 1.4" precision.
-
Cabinet Material: Plywood with tough polyurea coating.
-
Inputs:
- CH1: Combo jack (XLR or TRS Phone).
- CH2: Combo jack (XLR or TRS Phone) and RCA pin Jacks.
-
Mixer Output Options: CH1+2 MIX, CH1 THRU.
Suitable For
- Fixed installations.
- Utility applications.
- Anyone looking to step up to professional-quality sound reinforcement.
- A wide variety of sonic environments.
What's in the box
- Yamaha DHR10 Active PA Speaker.
- (Power cable and user manual
