Xvive U3D Dual Wireless System for Audio

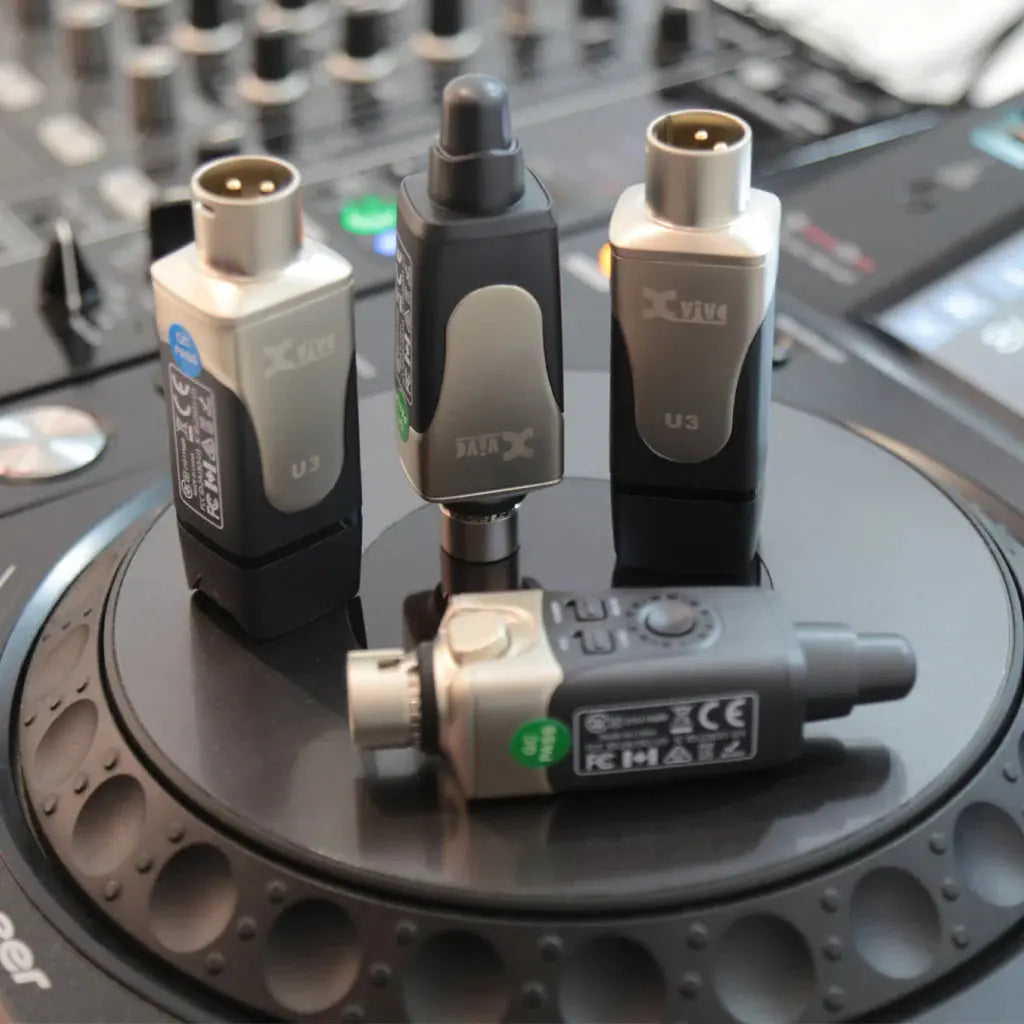

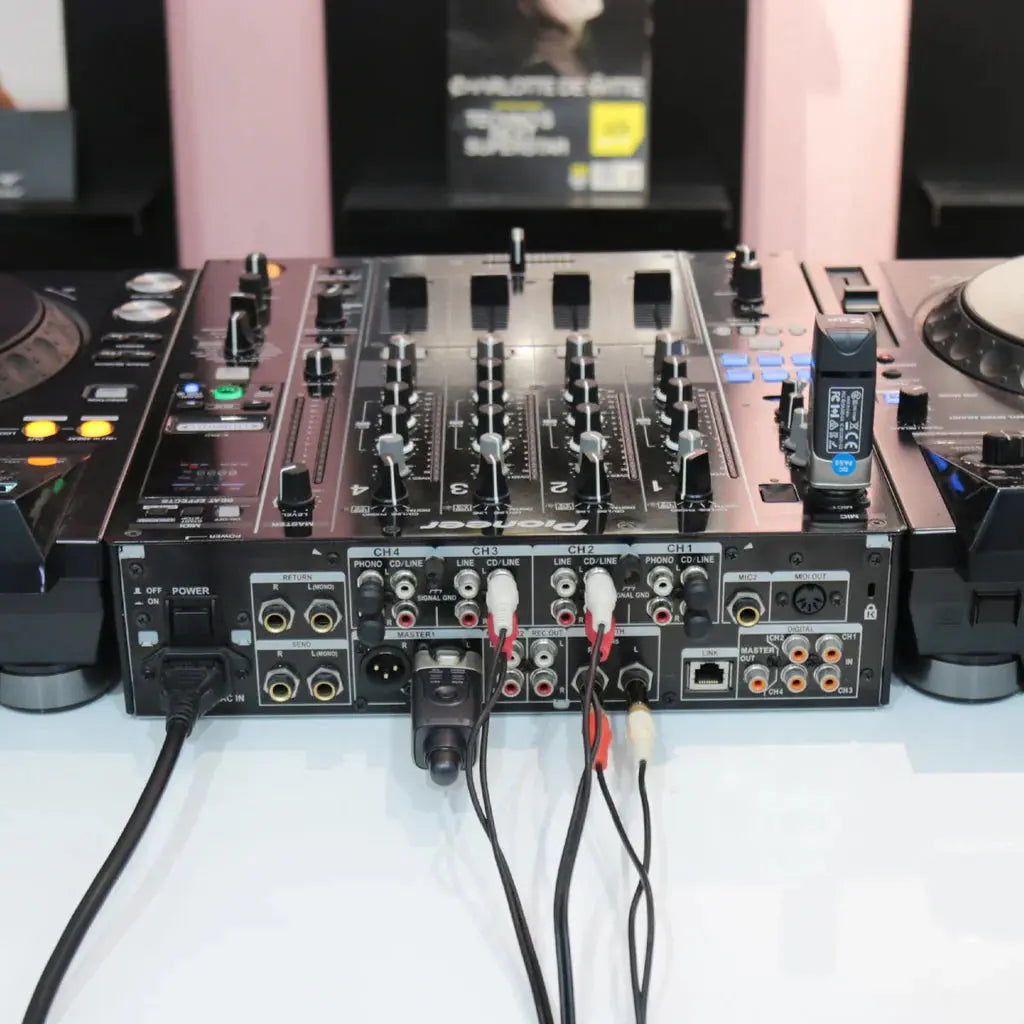

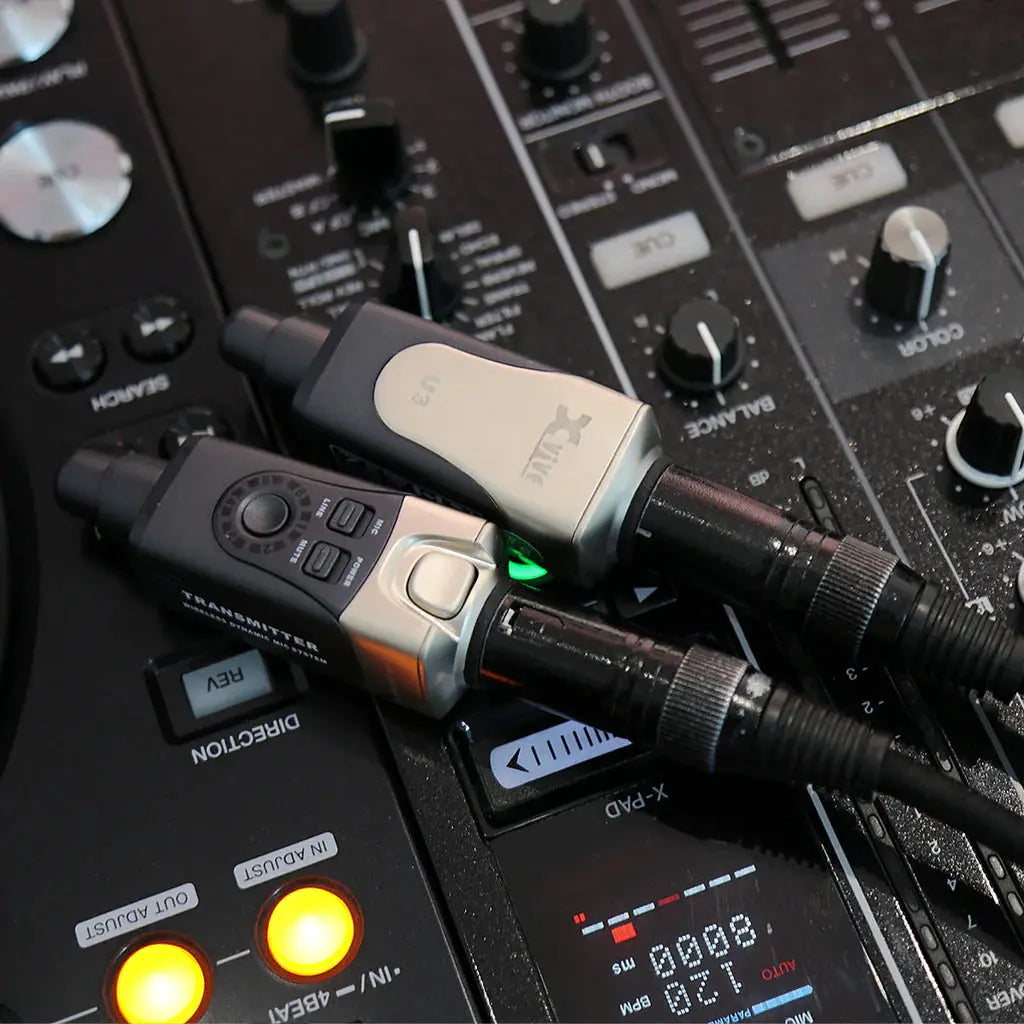

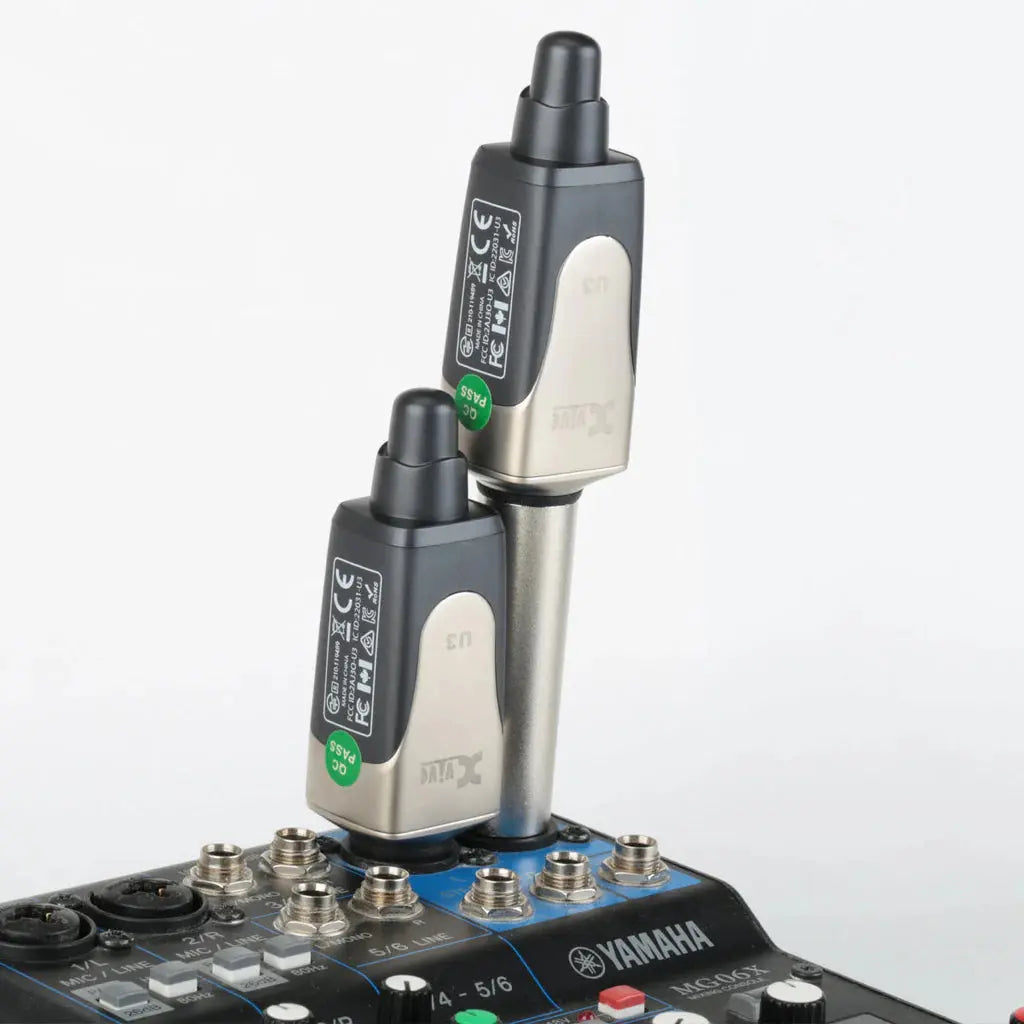

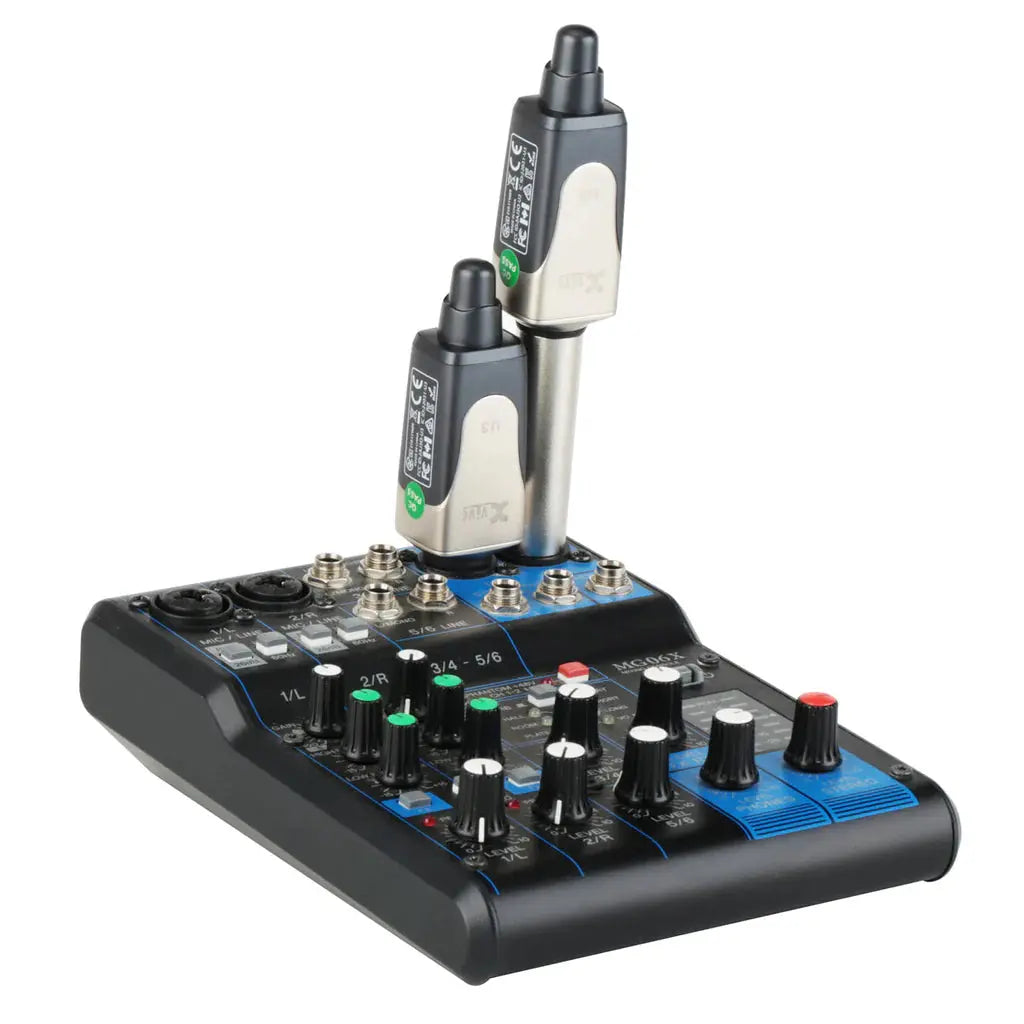

The Xvive U3D Dual Wireless System for Audio is a comprehensive solution designed to eliminate the need for cumbersome cables in your PA and DJ setups. Comprising two U3 Microphone Wireless System sets, the U3D enables stereo wireless connections from mixers to powered PA speakers, offering faster setup, teardown, and a cleaner, safer venue. It delivers high-quality 24-bit/48 kHz digital audio with low distortion and a wide frequency response, ensuring a stable 2.4 GHz wireless connection with a range of up to 90 feet.
Key Features
-

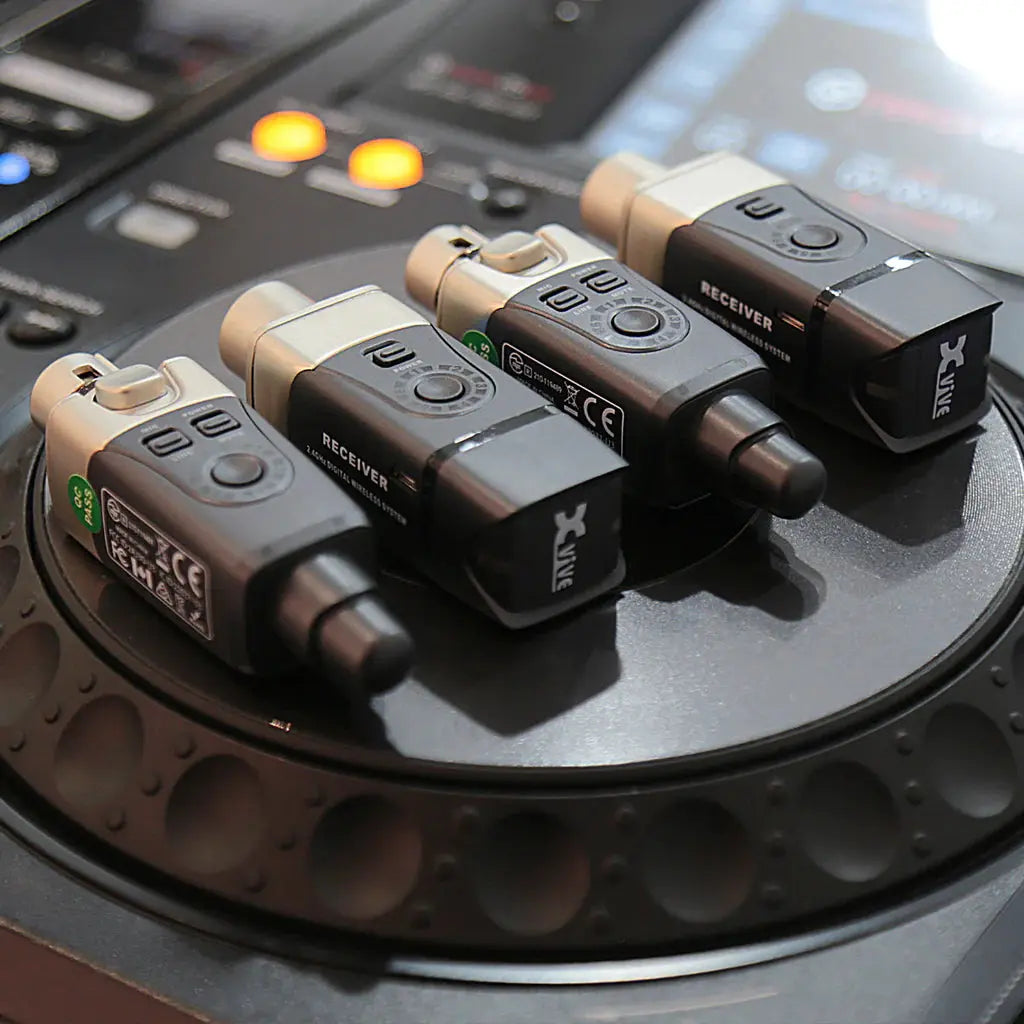

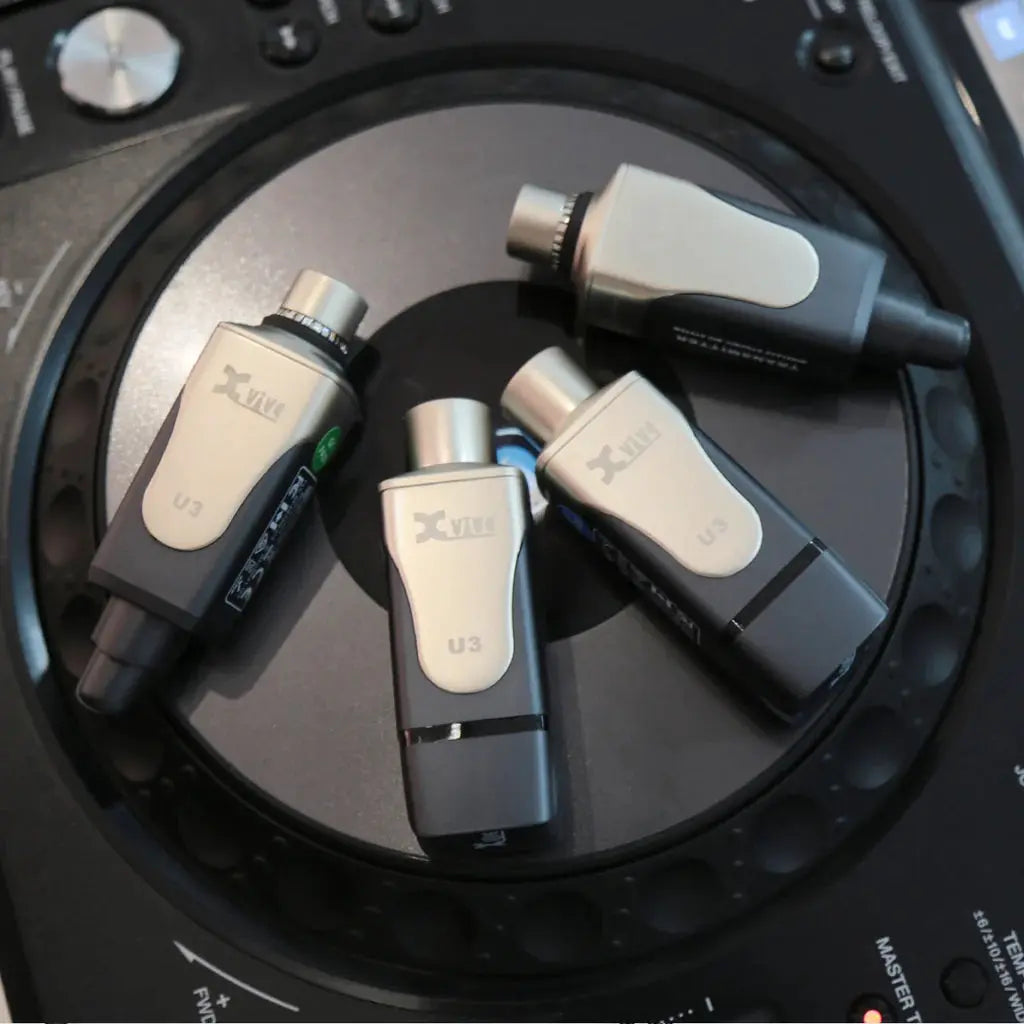

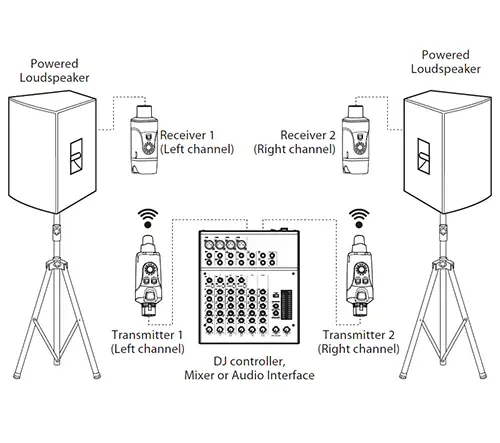

Dual Wireless System: Includes two U3 transmitters and two U3 receivers for stereo wireless connections.
-
Versatile Connectivity: Can be used with stereo or multiple mono PA/DJ systems, or two dynamic microphones.
-
High-Quality Audio: Delivers 24-bit / 48 kHz digital audio with low distortion and wide frequency response.
-
Stable Wireless Connection: Operates on a stable 2.4 GHz ISM worldwide open band.
-
Extended Range: Up to 90 feet (27.5 m) operating range (line-of-sight).
-

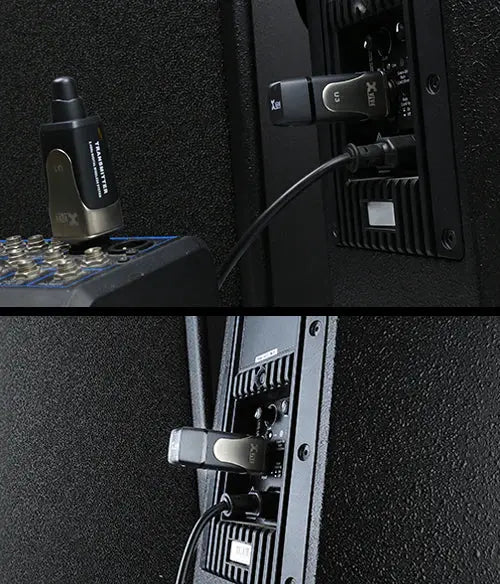

Flexible Mono Setup: One U3 transmitter can transmit to more than two receivers for multiple mono setups.
-
Long Battery Life: Each unit provides 5 hours of battery life and can be used while charging.
-
Easy to Use: Reliable, great-sounding, and designed for convenience.
-
Microphone Compatibility: Works with dynamic and battery-powered condenser microphones.
-

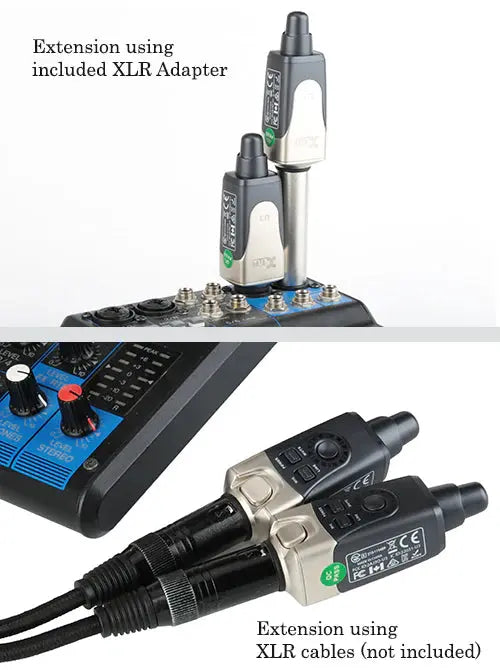

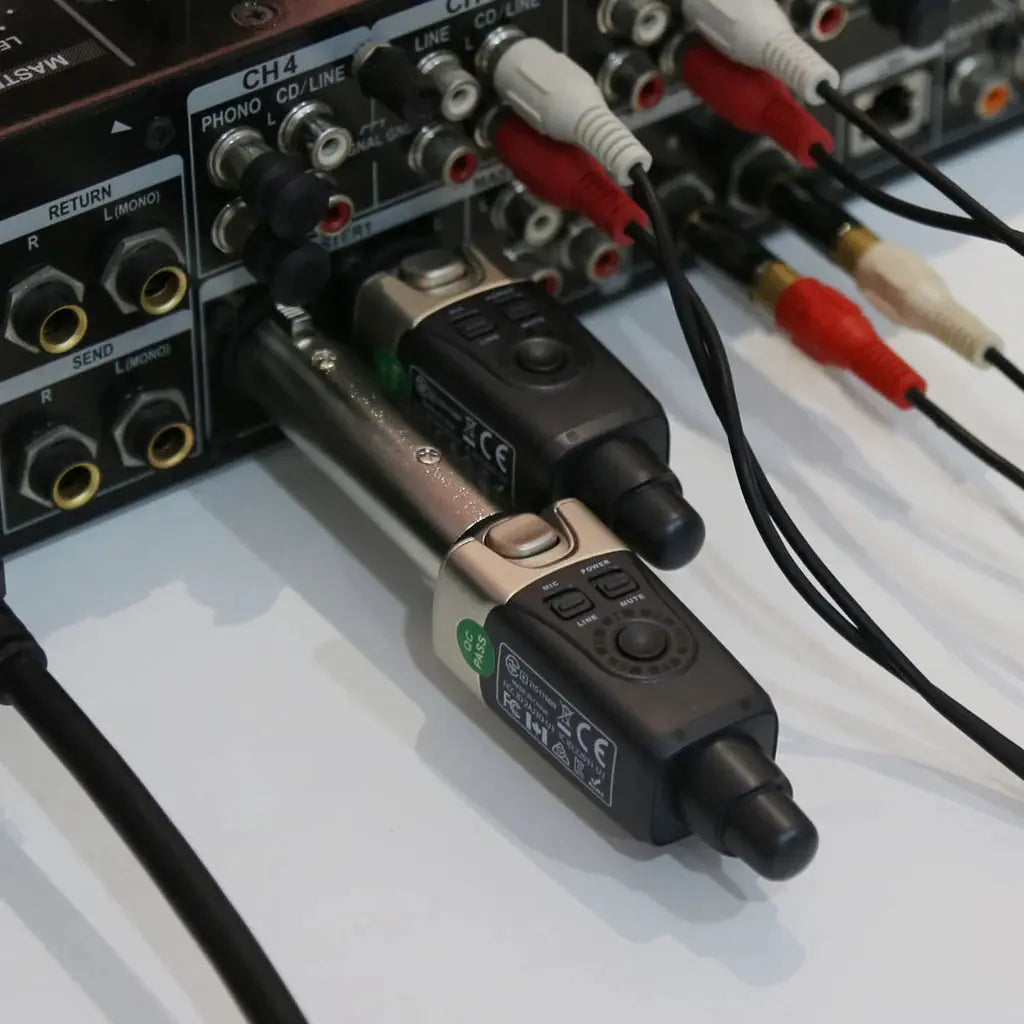

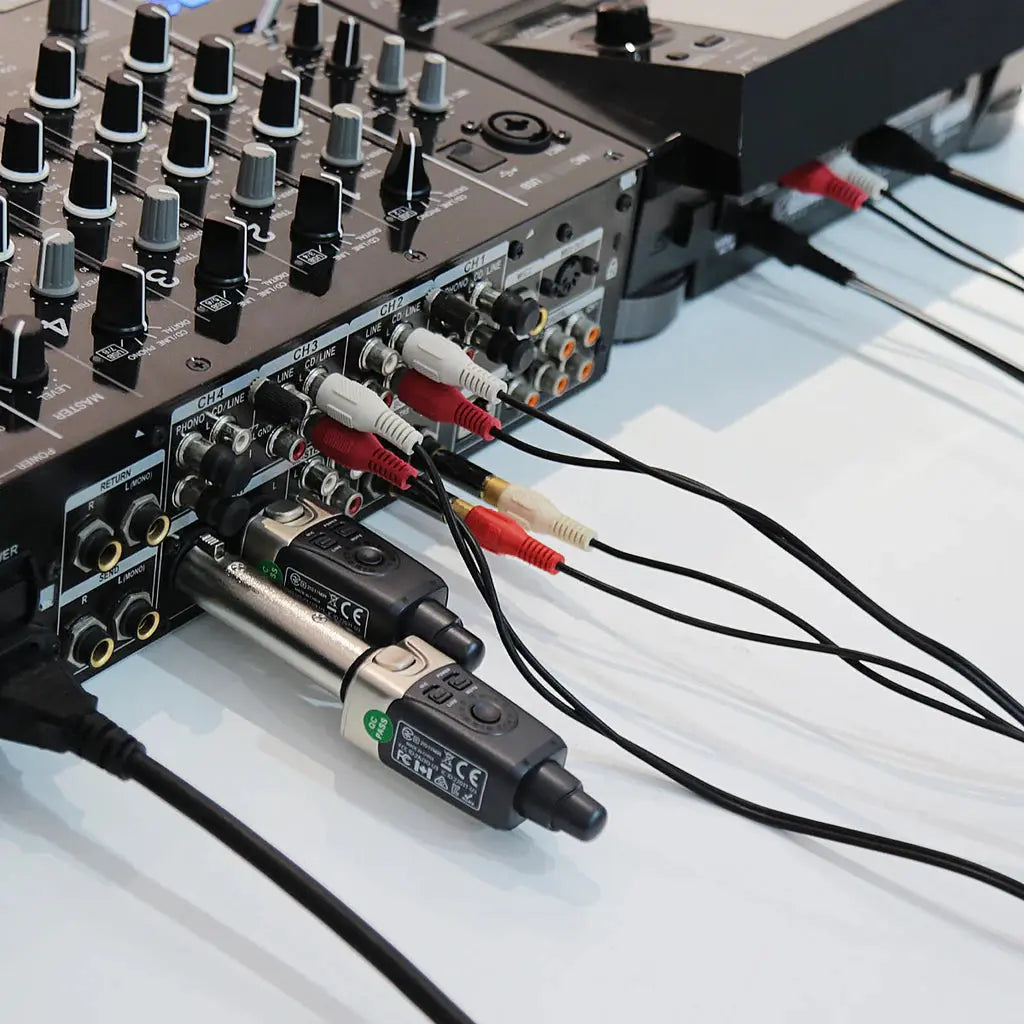

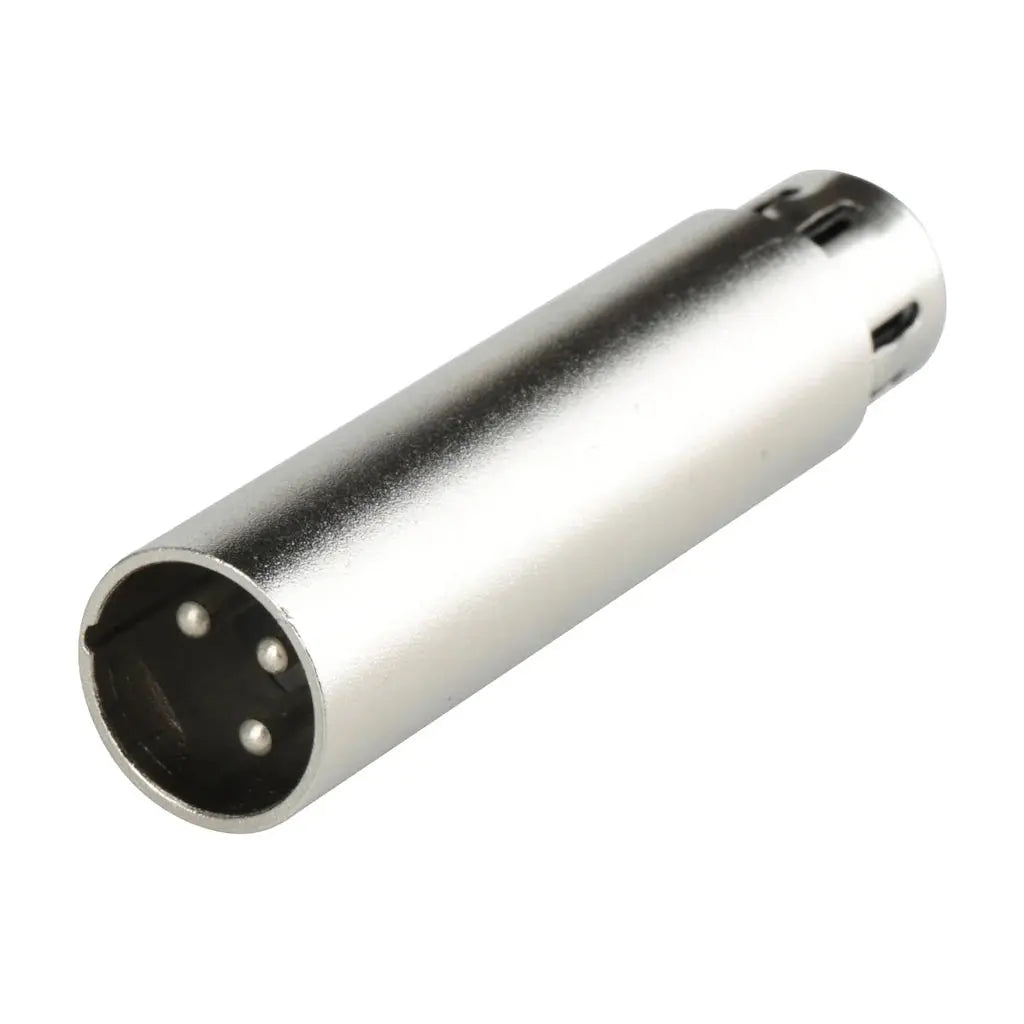

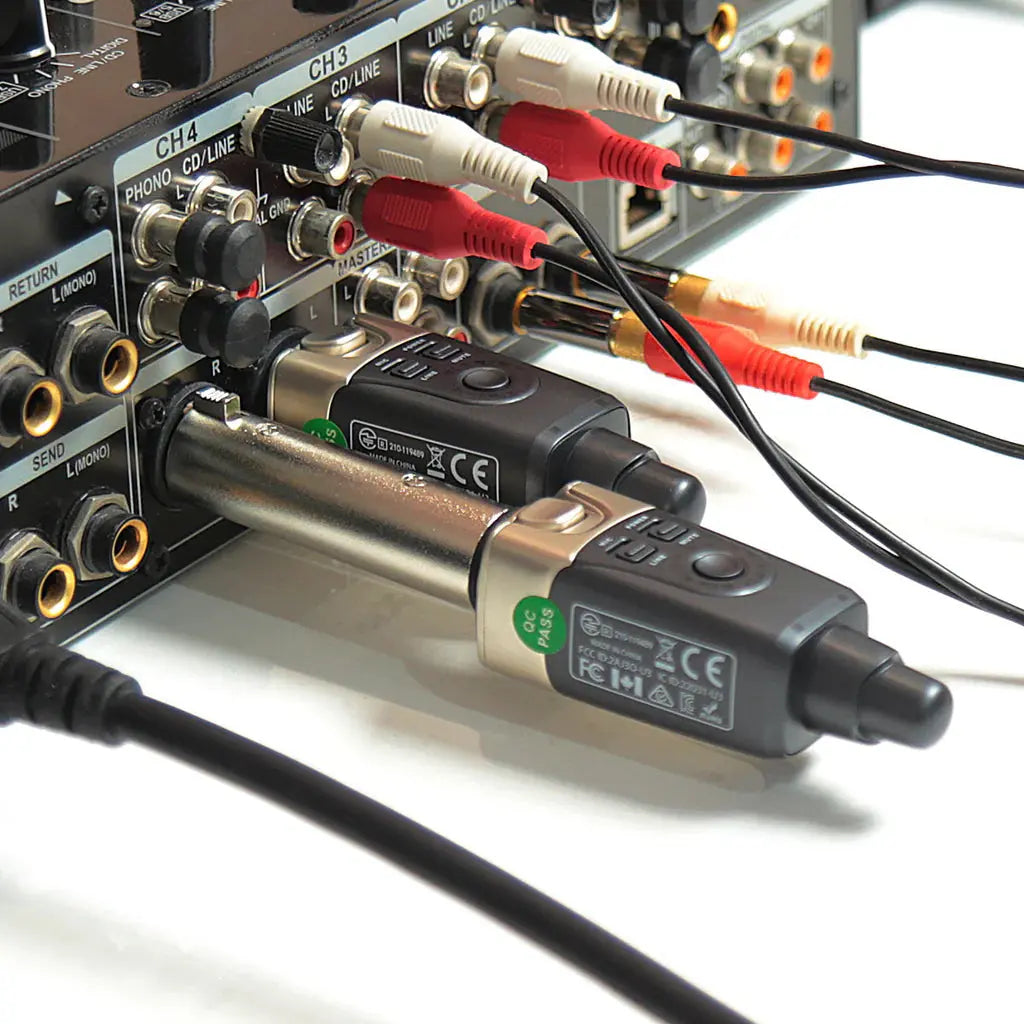

XLR Extender Adapter: Included for use with mixers where XLR outputs are close together.
Technical Specifications
-
Wireless Type: 2.4 GHz ISM worldwide open band.
-
Bit Depth / Sample Rate: 24-bit / 48 kHz.
-
Switchable Channels: 6.
-
Simultaneous Channels: 6.
-
Mode (Input): Mic / Line.
-
Frequency Response: 20 Hz – 20 kHz (-3dB).
-
Dynamic Range: 110 dB (-3 dB).
-
Signal-to-Noise Ratio: 110 dB.
-
Total Harmonic Distortion: 0.2%.
-
Latency: 5 ms.
-
Operating Range: 27.5 m / 90 ft (line-of-sight).
-
Battery Type: Rechargeable Lithium-ion (internal).
-
Battery Life: 5 hrs.
-
Charging Time: 2.5 hrs (full charge).
-
Charging Voltage: 5V (USB).
-
Transmitter Model: U3T.
-
Transmitter Connector: XLR (female).
-
Transmitter Dimensions: 31 x 29 x 98 mm / 3.9" x 1.2" x 1.1".
-
Transmitter Weight: 93 g / 3.3 oz.
-

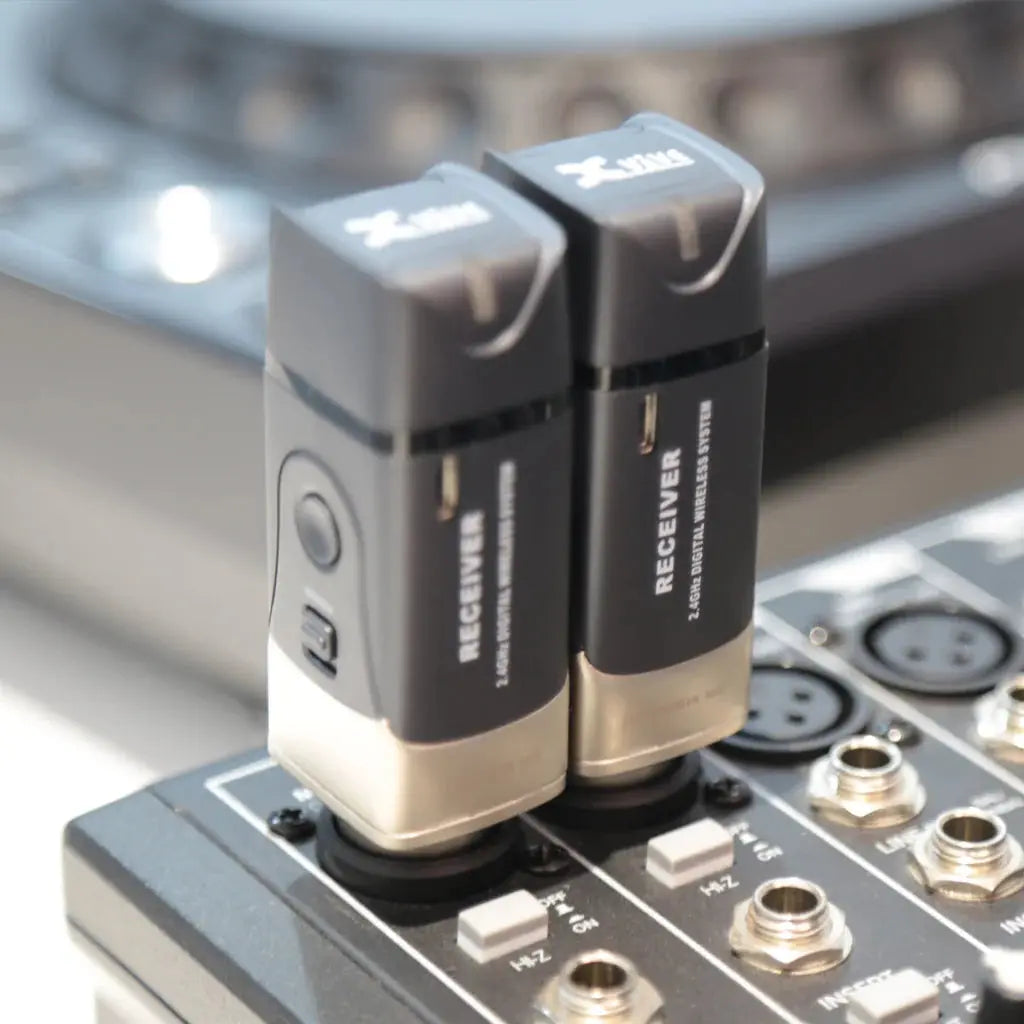

Receiver Model: U3R.
-
Receiver Connector: XLR (male).
-
Receiver Dimensions: 98 x 31 x 29 mm / 3.9" x 1.2" x 1.1".
-
Receiver Weight: 92 g / 3.2 oz.
Suitable For
- PA systems.
- DJ systems.
- Live sound engineers.
- Mobile DJs.
- Anyone needing to run audio wirelessly from a mixing console to powered main speakers or monitors.
- Users of dynamic microphones.

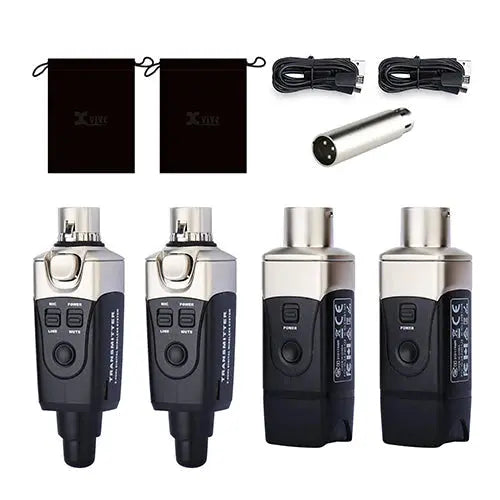

What's in the box
- 2 x U3 Transmitters.
- 2 x U3 Receivers.
- 2 x Carry Pouches.
- 2 x Dual USB Charging Cables.
- 1 x XLR Extender Adapter.
