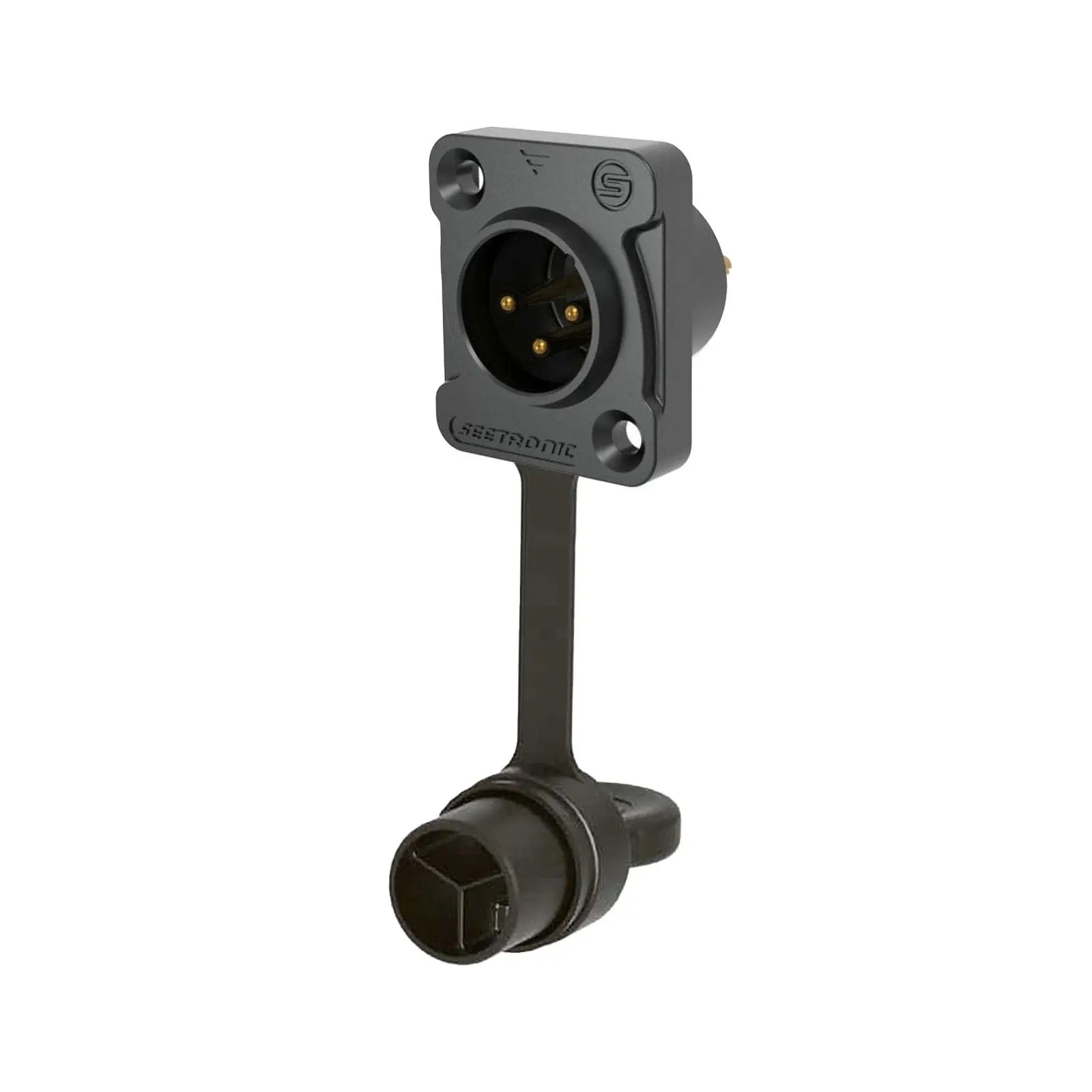

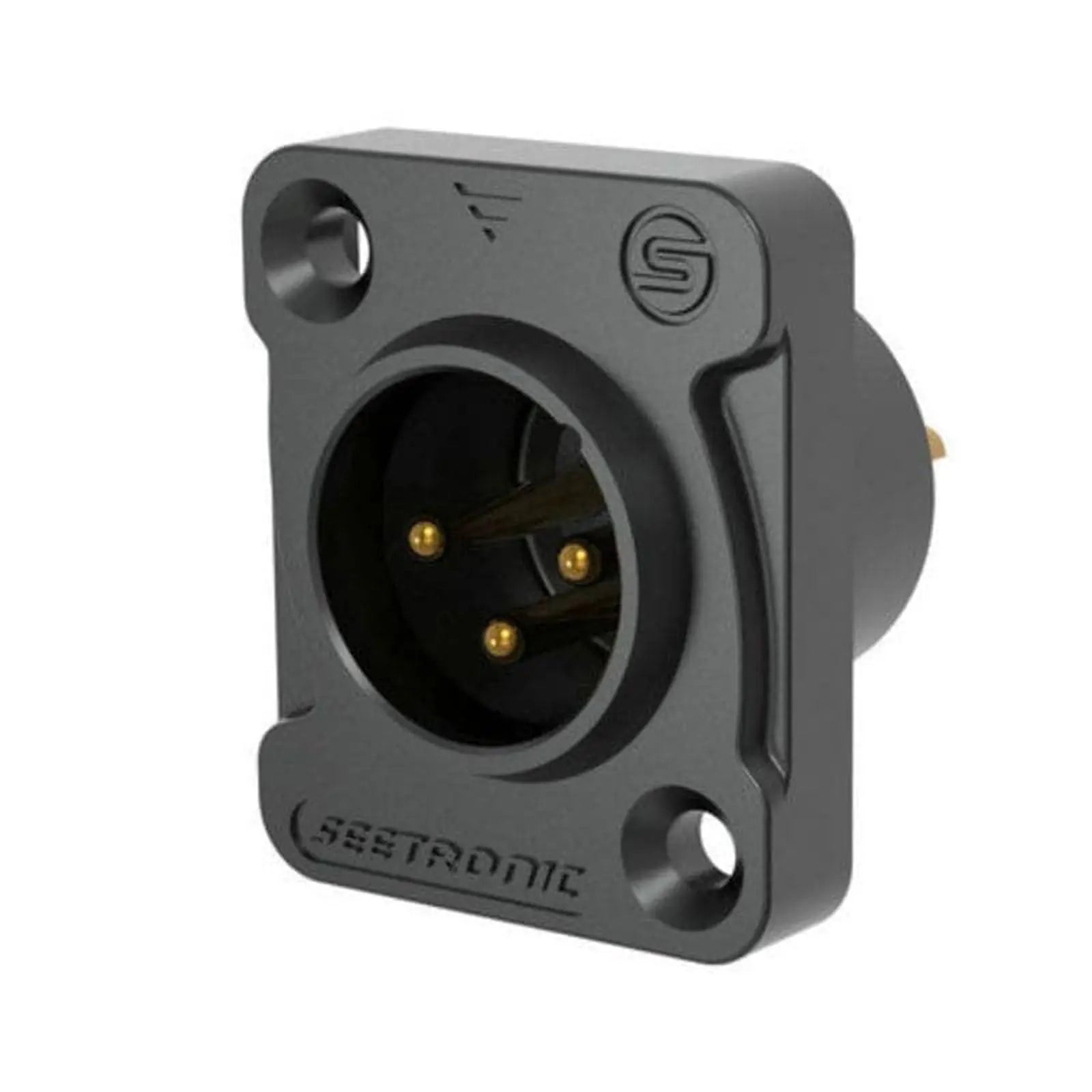

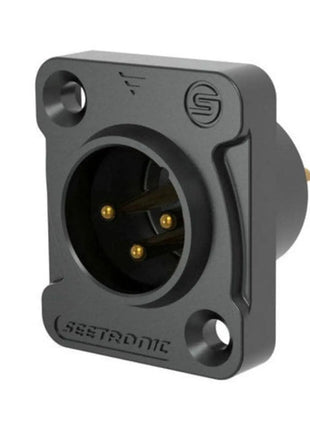

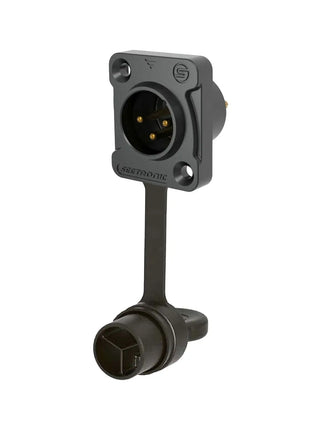

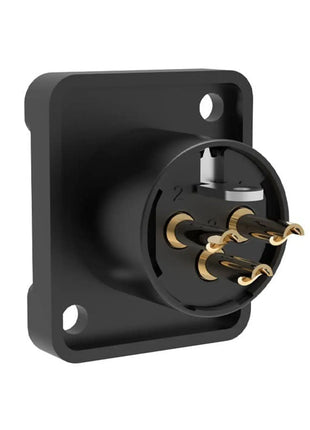

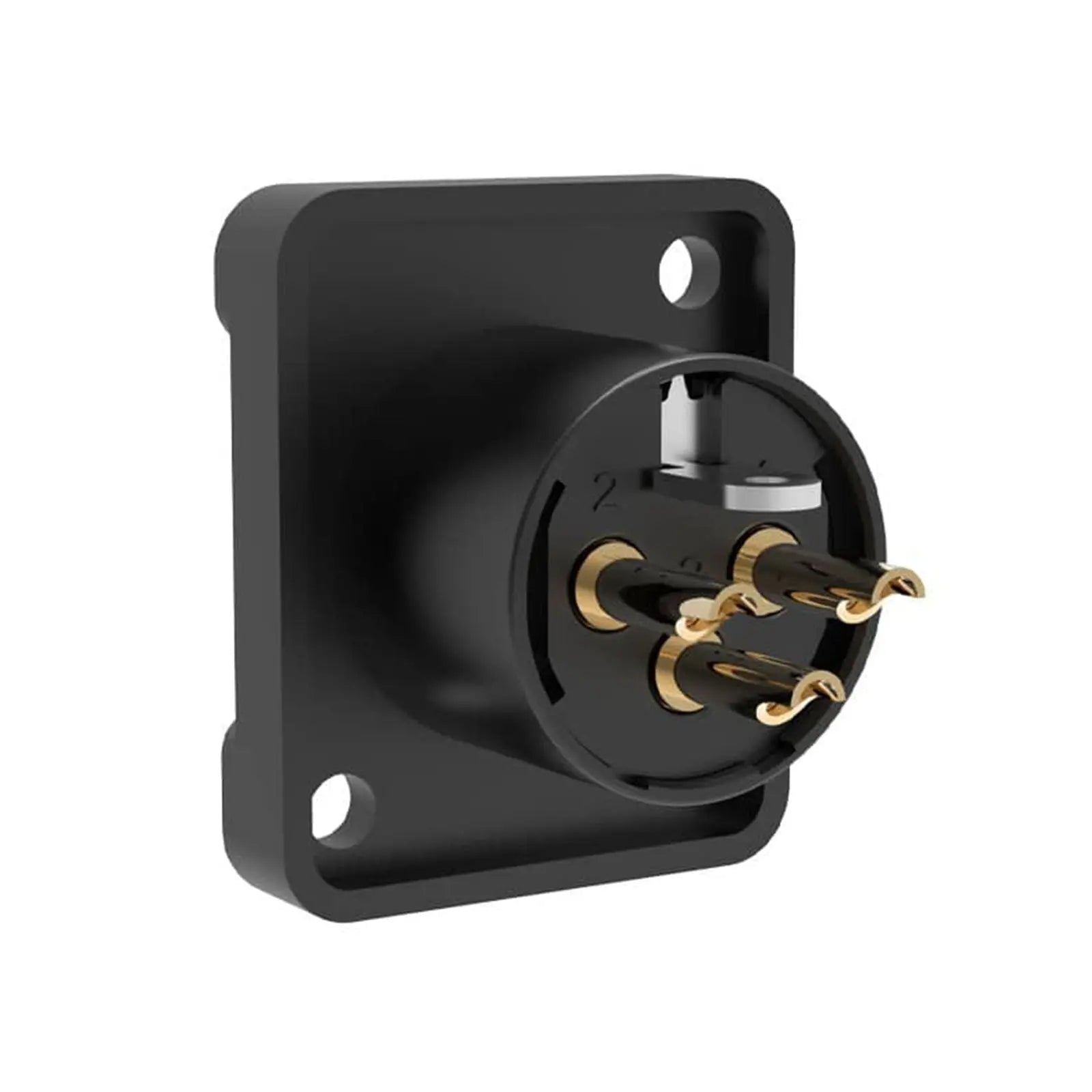

The Seetronic J3F2C‑W‑B‑67 is a rugged IP67-rated 3-pin male XLR chassis connector with a black-plated housing engineered for outdoor DMX lighting audio and industrial signal applications. Featuring gold-plated contacts a D-shaped zinc-alloy shell and an airtight rear seal that withstands 0.2 MPa this connector delivers superior protection against dust water and mechanical stress. Front-panel mounted and compliant with IEC standards it is ideal for demanding environments requiring reliable performance.
- IP67-rated for complete protection from dust and water when mated or capped
- Black-plated zinc-alloy D-shell for front-panel mounting
- Gold-plated copper alloy contacts with ≤ 5 mΩ contact resistance
- Rated at 16 A per contact and < 50 V
- Rear air-sealed design withstands 0.2 MPa without cover
- Durability of over 1000 mating cycles; ≤ 20 N insertion/withdrawal force
- Operating temperature range: –30 °C to +80 °C
- Flame-retardant housing (UL94 HB); compliant with IEC 61076‑2‑103 and IEC 68‑2‑20
