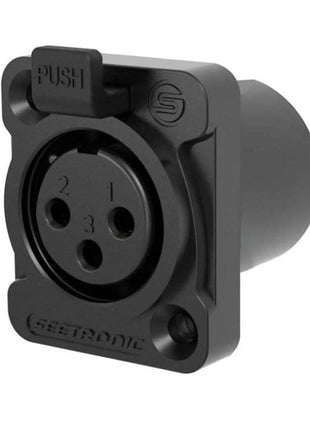

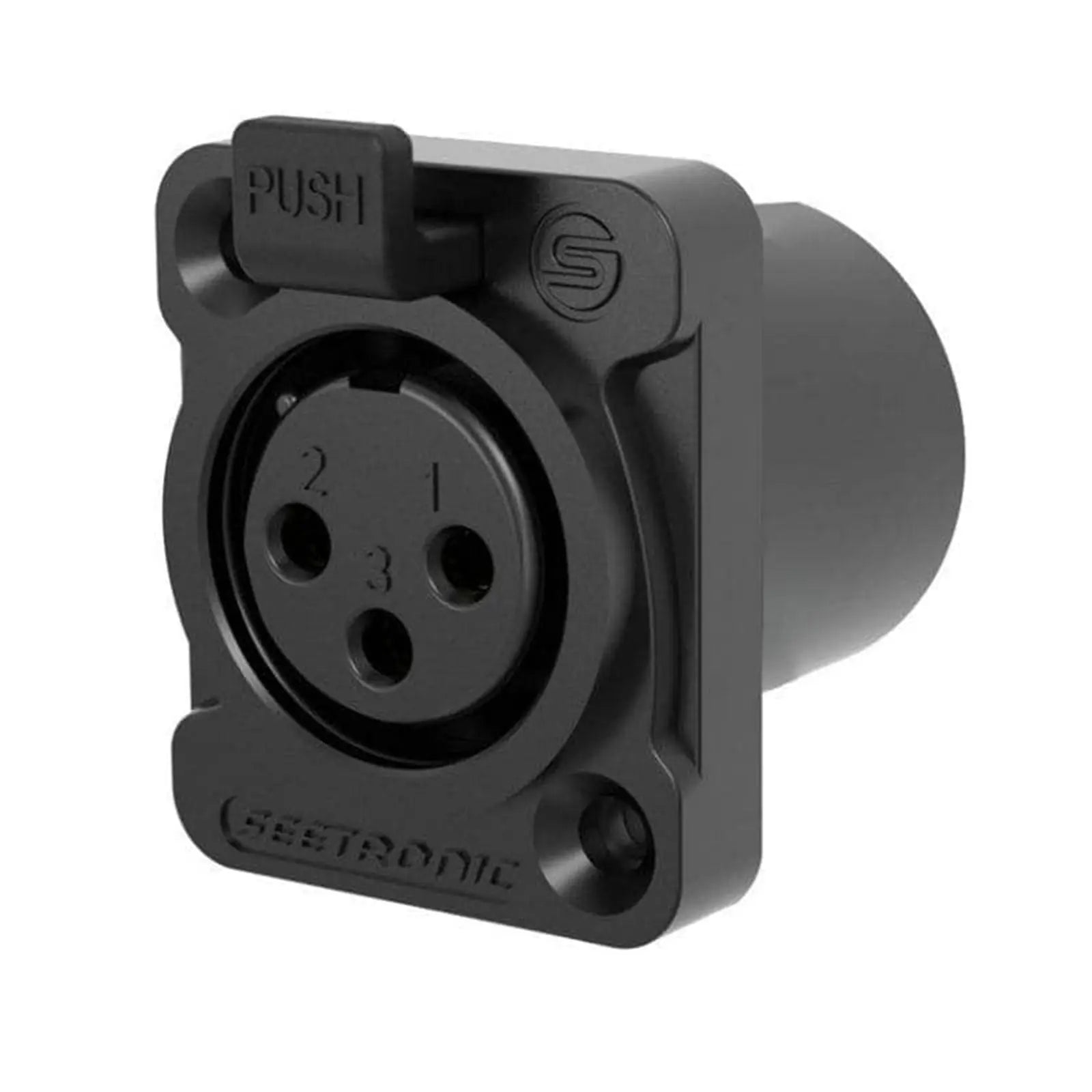

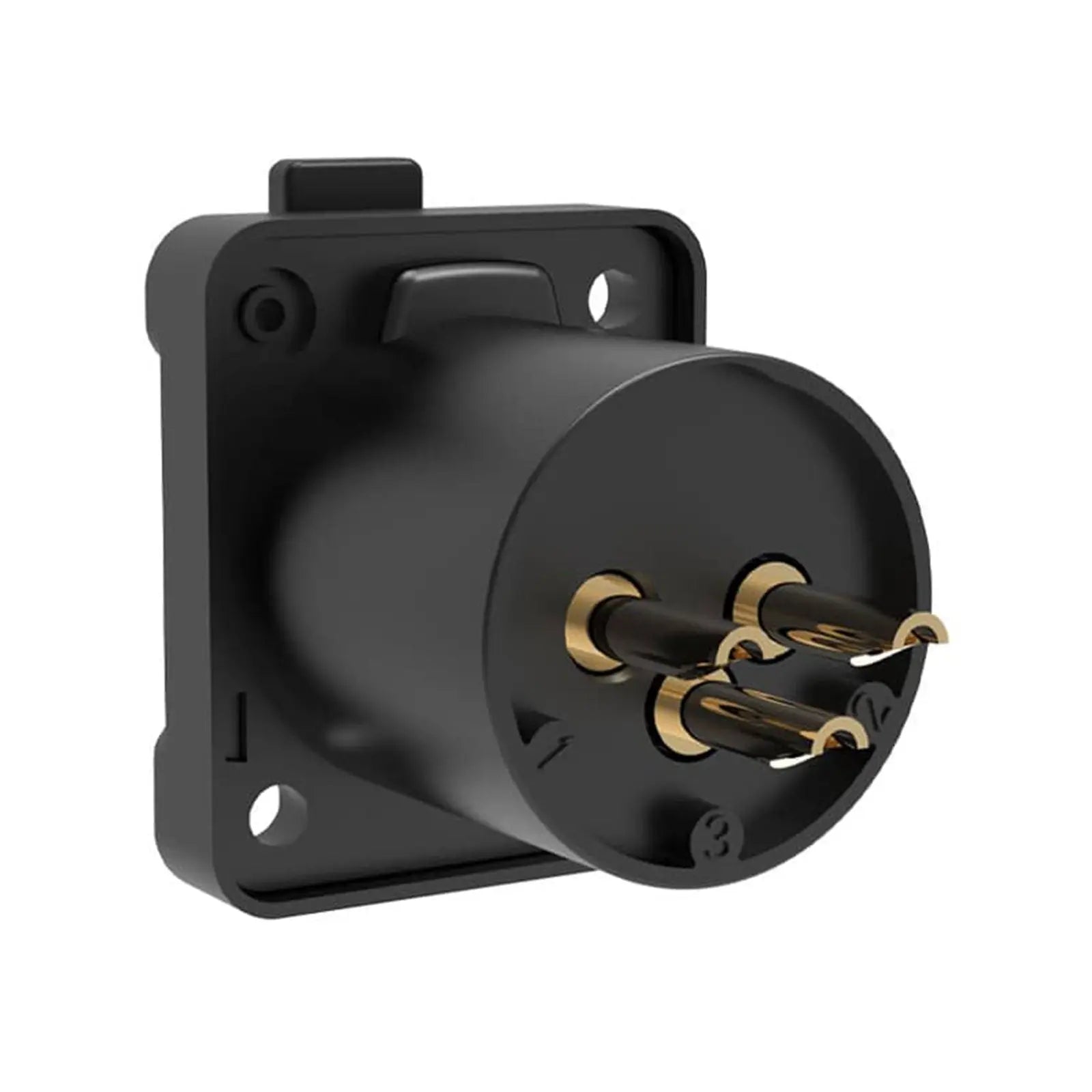

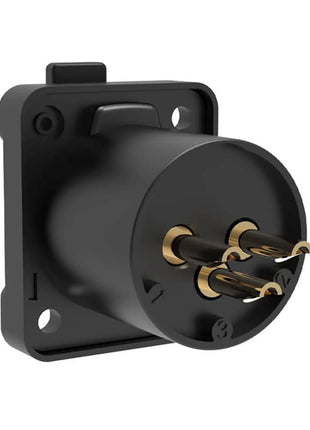

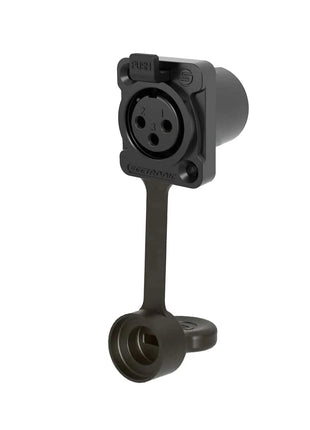

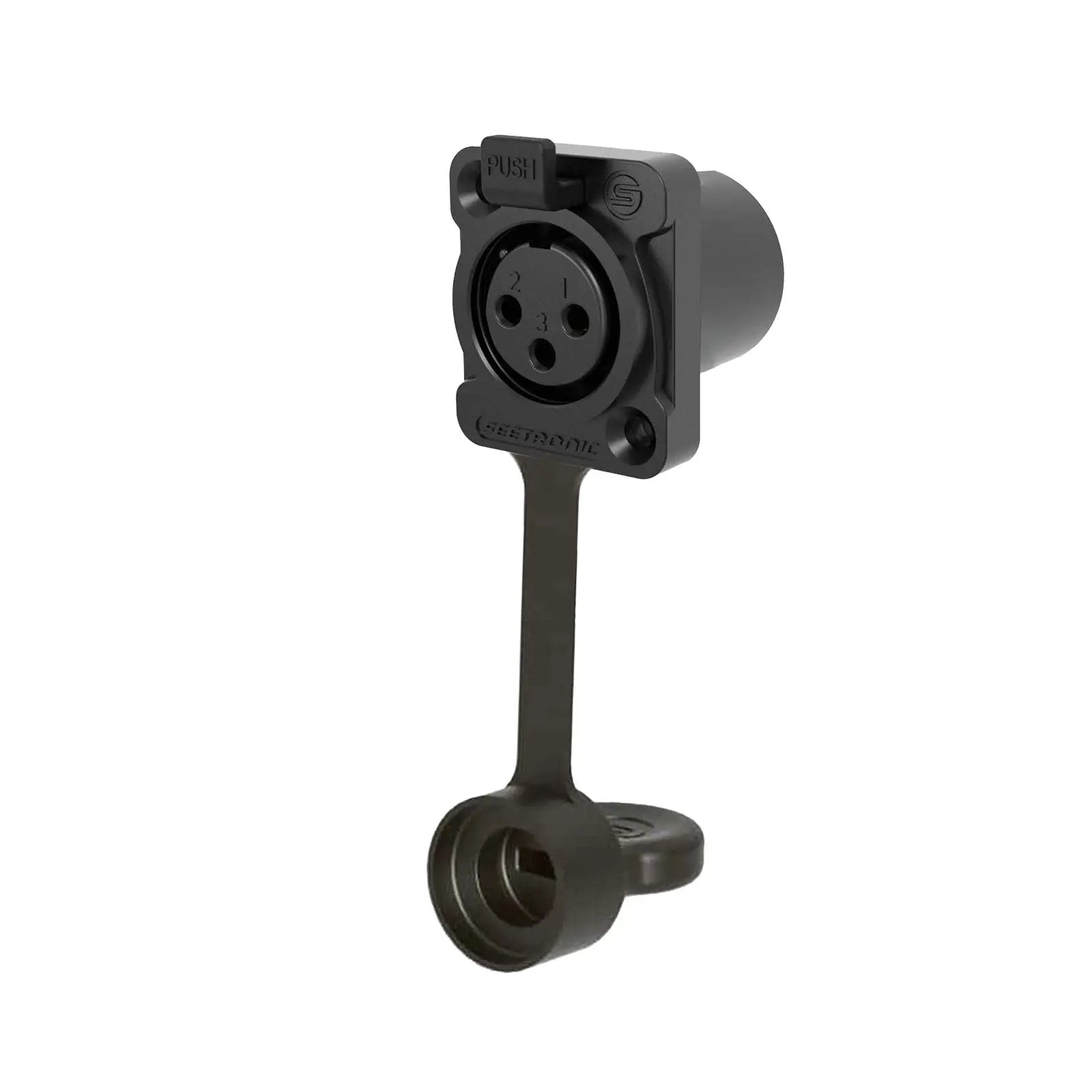

The Seetronic K3F2C‑W‑B‑67 is a high-grade IP67-rated 3-pin XLR female chassis connector featuring a sealed black zinc-alloy body that withstands water pressure up to 0.2 MPa. With gold-plated Cu-alloy contacts supporting up to 16 A this robust socket is ideal for outdoor broadcast and lighting applications requiring secure sealed audio connections.
- IP67-rated when used with matching plug/cap for dust and immersion protection
- Black zinc-alloy body with sealed chassis design (0.2 MPa air-tight test)
- Gold-plated Cu-alloy contacts; contact resistance ≤ 5 mΩ
- Rated current per contact: 16 A; voltage < 50 V
- Durable mechanical life with over 1000 mating cycles
- Operating temp: −30 °C to +80 °C; UL94 HB flame-retardant housing
- Fully compliant with IEC 61076‑2‑103 and IEC 68‑2‑20 standards
