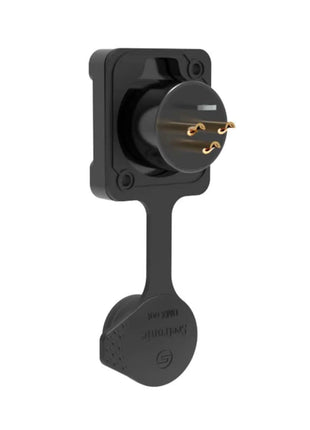

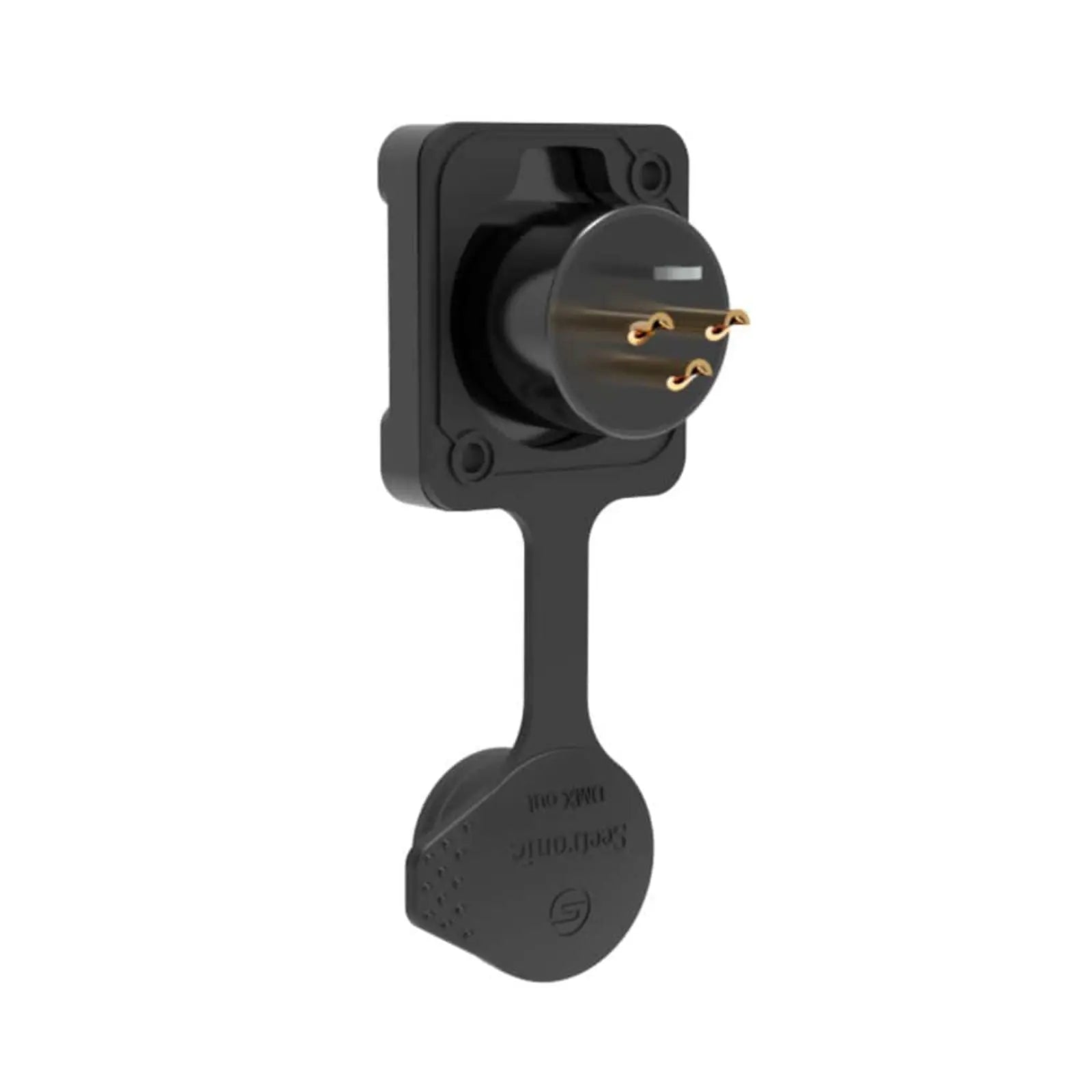

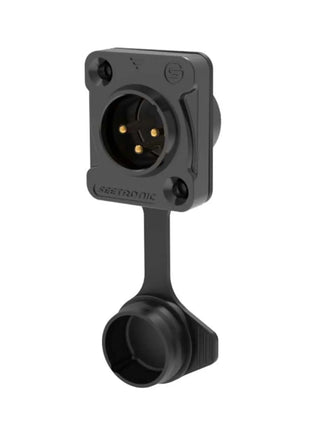

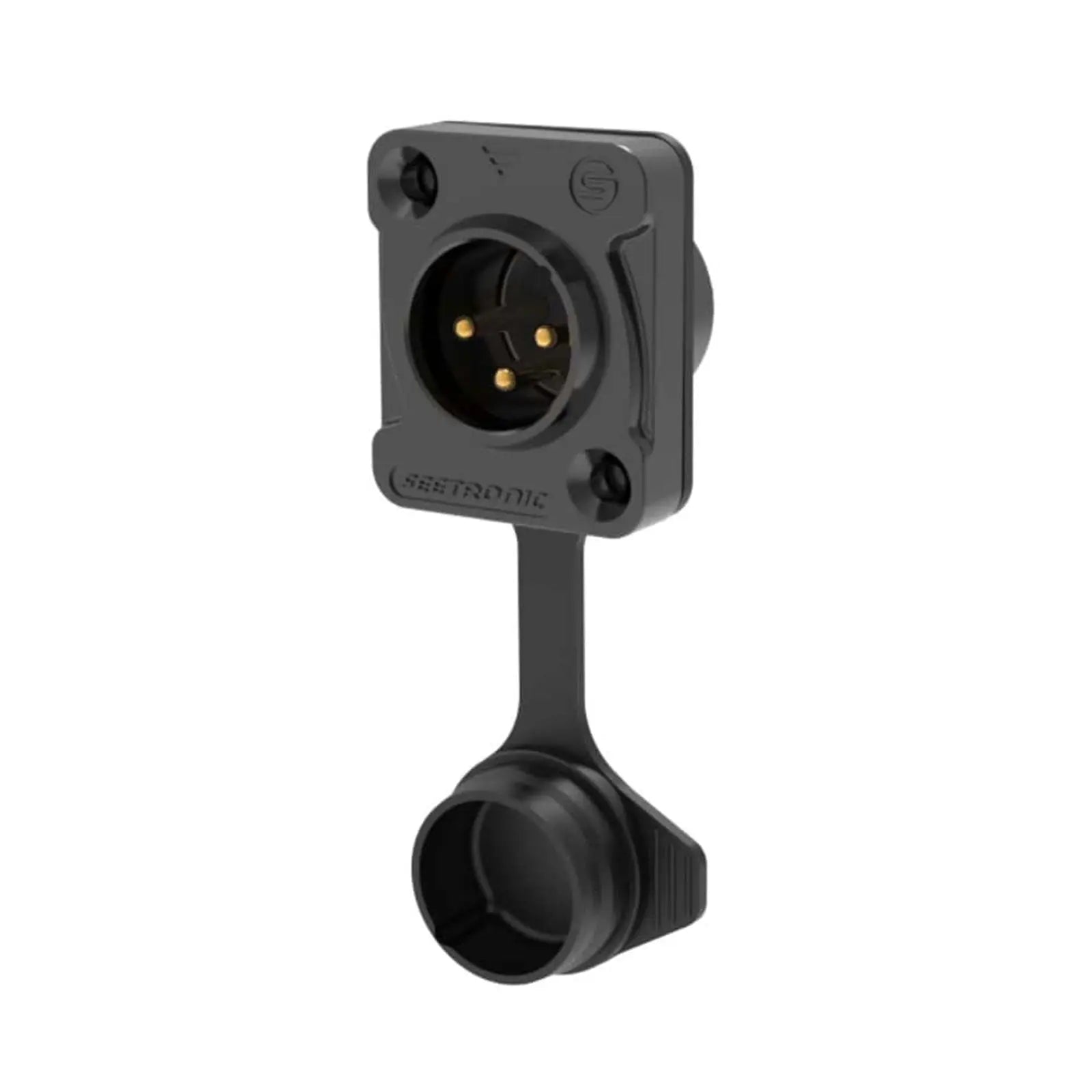

The Seetronic J3F2C‑W‑B is the industry's first IP65-rated front-mount 3‑pin XLR male chassis connector. Designed for demanding environments it features a black zinc-alloy D-shell gold-plated contacts airtight rear sealing and a pre-attached hinged protective cap. Engineered for outdoor lighting and audio systems it delivers secure and splash-resistant connectivity in panel-mount applications. IP65-rated when capped or mated—dust-tight and splash-resistant Black-plated zinc-alloy D-shell housing; front-panel mounting Gold-plated copper-alloy contacts with ≤ 5 mΩ contact resistance Capacitance ≤ 4 pF for clear and stable signal transmission Airtight rear sealing withstands 0.2 MPa air pressure Rated for 16 A per contact; < 50 V operating voltage Durability: > 1000 mating cycles; insertion/withdrawal force ≤ 20 N Operating temperature: –30 °C to +80 °C Flame rating: UL94 HB; compliant with IEC 61076‑2‑103 and IEC 68‑2‑20
