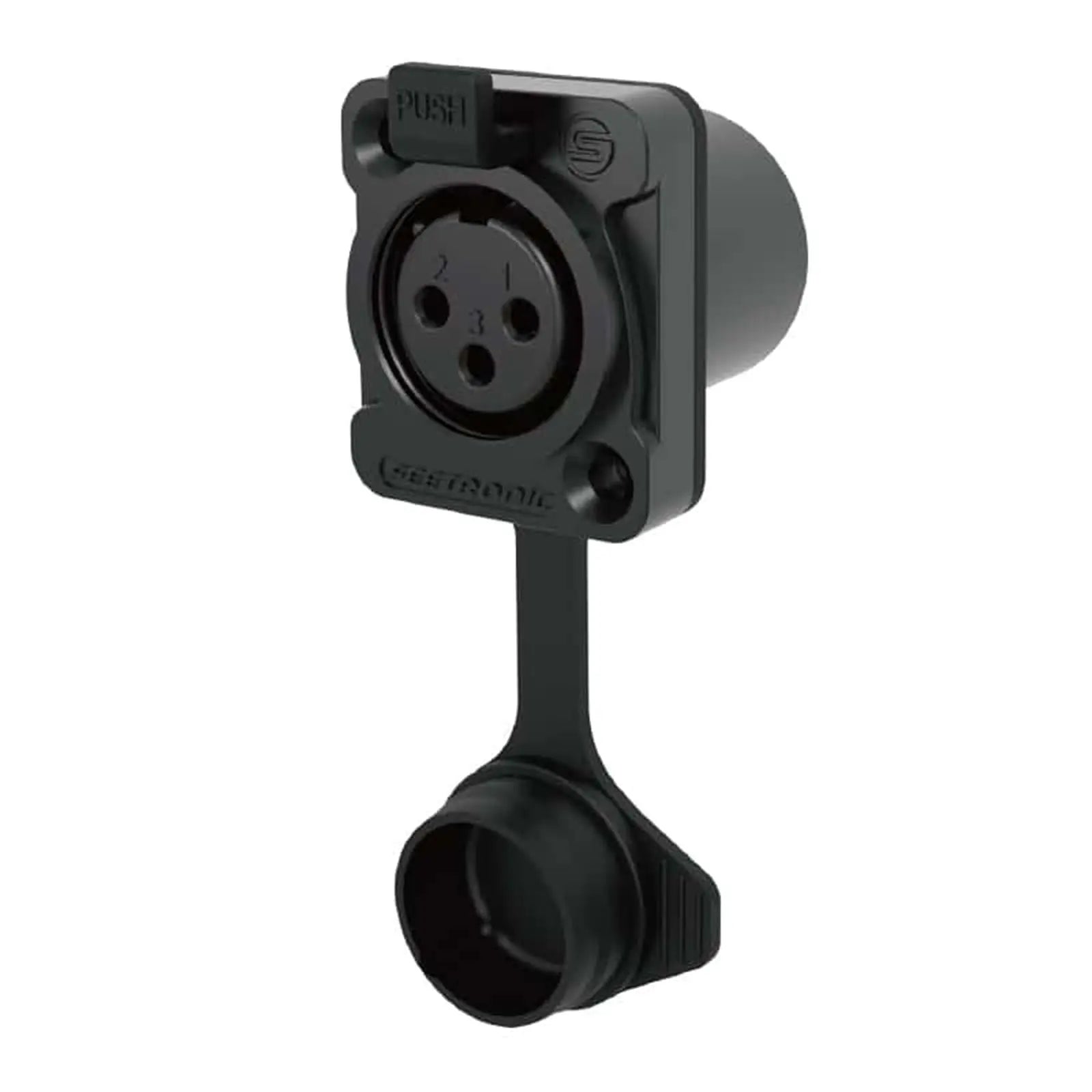

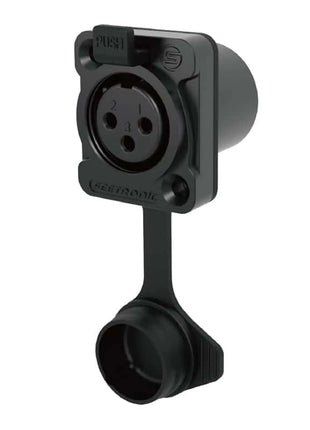

The Seetronic K3F2C‑W‑B is the industry’s first front-install 3-pin XLR female chassis connector with an IP65 waterproof rating. Featuring a black-plated die-cast zinc D-size shell hinged protective cap gold-plated contacts and air-tight rear sealing rated to 0.2 MPa it delivers reliable protection in dusty or damp environments—ideal for outdoor lighting stage rigs and weather-resistant audio setups.
- IP65 rated when capped or mated—dust-tight and splash-resistant
- Black zinc-alloy D-shell housing; installs from front panel
- Hinged locking cap for added environmental protection
- Gold-plated copper-alloy contacts; ≤ 5 mΩ contact resistance
- Capacitance ≤ 4 pF for clean signal integrity
- Rear sealed design withstands 0.2 MPa air pressure (even without cap)
- Rated for 16 A per contact; voltage < 50 V
- ≥ 1000 mating cycles; insertion/withdrawal force ≤ 20 N
- Operating temperature: –30 °C to +80 °C
- Flame retardant to UL94 HB; compliant with IEC 61076‑2‑103
