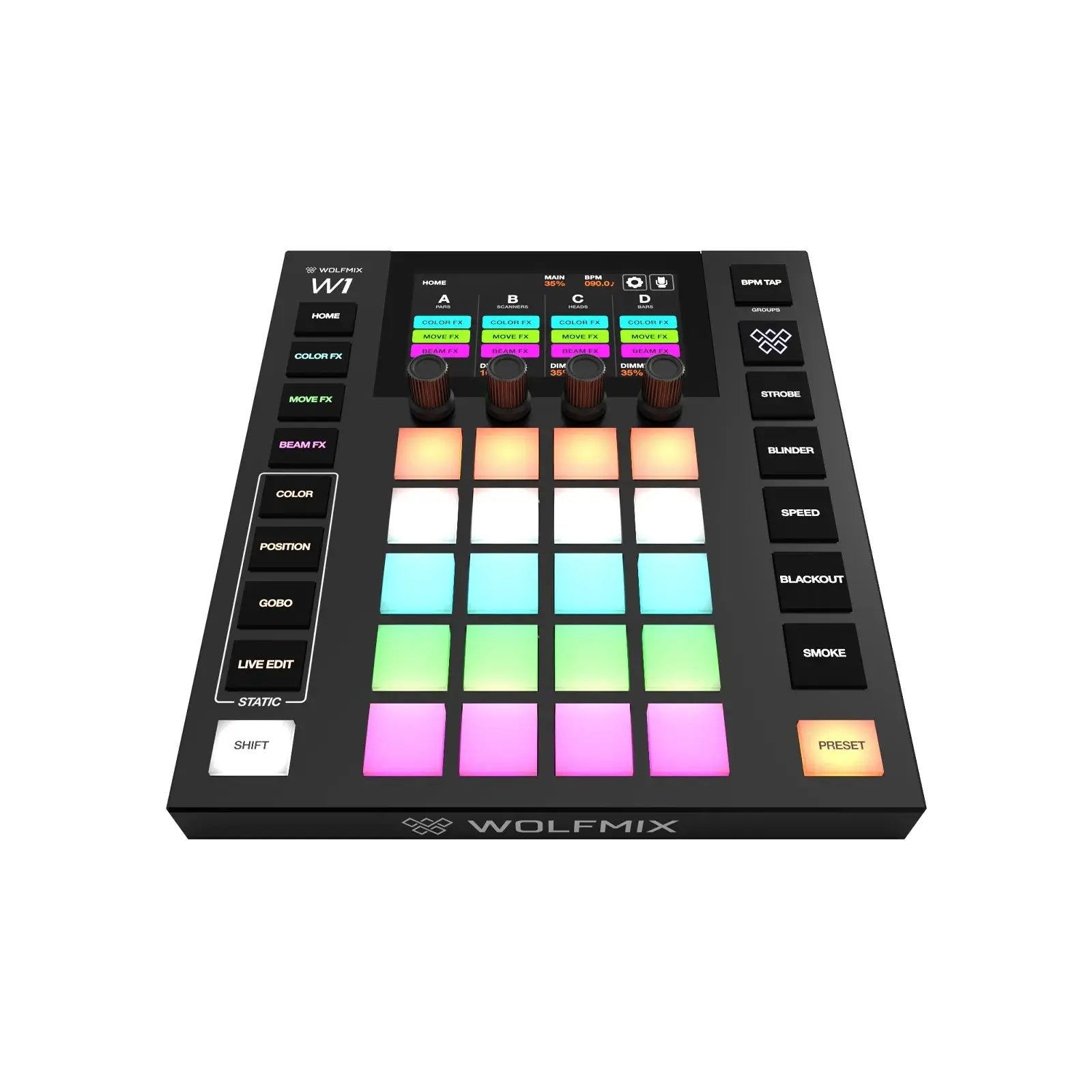

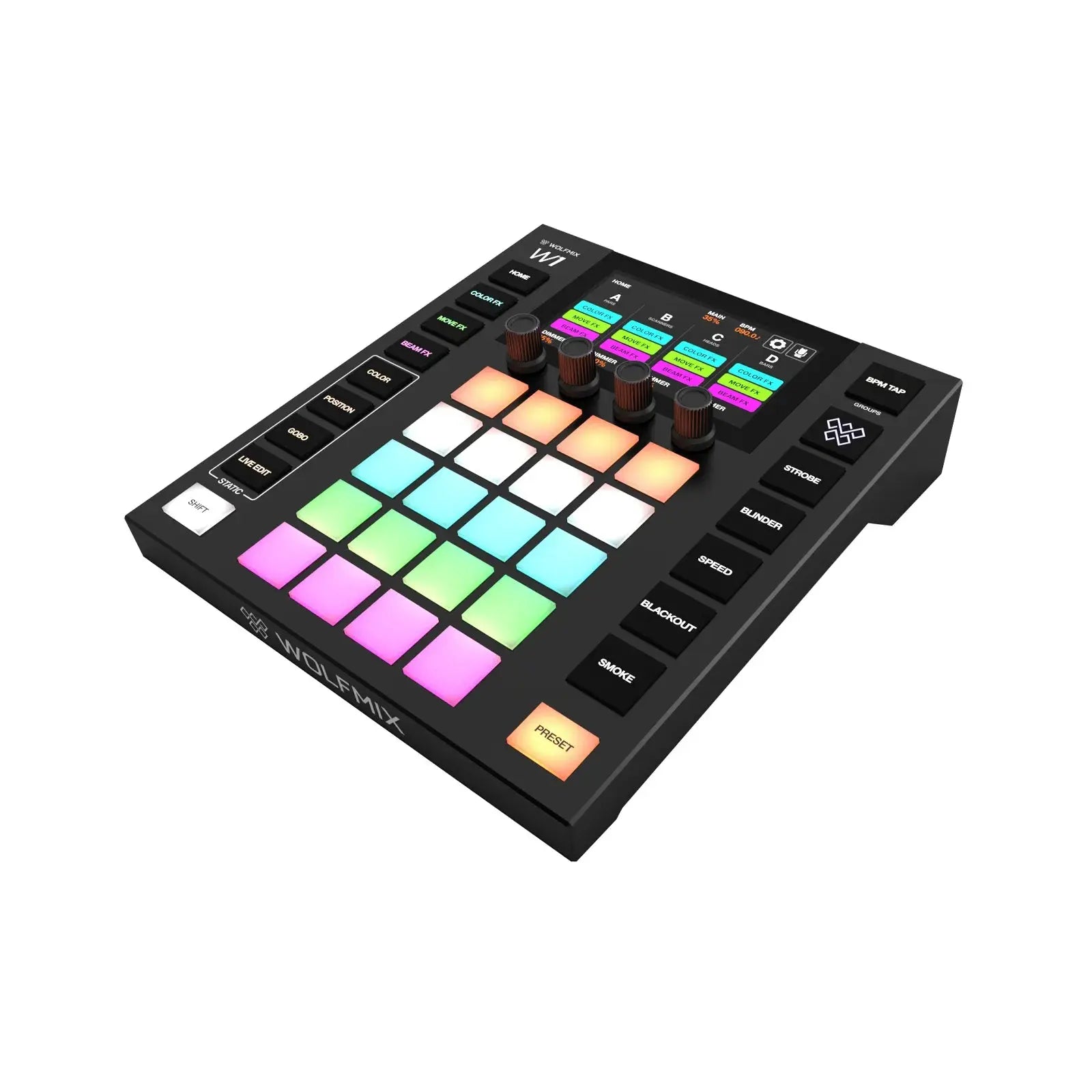

Wolfmix W1 MK3 | Standalone Professional DMX Lighting Controller
Total control, no computer required. The Wolfmix W1 MK3 puts the power of a professional lighting console into a compact, performance-ready unit. Featuring a dedicated FX engine for Colour, Move, and Beam effects, it allows you to create complex, high-energy light shows in seconds. With 25fps processing, your moving heads, LED bars, and scanners will perform with studio-smooth precision. Whether you are synchronizing to the beat via the built-in microphone, 3.5mm line-in, or advanced Ableton Link integration, the W1 MK3 ensures your lighting is always perfectly in time with the music.
Why Choose the Wolfmix W1 MK3?
-
Standalone Performance: Create and run advanced light shows directly from the hardware—no laptop or software crashes to worry about.
-
Quad Universe Support: Manage up to four DMX universes for expansive lighting rigs (2 universes included, 2 additional available as upgrades).
-
Advanced FX Racks: Dedicated engines for Move, Colour, and Beam effects allow for instant customization and layered programming.
-
Seamless Music Sync: Features an internal microphone, 3.5mm line-in, and support for Ableton Link, OS2L, and BPM tap for perfect timing.
-
Massive Fixture Library: Thousands of pre-built profiles are included, with access to over 15,000 more via the dedicated companion app.
-
Custom Fixture Builder: Easily create your own profiles for specialized or multi-effect fixtures directly on the unit.
-
Pro-Grade Connectivity: Equipped with two 3-pin and one 5-pin DMX outputs, plus a versatile 5-pin DMX input/output.
-
Tactile Performance Control: High-quality encoders and 37 backlit silicone pads provide a responsive, professional feel during live sets.
-
MIDI Integration: Connect MIDI controllers via the USB-A port to expand your physical control options.
Professional Standalone Logic
The Core of Your Show The Wolfmix W1 MK3 is designed to grow with your rig. The WLINK feature allows you to connect two Wolfmix units together, giving you twice the physical control and up to 8 universes of DMX power. Its high-speed internal processor handles complex calculations for hundreds of fixtures simultaneously without any lag.
Cloud-Ready Management While it operates independently on stage, the W1 MK3 connects to a powerful companion app for easy project backups, firmware updates, and fixture profile management. This ensures your show data is always safe and your hardware stays up to date with the latest features.
Technical Specifications
-
Processing Speed: 25 fps FX engine
-

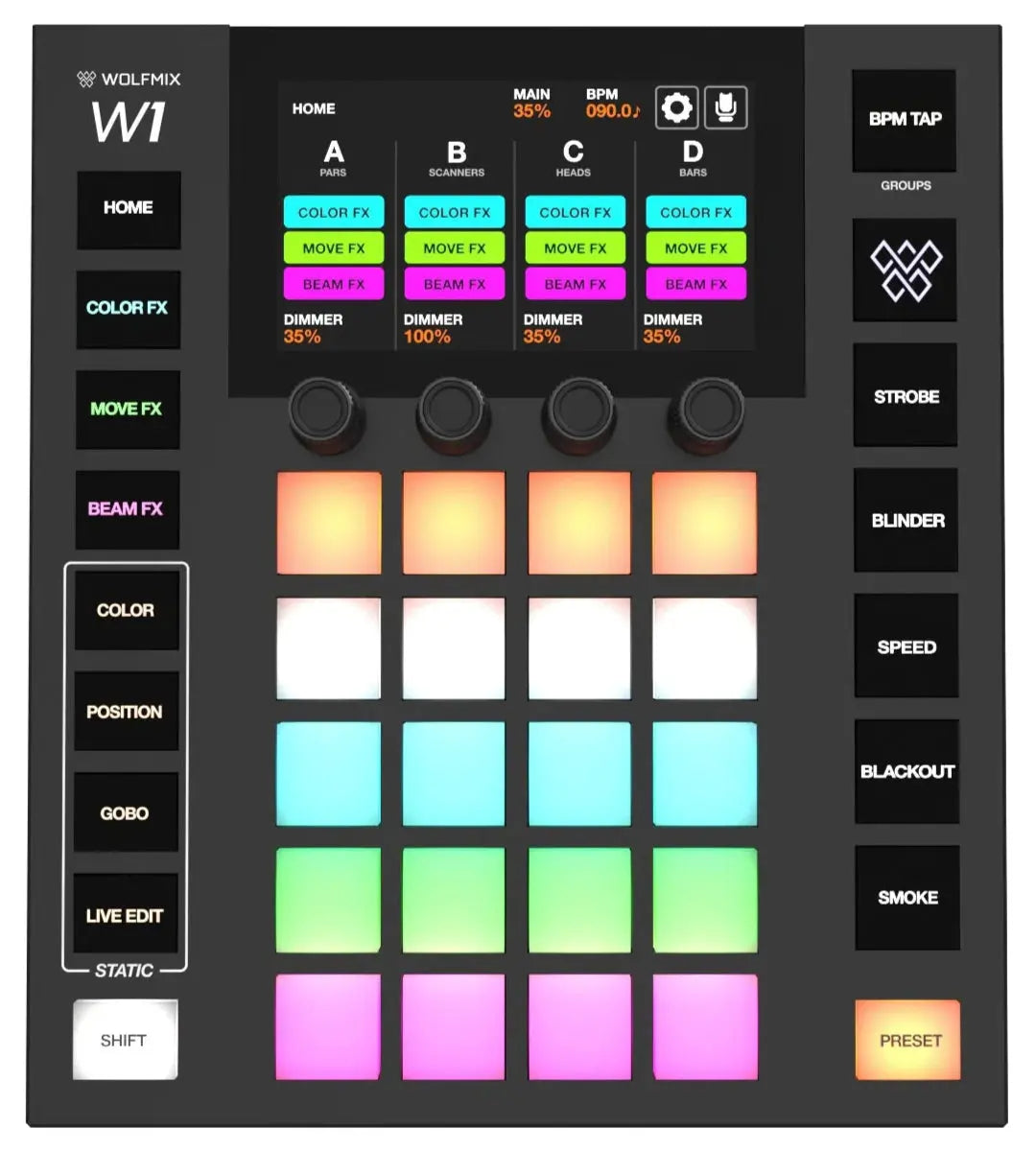

Display: 4-inch Capacitive Touchscreen
-
Controls: 4 Rotary Encoders and 37 Backlit Pads
-

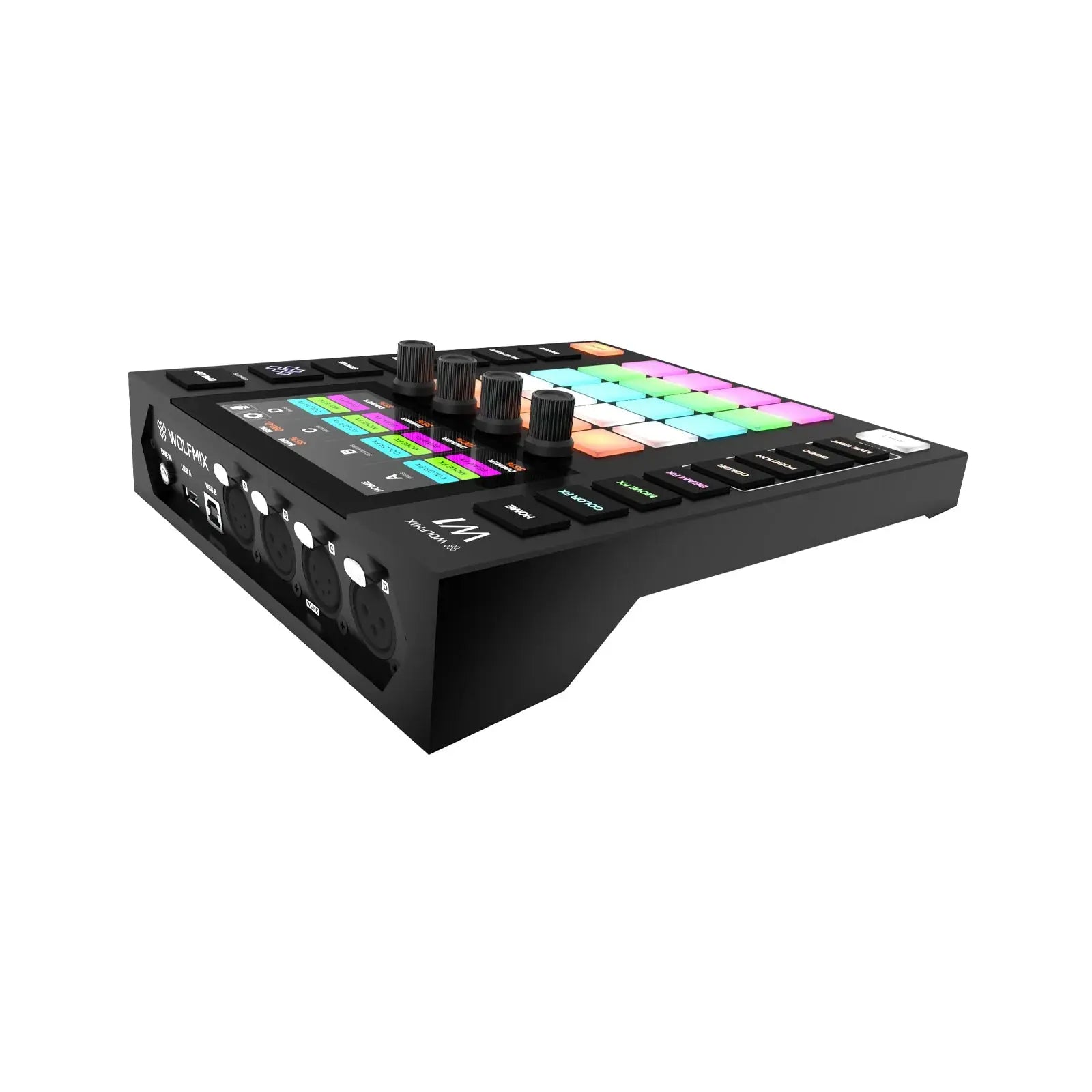

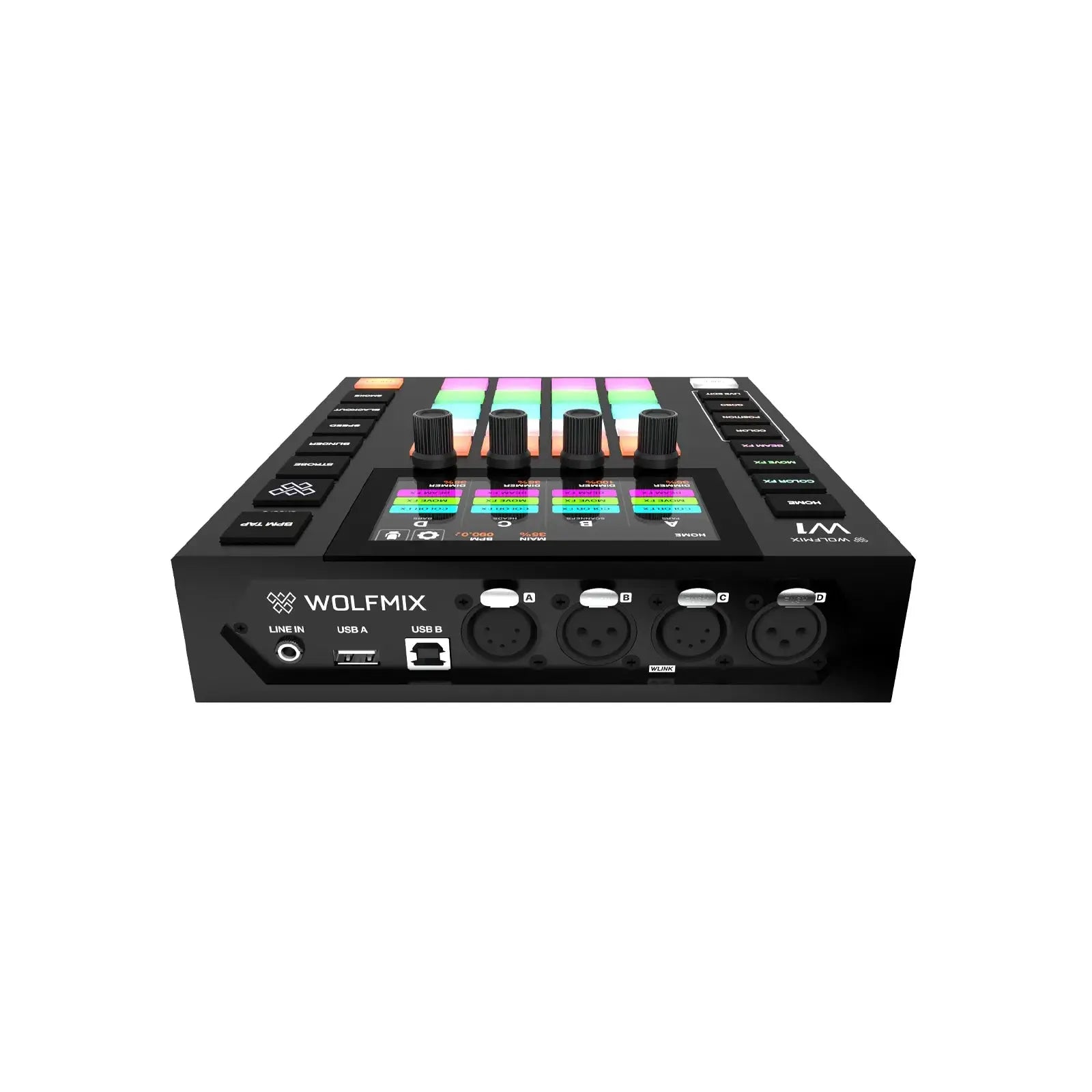

DMX Outputs: 2 x 3-pin and 1 x 5-pin
-
DMX Input/Output: 1 x 5-pin (WLINK)
-
Audio Input: Integrated Microphone and 3.5mm Line-In
-
Data Ports: USB-C (Power) and USB-A (MIDI/WLINK)
-
Processor: 220Mhz with 16MB RAM
-
Dimensions: 195 x 220 x 62 mm
-
Weight: 1.07 kg
What is In The Box?
Why Buy From djkit?
At djkit, we recommend the Wolfmix W1 MK3 as the ultimate solution for the "non-lighting" expert. It takes the complicated world of DMX and makes it visual, tactile, and incredibly fun. With our fast shipping and specialist technical support, we help you master your light show so you can spend more time focusing on your performance.
