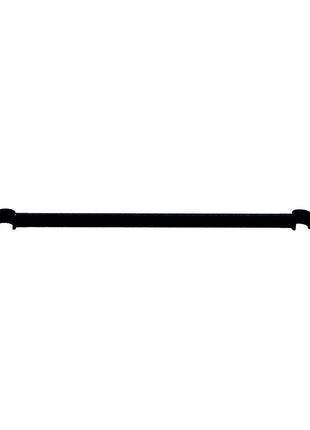

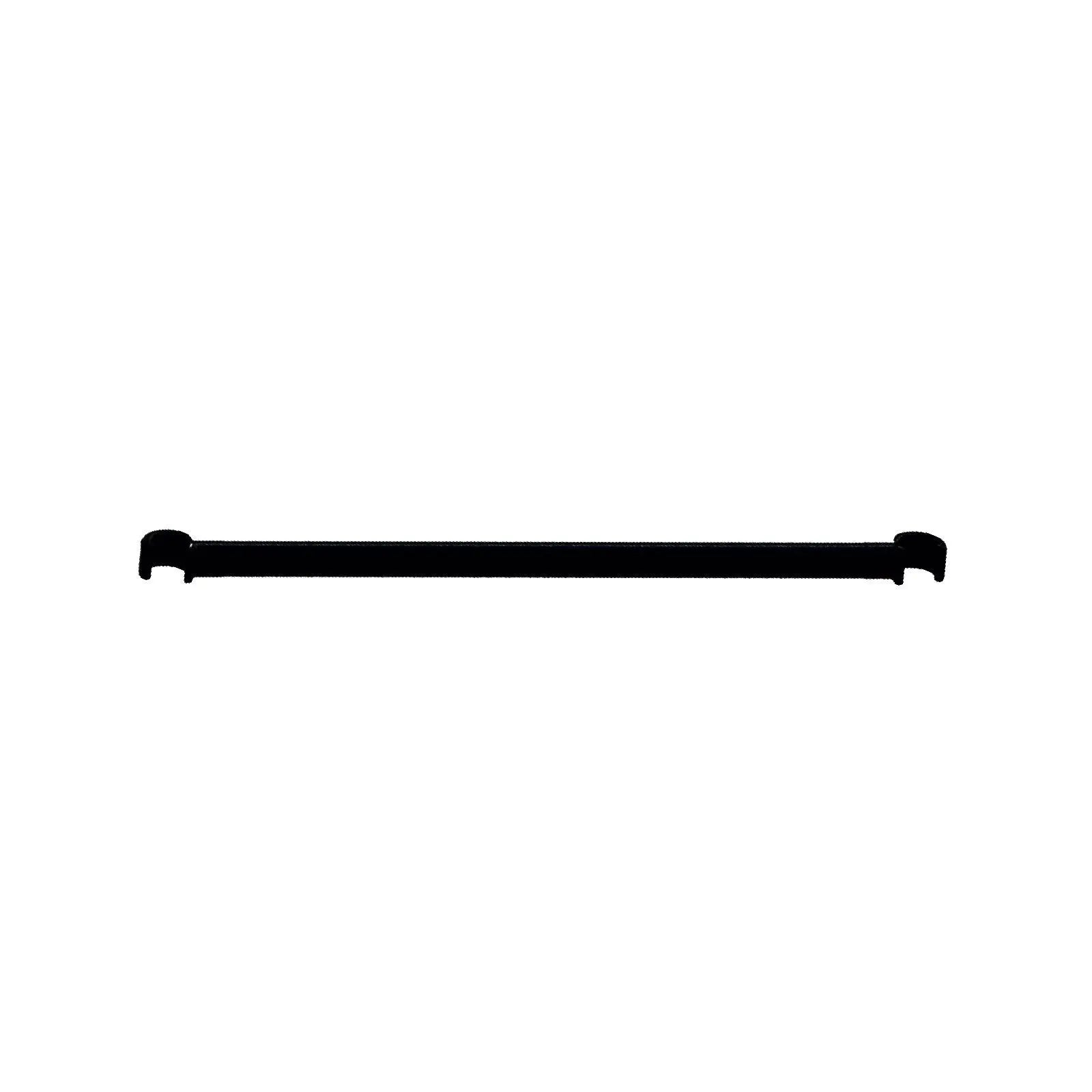

The VMB LED Wall Support (LWS) system comprises of a series of modular components to enable the simple design of LED wall supports using a minimum number of different parts. Ideal for permanent or temporary floor standing installations in exhibitions conferences presentations and museums. Working from the floor upwards the steel base is constructed from a front section (LW-B1) which has two height adjustable feet and rear section (LW-B2) which has an adjustable spindle to ensure accurate levelling. Additionally there are two conicals to attach the vertical sections which are available as 1.0m (LW-T1) 0.75m (LW-T0.75) and 0.5m (LW-T0.5) black aluminium ladders. With a simple conical connection these ladders are combined to achieve the desired height. The attachment of screens is simple using the boom arm fitted with a universal connection plate (LW-AR1). A range of accessories is available to extend the screen with further rows of panels. LW-U1 joins adjacent bases together so that the screen is a flat plane whereas the LW-UA5 allows the screen to be curved by 5 degrees. For extra stability the LW-AR2 is a telescopic reinforcement bar between stacks and the LW-AR3 is a fixed reinforcement bar. The LW-P1/LW-P2 is a counterweight/stage weight support which straddles the rear section of the base plate allowing a variable quantity of weights to suit the screen size. Modular component based system Black powder coated Robust metal construction Easy to assemble
