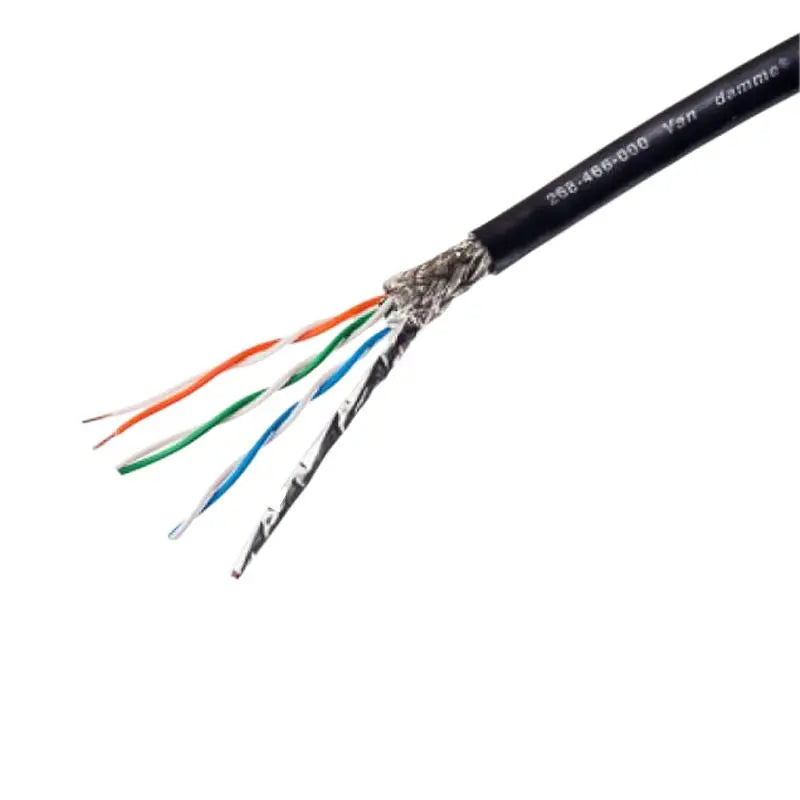

The Van Damme TourCat Category 6A stranded conductor cables have been designed to provide 10G performance in the field and also to ensure plenty of headroom when used for the common Gigabit and 100MBit protocols encountered in professional audio visual applications. Van Damme TourCat Cat 6A S/FTP stranded conductor is a flexible PVC jacketed 26AWG stranded conductor cable with individually screened pairs and a 75% coverage overall braided screen. Fluke DTX1800 tested for Category 6A channel performance up to 60 metres and Category 5E 1000BaseT to 75 metres. Flexible and robust for touring and dynamic use Ideal for use with the Neutrik Cat 6A Ethercon Meets the requirements of Category 6A TIA/EIA-568-C-2 and ISO/IEC 11801 Class EA Suitable for Gigabit and 100Mbit to a maximum recommended channel link distance of 60 metres Tested using a Fluke DTX1800 cable verifier Conductor: 7 x 0.16mm bare oxygen free copper Conductor size: 7 x 0.16mm 0.14mm² (AWG 26/7) Dielectric material: Skin/Foam/Skin Polyethylene Dielectric Diameter: 1.02 ± 0.10mm Colour coding: Pair 1 - White/Blue Pair 2 - White/Orange Pair 3 - White/Green Pair 4 - White/Brown Screen: Aluminium/Polyester foil > 125% coverage Overall screen: 0.10 x 16 x 9 tinned copper braid 75 ± 5% coverage Jacket material: Flexible PVC Jet Black RAL 9005 Overall diameter: 6.50 ± 0.20mm Bend radius: 10 x overall diameter Operating temperature: -20 to +80°C
