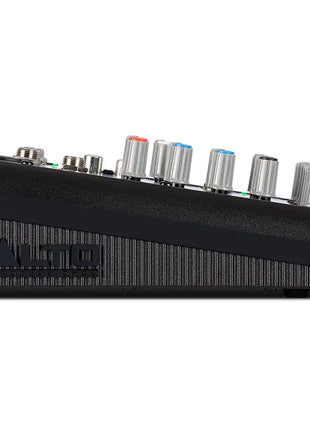

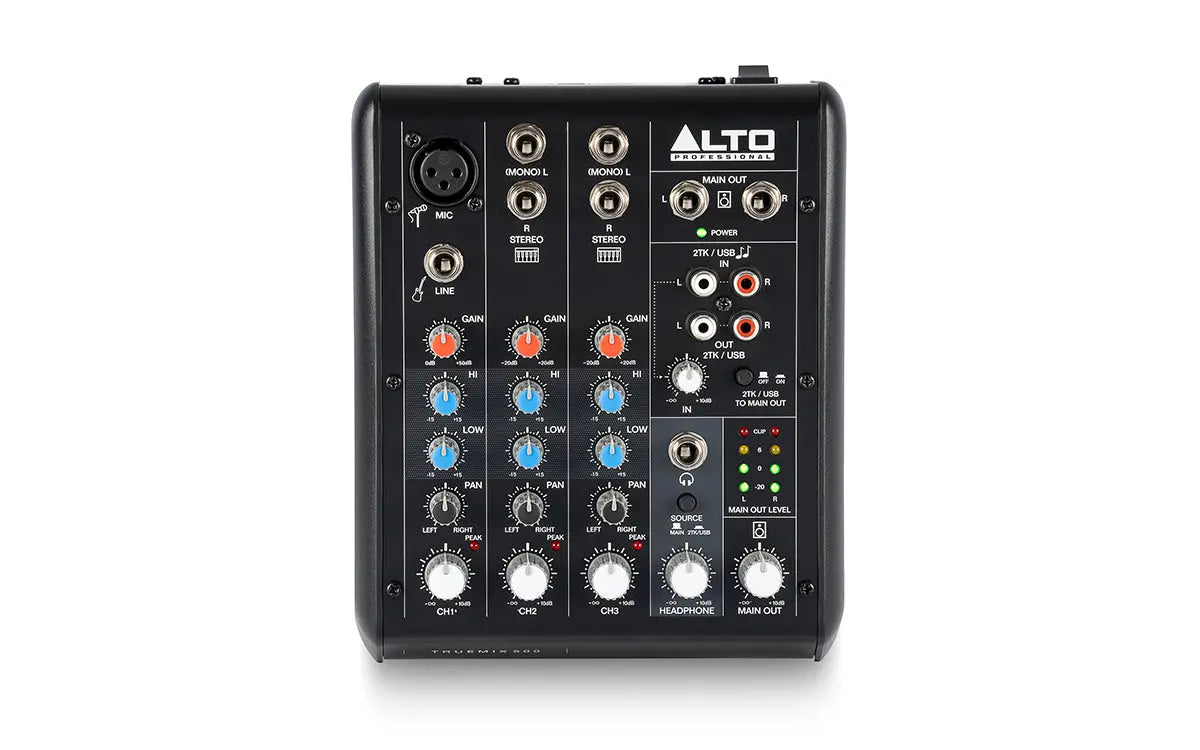

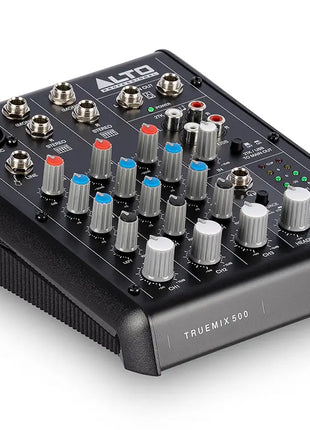

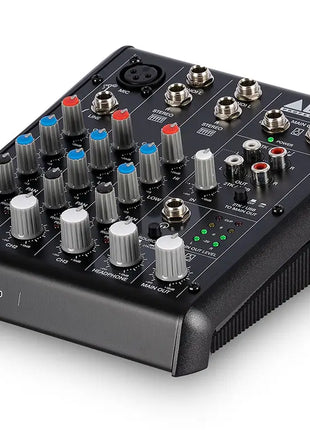

Alto Professional TrueMix 500 | 5-Channel Analog Mixer with USB

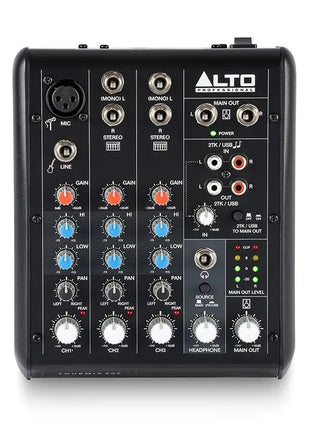

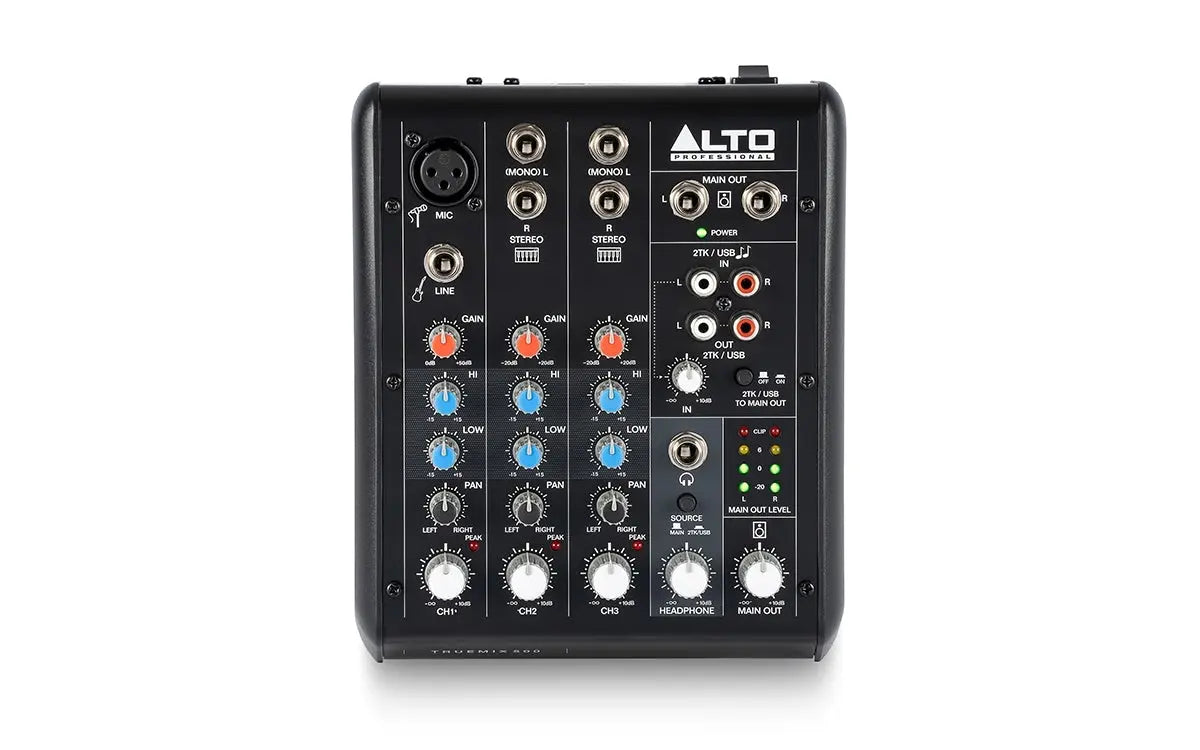

No-nonsense mixing on the go. The TrueMix 500 features a built-in stereo USB audio interface that allows for easy recording and playback with both Windows and macOS—no drivers required. It is equipped with five analog inputs, including a dedicated mic channel with an XLR input and 18V phantom power. The mixer also includes two stereo input channels with balanced 1/4-inch TRS jacks, perfect for line-level sources like keyboards or media players. With its color-coded, 2-band EQ on every channel, the TrueMix 500 ensures you can quickly dial in your sound, even in dimly lit environments.
Why Choose the Alto TrueMix 500?
-
USB Audio Interface: Integrated USB I/O allows for seamless stereo recording to your computer and high-quality audio playback.
-
High-Headroom Circuitry: Engineered for minimal noise and maximum signal clarity, preventing clipping even during high-energy performances.
-
Versatile Mic Channel: Includes an XLR input for microphones and a balanced 1/4-inch line input for instruments or other sources.
-
Dedicated Stereo Channels: Two stereo channels with dual balanced TRS inputs accommodate a wide range of line-level gear.
-
Color-Coded 2-Band EQ: Intuitive knobs for High and Low frequencies make sound adjustments easy and visible in low-light situations.
-
Flexible Monitoring: Features 2-track inputs with assignable routing to either the Main Mix or the Headphone output.
-
Compact and Portable: A small footprint makes it the ideal companion for mobile recording rigs or tight desk setups.
-
Plug-and-Play Simplicity: Works instantly with Windows and macOS laptops without the need for additional software installation.
Professional Control and Routing
Precision Tonal Shaping The TrueMix 500's EQ provides ±15dB of boost or cut at 12kHz (High) and 80Hz (Low), giving you the precision needed to enhance vocals or clean up muddy instrument signals. The addition of peak LED indicators on the channels ensures you can monitor your gain levels to maintain a clean, distortion-free mix.
Smart Connectivity Beyond the main 1/4-inch outputs, the unit features stereo RCA "Tape" inputs and outputs, allowing you to connect legacy recording devices or external media players. The 1/4-inch headphone output has its own dedicated volume control, providing independent monitoring away from the main mix level.
Technical Specifications
-
Channels: 5 (1 Mono, 2 Stereo).
-
Audio Interface: USB Type-B (Stereo In/Out).
-
Mic Input: XLR with 18V Phantom Power (always on).
-
Frequency Response: 20 Hz – 22 kHz (±1 dB).
-
Gain Range (Mic): 0 – 44 dB.
-
EQ: 2-Band (High ±15 dB @ 12 kHz, Low ±15 dB @ 80 Hz).
-
Inputs: 1 x XLR, 5 x 1/4" TRS, 1 x Stereo RCA.
-
Outputs: 2 x 1/4" Main, 1 x 1/4" Headphones, 1 x Stereo RCA.
-
Dimensions: 159.5 x 193 x 66 mm.
-
Weight: 0.9 kg.
Frequently Asked Questions

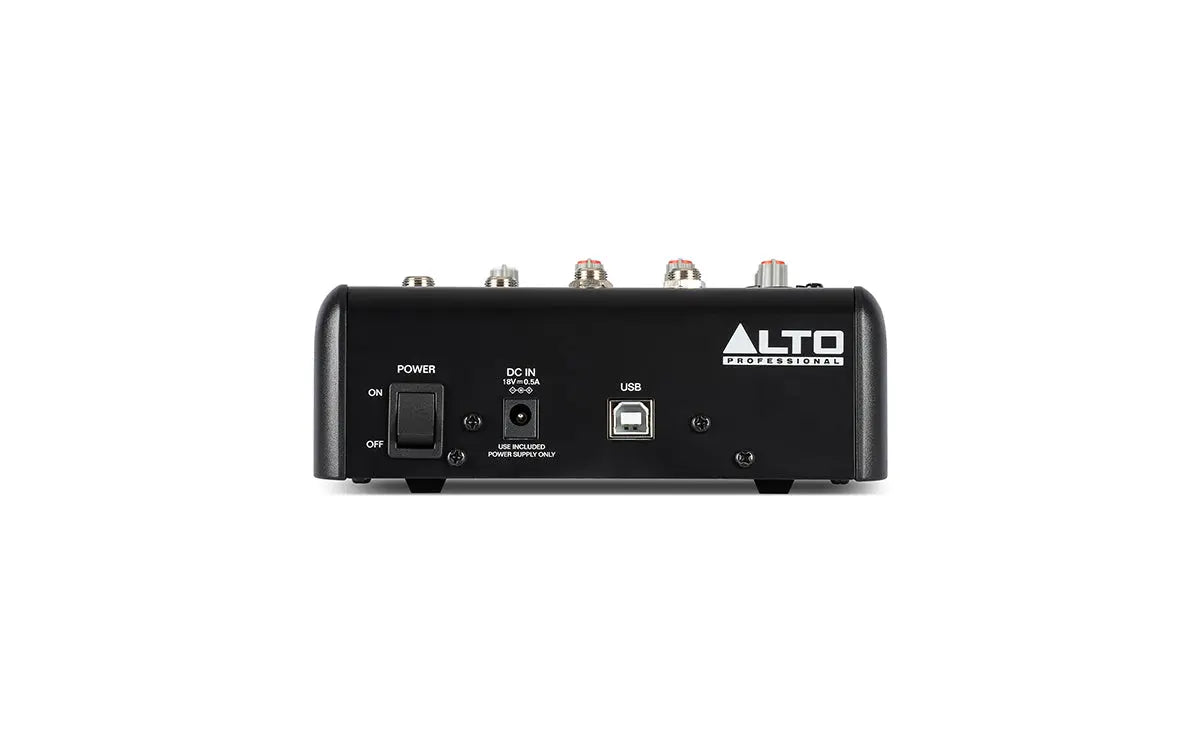

Does this mixer require a power supply? Yes. While it connects to your computer via USB for audio, it requires the included 18V DC power adapter to operate the analog mixing circuitry.
Can I use a condenser microphone with the TrueMix 500? Yes. The XLR mic input provides 18V phantom power, which is sufficient for most modern condenser microphones. Please note that phantom power is "always on" on this model.
Does it record each channel as a separate track? No. The USB interface sends the "Main Mix" (the combined audio of all channels) as a stereo signal to your computer.
What is In The Box?
-
Alto Professional TrueMix 500 Mixer.
-
Power Adapter.
-
USB Cable.
-
Extra Knob Caps (for customization).
-
Quickstart Guide.
-
Safety & Warranty Manual.
