Description

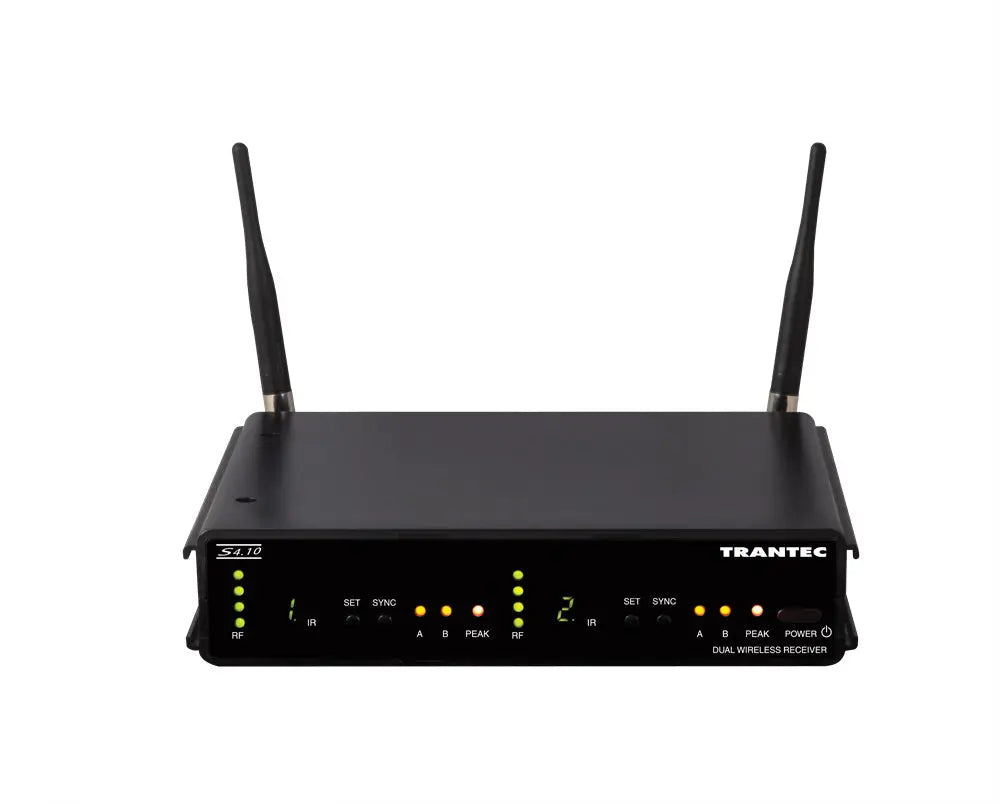

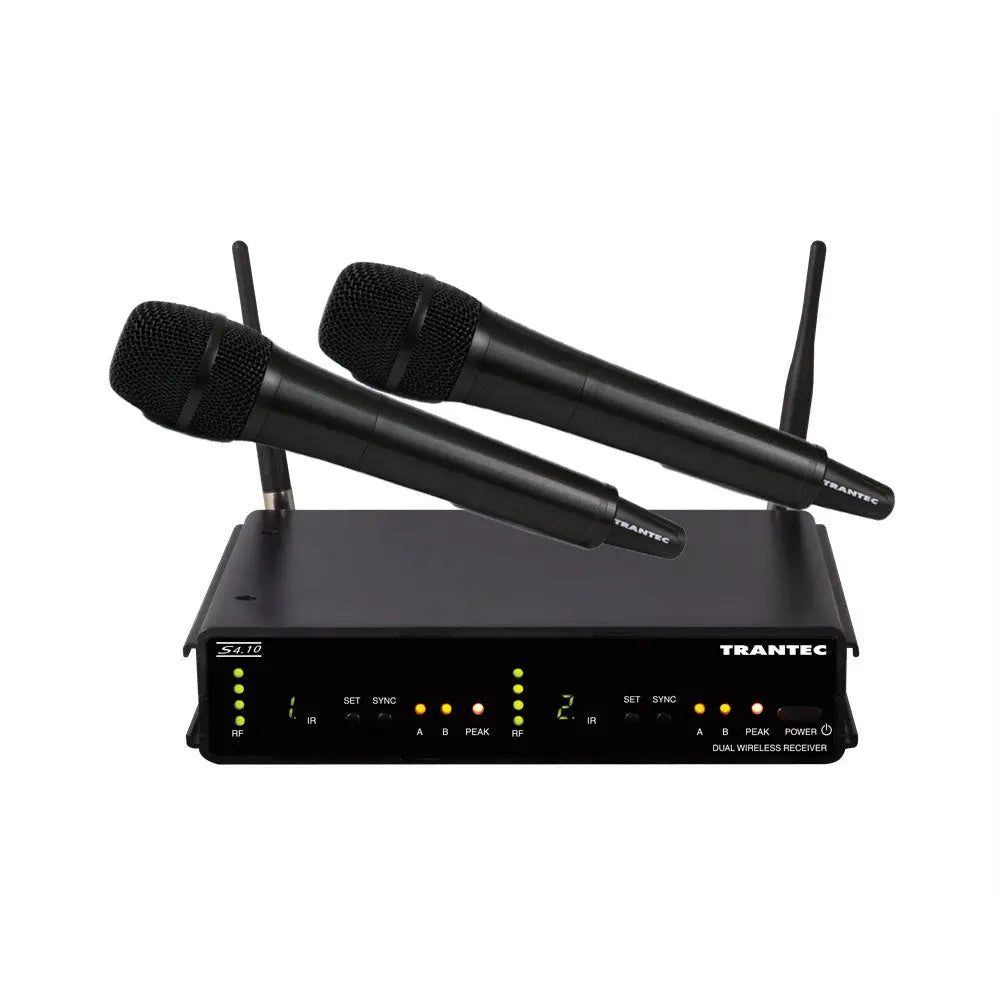

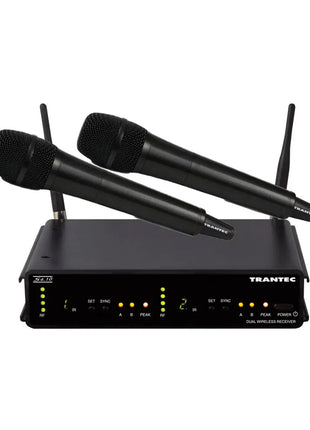

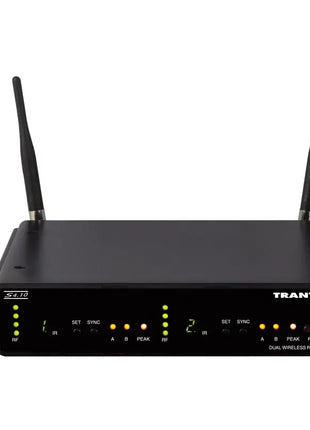

S4.10-RX2 - Dual Channel Wireless Microphone System
The S4.10-RX2 is a dual-channel wireless microphone system operating on channel 70. It includes two S4.10-HDX-EB handheld microphones and an ABS carry case. The system is designed for reliable wireless audio transmission with features like diversity reception and selectable frequencies.
Key Features
Dual Channel System: Supports two wireless microphones simultaneously.
S4.10-HDX-EB Handheld Microphones: Includes two handheld microphones.
Channel 70 Operation: Operates on a specific frequency channel.
16 Selectable Frequencies: Provides frequency flexibility to avoid interference.
Diversity Reception: Antenna Diversity ensures reliable signal reception.
Receiver LED Indicators: Displays AF peak level, RF level, and diversity channel A/B.
Fully Synthesized PLL Quartz Tuning: For stable frequency locking.
Professional Metal Enclosure: For durability.
19" Rack Mount Option: Allows for mounting one or two receivers.
Technical Specifications
Reception: Antenna Diversity
Sensitivity: 10uV at 45dBA, S/N
Squelch: Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response: 50Hz - 15 kHz
Audio Output Level (Max.):
Balanced (XLR socket): 16dBu
Unbalanced (1/4” jack socket): 10dBu
Power Supply: 11-18 VDC 300mA
Dimensions: 215 (W) x 39 (H) x 102 (D) mm (excluding antenna and BNC)
Weight: 480g
What's in the box
S4.10-RX2 Receiver
2 x S4.10-HDX-EB Handheld Microphones
ABS Carry Case
