Studiomaster Vortex 10A | 1400W 10-Inch Coaxial Active PA Speaker | UK Stock & Expert Support | djkit®
Staff Take: The Expert Verdict
If you are tired of the typical muddy mid-range found in budget active speakers, the Studiomaster Vortex 10A is going to be a massive breath of fresh air. By utilizing a true coaxial setup—where the high-frequency driver sits directly in the center of the 10-inch woofer—you get an incredibly coherent sound stage with absolutely zero phase issues, even up close. It punches out a surprising 124dB Max SPL and handles everything from vocal reinforcement to mobile DJ monitor duties flawlessly. The built-in 24-bit DSP is super responsive, and the True Wireless Stereo (TWS) Bluetooth is a lifesaver for quick corporate setups or background music where running long signal cables is a hassle.
Why Choose the Studiomaster Vortex 10A Active Speaker?
-
Innovative Coaxial Configuration: Eliminates the physical alignment gap between low and high frequencies, delivering uniform 80-degree coverage and spectacular acoustic imaging.
-
1400W Peak Power Amplification: Bi-amplified design delivering a clean 350W RMS (300W LF + 50W HF) to push loud, crystal-clear audio down the room without distortion.
-
Advanced 24-Bit DSP Engine: Outfitted with 5 tailor-made performance modes (Music, Live, DJ, Speech, Monitor), a 3-band manual EQ, input delay controls, and precise system limiting.
-
Integrated Bluetooth with TWS: Stream high-definition tracks wirelessly from any mobile device, or link a pair of Vortex cabinets together for a cable-free wireless stereo setup.
-

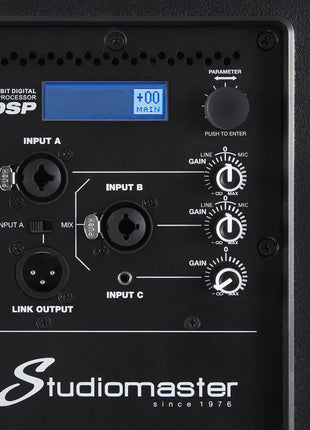

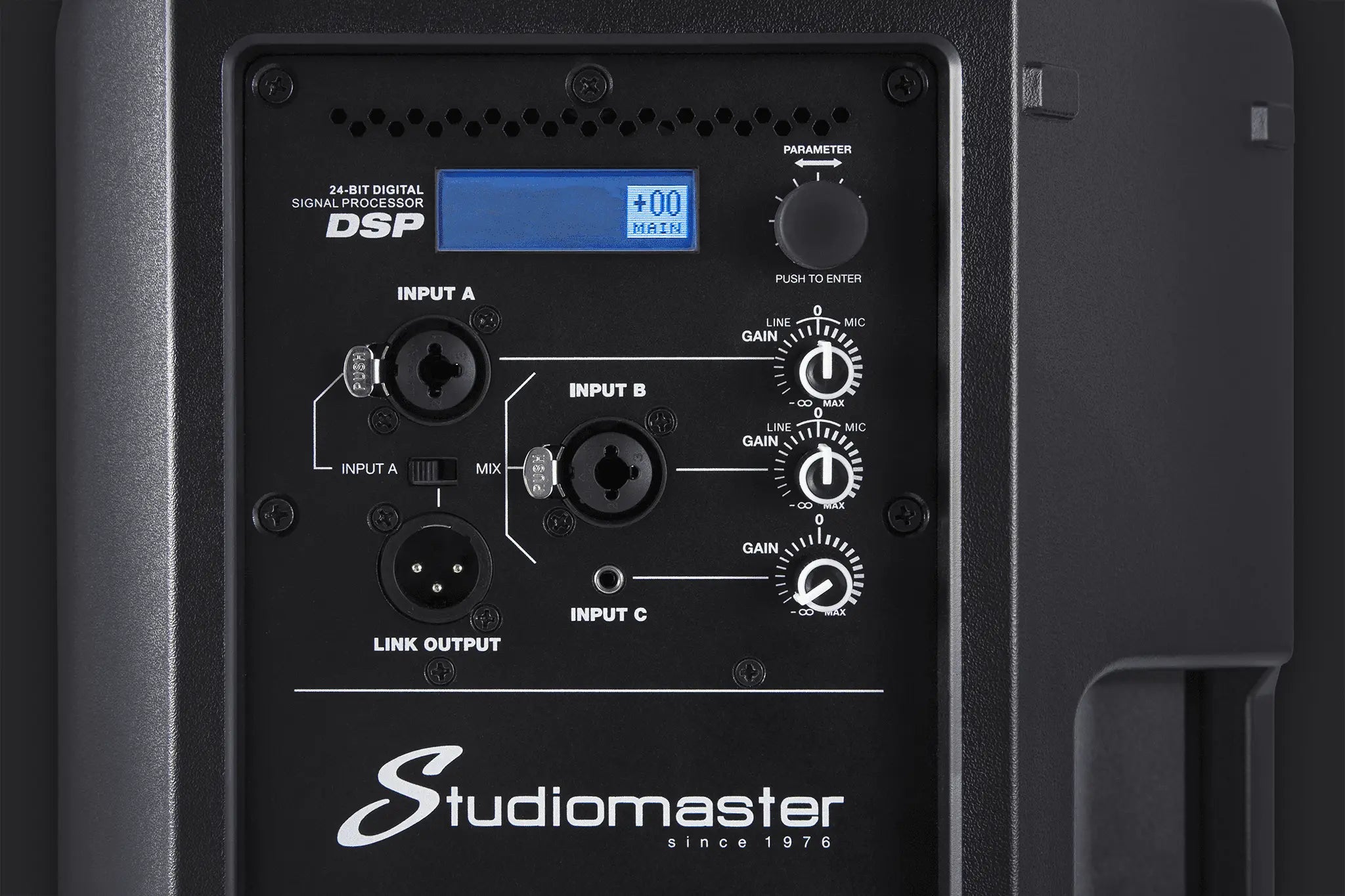

Versatile 3-Channel Internal Mixer: Features two combo XLR/Jack inputs alongside a dedicated 3.5mm auxiliary channel, allowing microphones, instruments, and media players to plug straight in.
-
Pro-Grade Rigging & Deployment: Equipped with dual 35mm top-hat sockets for standard pole mounting or tilt angles, multiple M10 flying points for permanent installs, and a specialized monitor angle.
-
Lightweight Molded Cabinet: Built tough for the road using a rugged composite shell with multiple integrated carry handles, weighing in at a highly portable 12.5 kg.
Technical Specifications
-
Cabinet Type: 2-Way Coaxial Active PA Monitor
-
Peak Power: 1400 W
-
Program Power: 700 W
-
RMS Power: 350 W (300W Low Frequency + 50W High Frequency)
-
Maximum SPL: 124 dB
-
Frequency Response: 55 Hz to 20 kHz
-
Coverage Pattern: 80 degrees Horizontal x 80 degrees Vertical
-
Low Frequency Driver: 10-inch Woofer with 50mm Voice Coil
-
High Frequency Driver: 1-inch Throat Compression Driver with 34mm Voice Coil
-
DSP Processing: 24-bit with 5 Preset Modes, 3-Band EQ, and Delay
-
Connections: 2 x XLR/Jack Combi Inputs, 1 x 3.5mm Aux In, 1 x XLR Mix Output
-
Rigging Hardware: Dual Top-Hat Sockets, 5 x M10 Fly Points
-
Dimensions: 310mm x 515mm x 280mm
-
Net Weight: 12.5 kg
Specs/Box Contents
Why Buy From djkit?
At djkit, we pride ourselves on matching performers with live sound equipment that solves real-world gig problems. We highly recommend the Studiomaster Vortex 10A for solo acoustic acts, fitness instructors, mobile DJs, and venues seeking an ultra-compact, premium sounding speaker that punches well above its weight class. Shopping with us means you get live stock tracking, fast UK mainland shipping, and access to our dedicated aftersales team for expert advice.
