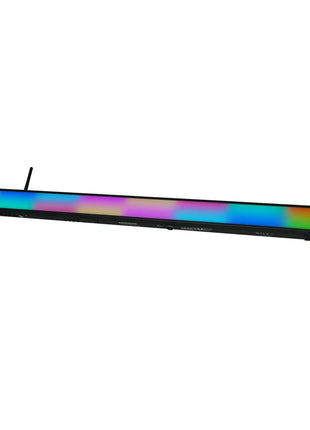

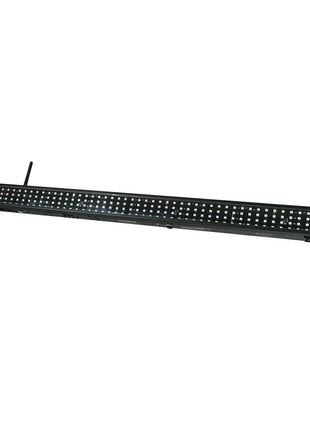

SpectraPix Lithium Batten - RGB LED Lighting Batten

SpectraPix Lithium Batten - RGB LED Lighting Batten

The SpectraPix Lithium Batten is a versatile and powerful lighting fixture featuring 224 SMD 5050 RGB LEDs, arranged into 16 individual segments. Its wide 120° viewing angle and included milky frost and clear front screens offer expanded versatility, allowing for both soft washes and a more direct output. The fixture is designed for a truly cable-free operation with its internal lithium battery, wireless DMX receiver, and included IR remote. With long battery life and a fast charging time, it's perfect for both permanent installations and mobile events.

Key Features

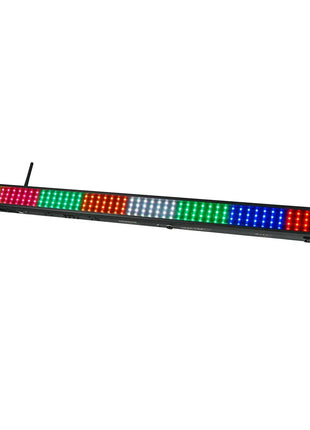

  • High-Density LED Array: Contains 224 tri-color SMD 5050 RGB LEDs divided into 16 controllable segments for dynamic and versatile effects.

  • Wide Viewing Angle: Features a wide 120° viewing angle for creating broad washes.

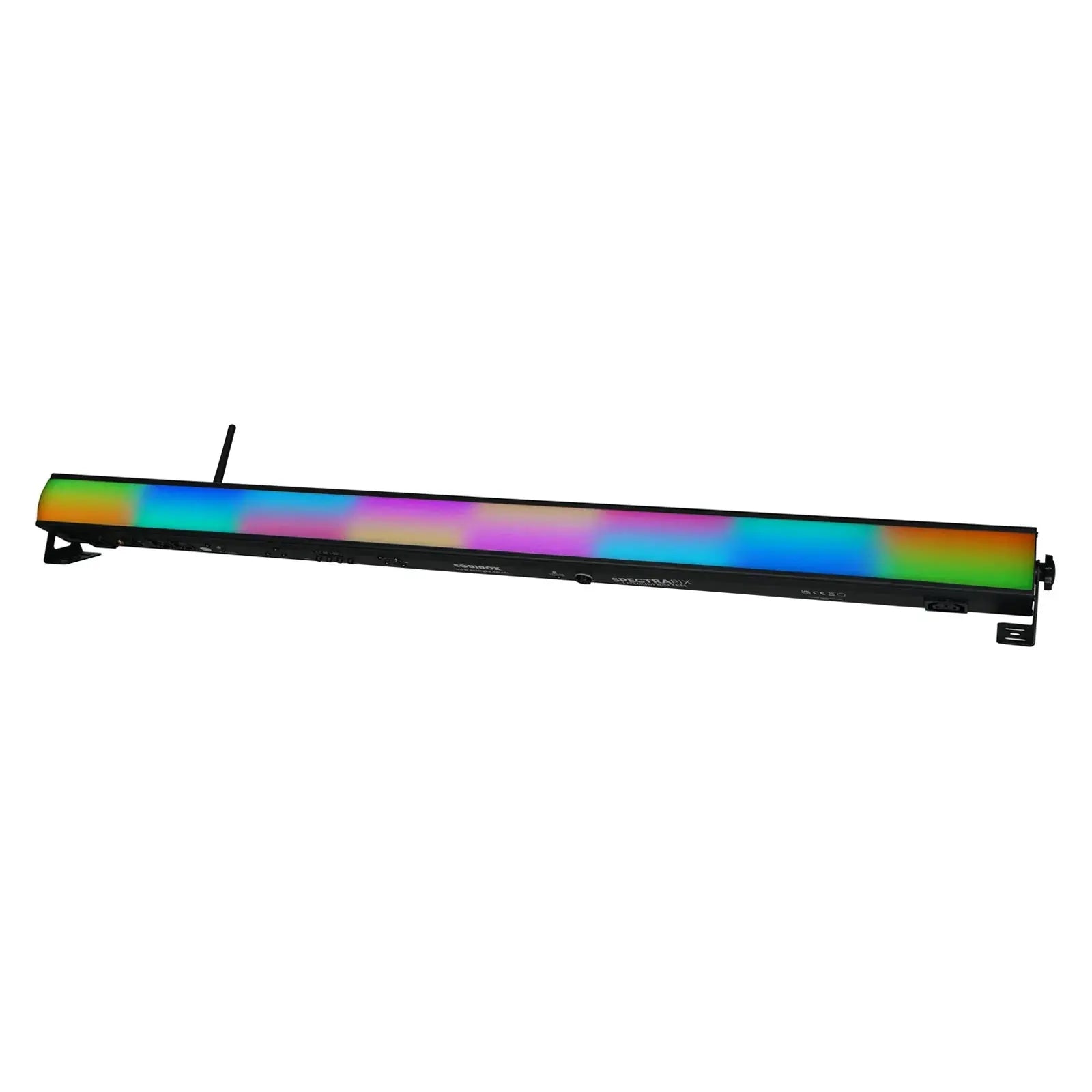

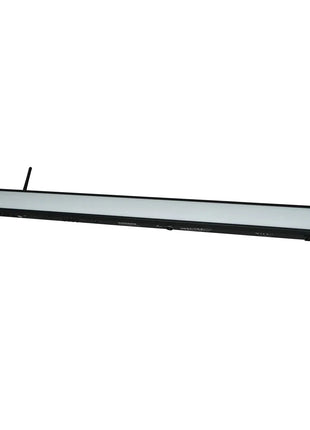

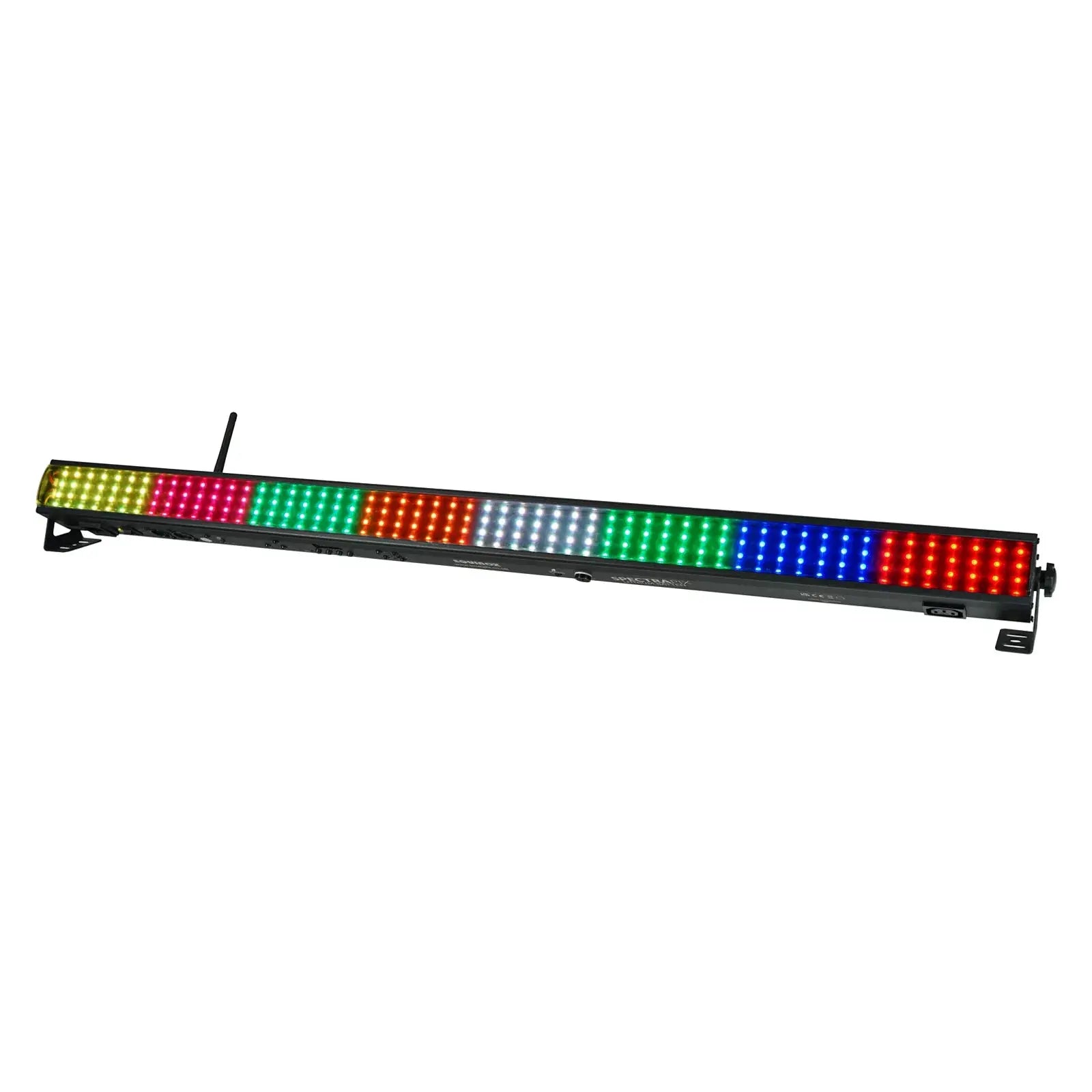

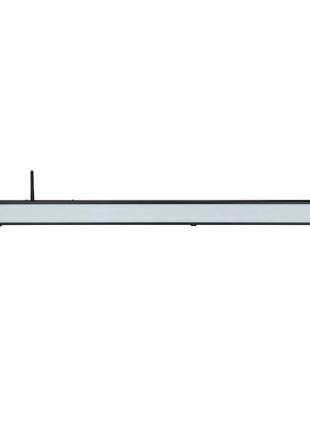

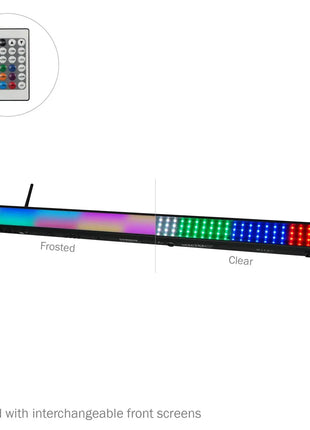

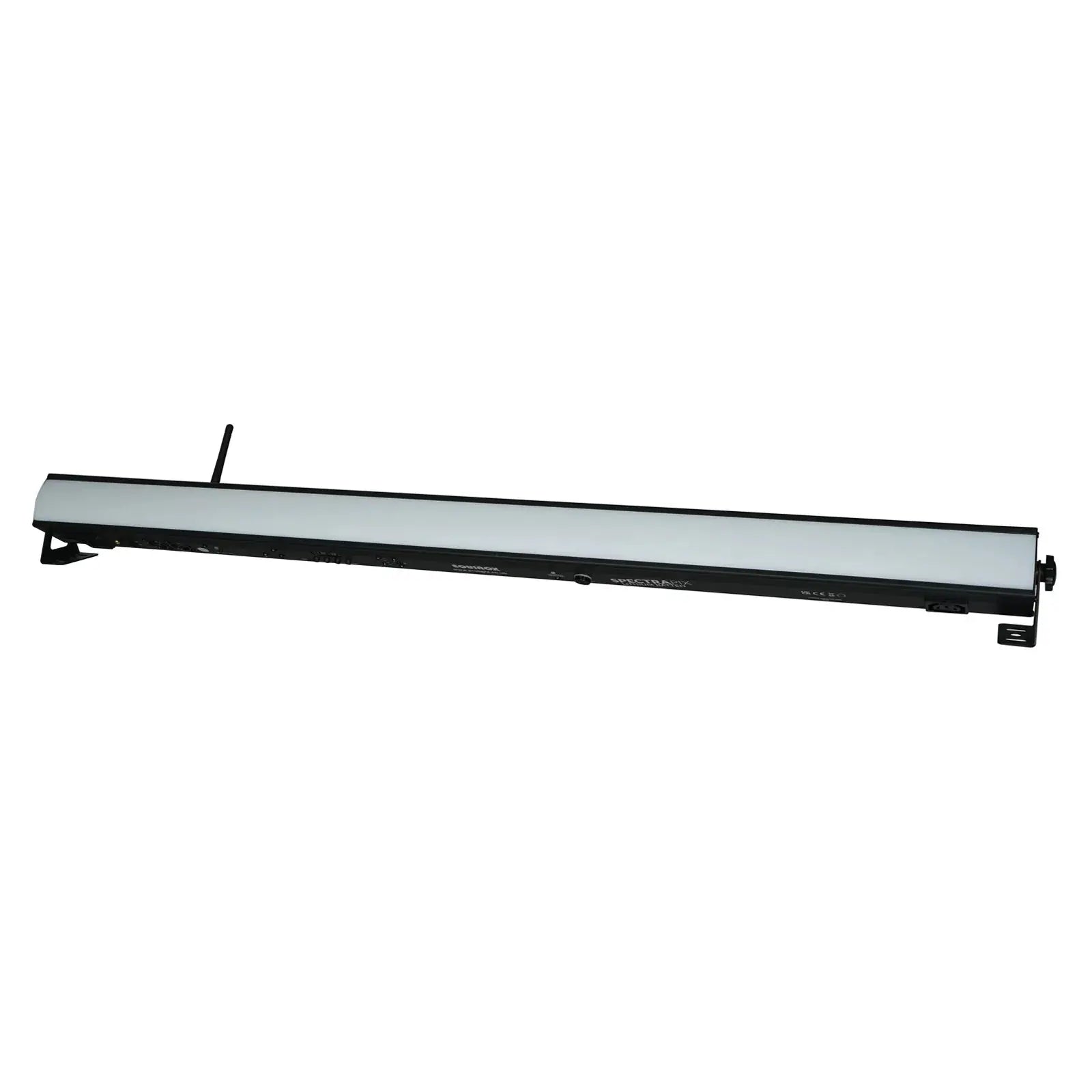

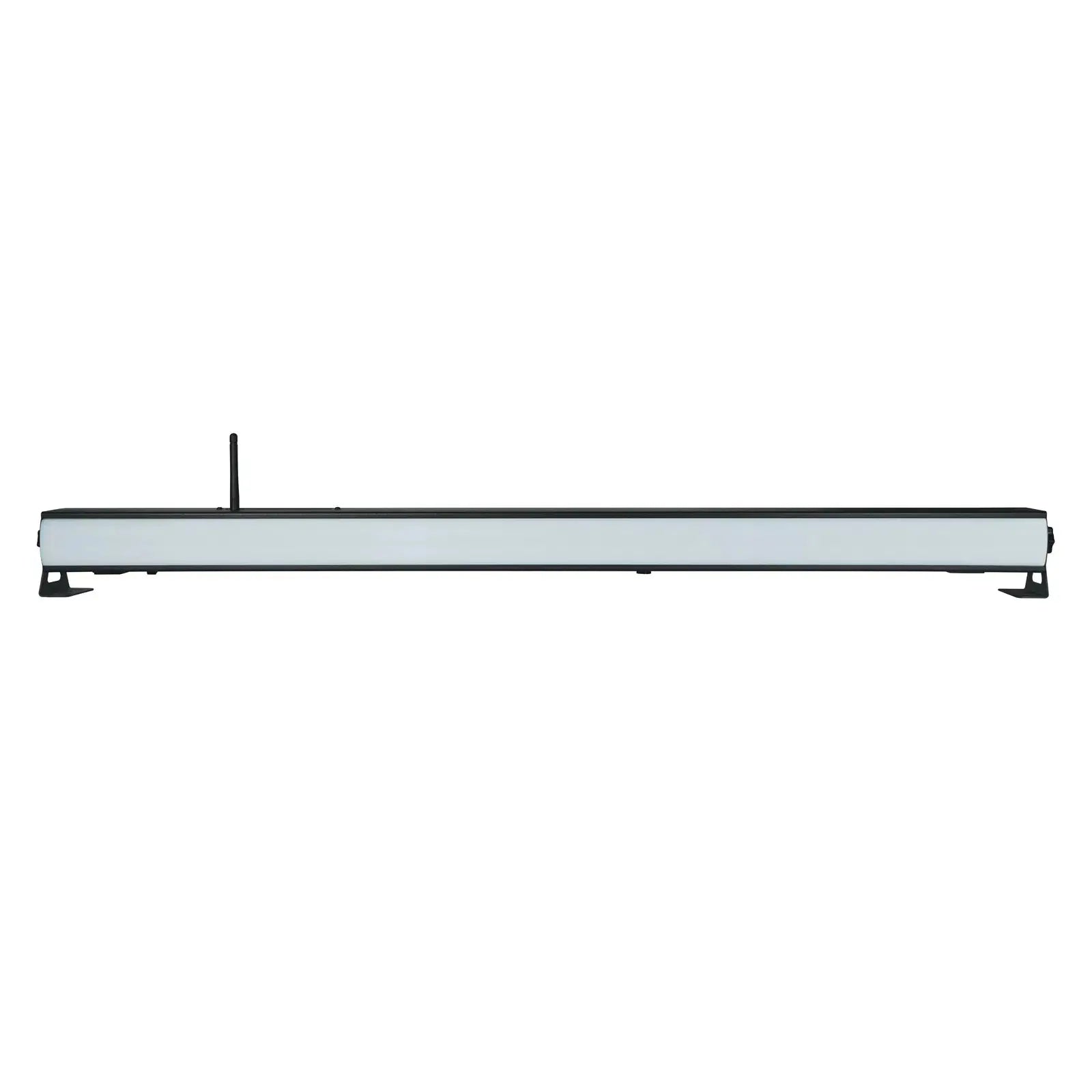

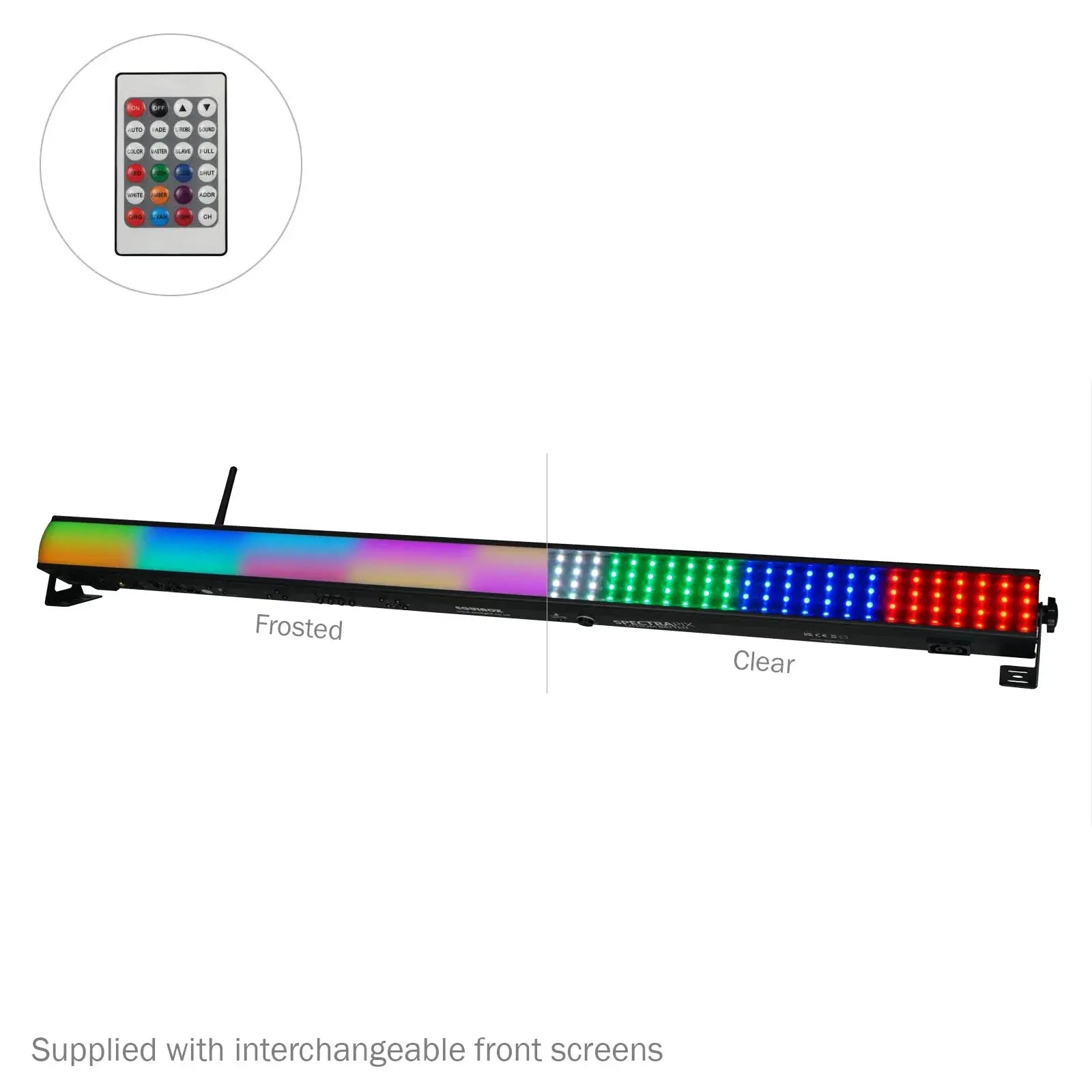

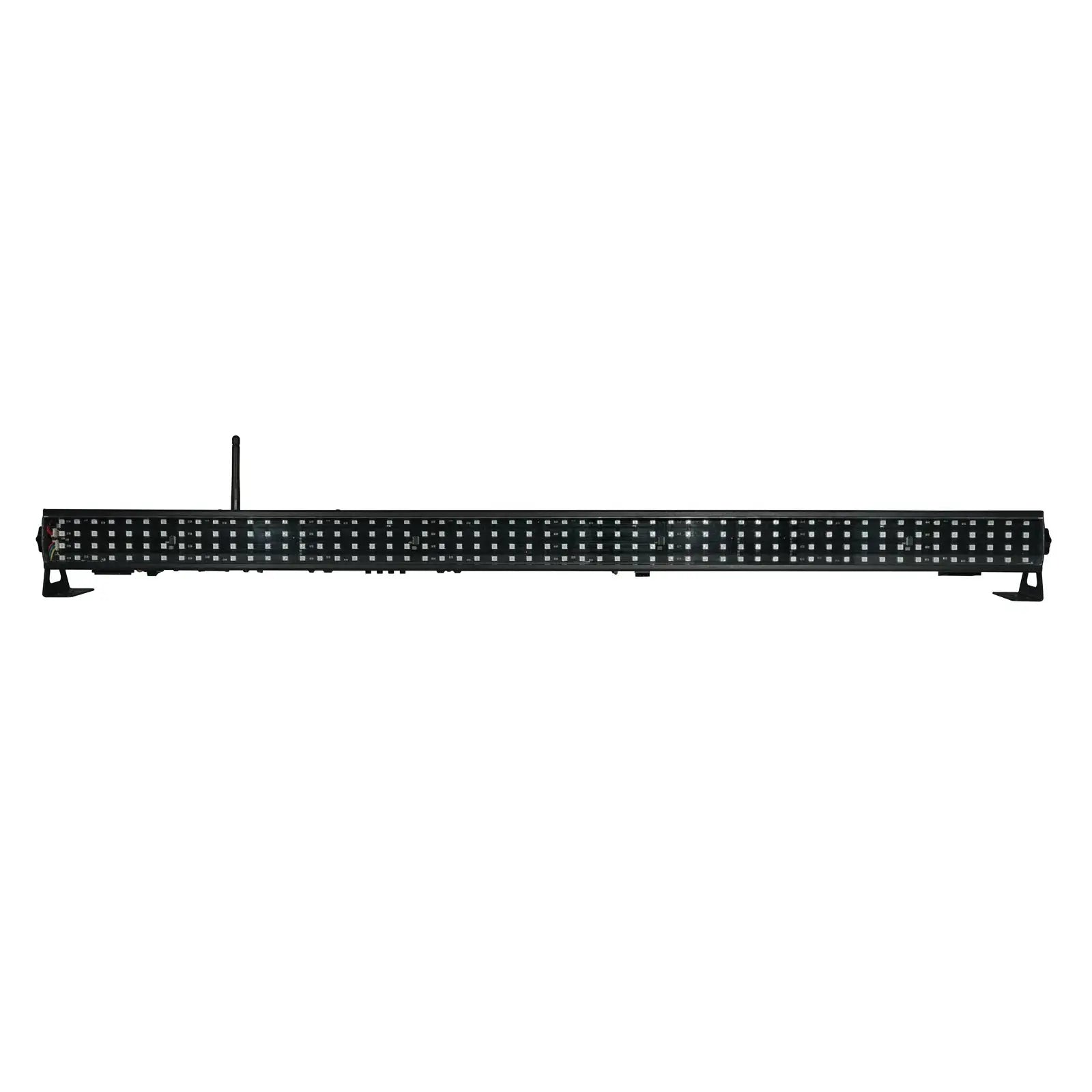

  • Dual Front Screens: Comes with both a milky frost effect screen for a diffused light and a clear front screen for a more direct beam, allowing for expanded creative possibilities.

  • Wireless Operation: The internal rechargeable lithium battery provides up to 7.5 hours of single-color use and up to 16 hours of color chases/fades. A built-in wireless DMX receiver is W-DMX compatible for cable-free control.

  • Multiple Control Modes: Offers selectable DMX channels (3/3/5/24/48 or 53) along with static color, auto, sound active, and master/slave modes.

  • Fast Charging: The battery can be fully charged in a maximum of 4 hours.

  • Convection Cooled: Operates quietly with convection cooling, making it suitable for noise-sensitive environments.

  • Flexible Mounting: The included bracket allows for multiple rigging or floor standing applications.

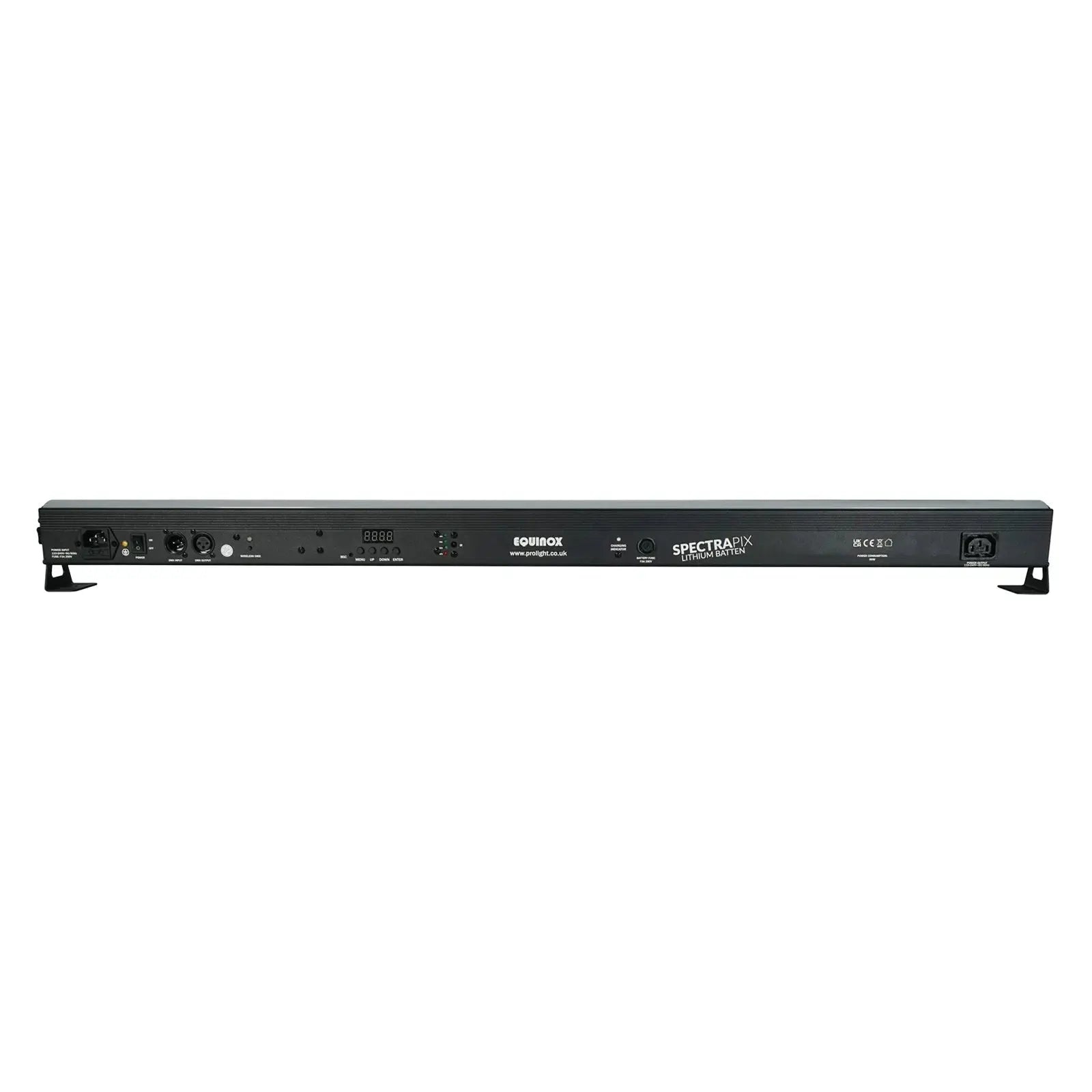

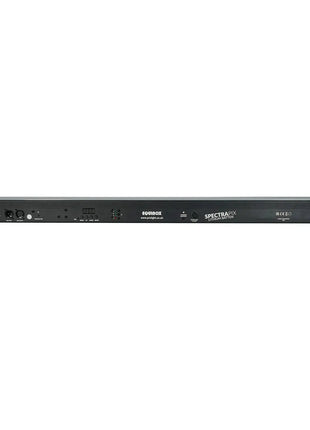

  • On-board Display: A 4-button menu with an LED display makes it easy to navigate and adjust settings.

  • IR Remote Included: Supplied with an IR remote for convenient control.

Technical Specifications

  • Product Code: 0702338072925

  • LEDs: 224 tri-color SMD 5050 LEDs (RGB)

  • Viewing Angle: 120°

  • Refresh Rate: 10kHz

  • DMX Channels: 3/3/5/24/48 or 53 selectable

  • Wireless Control: W-DMX compatible receiver

  • Battery: 24V 5800mAh

  • Maximum Run Time: Up to 7.5 hours (single color), 16 hours (color change/fade), 3 hours 45 mins (full on)

  • Charging Time: 4 hours (max.)

  • Power Consumption: 56W

  • Power Supply: 110~240V, 50/60Hz

  • Fuse: F3A 250V

  • Battery Fuse: F3A 250V

  • Dimensions (HxWxD): 85 x 1035 x 60mm

  • Weight: 2.4kg

Suitable For

  • Mobile DJs and entertainers.

  • Event producers.

  • Venues and installations requiring versatile and cable-free lighting.

What's in the box

  • SpectraPix Lithium Batten

  • Milky frost front screen

  • Clear front screen

  • IR remote

  • Bracket

  • Power cable (IEC)

Product form

SpectraPix Lithium Batten - RGB LED Lighting Batten

Free pickup in our shop(s)

£209.00

  • In-Stock
  • Fast tracked delivery
  • Service excellence guaranteed
    iFrame
    ×
    • Don't want to order online? Call us on 01635 780002

    SKU: EQLED058
    Barcode: 0702338072925
