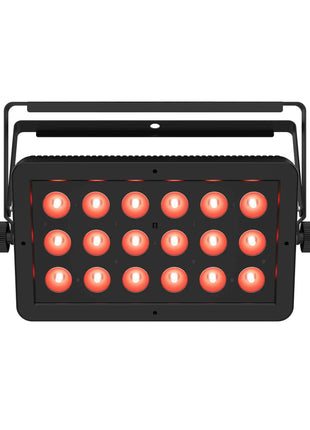

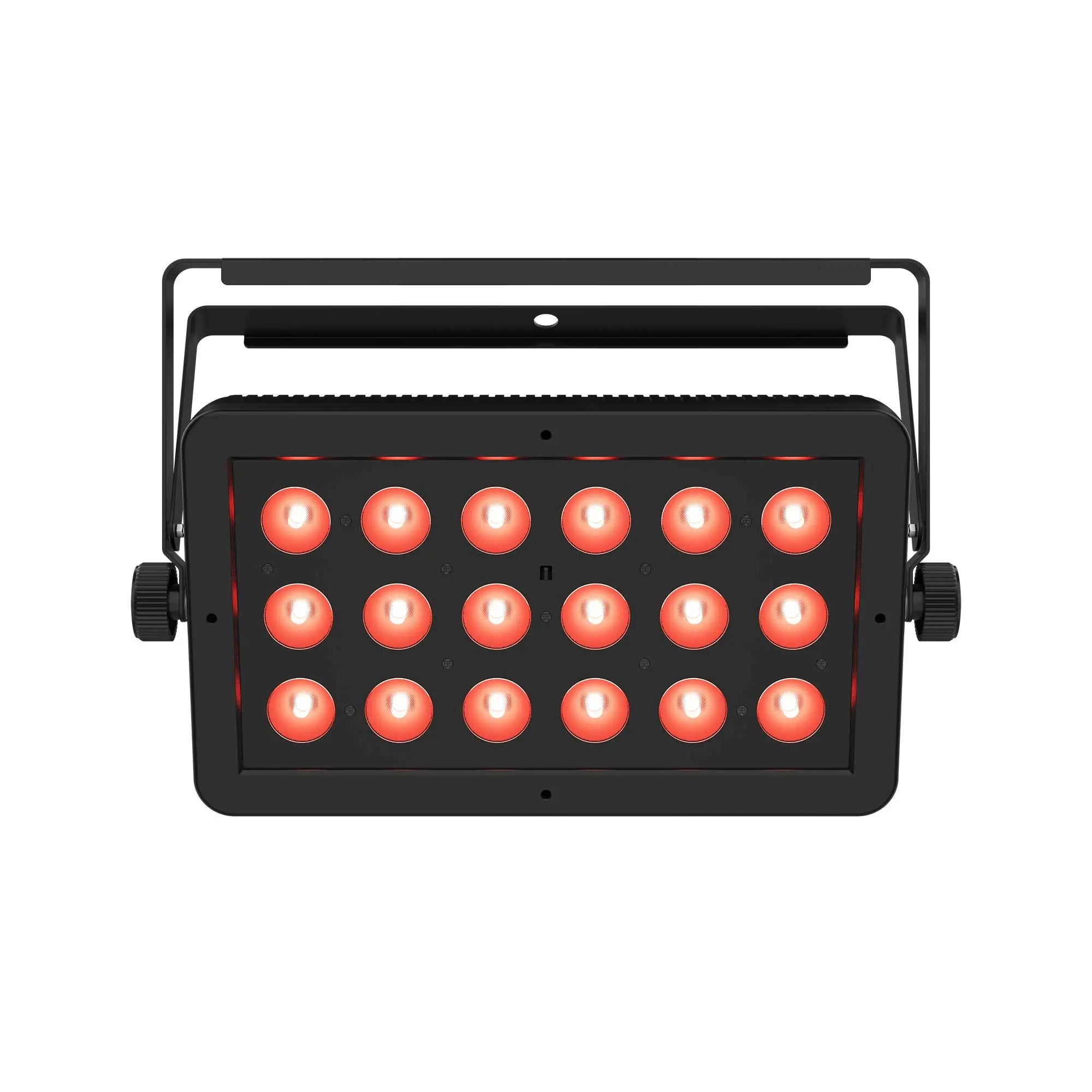

Chauvet DJ SlimBANK Q18 ILS: Quad-Color LED Wash Panel
The Chauvet DJ SlimBANK Q18 ILS is a high-output, quad-color (RGBA) LED wash light designed for stage, club, and event lighting. With 18 powerful quad-color LEDs, it produces vibrant washes, color chases, and pixel effects. Its ILS (Integrated Lighting System) compatibility allows seamless synchronization with other ILS-enabled fixtures without requiring DMX programming.
Perfect for mobile DJs, productions, and venues, the SlimBANK Q18 ILS can operate in standalone, sound-active, DMX, or ILS master/slave modes, giving maximum flexibility. Its wide beam angle and individual LED control allow creative wash and effect possibilities, while the compact and lightweight design makes it easy to transport and rig.
Key Features & Benefits:
-
Powerful Quad-Color LEDs: 18 x 4-in-1 RGBA LEDs deliver rich, vibrant colors.
-
ILS Compatibility: Syncs effortlessly with other ILS fixtures for cohesive shows.
-
Wide Coverage: Large beam angle ideal for washes and color floods.
-
Multiple Control Options: DMX, ILS, Master/Slave, Auto, and Sound modes.
-
Pixel Mapping Capability: Individual LED control for custom effects.
-
Compact & Portable: Lightweight build for mobile DJs and touring setups.
-
Flicker-Free Operation: Suitable for on-camera use in video and livestreaming.
Specifications:
| Feature |
Specification |
| Light Source |
18 x 4-in-1 RGBA LEDs (Quad-Color) |
| Beam Angle |
17° |
| Field Angle |
33° |
| Dimming |
Electronic 0–100% with selectable curves |
| Strobe Rate |
0–30 Hz |
| Control Modes |
DMX, ILS, Master/Slave, Auto, Sound-Active |
| DMX Channels |
Multiple (including pixel control modes) |
| Power Supply |
100–240V AC, 50/60Hz |
| Power Linking |
Yes (up to 10 units @ 120V / 17 units @ 230V) |
| Dimensions |
13.1 x 8.9 x 4.1 in (333 x 227 x 105 mm) |
| Weight |
8.6 lb (3.9 kg) |
| Approvals |
CE, RoHS |
