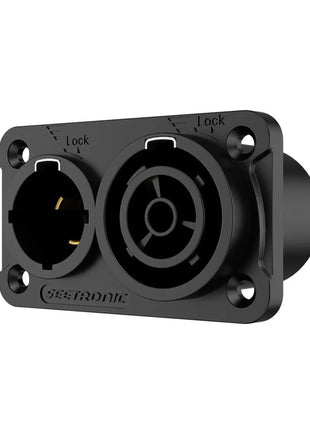

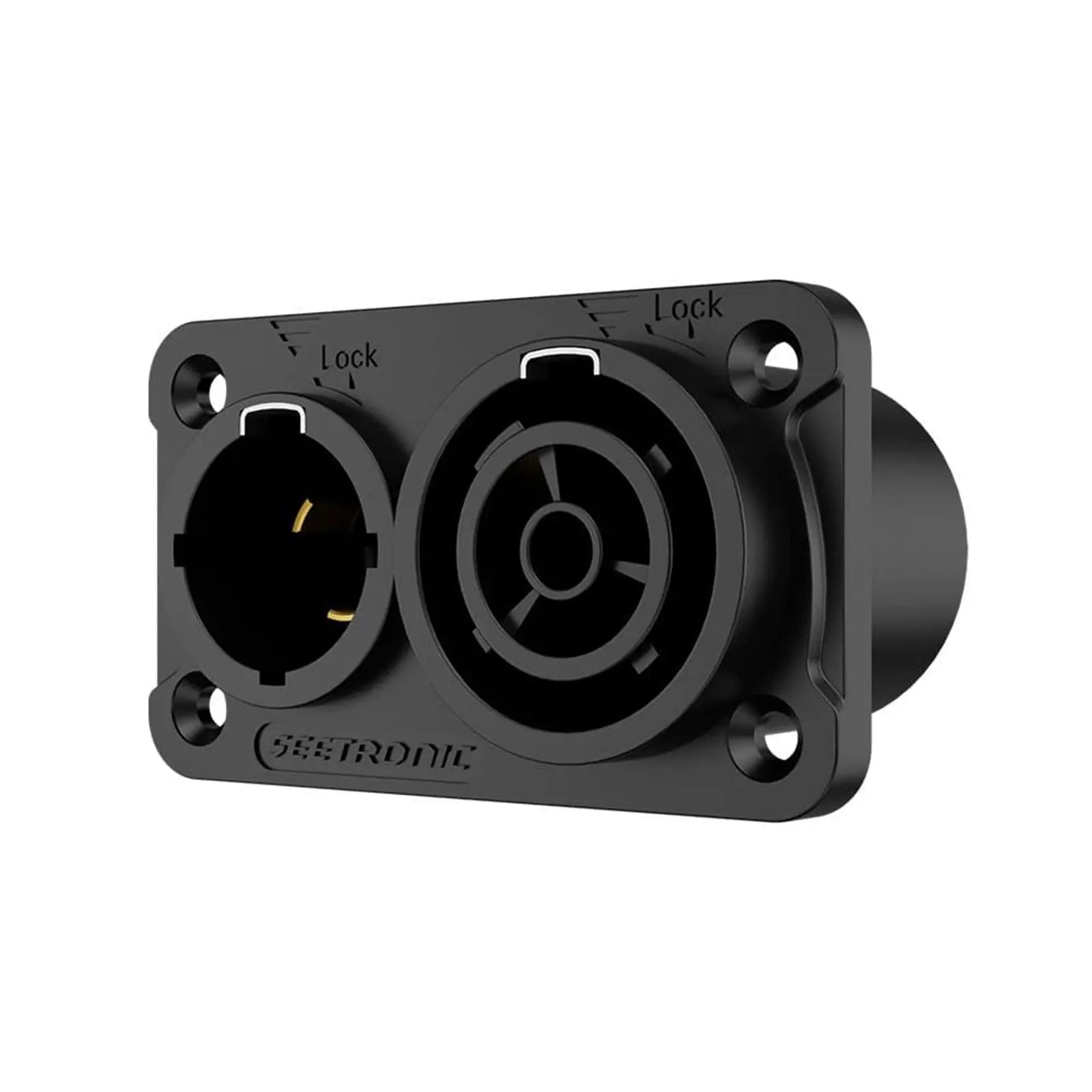

The Seetronic SAC3PX‑67 is a compact rugged chassis-mounted PowerTwist TR1 connector that combines male and female interfaces into a single IP67-rated unit (IP65 at panel IP67 when mated). Rated 16 A/250 V AC (TÜV RH) and 20 A/300 V AC (UL) it’s ideal for daisy-chained power setups in outdoor and industrial environments. Protective sealing cap (CNAC‑PX‑67) sold separately.
- Integrated male + female PowerTwist TR1 chassis connector
- Compact form factor for daisy-chained or pass-through power applications
- Rated 16 A/250 V AC (TÜV RH) and 20 A/300 V AC (UL)
- Gold-plated Cu alloy contacts for reliable conductivity
- Housing: Flame-retardant PA UL94 V‑0 rated
- IP65 panel rating; IP67 when mated with compatible plug

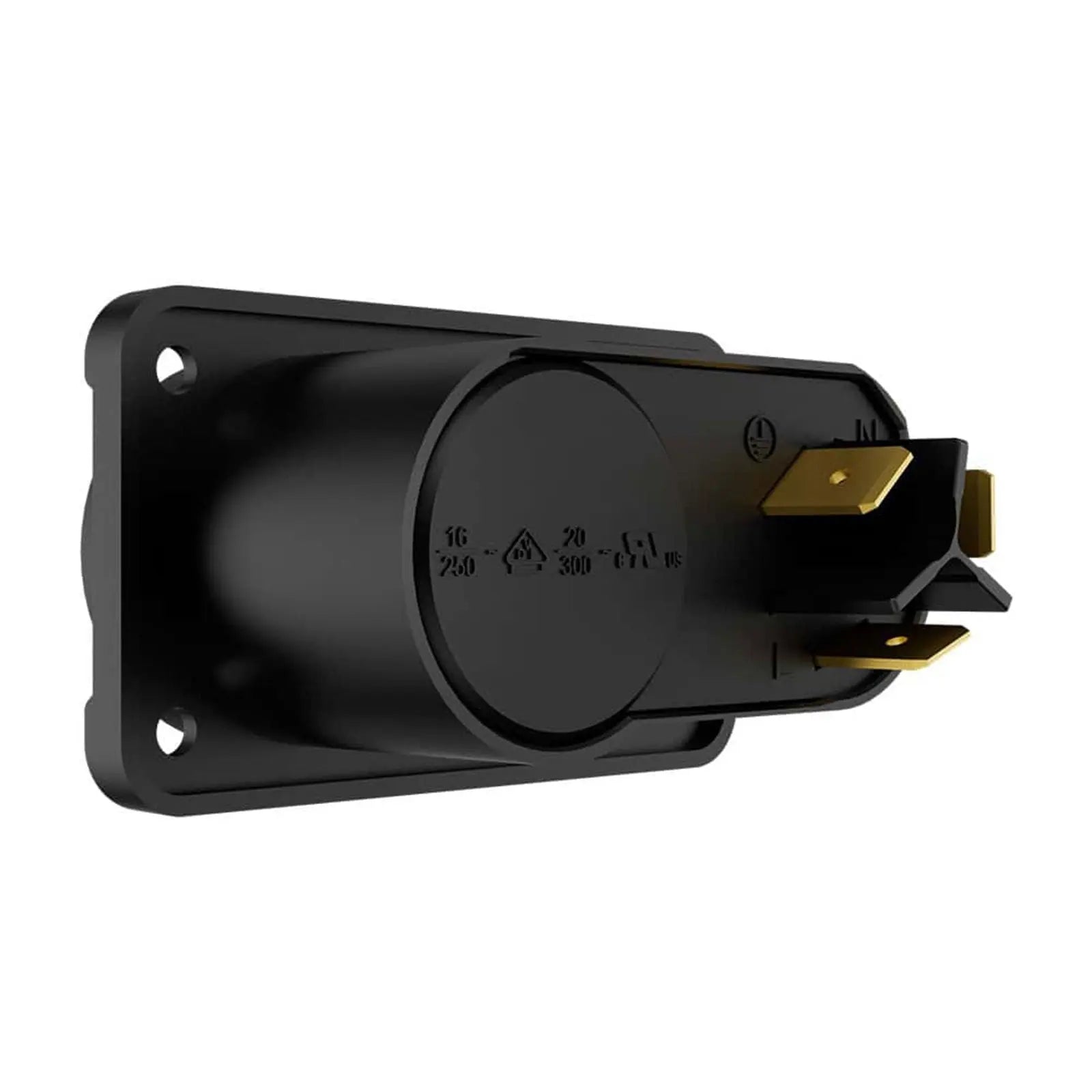

- Supports solder or push-fit terminals (6.3 mm tabs)
- Over 1000 mating cycles; operating range: –30 °C to +80 °C
- Certified to UL498 UL50E IEC61984 GB/T 34989 TUV RH and CQC
