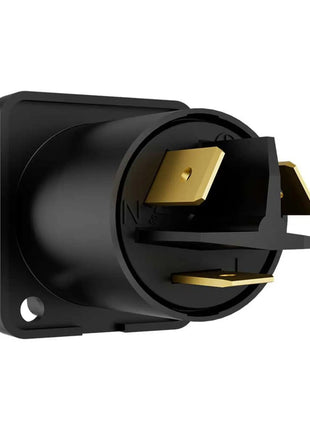

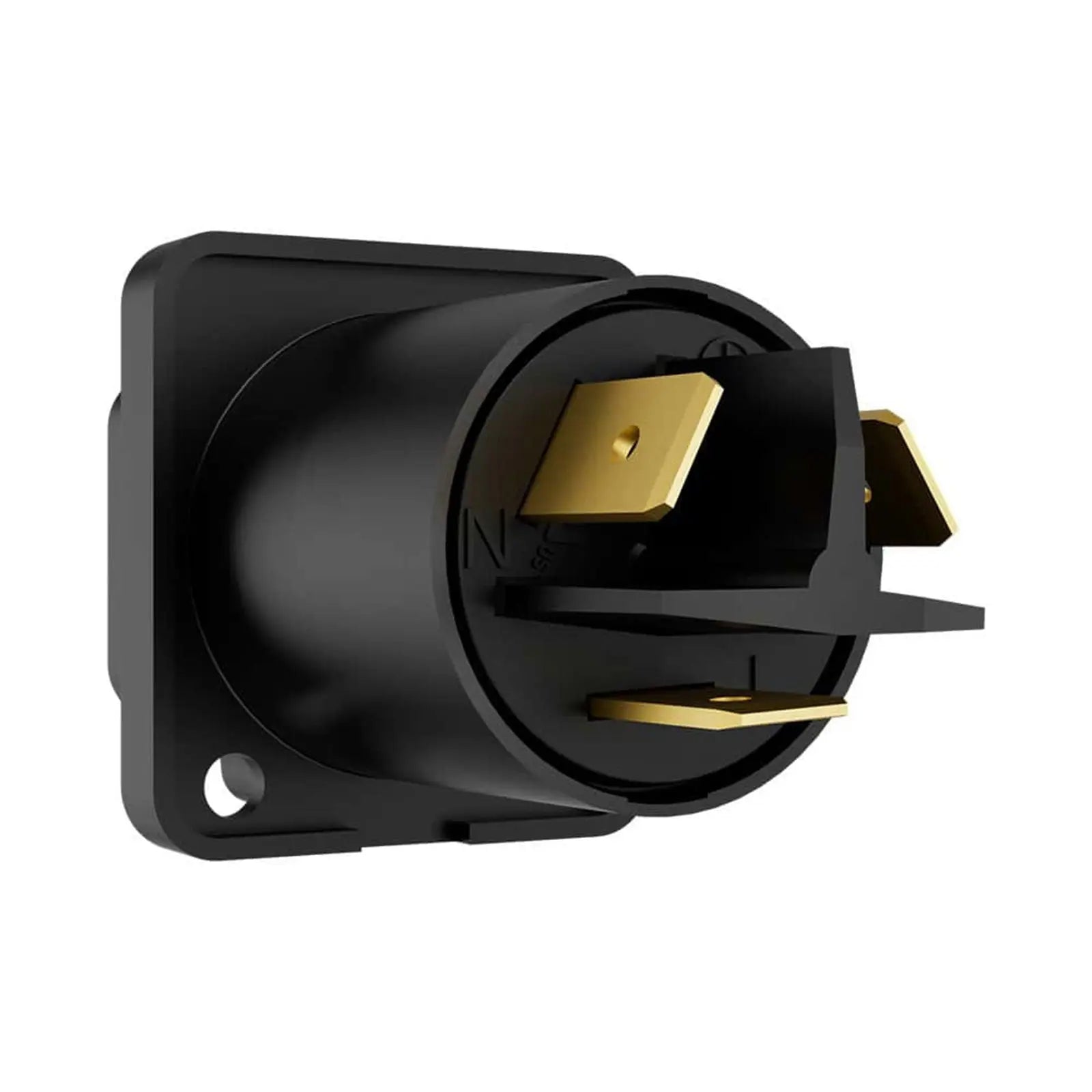

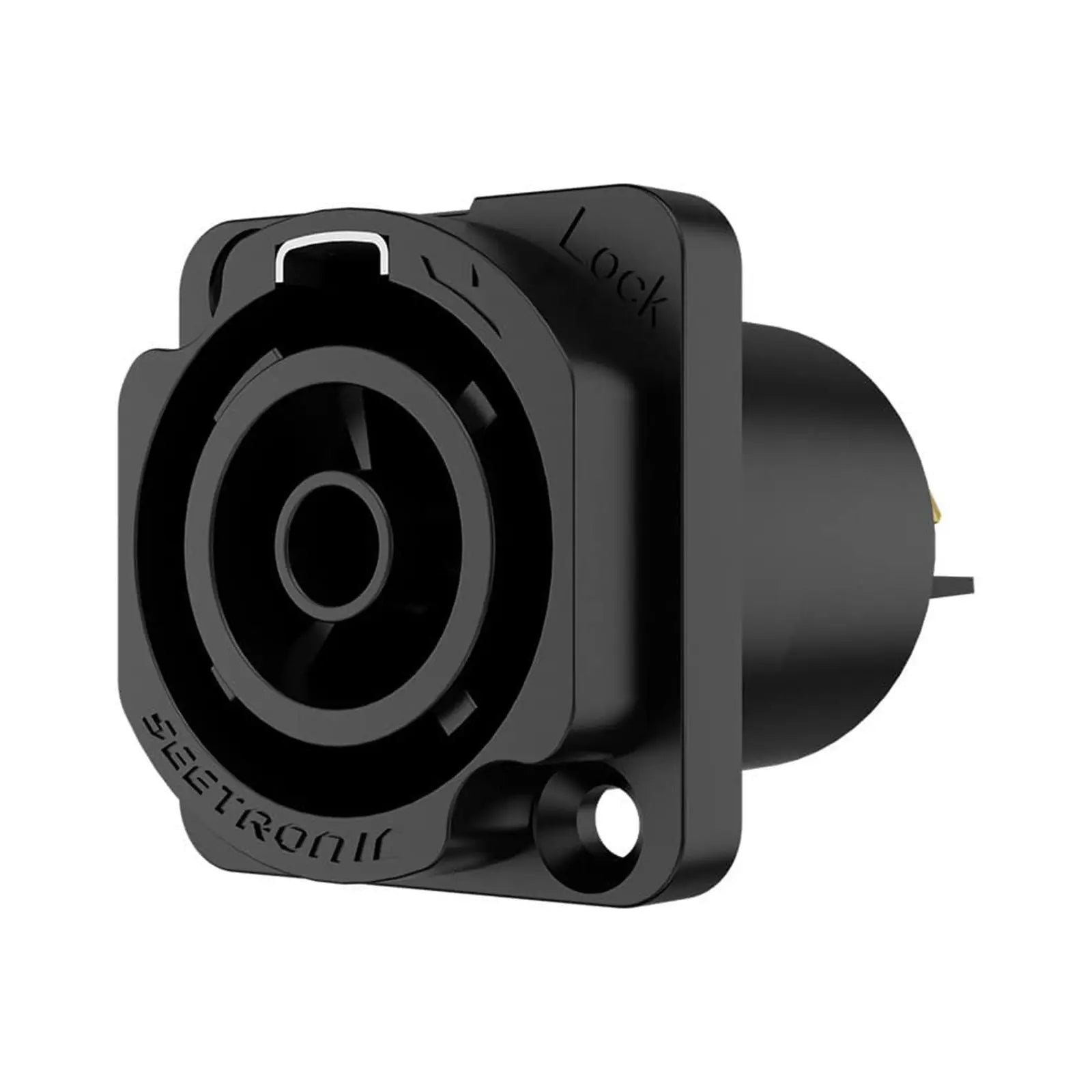

The Seetronic SAC3FPX20‑67 is a compact D-size female PowerTwist TR1 chassis socket with full IP67 waterproof protection. Rated 16 A/250 V AC (TÜV RH) and 20 A/300 V AC (UL) it’s ideal for miniaturised panel designs in stage lighting and amplifier systems. Mating with SAC3MX‑67 plugs it delivers reliable power connections in tough indoor and outdoor conditions. Note: rubber cap (CNAC‑FPX20‑67) sold separately.
- Compact D-size PowerTwist TR1 female chassis connector
- Locking 3-core configuration (L N PE)
- IP67-rated when mated with plug and sealed with rubber cap
- Rated 16 A/250 V AC (TÜV RH); 20 A/300 V AC (UL)
- Mates with SAC3MX‑67 male plug
- Supports soldering or push-fit 6.3 mm terminals (max 2.5 mm²)
- Rugged polyamide housing; gold-plated copper alloy contacts
- UL94‑V0 flame-retardant materials
- Operating temperature: –30 °C to +80 °C
