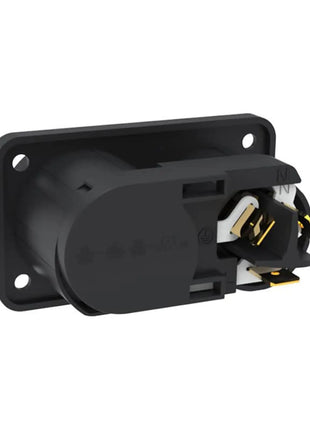

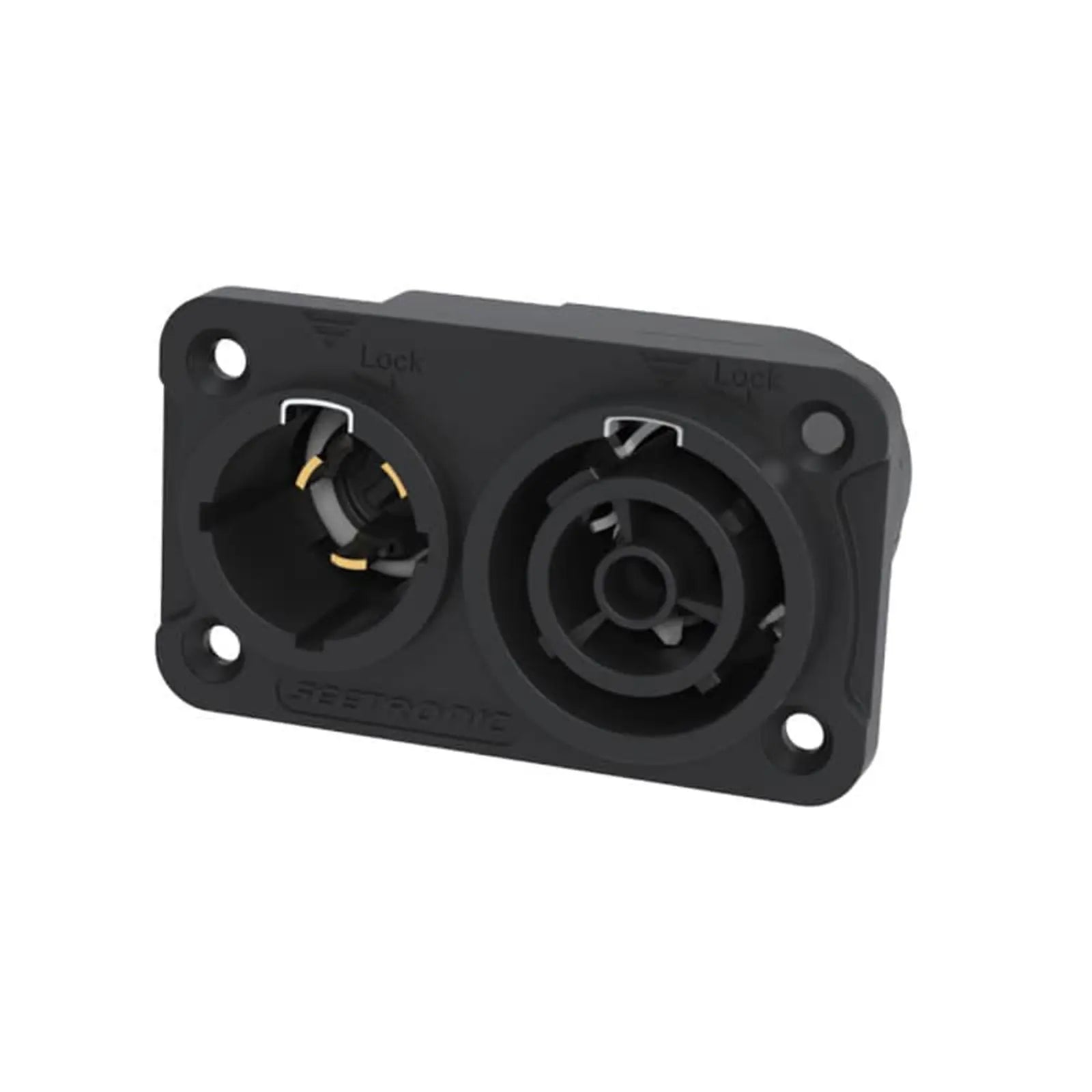

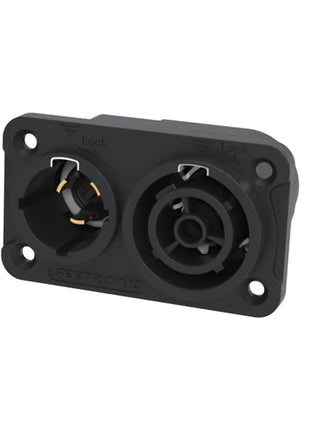

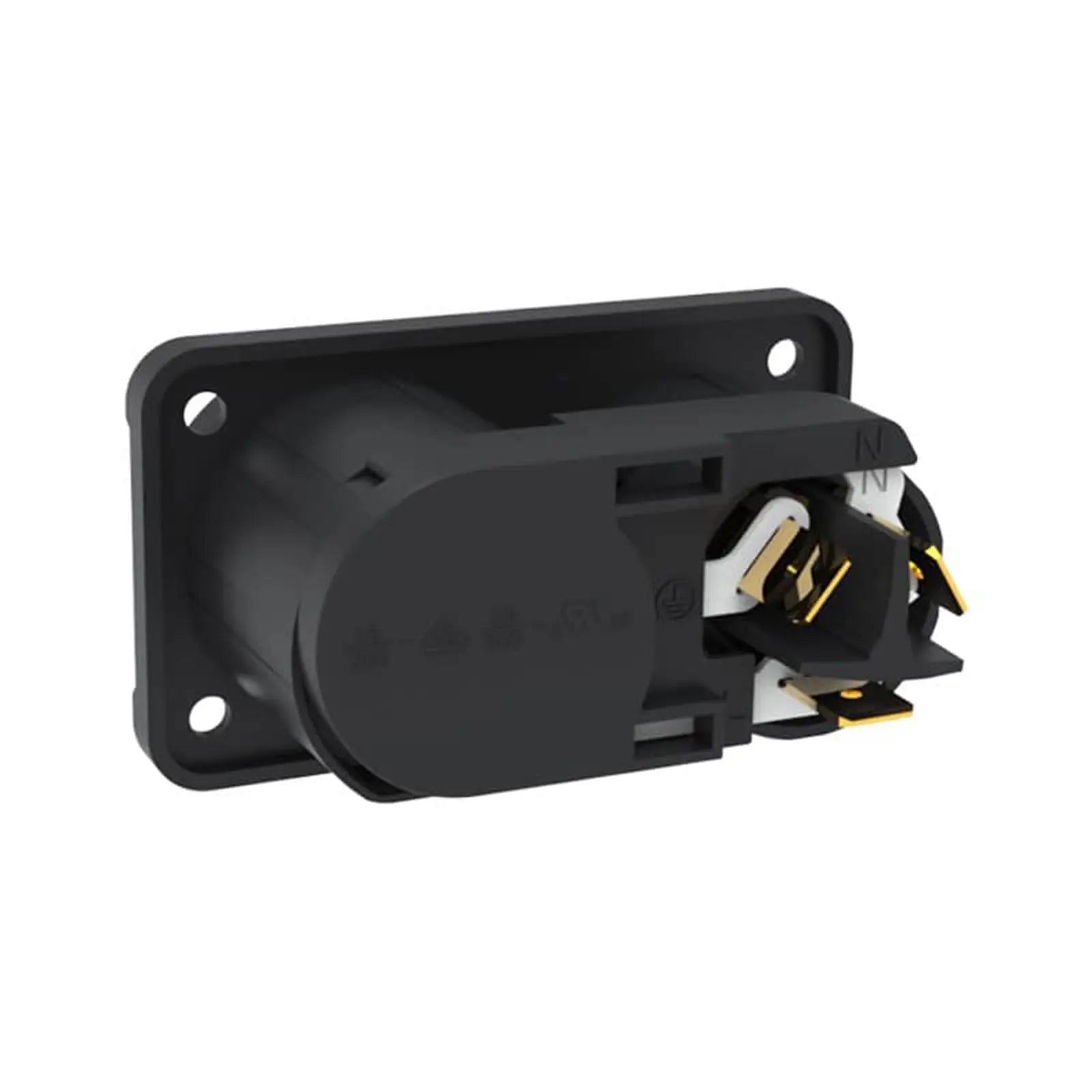

The Seetronic SAC3PX is a space-saving IP65-rated combined power-in and power-out chassis connector from the PowerTwist TR1 series. With 2 + PE contacts and a lockable design this unit integrates SAC3MPX and SAC3FPX into one rugged housing for secure AC connections. Rated 16 A/250 V AC (TÜV RH) and 20 A/300 V AC (UL) it’s ideal for professional lighting staging and AV environments.
- Combined PowerTwist TR1 in/out connector (SAC3MPX + SAC3FPX)
- Lockable 3-core layout with line neutral and earth (L N PE)
- Space-saving design for daisy-chained or pass-through applications
- Rated 16 A/250 V AC (TÜV RH) 20 A/300 V AC (UL)
- IP65 rated for panel sealing; IP67 for terminal interface (when mated)
- Compatible with up to 2.5 mm² (12 AWG) cable size
- Durable PA (polyamide) housing with gold-plated copper alloy contacts
- Flame-retardant to UL94 V‑0
- Operating temperature range: –30 °C to +80 °C
