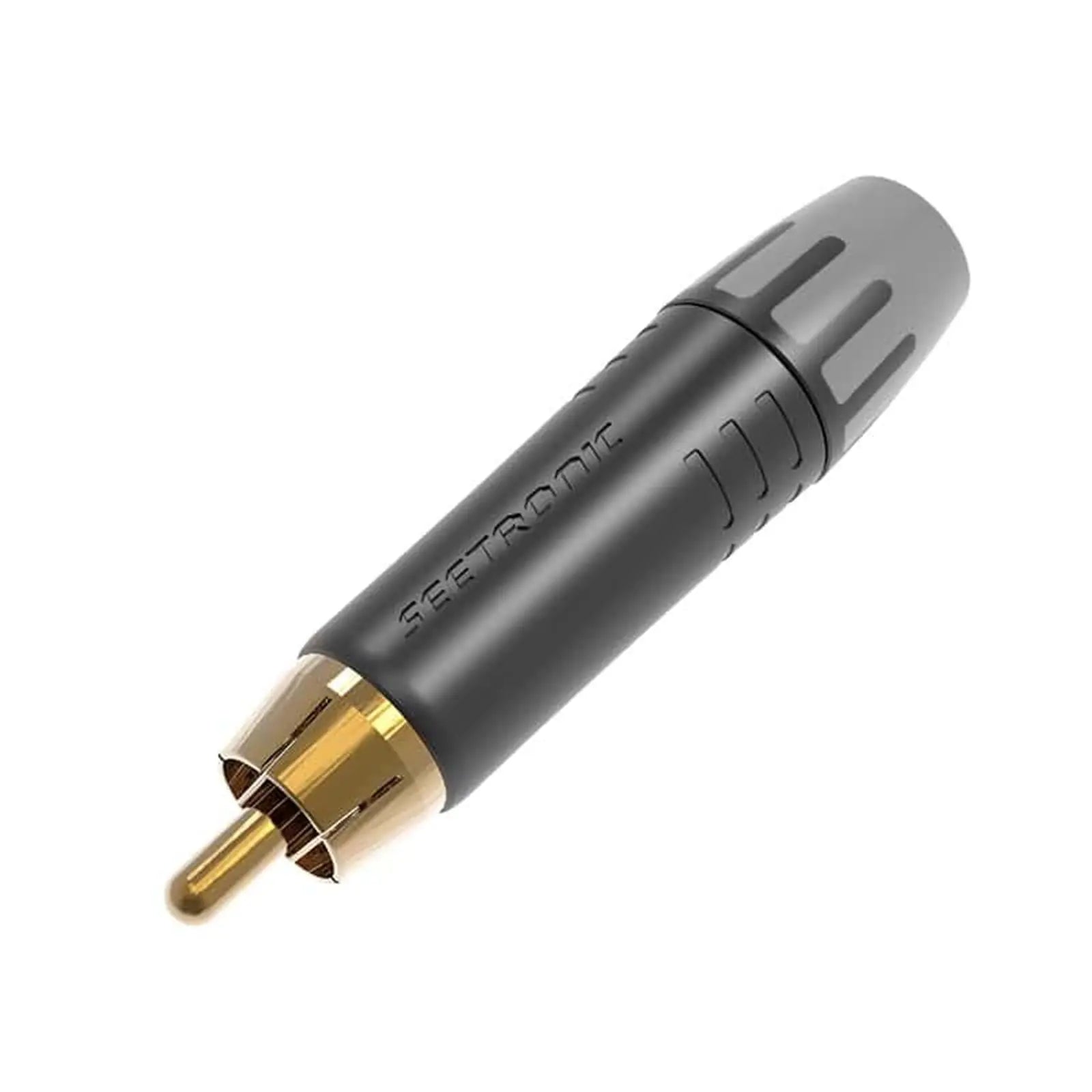

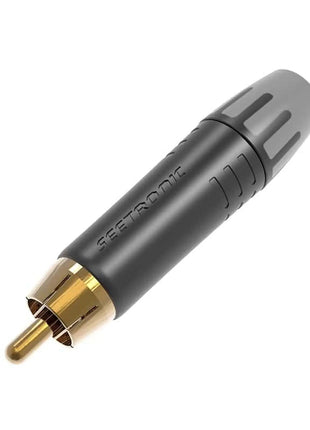

The Seetronic MT380 is a professional-grade RCA plug designed for audio and video signal transmission. Featuring a black-plated zinc alloy housing and gold-plated brass contacts this robust connector ensures low-resistance and stable performance. It accommodates cable diameters from 3.5 to 6.5 mm and supports up to 1.5 mm² (16 AWG) conductors. With a durable four-piece assembly integrated strain relief and a lifetime exceeding 1000 mating cycles the MT380 is ideal for AV professionals requiring reliable high-quality connectors for demanding environments.
- Gold-plated brass contacts for low resistance and stable transmission
- Black-plated zinc alloy housing with black boot
- Accepts cable OD of 3.5–6.5 mm and up to 1.5 mm² (16 AWG) wire
- Reliable digital audio and analog video signal support
- Four-piece compact design with built-in strain relief
- Rated <50 V; dielectric strength 1500 VDC; insulation resistance >5 GΩ
- Operating temperature: –30 °C to +80 °C
- Durability tested to >1000 mating cycles
- Solderable per IEC 68-2-20 standard
