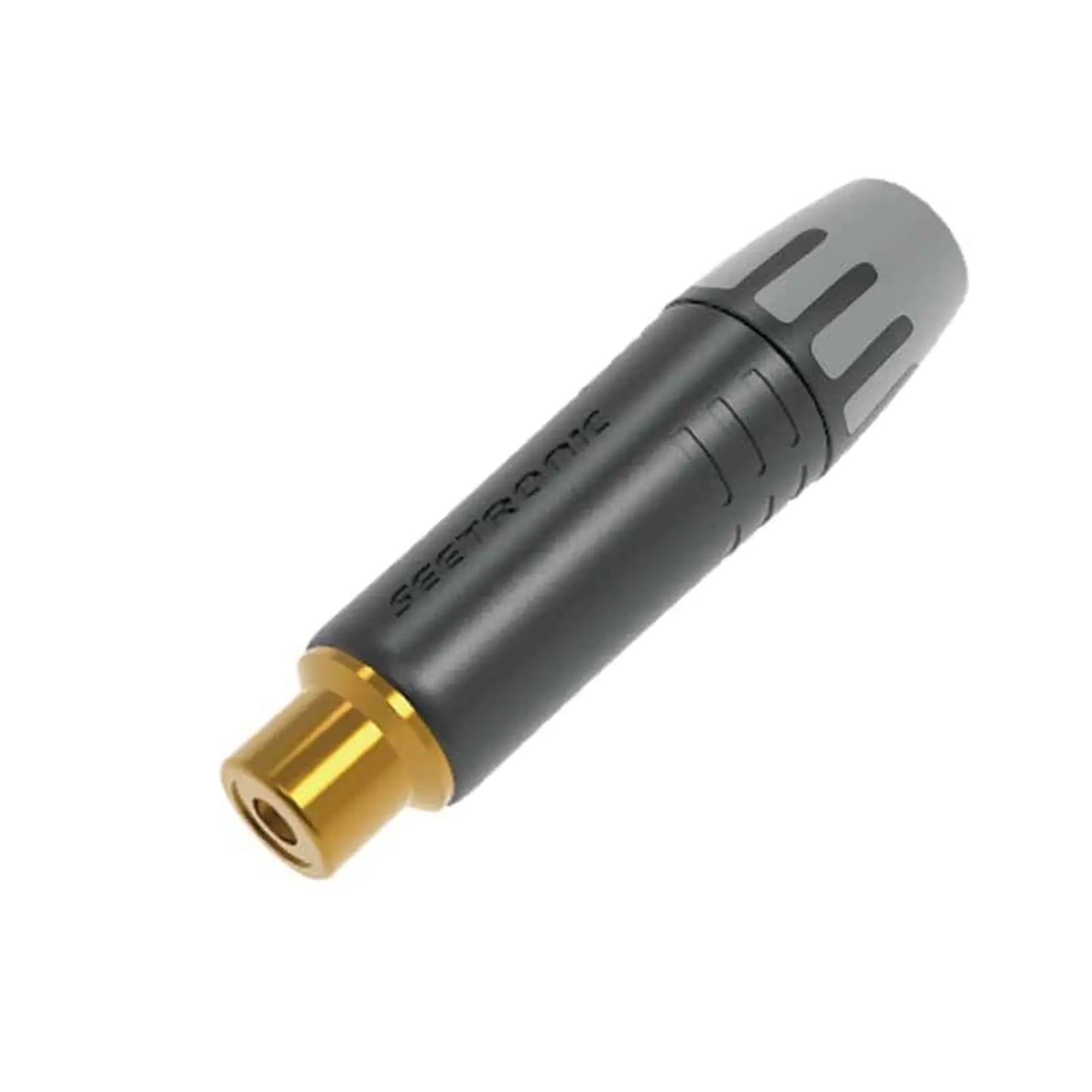

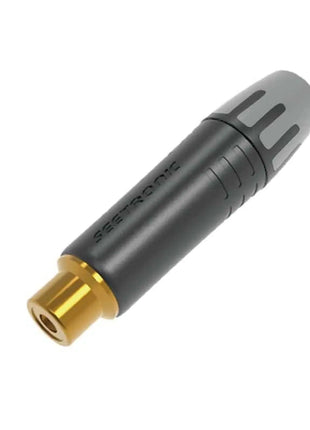

The Seetronic MT390 is a rugged RCA female cable connector with a black-plated zinc alloy body and gold-plated brass contacts. It supports cables from 3.5–6.5mm outer diameter and up to 1.5mm² (16 AWG) delivering stable signal transmission for both digital audio and analog video. Designed for over 1000 mating cycles and compliant with IEC 68‑2‑20 soldering standards the MT390 ensures long-lasting performance in professional AV environments. Gold-plated brass contacts for high signal integrity Black-plated zinc alloy housing with integrated collet strain relief Supports cable OD 3.5–6.5mm (up to 1.5mm² / 16 AWG) Rated voltage <50V; dielectric strength 1500VDC; insulation resistance >5GΩ Designed for >1000 mating cycles Solderable per IEC 68‑2‑20 Operating temperature: –30 °C to +80 °C Suitable for digital audio and analog video systems
