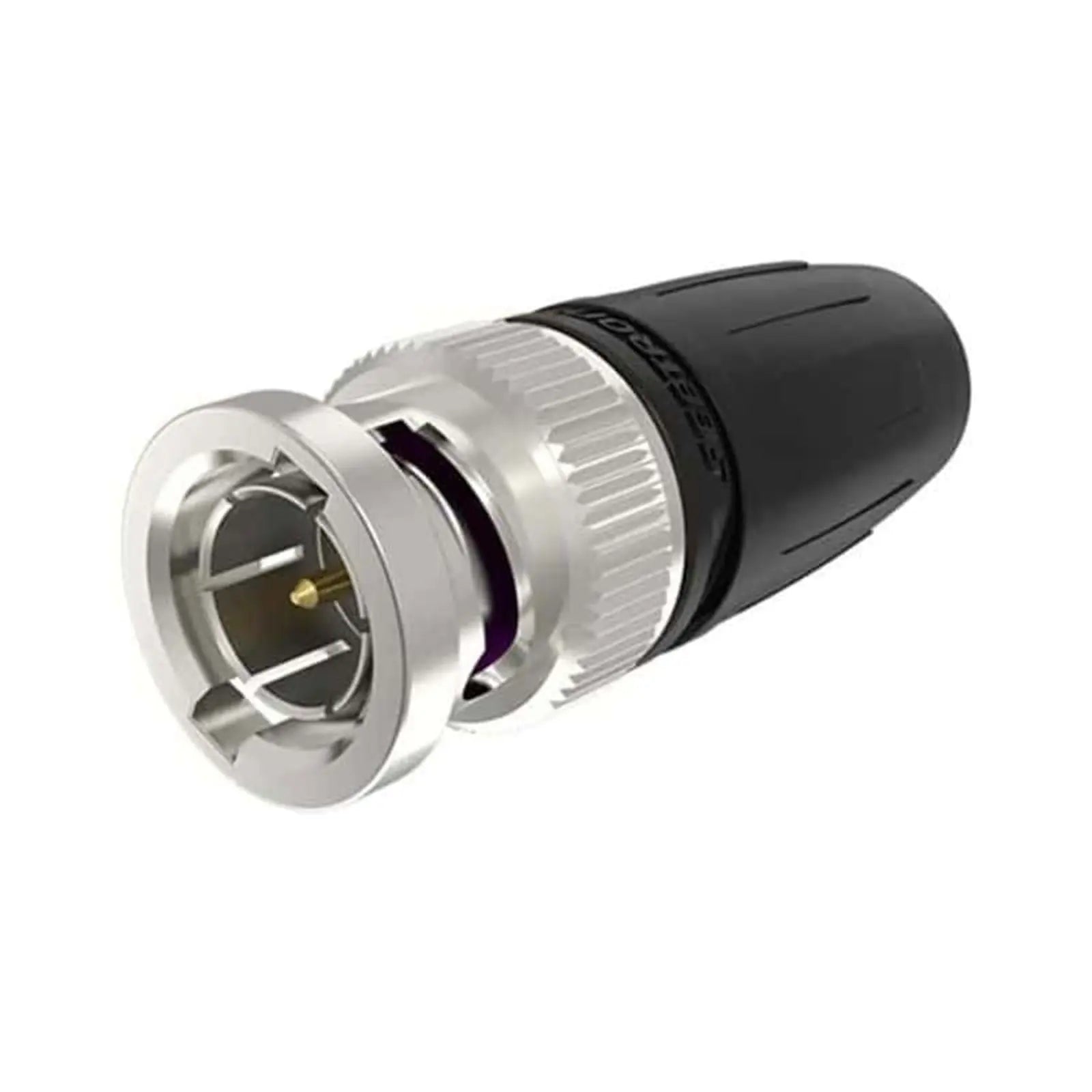

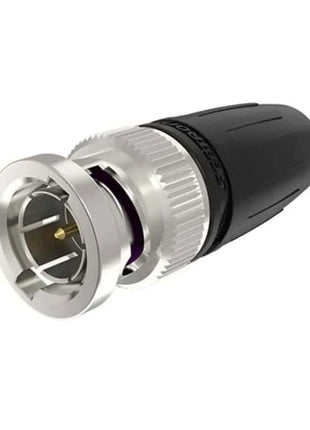

The Seetronic SEBNCM‑75GF7 is a professional-grade 75 Ω BNC male cable connector designed for ultra-high-definition (UHD) video transmission. With a gold-plated pin reduced-diameter contact for low return loss and a rugged nickel-plated body this connector ensures consistent signal integrity in demanding environments. The included rubber boot enhances strain relief and grip making it ideal for broadcast AV and field applications.
- True 75 Ω impedance with low return loss—ideal for UHD video transmission
- Bayonet locking system for fast and secure connection
- Gold-plated centre pin for stable signal performance
- Reduced-diameter pin design to maintain impedance through transitions
- Durable 2-piece design with nickel-plated copper housing
- 5.0mm hex crimp for shield 1.07mm crimp for pin
- Supports cable OD up to 4.7mm with strain relief boot
- Rated for >1000 mating cycles
