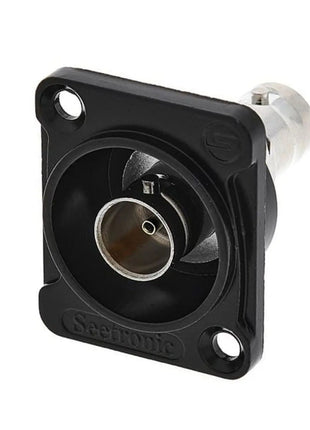

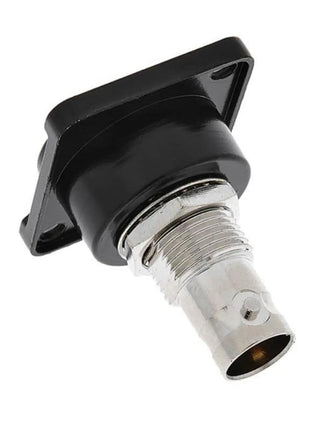

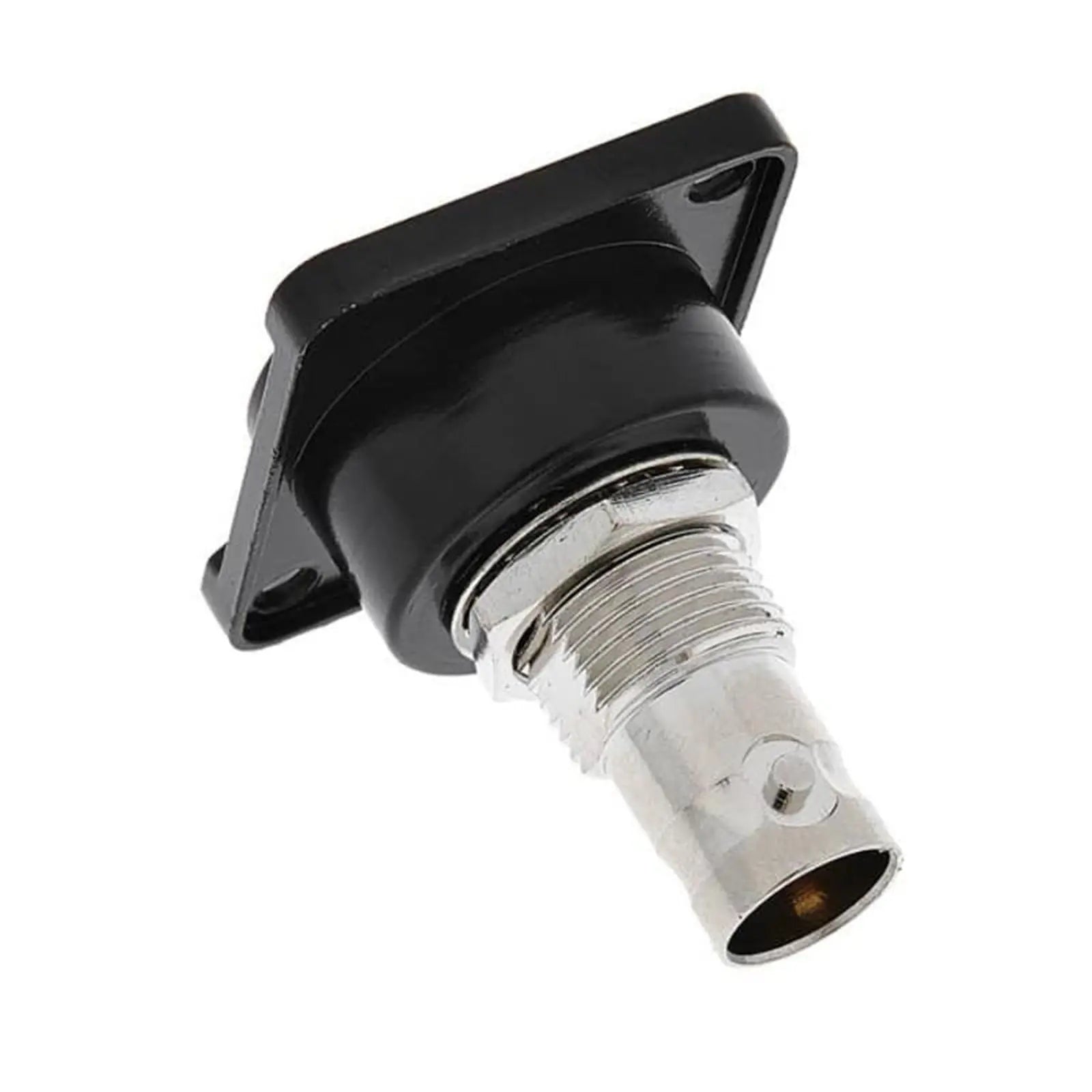

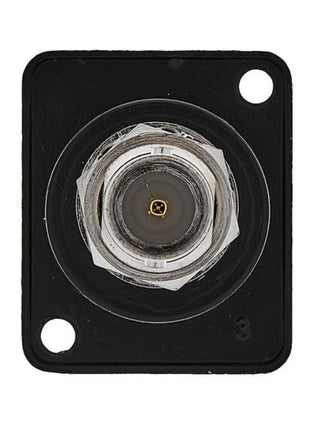

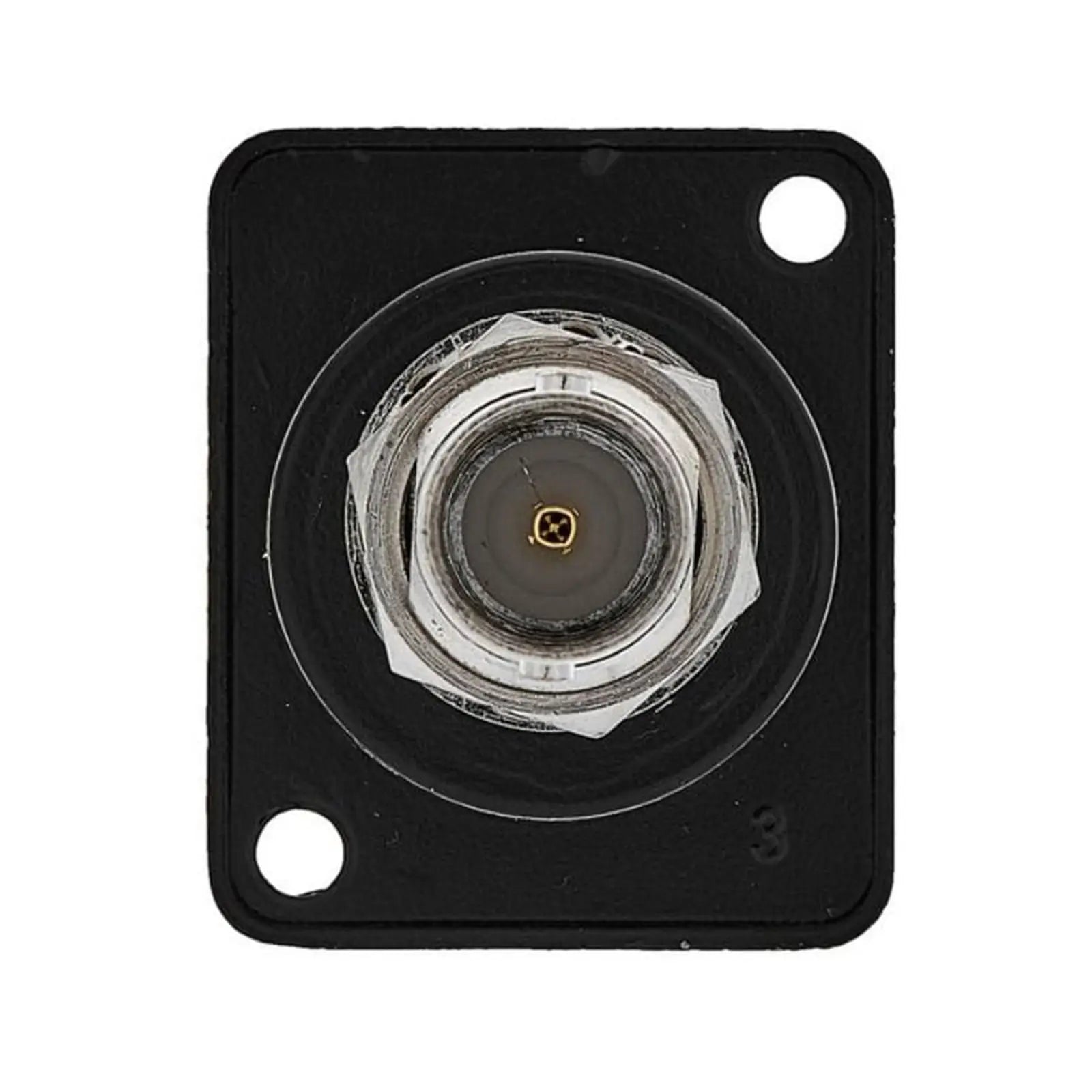

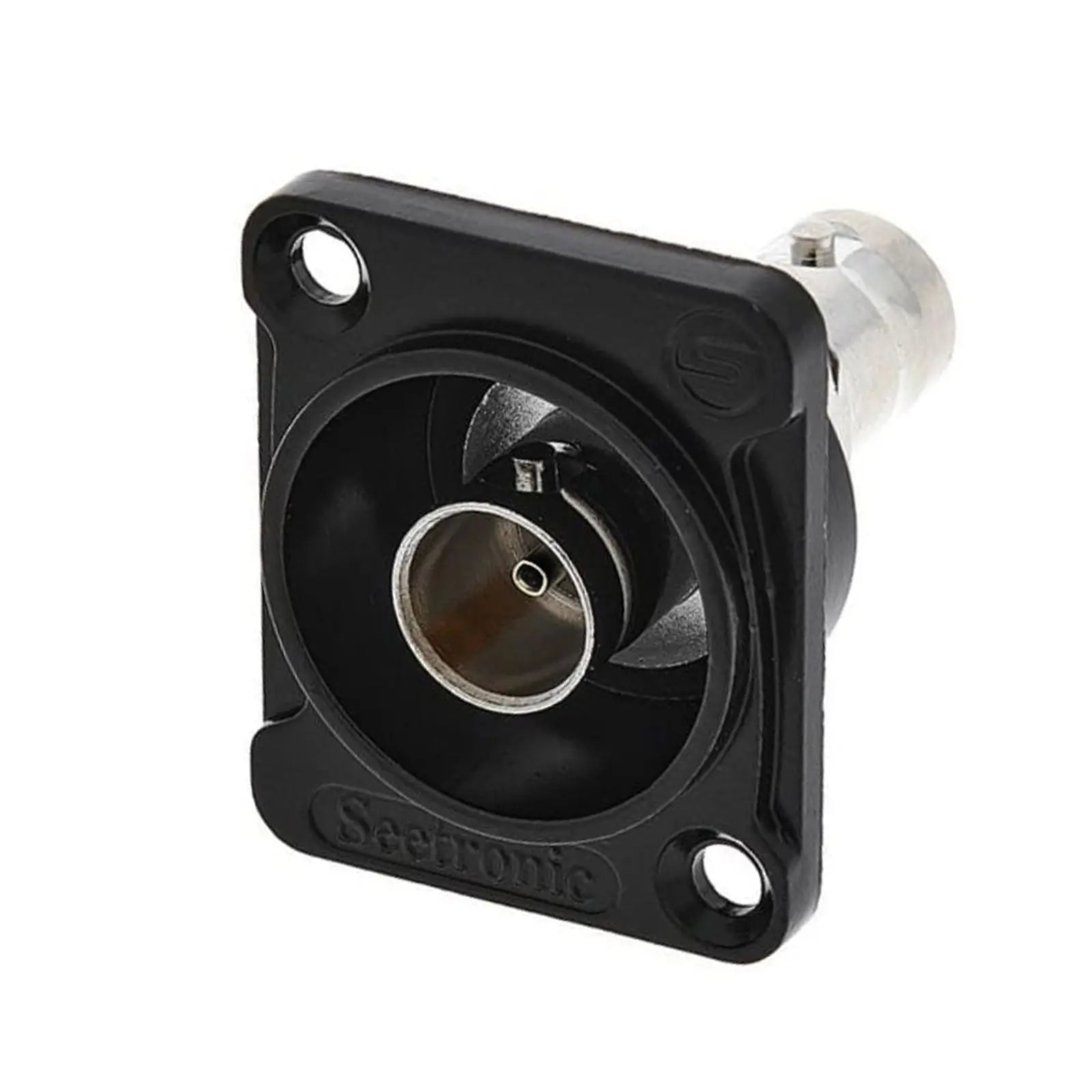

The Seetronic SBB75DFGX‑B is a robust panel-mount BNC socket designed for UHD video signal transmission. Featuring a true 75 Ω impedance design gold-plated contacts low return loss performance and a D-size black zinc-alloy body this connector offers professional-grade reliability for 4K/8K video SDI AES/EBU YUV RGB and composite signal environments.
- True 75 Ω impedance with reduced return loss ideal for UHD/SDI video signals
- Compact D-size flush-mount panel housing for robust integration
- Non-grounded version (alternative grounded model: SBB75DFGX)
- Nickel-plated zinc alloy body with black finish for a clean install
- Gold-plated copper alloy contacts for stable signal integrity
- Supports UHD SDI AES/EBU Composite YUV RGB RGBH RGBHV
- Rated for >1000 mating cycles with ≤25N insertion/withdrawal
- Operating temperature range of –30 °C to +85 °C
