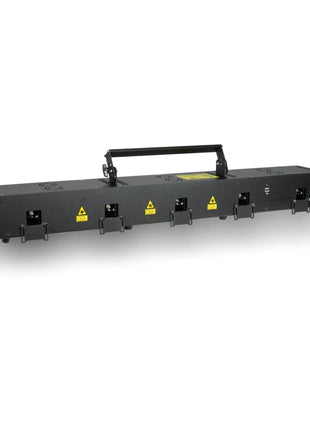

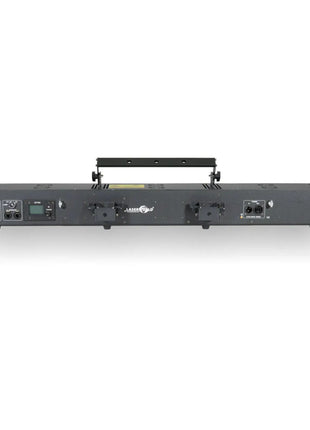

ScanBar 10RGB - Professional 10W 5-Lens Full-Colour Scanning Laser
The ScanBar 10RGB is a powerhouse, professional-grade laser system designed for high-impact stage effects and large-scale event production. Featuring five independent beam outputs with complete X/Y scanning capabilities, this robust bar creates intricate, synchronised laser arrays that far surpass static beam effects. With a massive 10,000mW (10W) of guaranteed power and analog modulation for smooth colour mixing, the ScanBar 10RGB is the definitive choice for lighting designers looking to create immersive mid-air geometries and complex scanning patterns.
Key Features
-

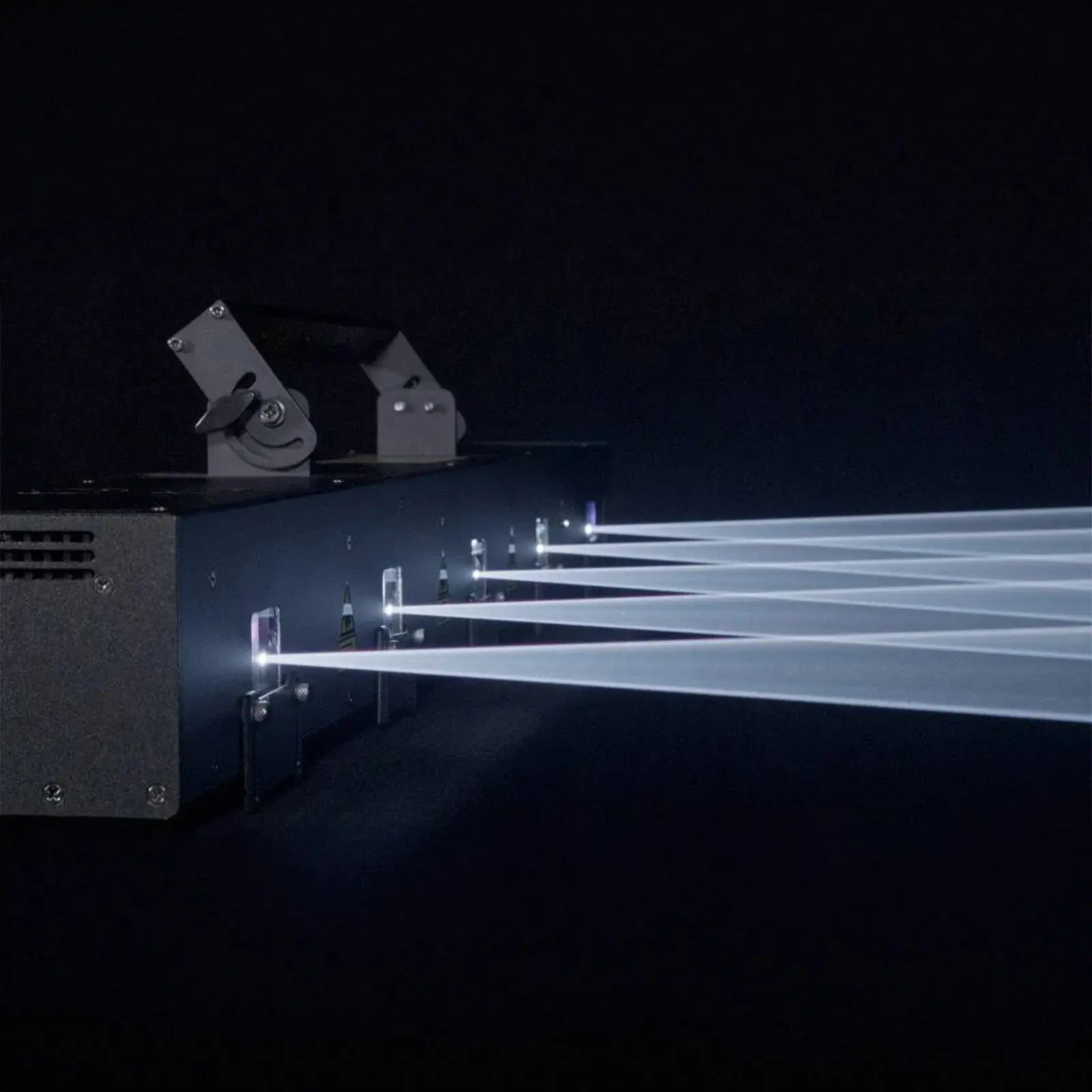

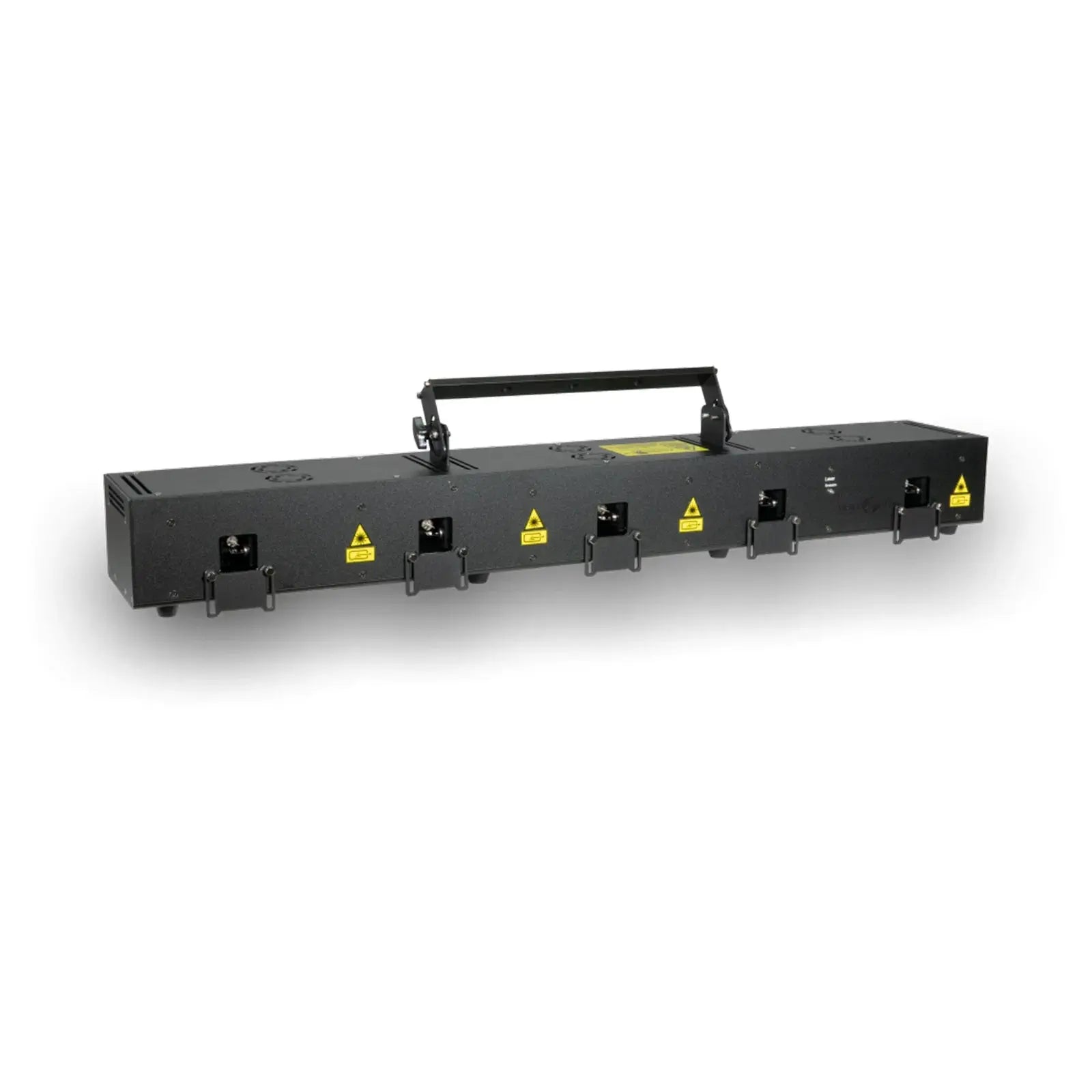

Five-Lens Scanning System: Unlike traditional laser bars, this unit features five independent beam outputs, each with complete X/Y scanning for dynamic, moving light shows.
-
Massive 10W Power Output: Delivers a guaranteed 10,000mW at the aperture, distributed across five high-intensity RGB diode sets for unmatched brightness and visibility.
-
Precision Optics: Projects extremely sharp beams with low divergence (1.1mrad), ensuring that effects remain crisp even across large arenas and festival stages.
-
Full Colour Mixing: Utilises analog modulation to allow for a full spectrum of colour blending, moving far beyond basic primary colours.
-
Versatile Control Profiles: Equipped with four different DMX profiles to suit various programming styles, alongside standalone and primary-secondary modes for easier setups.
-
Extensive Pattern Library: Includes over 100 built-in preset patterns, making it easy to generate impressive stage effects right out of the box.
-

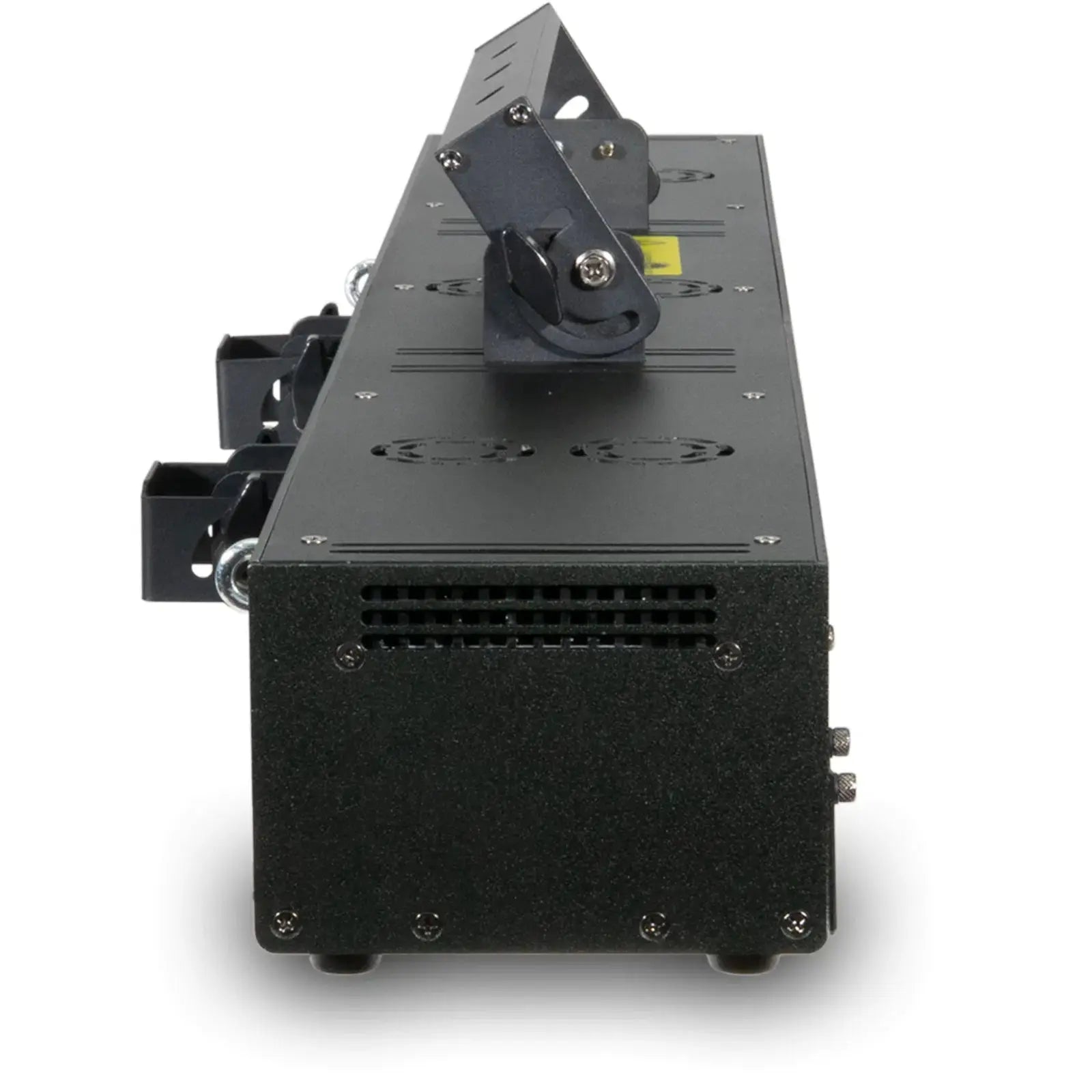

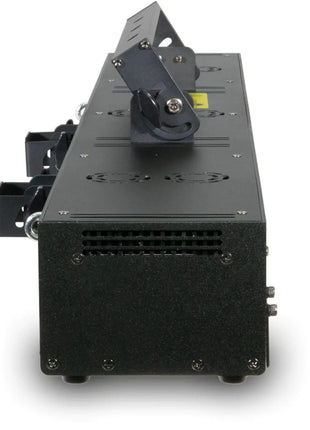

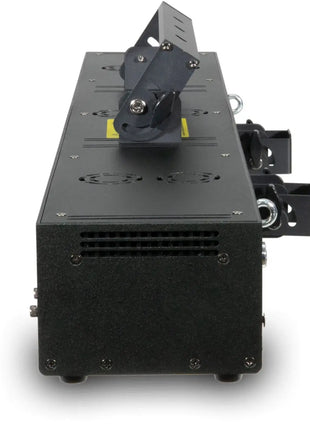

Professional Build Quality: A robust, tour-ready chassis designed to withstand the rigours of professional event environments.
Technical Specifications
-
Guaranteed Power at Aperture: 10,000mW (10W)
-
Laser Source: Diode (Class 4)
-
Colour Configuration:
-
Red: 5 x 450mW / 638nm
-
Green: 5 x 600mW / 525nm
-
Blue: 5 x 950mW / 450nm
-
Beam Specifications: 4mm / 1.1mrad
-
Scanner Speed: 25kpps @ 8°
-
Operation Modes: DMX (4 profiles), Stand-alone, Primary-Secondary
-
Basic Patterns: >100
-
Power Supply: 85V-250V AC, 50/60Hz
-
Power Consumption: 150W
-
Dimensions: 1000 x 152 x 105 mm
-
Weight: 12 kg
-
EAN/MPN: 7640144994815
