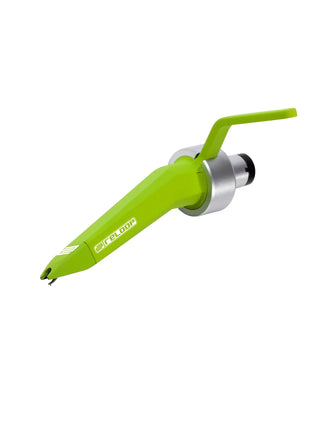

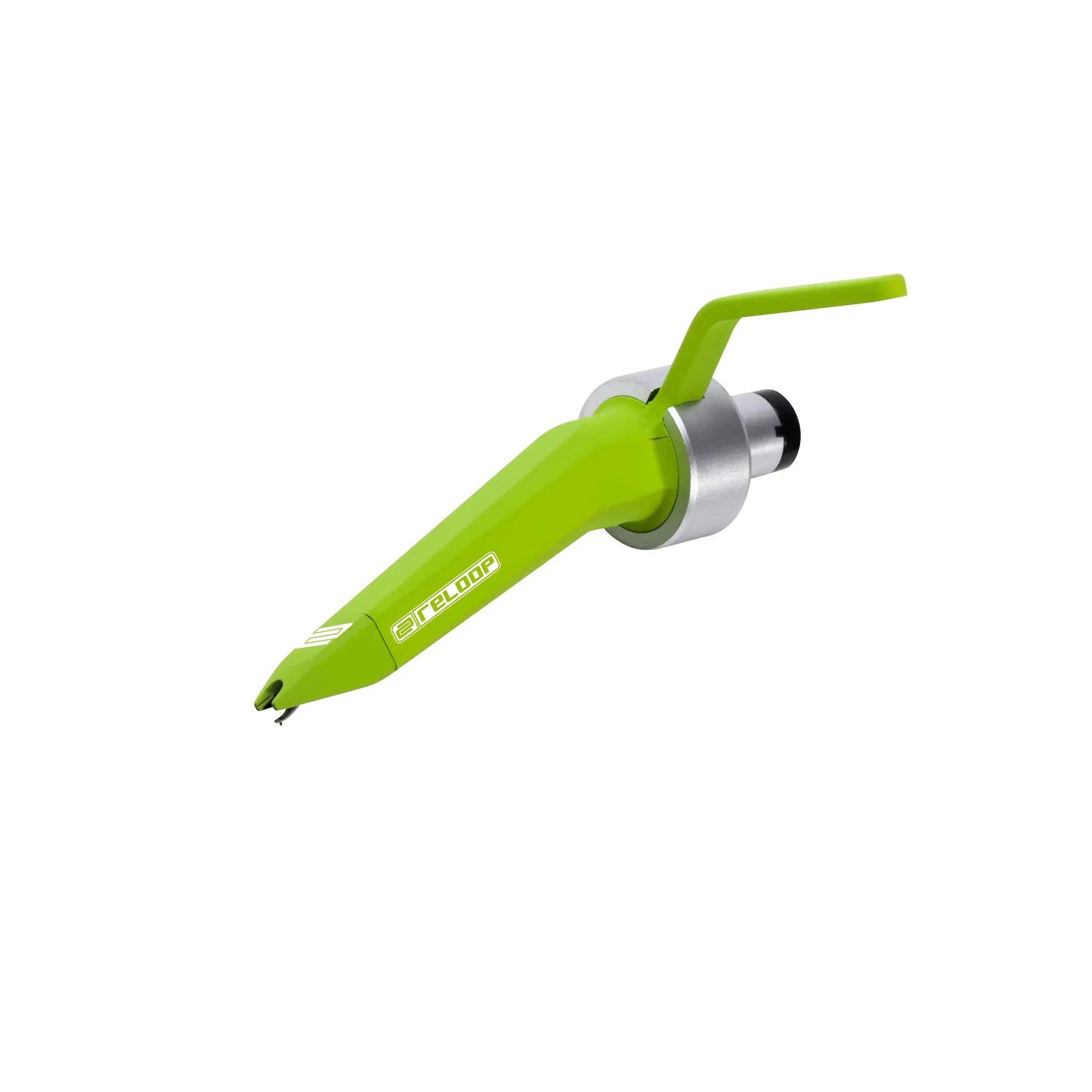

Reloop Concorde Green - DVS timecode DJ cartridge
The Concorde Green is where analogue meets digital - a Concorde cartridge purpose-built for use with timecode (DVS) records, made by the experts at Ortofon. Its high 8 mV output reproduces timecode signals especially precisely, giving you tight, reliable control in your DVS software while keeping record wear low.
Staff take: the expert verdict
The Concorde Green is the one we recommend to DVS DJs running Serato, rekordbox or Traktor on control vinyl. Timecode is all about clean signal, and the Green's high 8 mV output and strong tracking ability give the software a rock-solid signal to read, which means tighter response and fewer dropouts. The spherical stylus keeps wear on your expensive control records low, too. If you play digital files on timecode vinyl, this is the cartridge built for the job.
Why choose the Reloop Concorde Green?
● Made by Ortofon - built by the cartridge experts at Ortofon A/S for proven quality.
● Optimised for DVS - purpose-designed for timecode records, reproducing the control signal especially precisely.
● High output - a high 8 mV output gives DVS software a strong, reliable signal to track.
● Low record wear - the spherical stylus keeps wear on your control vinyl low.
● Strong tracking ability - excellent tracking suits both mix and scratch DVS use.
● Direct Concorde mounting - mounts straight into SME-style tonearms with no alignment needed.

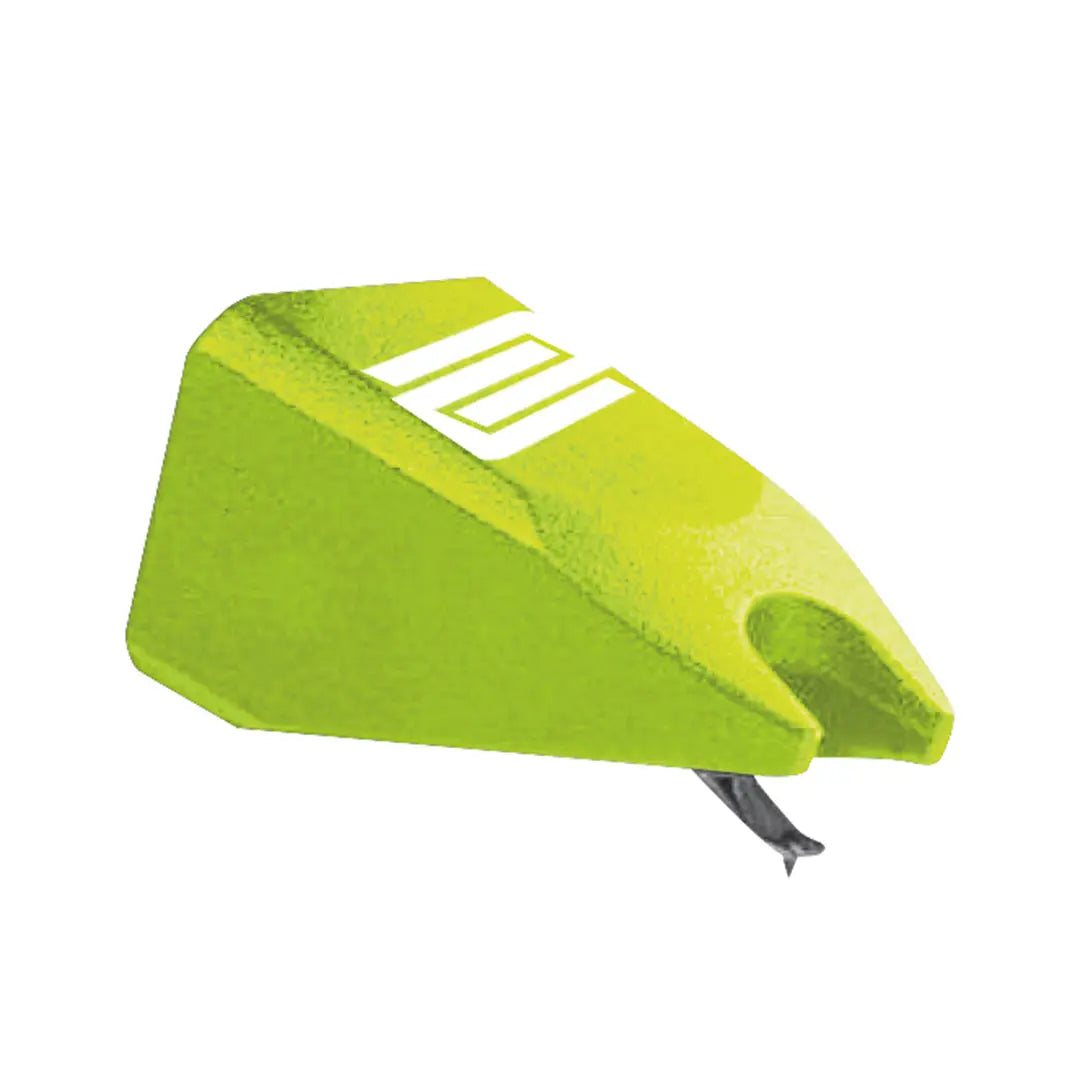

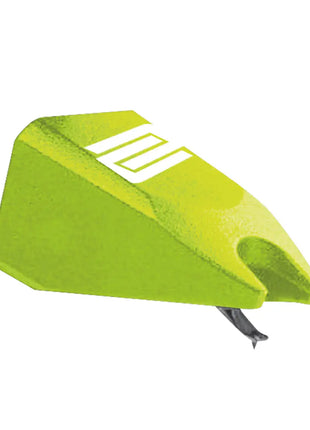

● Replaceable stylus - the stylus is removable and available separately as the Green Stylus.
Who is the Reloop Concorde Green for?
The Concorde Green is built for DVS DJs running timecode control vinyl with software such as Serato DJ Pro, rekordbox or Traktor. It suits both mix and scratch DJs who want precise, reliable timecode tracking and low wear on their control records.
Technical specifications
|
Specification
|
Details
|
|
Type
|
Moving magnet (MM) Concorde cartridge
|
|
Stylus
|
Spherical diamond (removable)
|
|
Output voltage
|
8 mV
|
|
Channel separation
|
22 dB at 1 kHz; 15 dB at 15 kHz
|
|
Frequency range (-3 dB)
|
20 - 20,000 Hz
|
|
Tracking ability
|
90 micrometres at 315 Hz (at recommended force)
|
|
Compliance (dynamic, lateral)
|
12 micrometres
|
|
Equivalent stylus tip mass
|
0.6 mg
|
|
Tracking force range
|
2 - 4 g
|
|
Recommended tracking force
|
3 g
|
|
Recommended load impedance
|
47 kilohm
|
|
Mount
|
SME-style (direct Concorde fitting)
|
|
Best for
|
Timecode / DVS systems
|
Frequently asked questions
What makes the Green good for DVS? Its high 8 mV output reproduces timecode signals especially precisely, giving DVS software a strong, reliable signal while keeping record wear low.
Which software does it work with? It suits any DVS system using timecode control vinyl, such as Serato DJ Pro, rekordbox or Traktor.
Can I use it for normal vinyl too? Yes - it will play standard records, though it is optimised for timecode use; for pure vinyl play the Blue or Vibe may suit better.
Can I replace just the stylus? Yes - the stylus is removable and available separately as the Green Stylus.
What's in the box?
● 1 x Reloop Concorde Green cartridge with fitted stylus
Note: also available as a replacement Green Stylus only; contact our team if you need the stylus rather than the complete cartridge.
