RCF Evox 12 | Professional Active Column PA System | UK Stock & Expert Support | djkit®
Staff Take: The Expert Verdict

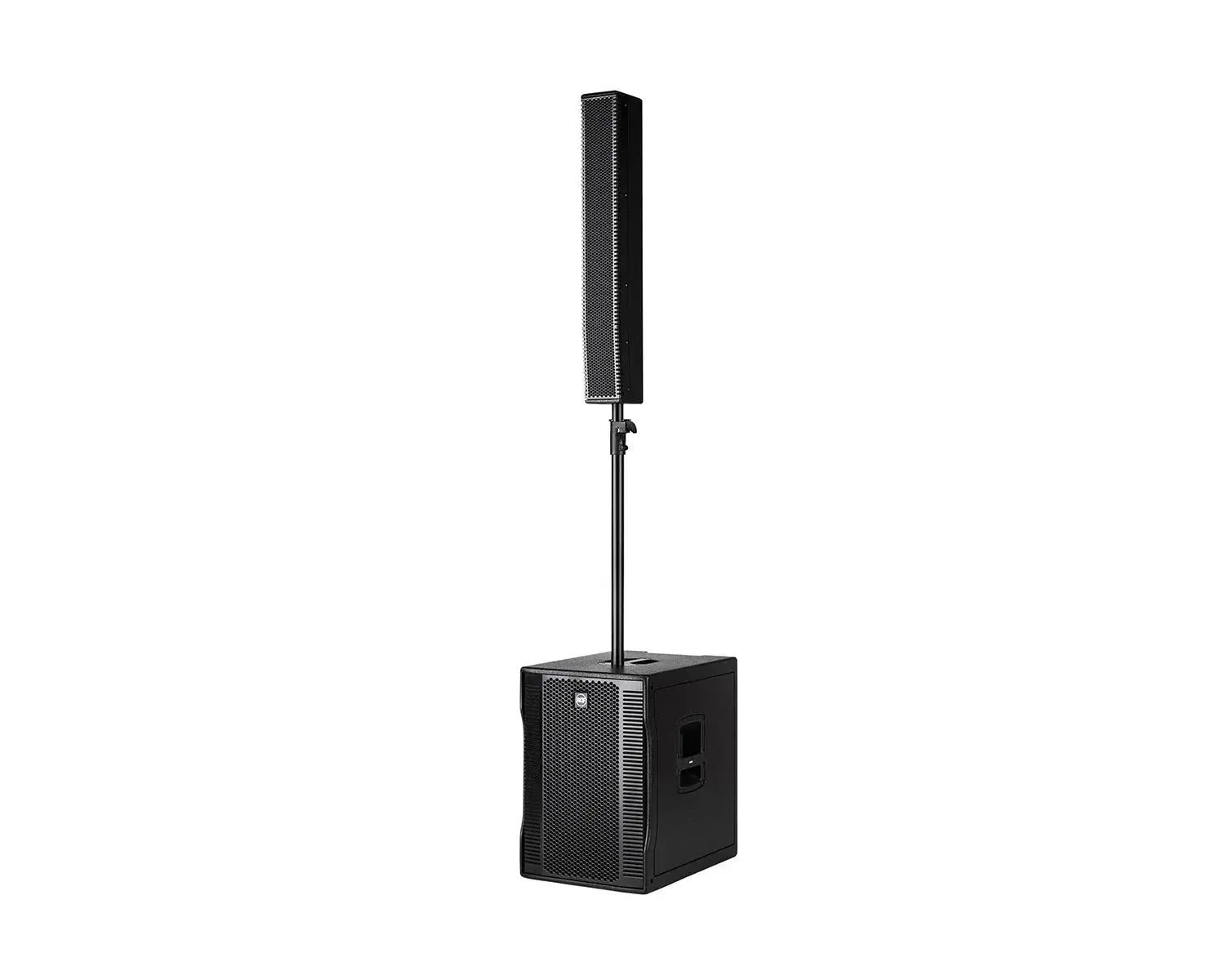

If you are running high-end weddings, corporate functions, or mobile DJ gigs where clients demand a clean, minimalist look but you still want the ground-shaking low-end of a traditional rig, the RCF Evox 12 is the gold standard. Most compact column arrays fall flat when you try to push them past 150 people because their small subs choke, but the Evox 12 packs a full-scale 15-inch reflex sub that delivers a thumping, effortless low-end down to 40Hz. The top line-source column holds eight 4-inch neodymium drivers that throw vocals right to the back of the room without blowing out the front row. It is incredibly quick to set up, and thanks to the integrated wheels and telescopic handle built straight into the wooden sub cabinet, you can literally roll it into the venue in one trip.
Why Choose the RCF Evox 12 Column PA?
-

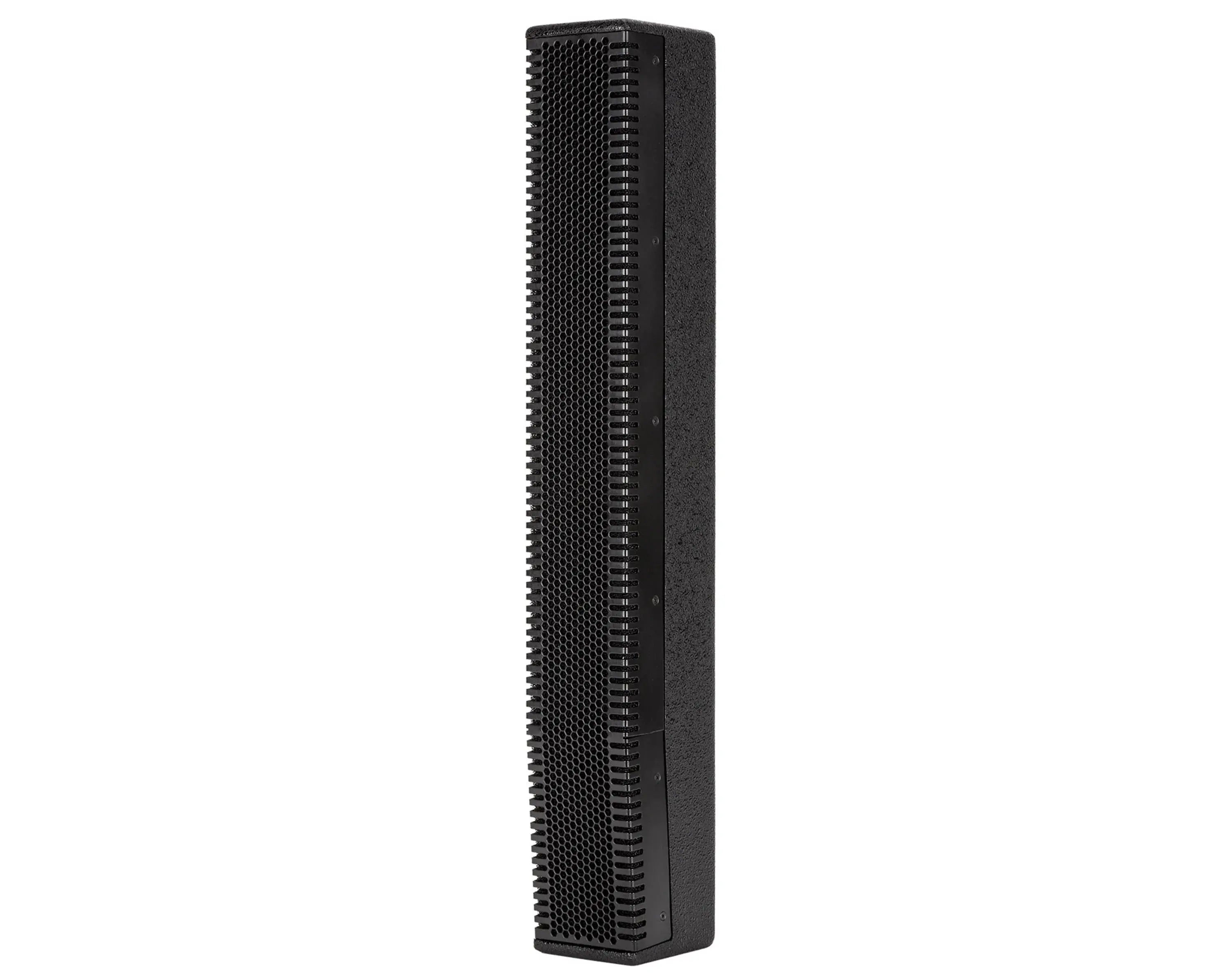

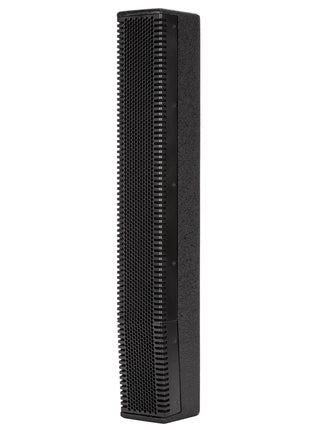

Elite Line-Source Top Column: Loaded with 8 high-performance 4-inch neodymium full-range drivers featuring progressive vertical shaping to maximize vocal coverage while avoiding ceiling reflections.
-

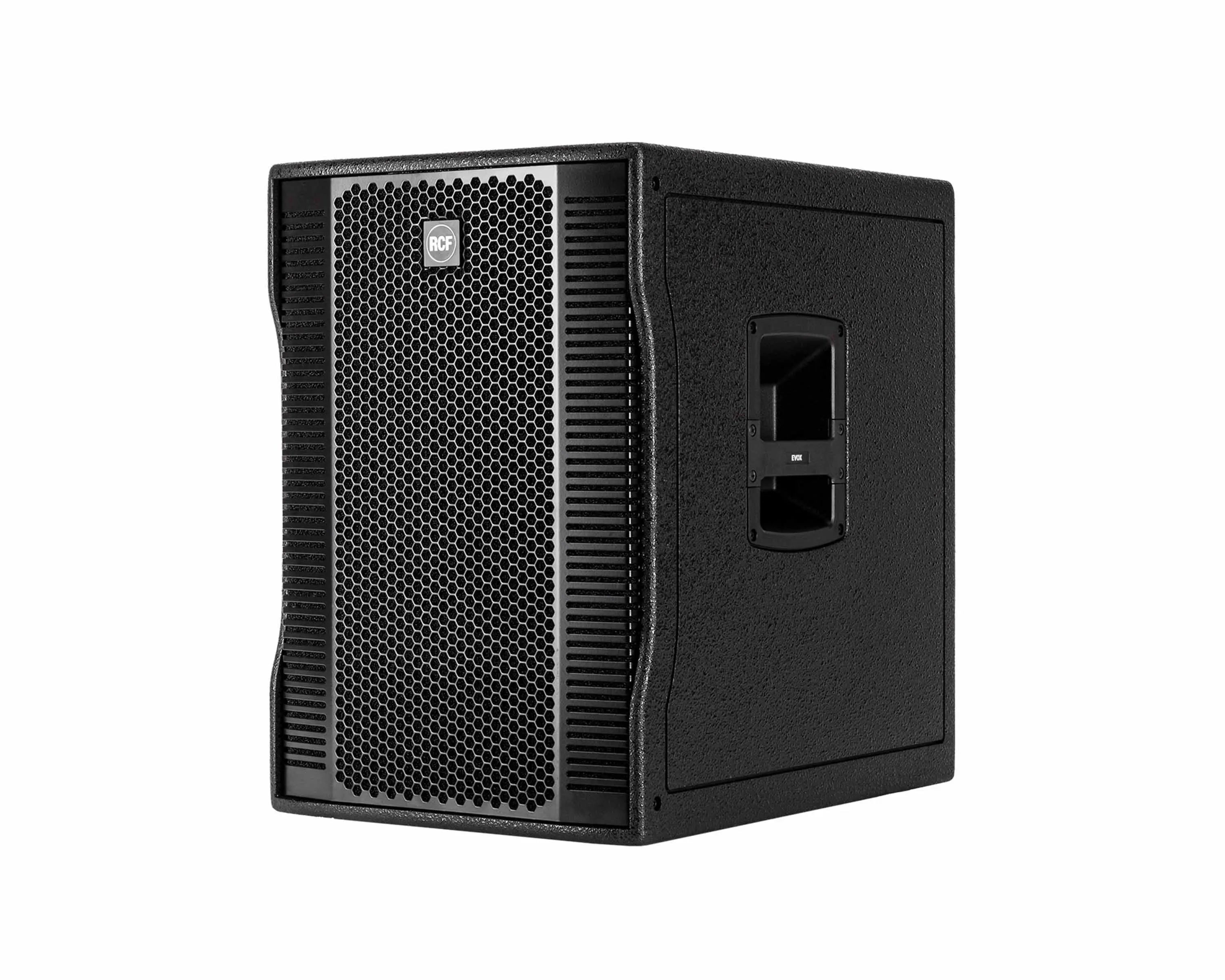

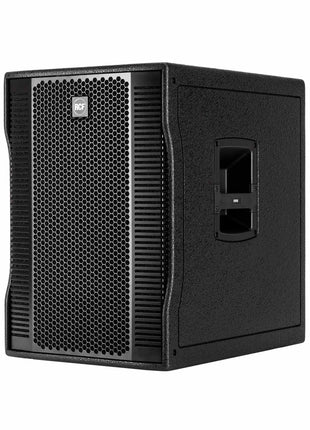

Thumping 15-Inch Sub Bass: A premium Baltic birch plywood bass-reflex cabinet houses a high-excursion 15-inch woofer, delivering precise, fast transient kick-drum punch without air distortion.
-
1400W Class-D Power Plant: Bi-amplified engine splitting 1000W peak for the low frequencies and 400W peak for the highs, utilizing an ultra-fast attack transient design for incredible dynamic headroom.
-
Advanced FiRPHASE DSP Processing: Utilizes cutting-edge proprietary FIR filtering to optimize phase alignment, delivering uniform, completely natural sound distribution across your entire audience.
-
Wide 90x30 Degree Dispersion: Perfectly tailored pattern control ensuring wide horizontal spread while focusing the vertical projection tightly on the dance floor to save energy.
-

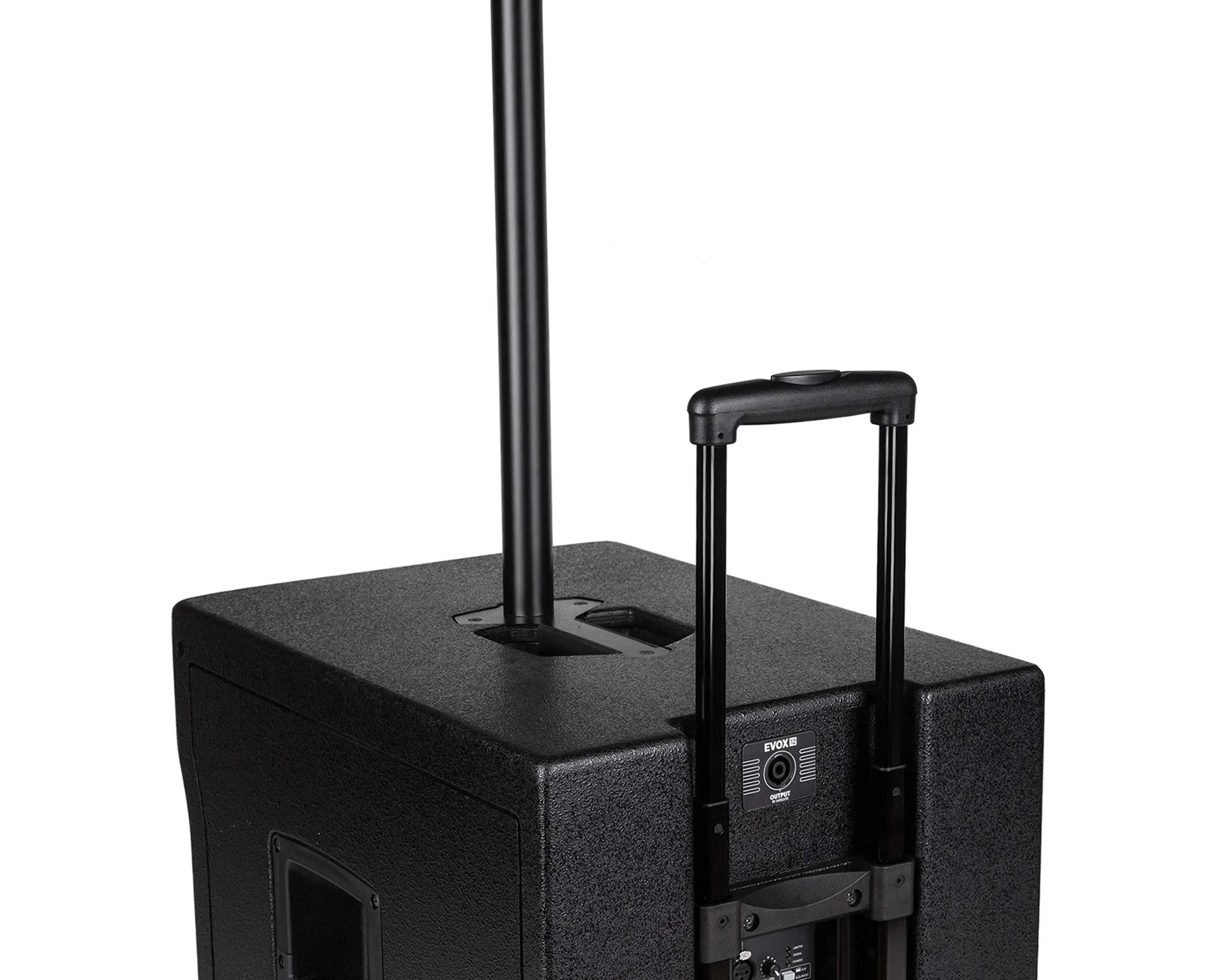

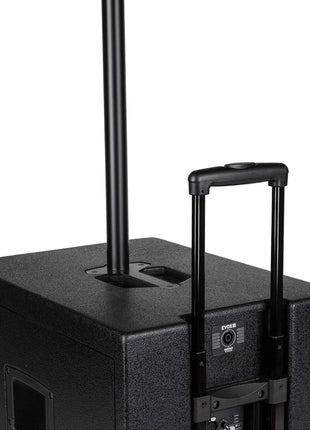

Effortless Mobile Portability: The subwoofer features a built-in heavy-duty transport handle, built-in wheels, and a recessed top steel plate to clip the line array column securely into place during storage.
-
Fast Three-Step Setup: Screws together in seconds using the two-piece speaker pole. Run a single cable from the sub to the satellite top, plug in your main feed, and you are ready to perform.
Technical Specifications
-
System Design: 2-Way Active Line-Source Column PA
-
Peak Power Output: 1400 W Peak (1000W Low Frequency / 400W High Frequency)
-
RMS Power Output: 700 W RMS (500W Low Frequency / 200W High Frequency)
-
Maximum Acoustic Output: 130 dB Max SPL
-
Frequency Response: 40 Hz to 20 kHz
-
Coverage Angle: 90 degrees Horizontal x 30 degrees Vertical
-
Low Frequency Driver: 15-inch Woofer with a 3.0-inch Voice Coil
-
High Frequency Satellite: 8 x 4.0-inch Neodymium Drivers with a 1.0-inch Voice Coil
-
Crossover Frequency Point: 180 Hz
-
System Protections: Thermal, RMS limiting, and transparent Soft Limiter
-
Inputs & Outputs: Balanced XLR / Jack Combi Input, Balanced XLR Link Output
-
Cabinet Material: Premium Baltic Birch Plywood with heavy-duty black textured finish
-
Total System Weight: 36.4 kg
Specs/Box Contents
-
1 x RCF Evox 12 Active Subwoofer
-
1 x RCF Evox 12 Satellite Array Top Column
-
1 x Two-Piece Interlocking Speaker Pole
-
1 x Dedicated Satellite Link Cable
-
1 x Mains Power Cable
-
1 x User Guide
Why Buy From djkit?
At djkit, we choose live sound solutions that make working mobile performers more efficient without sacrificing premium audio production values. We highly recommend the RCF Evox 12 system for event bands, corporate presenters, rental houses, and premium mobile DJs who need unmatched, club-level sound pressure from a compact, ultra-modern column layout. When you invest with us, you receive fast UK shipping, real-time stock updates, and dedicated backup support from our specialist live sound staff.
