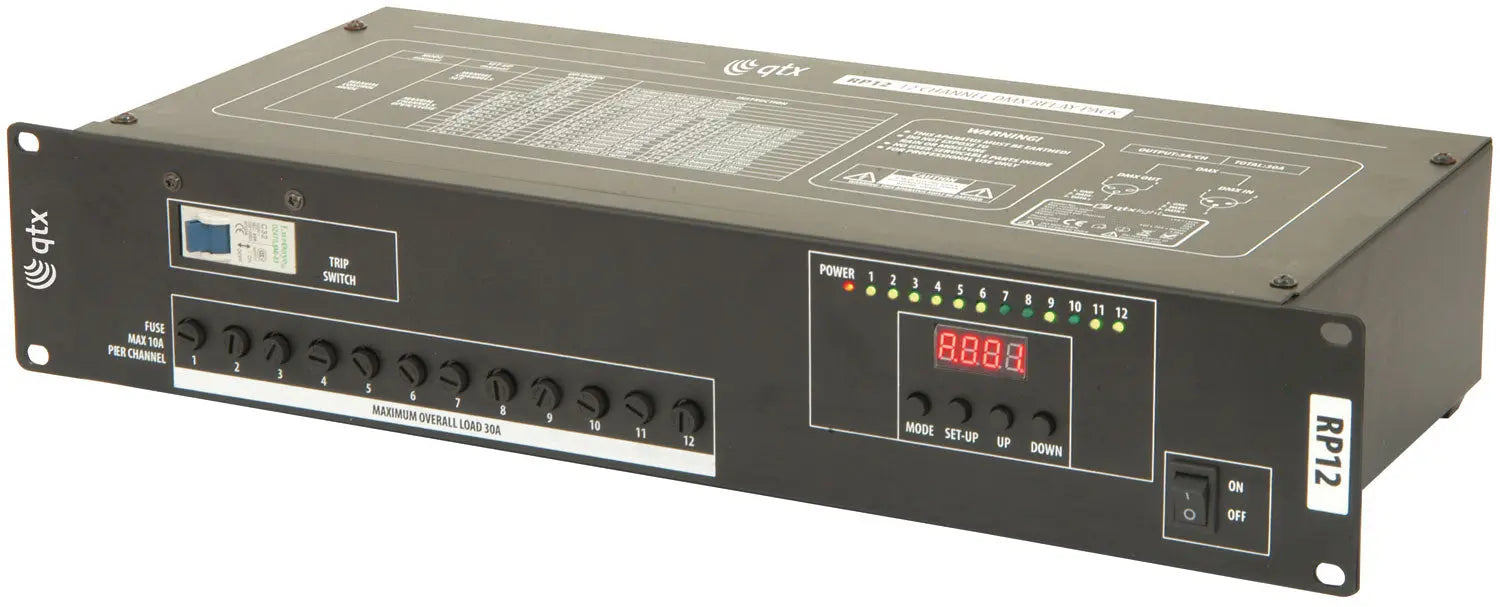

The RP12 is a relay pack with 12 IEC power outputs. Each output is controlled by an individual relay which turns the power on and off saving energy and preserving the lifespan of your light effects. This is ideal for use with low voltage LED light effects which, when used with dimmer packs, turn on and off randomly with the pulse voltage sent through the system. These outputs can be turned on or off using the controls on the digital LED front panel display or by DMX which can be configured so that there are 12, 6, 3, 2 or 1 channel DMX allowing you to suit the need for your setup.

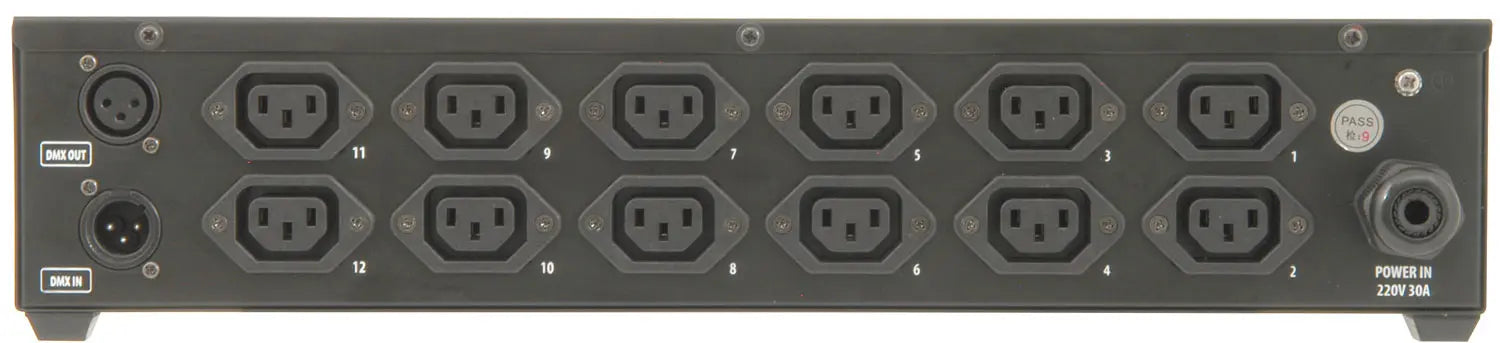

12 individual IEC outputs
12, 6, 3, 2 or 1 channel DMX

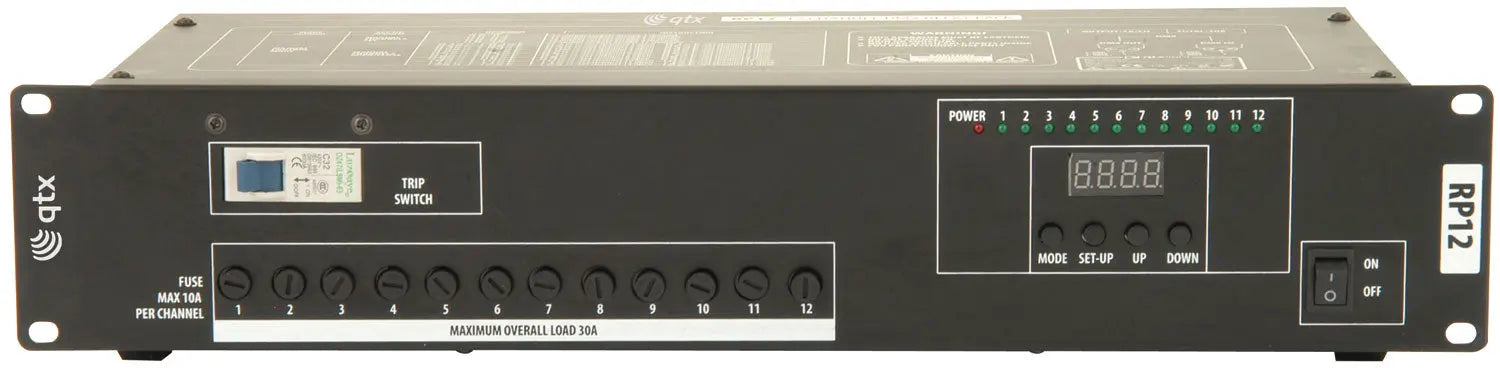

Digital LED display on the front panel
DMX or manually controlled
19" rack mountable
Power supply 230Vac, 50Hz
Maximum current input 30A
Maximum current per channel 10A
IEC outputs 12
Dimensions 440 x 205 x 88mm
Weight 3.8kg
