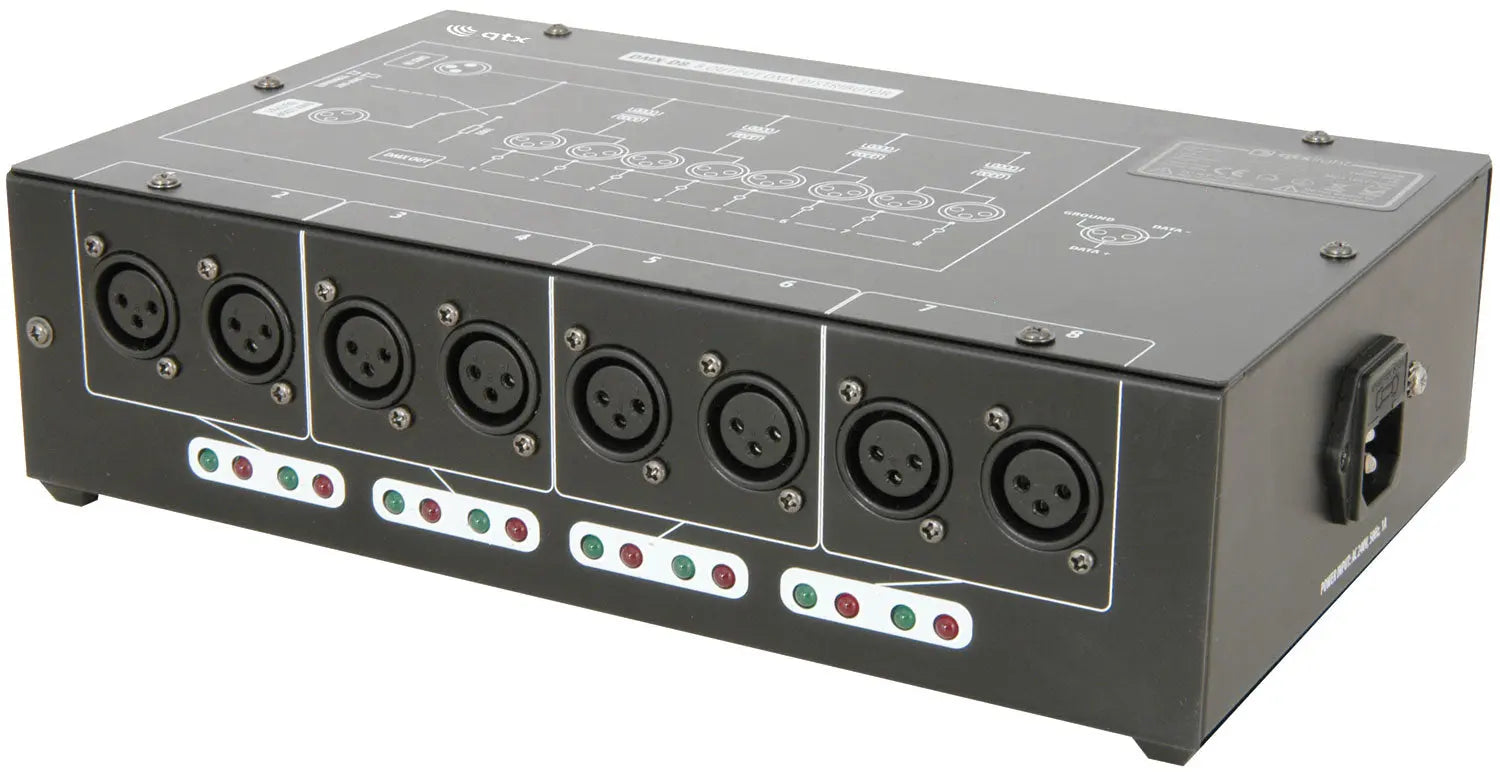

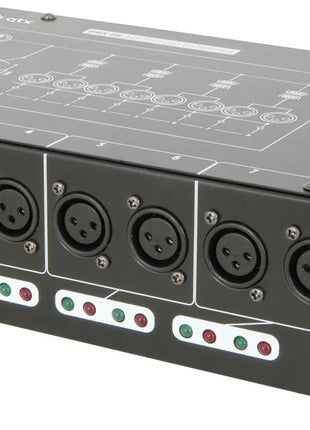

This 8 way DMX Booster/distributor has one input, loop through and four electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area or to isolate individual fixtures making it quick and easy to highlight and fix without the whole system failing.

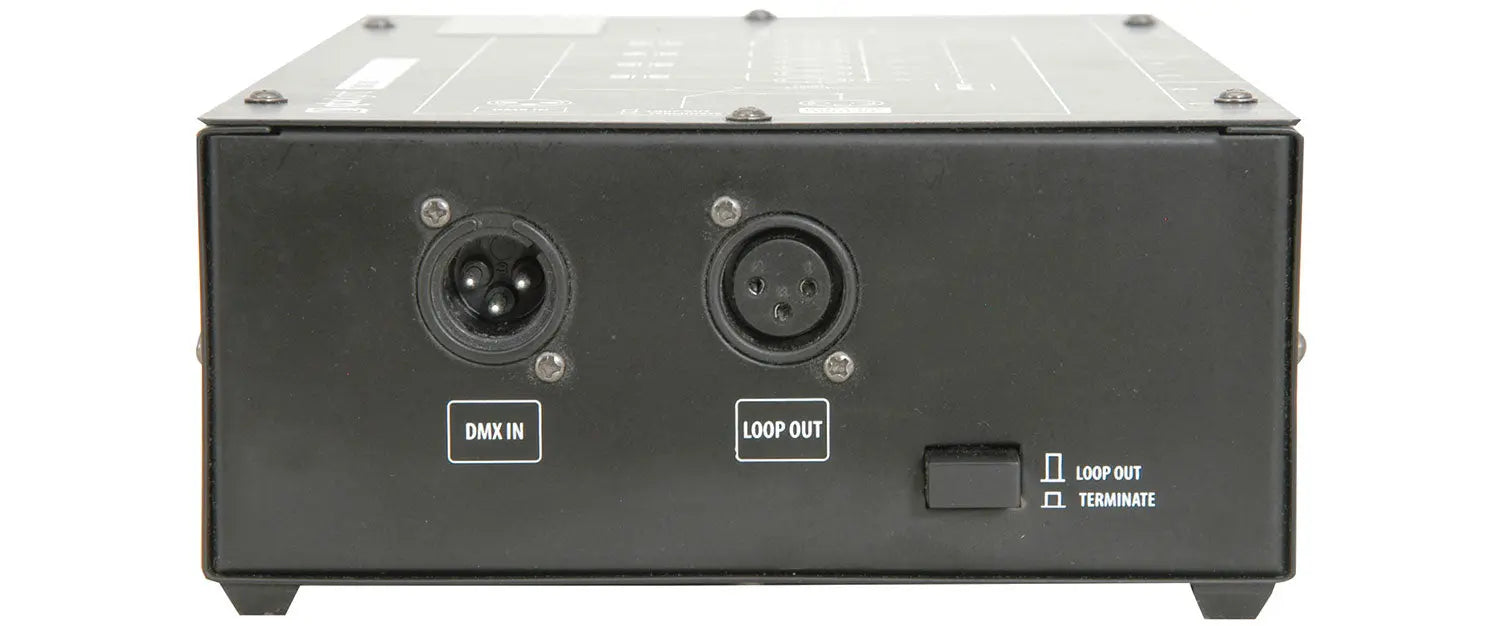

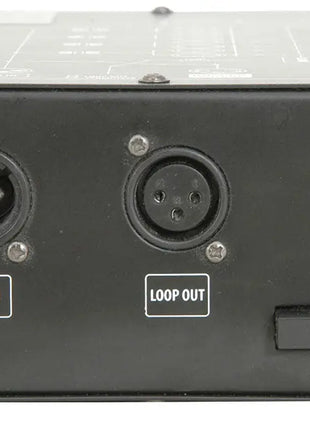

DMX Loop out or DMX terminated switch
Powered by mains to maintain a strong signal
LED data indicators

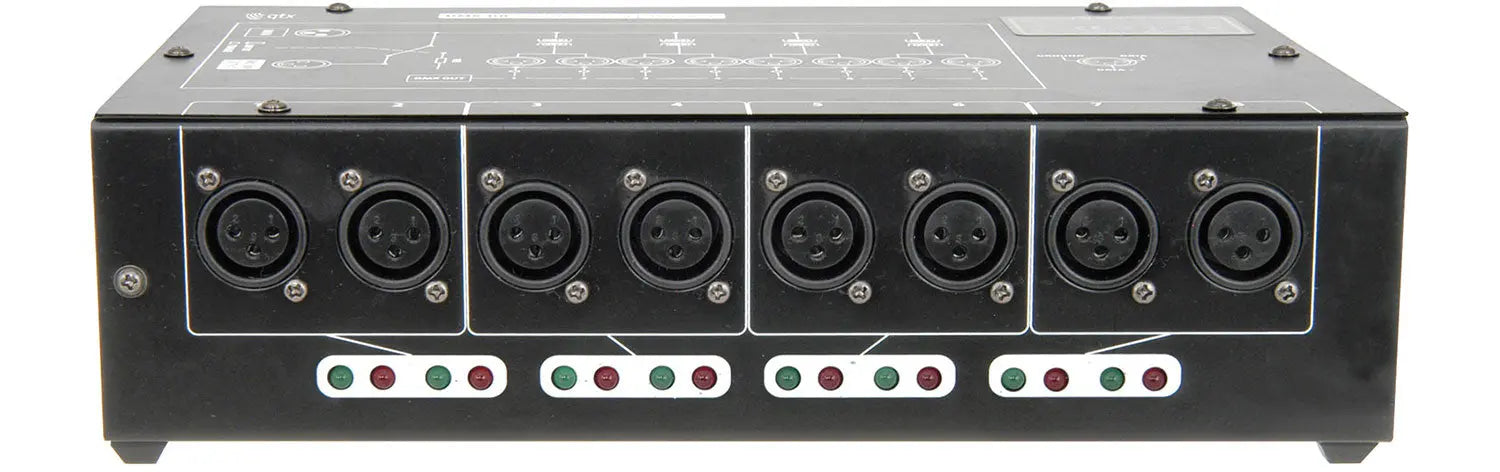

8 x Opto isolated DMX outputs
Power supply 230Vac, 50Hz (IEC)
DMX inputs 1
DMX outputs 8
Dimensions 280 x 180 x 75mm
Weight 2.3kg
