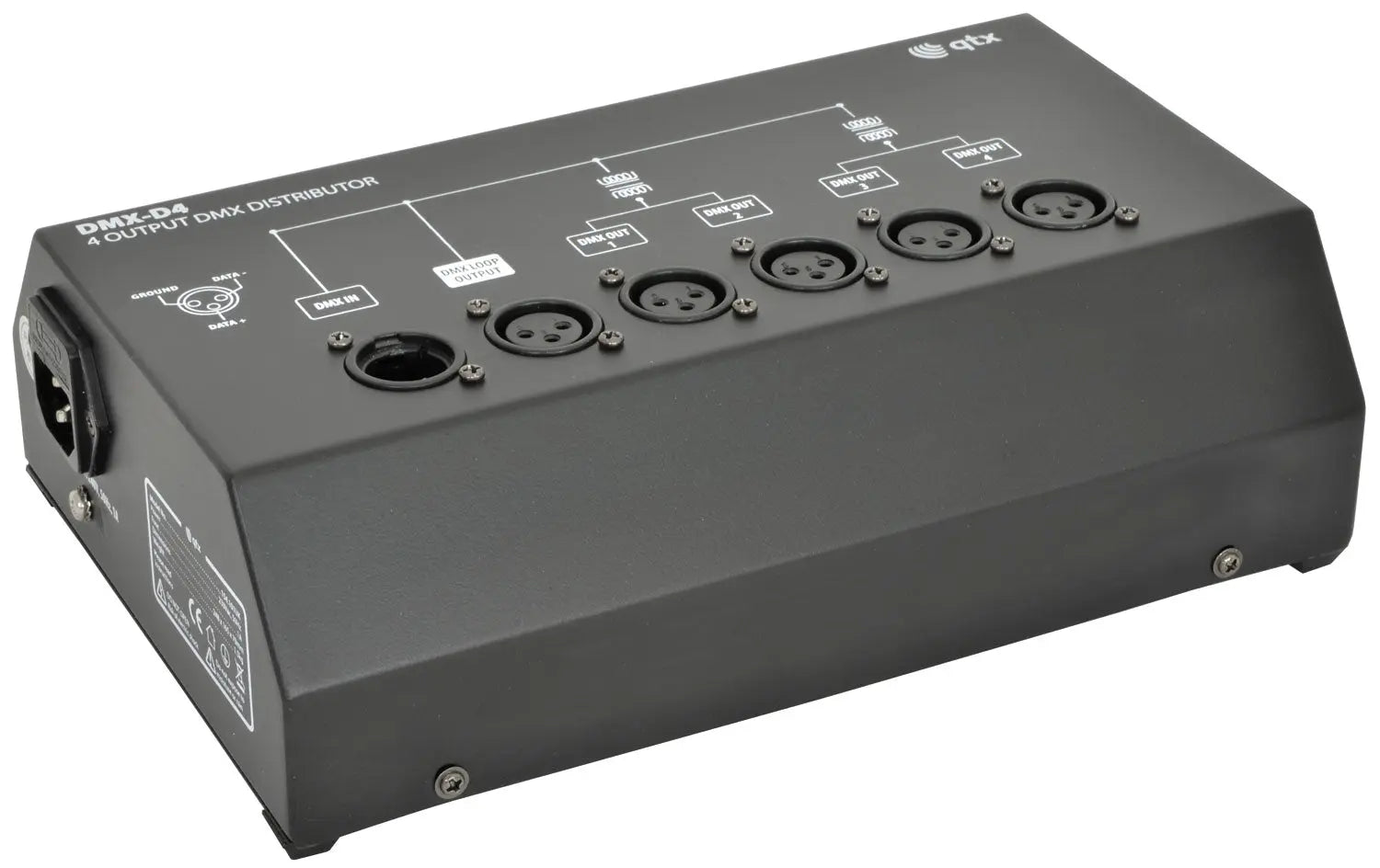

This 4 way DMX Booster/distributor has one input, loop through and two electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area rather than running a chain. The box will isolate individual sub chains, making it quick and easy to protect and fix faults when they occur without the whole system failing.
DMX Loop out or DMX terminated (supplied)
Powered by mains to boost signal over a long distance
2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
Power supply 230Vac, 50Hz (IEC)
DMX inputs 1
DMX outputs 4
Dimensions 248 x 165 x 70mm
Weight 1.5kg
