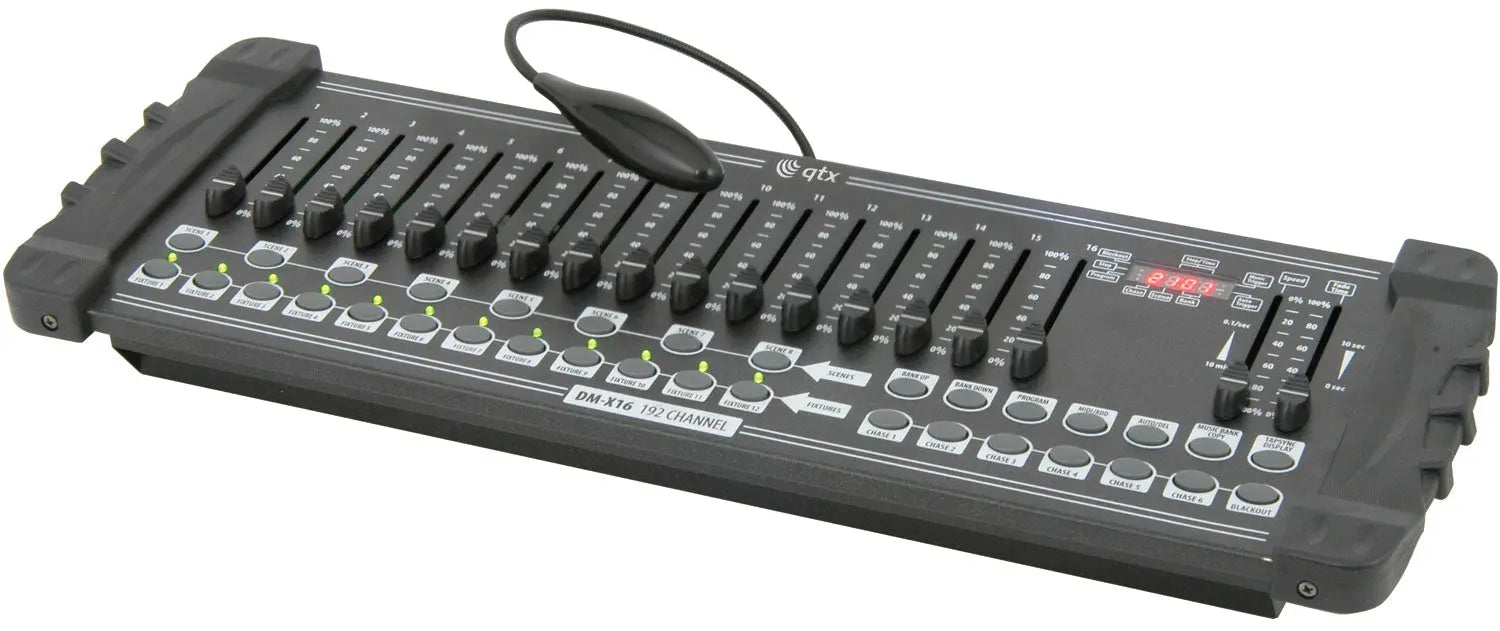

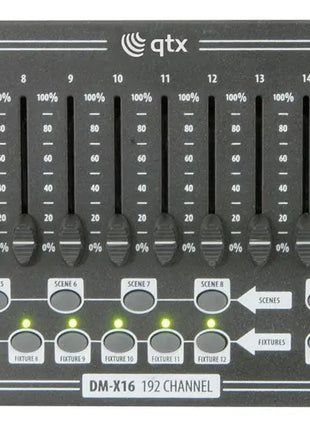

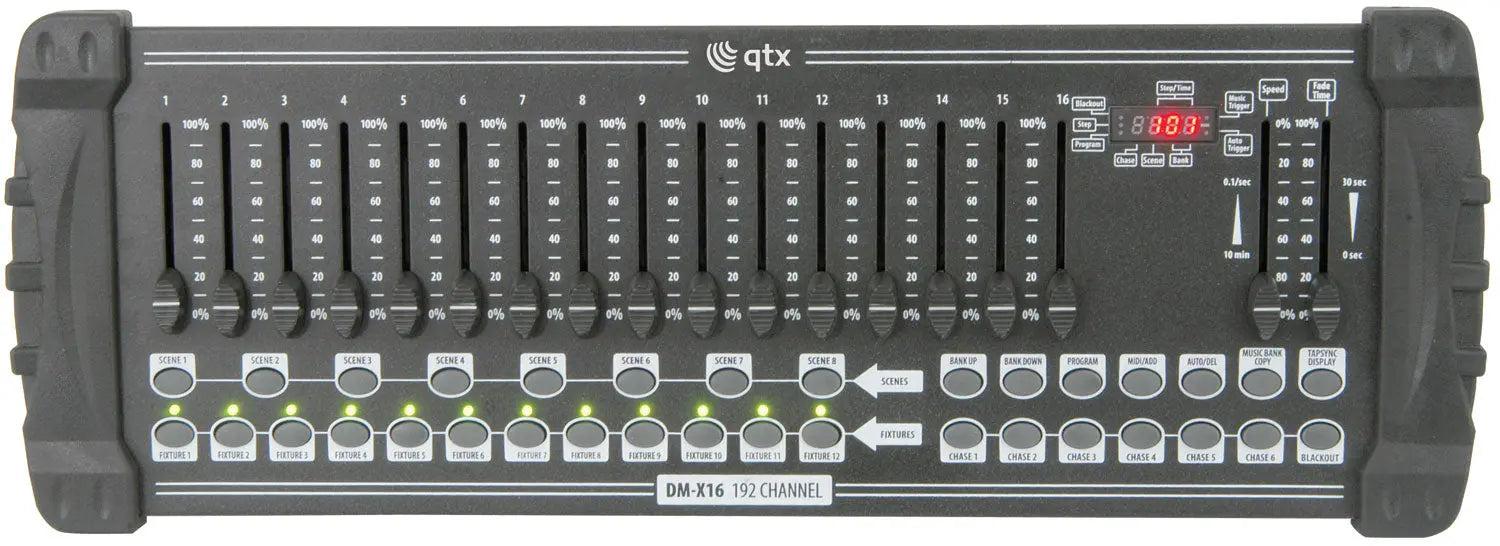

This 192 channel DMX controller has 16 fader channels which make it easy to see exactly what you are doing without having to use a page up and page down button. The unit itself has 12 fixture buttons, each controls up to 16 channels on each fixture, whilst the 30 programmable bank buttons holding 8 scenes each. These scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. It comes complete with an LED gooseneck light that can be plugged in to the rear and help in dark environments. This controller is ideal for small theatres or stage applications.
High quality LCD display with easy readout
12 Fixtures each with 16 channels
16 High quality faders
30 banks each with 8 programmable scenes (240 scenes in total)
6 chase banks
Music, auto or manually triggered chase sequences
Speed control from 0.1 second to 10 minutes

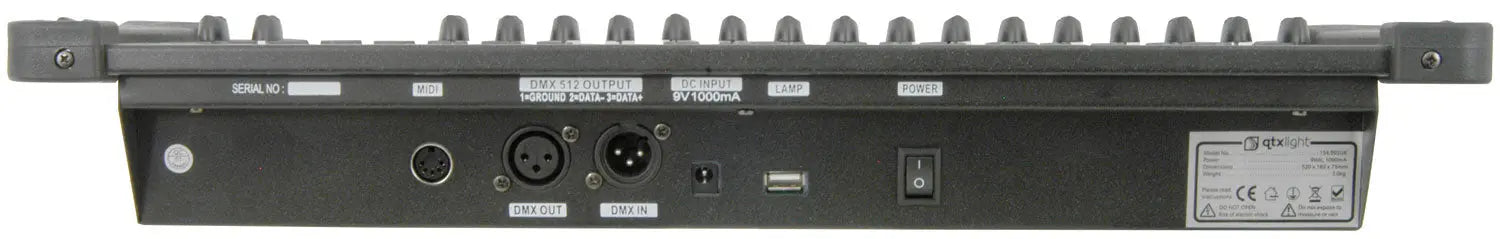

MIDI connection facility (MIDI IN) to run the unit, synchronous with your MIDI unit or compatible software
Blackout button
Built-in microphone for audio triggering

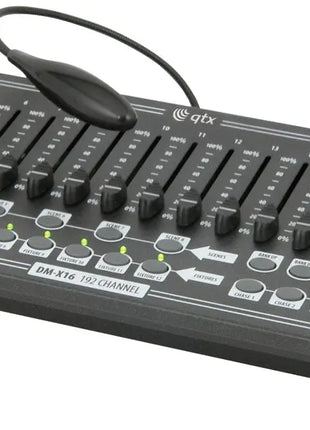

LED gooseneck lamp provided
19" rack mountable with removable plastic protection handles
Power supply 9Vdc, 1A
Dimensions 520 x 183 x 73mm
Weight 3.0kg
DMX channels 192
