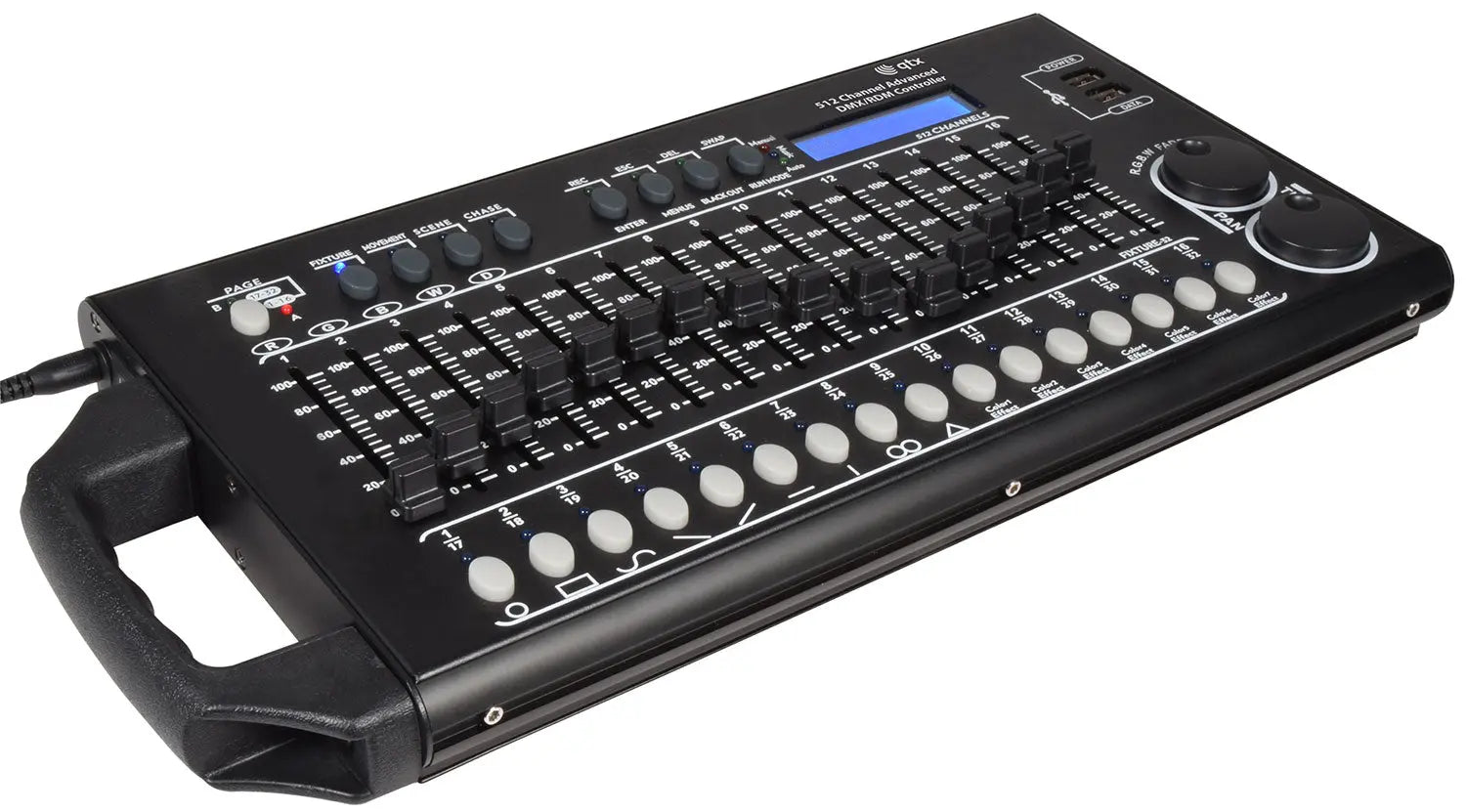

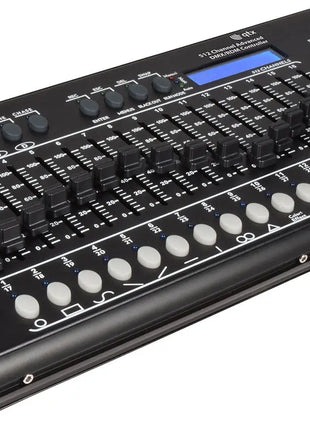

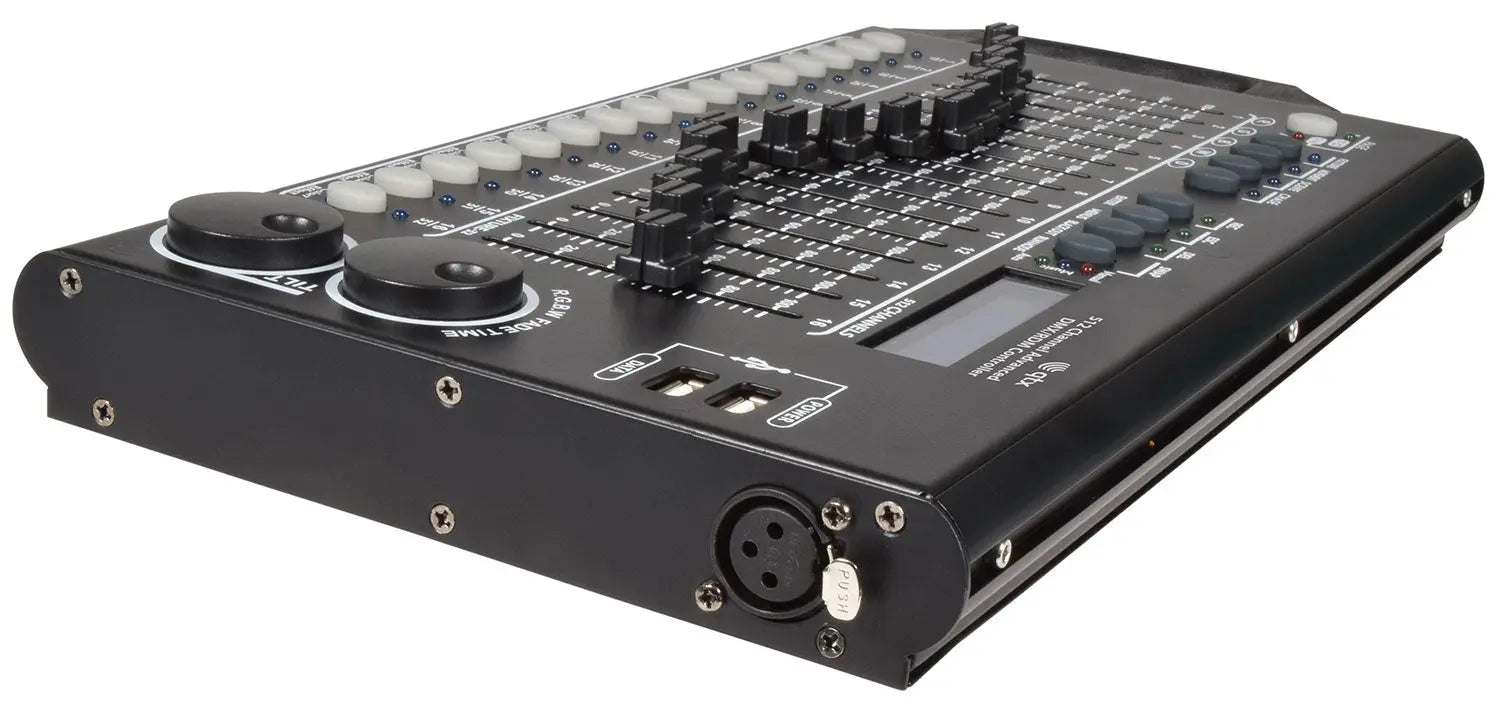

A powerful 512 channel DMX/RDM controller with 32 fixtures. Each fixture controls up to 32 channels per unit. There are 32 storable scenes and 32 storable chases, each with up to 100 steps which can be triggered manually, by sound or automatically using the time faders between 0.1 seconds and 10 minutes. An integrated USB port provides back up of up to 16 banks of DMX settings, scenes and chases on an attached USB storage device. A hardwearing metal chassis with detachable carry handle makes the unit easy to move from event to event.
32 fixtures each with 32 channels
32 storable scenes

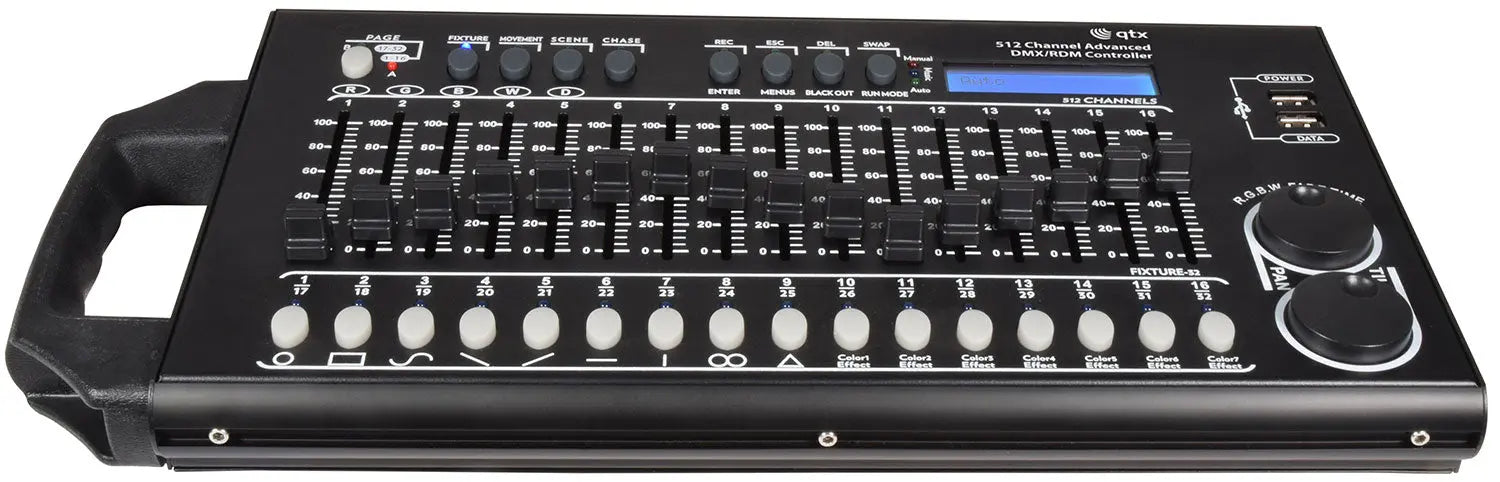

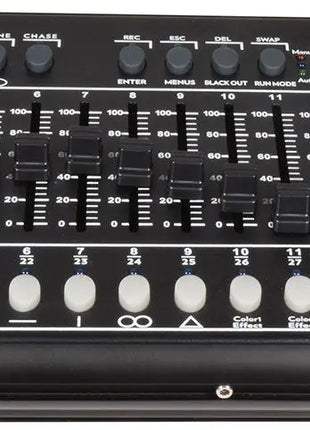

16 channel slider with page up and page down
32 storable chases up to 100 steps, with music, auto or manually triggered sequences
2 Line digital display panel, Blackout button and integrated microphone

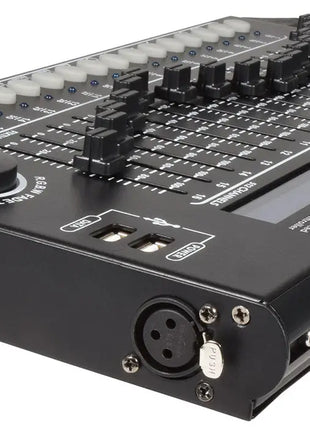

Up to 16 memory banks of DMX settings, illumination scenes and chases can be stored on an attached USB storage device (max 32GB FAT32)
Separate control wheels for data entry or PAN and Tilt control of moving heads

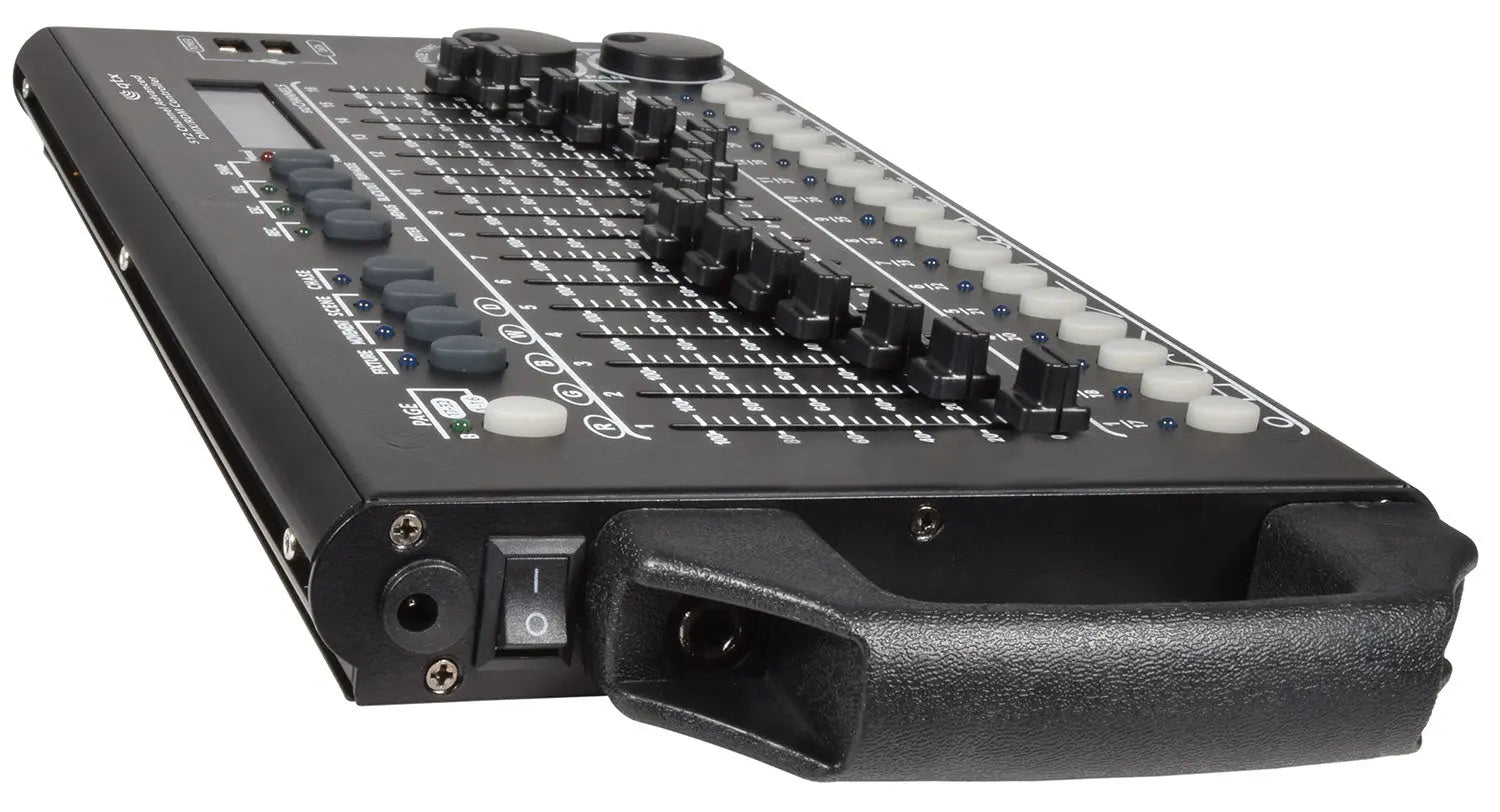

Hardwearing metal chassis with detachable carry handle
DMX channels 512

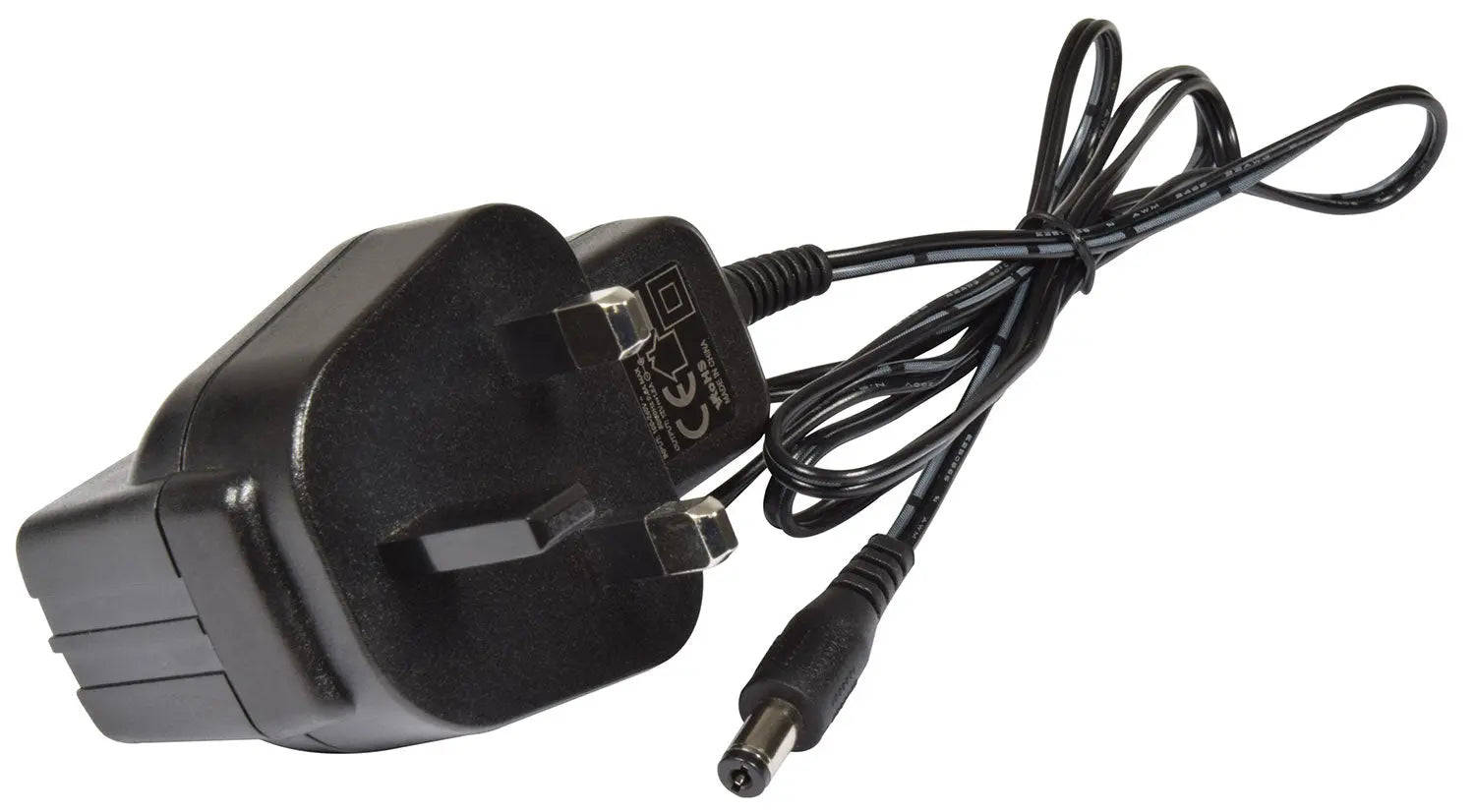

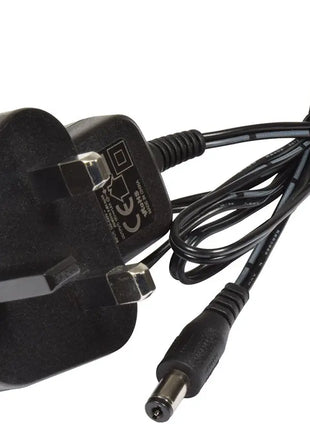

Power supply 12Vdc, 1000mA
Dimensions 340 x 190 x 38mm (without carry handle)
Weight 1.982kg
