Q-Audio Q-MIX 12FX – 12-Channel Analogue Mixer with 24 DSP Effects, 4-Group Outputs & 19" Rack Kit
Buy the Q-Audio Q-MIX 12FX, a high-performance 12-channel analogue mixing console featuring 10 mic/line inputs, swept semi-parametric mid EQ, 4-group output architecture, 24 32-bit DSP effects, USB-C audio interface, and included 19" rack mount ears. In stock, fast UK delivery.

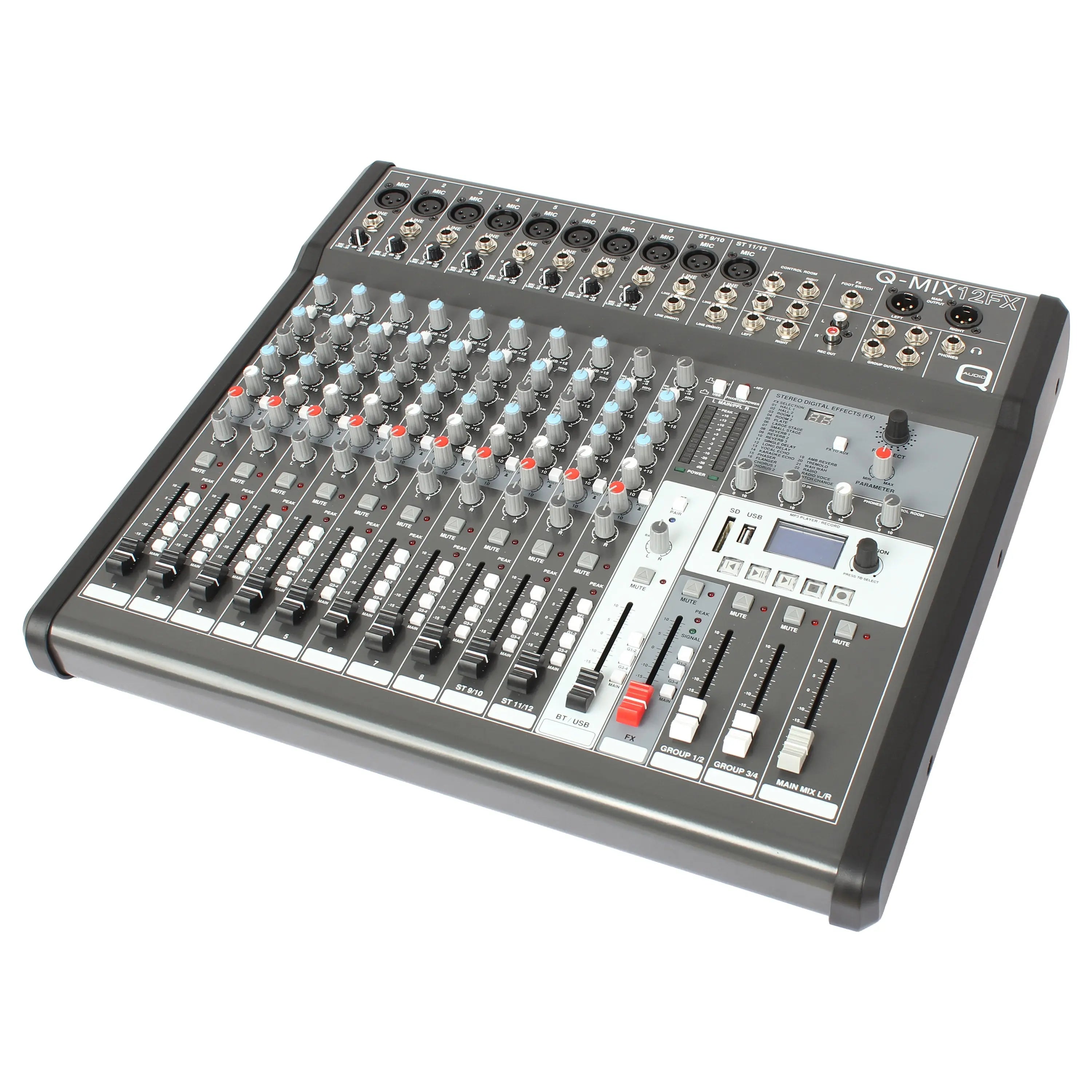

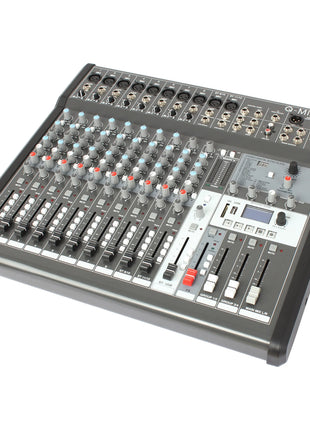

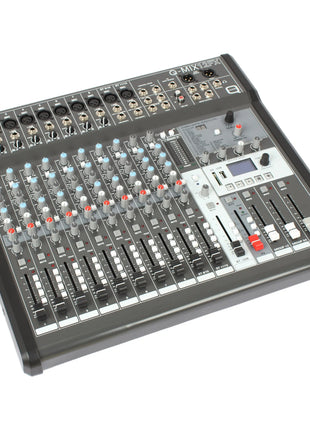

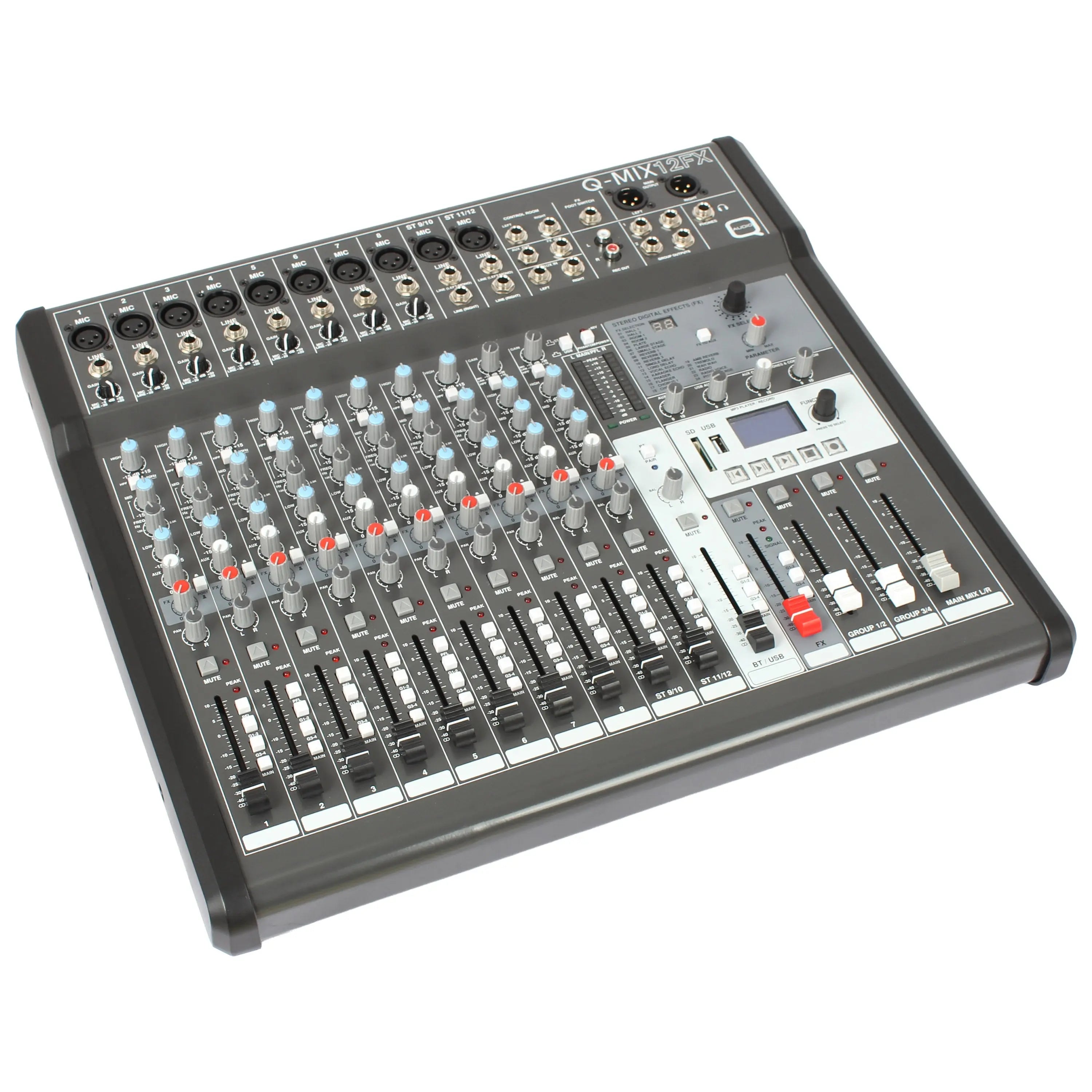

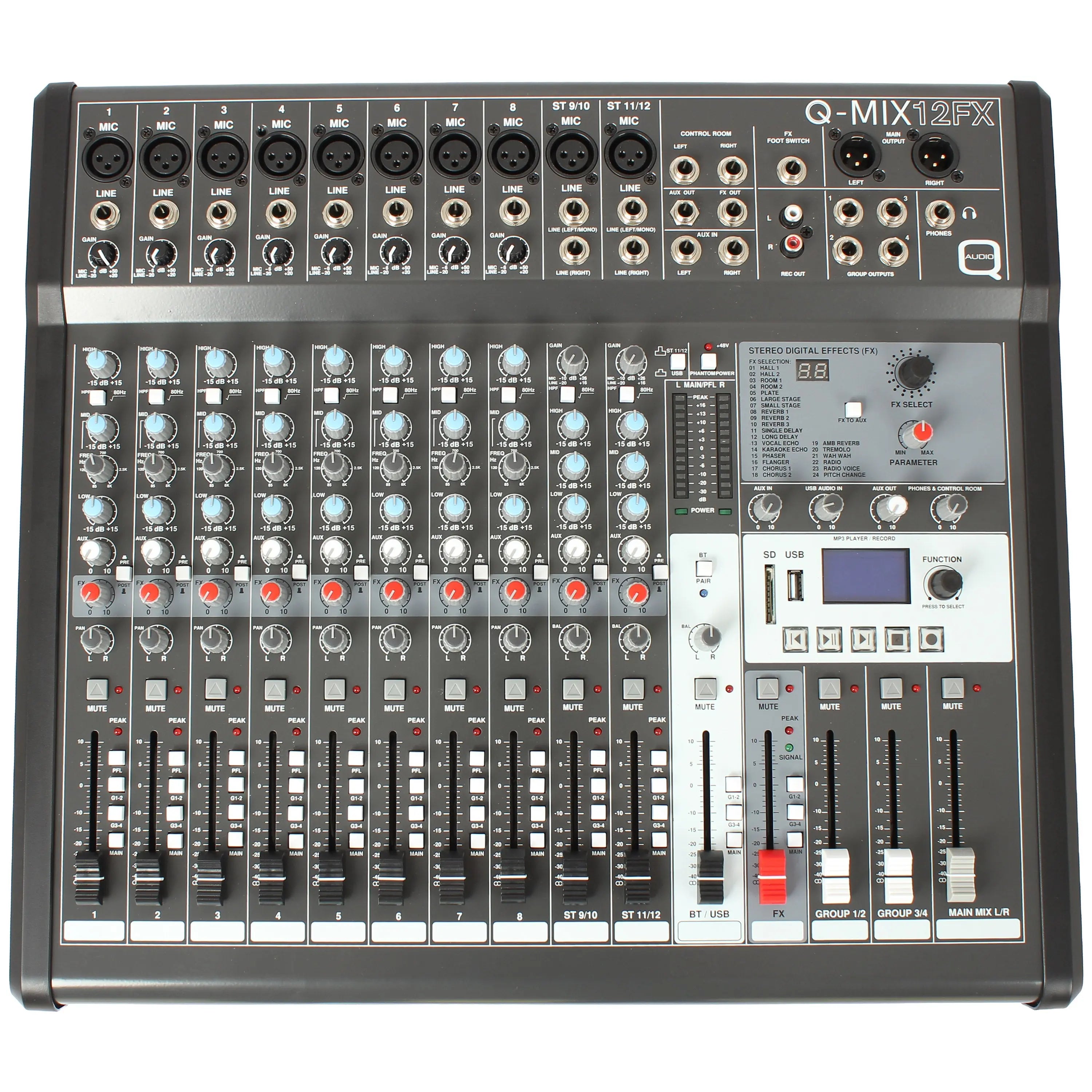

The Q-Audio Q-MIX 12FX is a feature-packed 12-channel analogue mixing console engineered for live venue bands, houses of worship, production installations, mobile entertainers, and studio recording environments. Built with ten low-noise mic/line inputs with balanced XLR connectors (with channels 9 & 10 configurable as stereo inputs), the Q-MIX 12FX offers comprehensive tonal sculpting via 3-band channel equalizers with swept semi-parametric mid controls. At its core, a 32-bit digital signal processor delivers 24 studio-quality DSP effects with a dedicated footswitch jack for hands-free muting during live vocal sets. Featuring a flexible 4-group output architecture, illuminated mute switches, PFL monitoring, a 2-in/2-out USB-C audio interface, Bluetooth audio streaming, and direct MP3/WAV recording onto USB/SD storage, this console includes a heavy-duty 19-inch rack mounting kit to transition seamlessly between desktop use and flightcase installations.
Staff Take: The Expert Verdict
The single strongest selling point of the Q-Audio Q-MIX 12FX is its advanced 4-group routing architecture combined with the included 19-inch rack mounting hardware. The standout feature is its swept semi-parametric mid EQ on mono channels paired with assignable sub-groups, which lets sound engineers isolate drum kits, vocal clusters, or multi-zone venue speakers with precision. We highly recommend this 12-channel console for touring bands, venue installation teams, and places of worship that require flexible sub-grouping, hands-free effects muting, and rackmountable protection.
Why Choose the Q-Audio Q-MIX 12FX Mixer?
-
12-channel total capacity with 10 mic inputs: Features 10 high-headroom XLR mic/line preamps, with channels 9 & 10 configurable as stereo inputs for keyboards or playback decks.
-
Swept semi-parametric mid EQ: Allows precise frequency tuning on mono input channels to eliminate feedback and carve out vocal space in dense live mixes.
-
Flexible 4-group output architecture: Assign channels directly to sub-groups for simplified bus processing or multi-zone venue distribution.
-
Includes 19-inch rack mount kit: Supplied complete with rugged metal rack ears for easy installation in standard 19" rack cases or venue equipment racks.
-
24 32-bit DSP effects with footswitch input: High-resolution digital reverbs and delays with a remote footswitch jack for hands-free FX muting during speeches or song intros.
-
2-in/2-out USB-C interface & USB/SD recorder: Connect to computers for digital audio recording/streaming, or record MP3/WAV files directly to a USB stick or SD card.
-
Illuminated MUTE buttons & PFL switches: Dedicated backlit mute keys and Pre-Fade Listen switches provide clear visual feedback in dark venue control booths.
-
Integrated Bluetooth streaming: Wirelessly stream background tracks, interval playlists, or mobile audio directly into a dedicated media channel.
Who is the Q-Audio Q-MIX 12FX best suited for?
The Q-Audio Q-MIX 12FX is designed first and foremost for live performing bands, venue integrators, houses of worship, and theater production crews who require sub-grouping and multi-channel routing. Its 10 mic inputs and swept mid EQ provide the channel capacity and tonal control needed to handle full acoustic or amplified band setups with multiple vocalists and instrument lines.
For secondary applications, this console serves as a premier solution for fixed installations, commercial venues, and AV rental companies. The included 19" rack mount kit allows the desk to be installed permanently inside venue racks or mobile flightcases, protecting cable connections during touring setups.
Q-Audio Q-MIX 12FX vs Compact Desktop Mixers — What's Changed?
The primary advantage of moving to the Q-Audio Q-MIX 12FX over smaller compact desktop mixers (such as the Q-MIX 6FX) is the addition of a 4-group output bus architecture and swept mid EQ controls. Compact desktop mixers route all channels directly to a single main stereo bus, limiting control over complex multi-mic stages. The Q-MIX 12FX allows technicians to assign channels to sub-groups (e.g., grouping all drum channels to Group 1-2 faders), simplifying balance adjustments during live performances.
Secondary enhancements focus on physical installation hardware and monitoring precision. The Q-MIX 12FX introduces dedicated illuminated channel MUTE buttons, assignable AUX sends (Pre/Post fade), hands-free footswitch FX muting, and supplied 19" rack ears, delivering standard rack-console functionality in a cost-effective chassis.
How to Set Up the Q-Audio Q-MIX 12FX
-
If rack mounting, attach the included 19-inch metal rack ears to the sides of the chassis and secure the unit into your rack case.
-

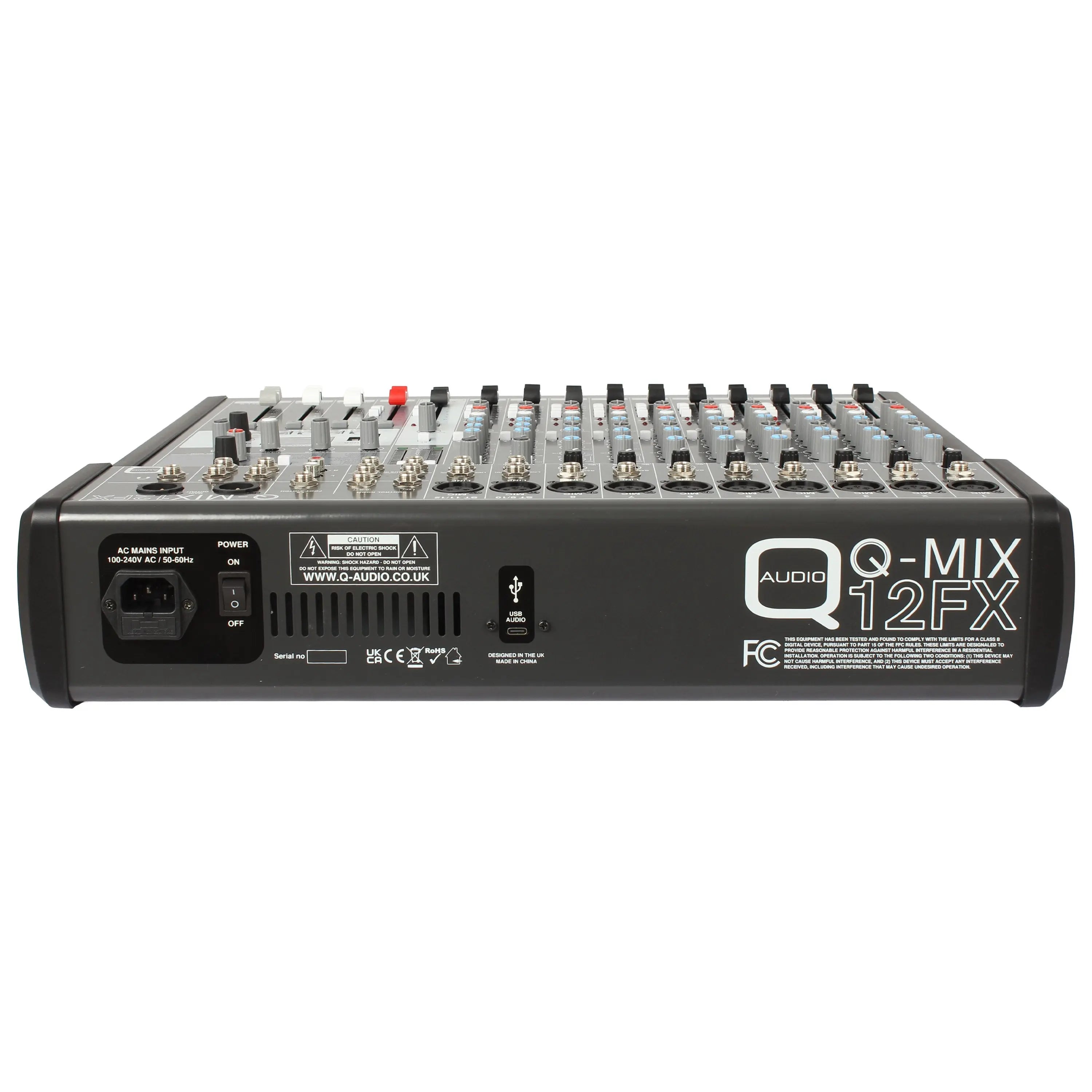

Connect the IEC power cable to the rear AC power input socket and turn on the main power switch.
-
Connect your microphones or line sources to the XLR/TRS input jacks on channels 1 through 10.
-
Engage the global +48V phantom power switch if using condenser studio microphones.
-
Connect your main PA system amplifiers or active speakers to the balanced Left/Right XLR main outputs, and connect monitors to AUX or Group outputs.
-
Dial in channel gain using the PFL switches, sculpt your vocal tone with the swept mid EQ, and select your desired 32-bit DSP effect preset.
-
Optional: Connect a USB-C cable to your computer for DAW recording, or insert a USB stick/SD card to capture a direct MP3 live mix.
Technical Specifications
| System Feature |
Specification Details |
| Product Category |
12-Channel Analogue Console with 4-Group Outputs & FX |
| Input Architecture |
10 Mono Mic/Line Inputs (XLR/TRS) + Stereo Inputs (Ch 9-10) |
| Channel EQ |
3-Band EQ with Swept Semi-Parametric Mid on Mono Channels |
| Output Architecture |
4-Group Outputs, Main Stereo XLR, Control Room, RCA Record |
| DSP FX Engine |
24 Stereo Effects (32-Bit Processing) with Footswitch Mute Jack |
| Phantom Power |
+48V Global Selection |
| Media Playback & Recording |
Bluetooth Receiver, USB Drive & SD Card MP3/WAV Playback & Recording |
| USB Audio Interface |
Integrated 2-Channel USB-C Recording & Playback Interface |
| Monitoring & Muting |
PFL Switches & Illuminated MUTE Buttons on Every Channel |
| Mounting Accessories |
19-Inch Rack Mount Kit Included |
| Dimensions (W × D × H) |
432 mm × 484 mm × 106.2 mm |
| Net Hardware Weight |
6.9 kg |
Frequently Asked Questions
Does the Q-MIX 12FX include the 19-inch rack mounting kit in the box?
Yes, absolutely. The console comes supplied complete with a heavy-duty metal 19-inch rack ear kit, allowing you to mount the mixer directly into standard 19" equipment racks or flightcase rigs.
What is the advantage of the swept mid EQ control on the mono channels?
Unlike fixed-frequency EQ knobs, a swept (semi-parametric) mid control allows you to select the exact mid-range frequency you want to boost or cut. This is essential for removing vocal boxiness, cutting ring frequencies to prevent feedback, or adding clarity to guitars and snare drums.
How do the 4 group outputs work on this mixer?
The 4-group output architecture lets you route individual channels to dedicated sub-master faders before reaching the main mix. This allows you to control the overall volume of a group of instruments (e.g., all vocal microphones or a drum kit) using a single pair of group faders.
Can I record our live band performance directly onto an SD card or USB stick?
Yes. You can insert a formatted USB flash drive or SD card into the media player section and press record to capture your complete live stereo mix directly as an MP3 or WAV audio file.
Can I mute the built-in effects hands-free during a performance?
Yes. The Q-MIX 12FX includes a dedicated remote footswitch input jack on the rear panel. Plugging in a standard latching footswitch allows performers to mute vocal delays or reverbs instantly between songs when speaking to the audience.
What's In The Box?
-
1 × Q-Audio Q-MIX 12FX 12-Channel Analogue Mixer
-
1 × 19-Inch Heavy-Duty Rack Mount Hardware Kit
-
1 × AC Mains Power Cable (IEC)
-
1 × User Instruction & Setup Manual
