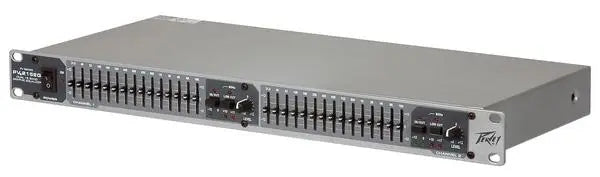

The Peavey PV215EQ is a highly effective and affordable solution for precise audio equalization, perfectly housed in a single rack space unit. This dual 15-band, 1/3 octave graphic EQ allows you to finely tune your sound by offering selectable 6 dB or 12 dB cut/boost ranges across frequencies from 25 Hz to 16 kHz. Designed for straightforward system integration, the PV215EQ includes a low-cut filter to eliminate unwanted rumble and essential features like XLR balanced I/O and a bypass switch, making it an indispensable tool for live sound, studios, or fixed installations.
-
Dual 15-Band, 1/3 Octave Graphic EQ: Provides precise control over 15 frequency bands per channel, allowing for detailed sound shaping and room tuning with 1/3 octave resolution.
-
Selectable Cut/Boost Range: Choose between a 6 dB or 12 dB cut/boost range for each frequency band, offering flexibility from subtle adjustments to dramatic sonic changes.
-
Wide Frequency Range: Manipulate frequencies from 25 Hz to 16 kHz, covering a broad spectrum of audible sound for comprehensive equalization.
-
80 Hz 24 dB Low Cut Filter: Includes an 80 Hz, 24 dB low cut filter with a status LED. This helps to effectively remove unwanted low-frequency rumble, hum, or stage noise (especially from open microphones), ensuring a cleaner signal.
-

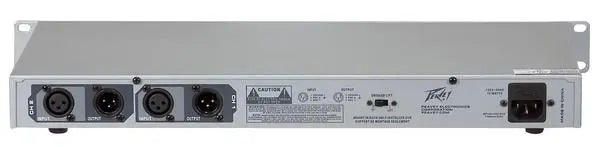

XLR Balanced I/O: Features XLR balanced inputs and outputs for professional, low-noise signal transmission, ensuring compatibility with club-grade and studio equipment.
-
Output Level LEDs: Provides clear output level LEDs for visual monitoring of signal strength, helping to prevent clipping and optimize gain staging.
-
Bypass Switch with Status LED: A convenient bypass switch with a status LED allows for instant A/B comparison between the equalized and unequlized signal, making it easy to assess your adjustments.
-
Center-Detent Control Sliders: Equipped with center-detent control sliders for precise, tactile feedback when returning bands to a flat (0 dB) position, simplifying adjustments.
-
Single Rack Space Unit (1 RU): Its compact 1 RU design makes it easy to integrate into any rack setup, saving valuable space.
-
Channels: Dual (Stereo)
-
Bands: 15 per channel
-
EQ Type: 1/3 Octave Graphic Equalizer
-
Cut/Boost Range: Switchable 6 dB or 12 dB
-
Frequency Range: 25 Hz to 16 kHz
-
Low Cut Filter: 80 Hz, 24 dB (with status LED)
-
Inputs: XLR balanced
-
Outputs: XLR balanced
-
Indicators: Output level LEDs, Bypass status LED
-
Form Factor: 1 RU
-
Weight Unpacked: 6.00 lb (2.721 kg)
-
Weight Packed: 7.50 lb (3.401 kg)
-
Width Packed: 4.37" (11.0998 cm)
-
Depth Packed: 20.25" (51.435 cm)
-
Height Packed: 10.5" (26.67 cm)
-
Power Supply: (Typically standard AC, if available in source, would be here)
