Nude Elliptical Stylus: Delivers powerful and detailed sound, typically found in Hi-Fi cartridges, for a remarkable level of live performance.
-
Rigid Aluminum-Magnesium Cantilever: Exclusively developed for the Concorde Elite, ensuring stable and accurate trace performance for optimal stylus-armature interface.
-
High Output Voltage: Provides a robust 8.5 mV output, ideal for powerful, full-bodied sound.
-
Wide Frequency Range: Captures audio across 20-20,000 Hz for comprehensive sound reproduction.
-
Superior Tracking Ability: Achieves 100 μm tracking ability at 315Hz at recommended tracking force.
-
Optimized Rubber Suspension: A new compound formula developed for superior tracking performance and richer, fuller sound with damping of excess brightness.
-
Precision Engineering: Designed with a unique coil system to transmit diamond movements for optimized output.
-
Black/Gold Colour: Stylish design to match the Concorde Elite cartridge.
-
Stylus Type: Nude Elliptical.
-
Stylus Tip Radius: r/R 8/18 μm.
-
Tracking Force (Recommended): 3.0 g.
-
Tracking Force Range: 2.0-4.0 g.
-
Output Voltage (at 1000 Hz, 5cm/sec.): 8.5 mV.
-
Frequency Range: 20-20,000 Hz.
-
Channel Balance at 1 kHz: 1 dB.
-
Channel Separation at 1 kHz: 25 dB.
-
Channel Separation at 15 kHz: 15 dB.
-
Tracking Ability at 315Hz (at recommended tracking force): 100 μm.
-
Compliance, dynamic lateral: 13 μm/mN.
-
Tracking Angle: 20°.
-
Internal Impedance, DC resistance: 1.2 kOhm.
-
Internal Inductance: 800 mH.
-
Recommended Load Resistance: 47 kOhm.
-
Recommended Load Capacitance: 150-400 pF.
-
Cartridge Weight (excluding screws): 18.5 g.
-
Cartridge Colour (body/stylus): Black/Gold.
-

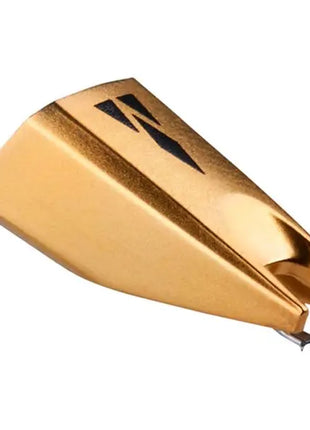

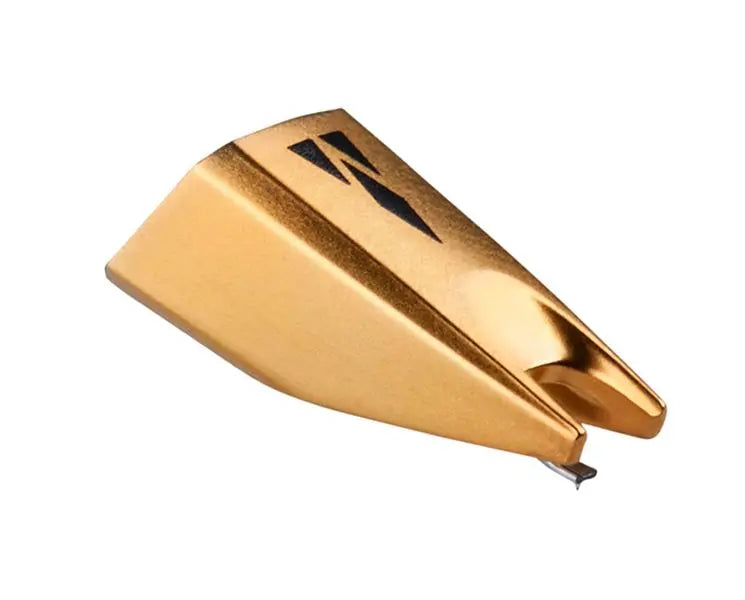

Replacement Stylus Unit: ELITE.
