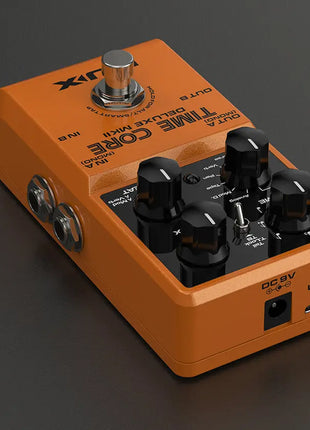

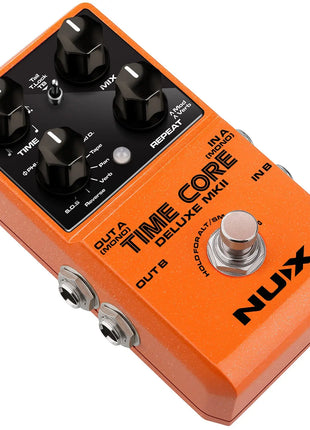

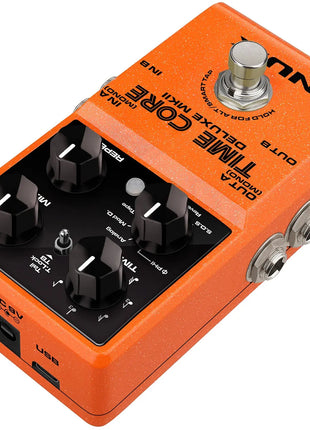

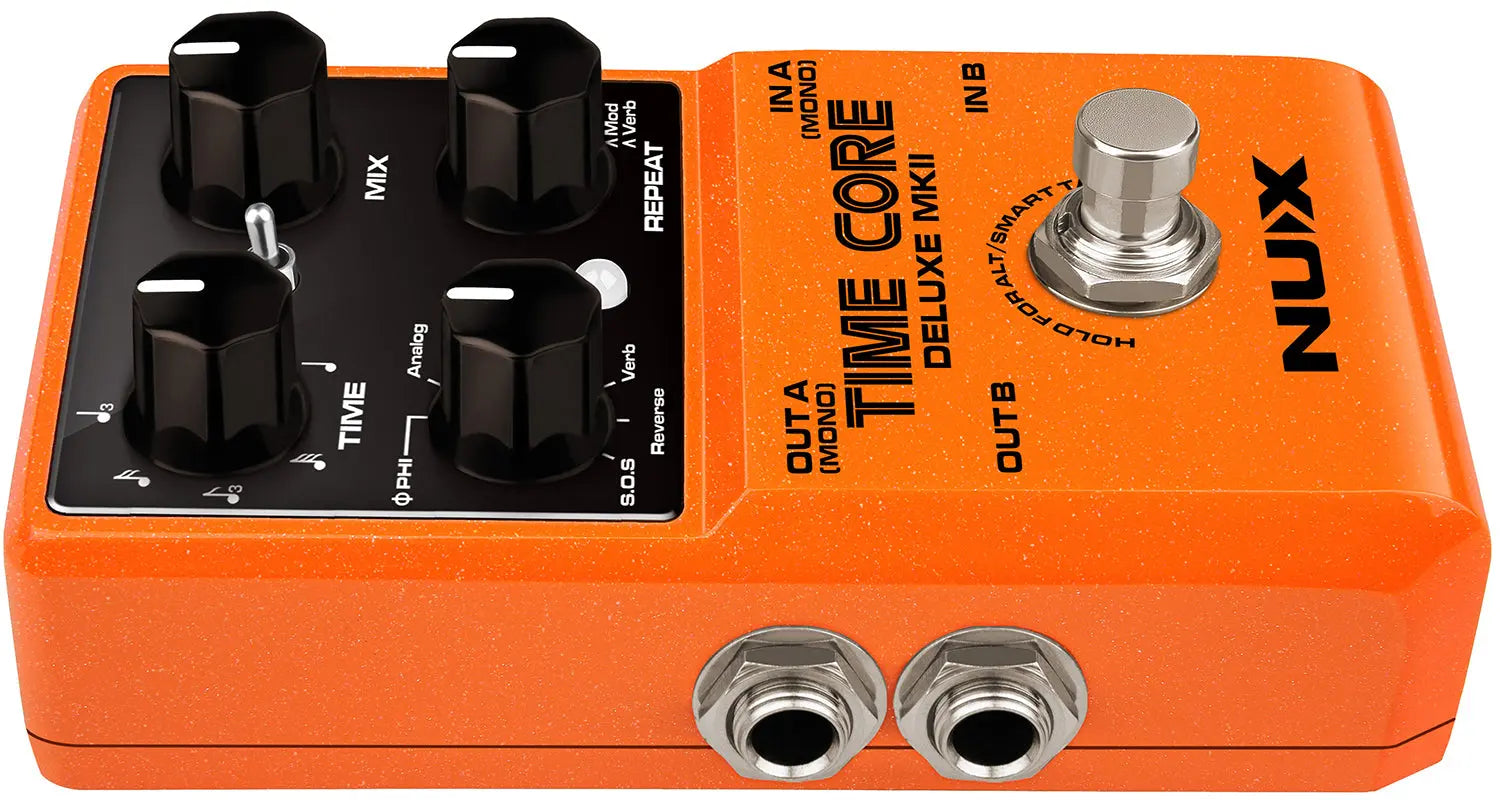

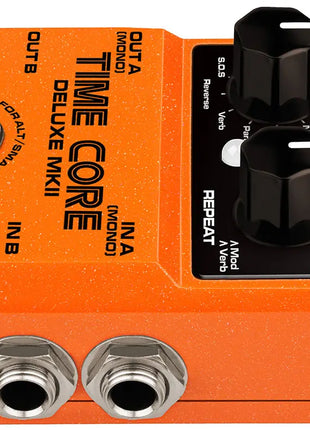

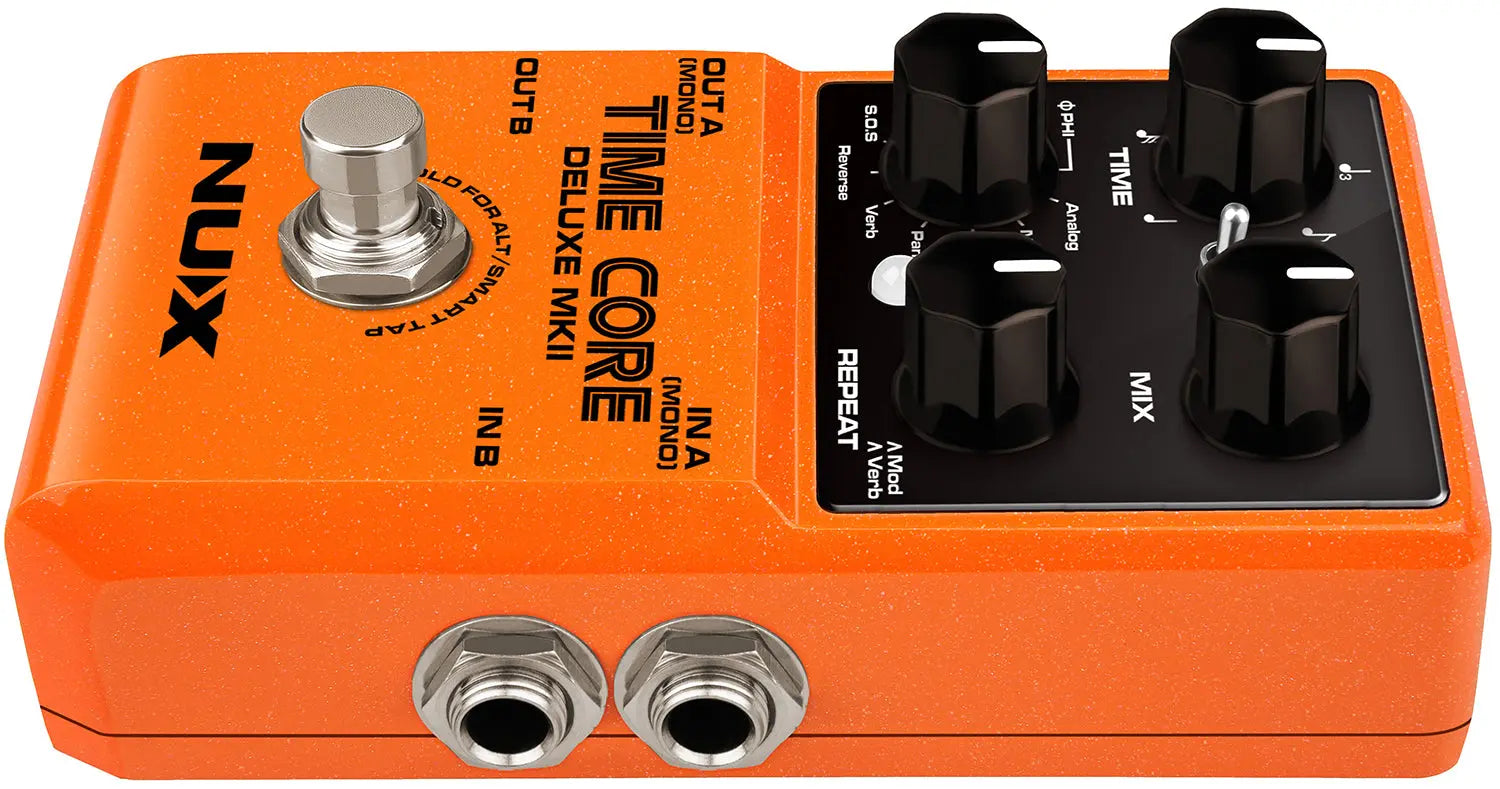

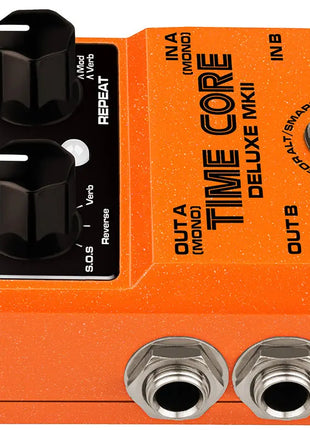

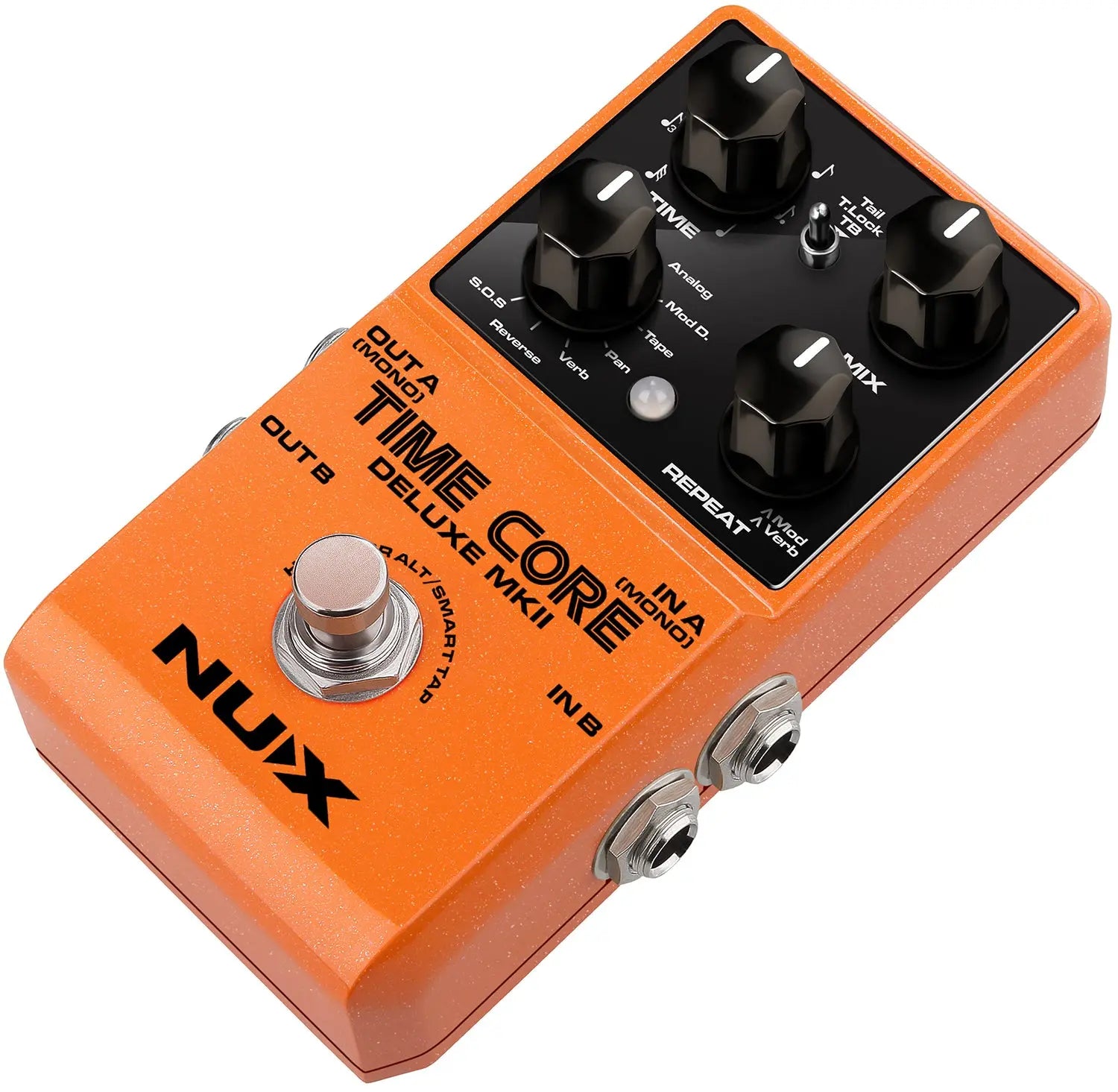

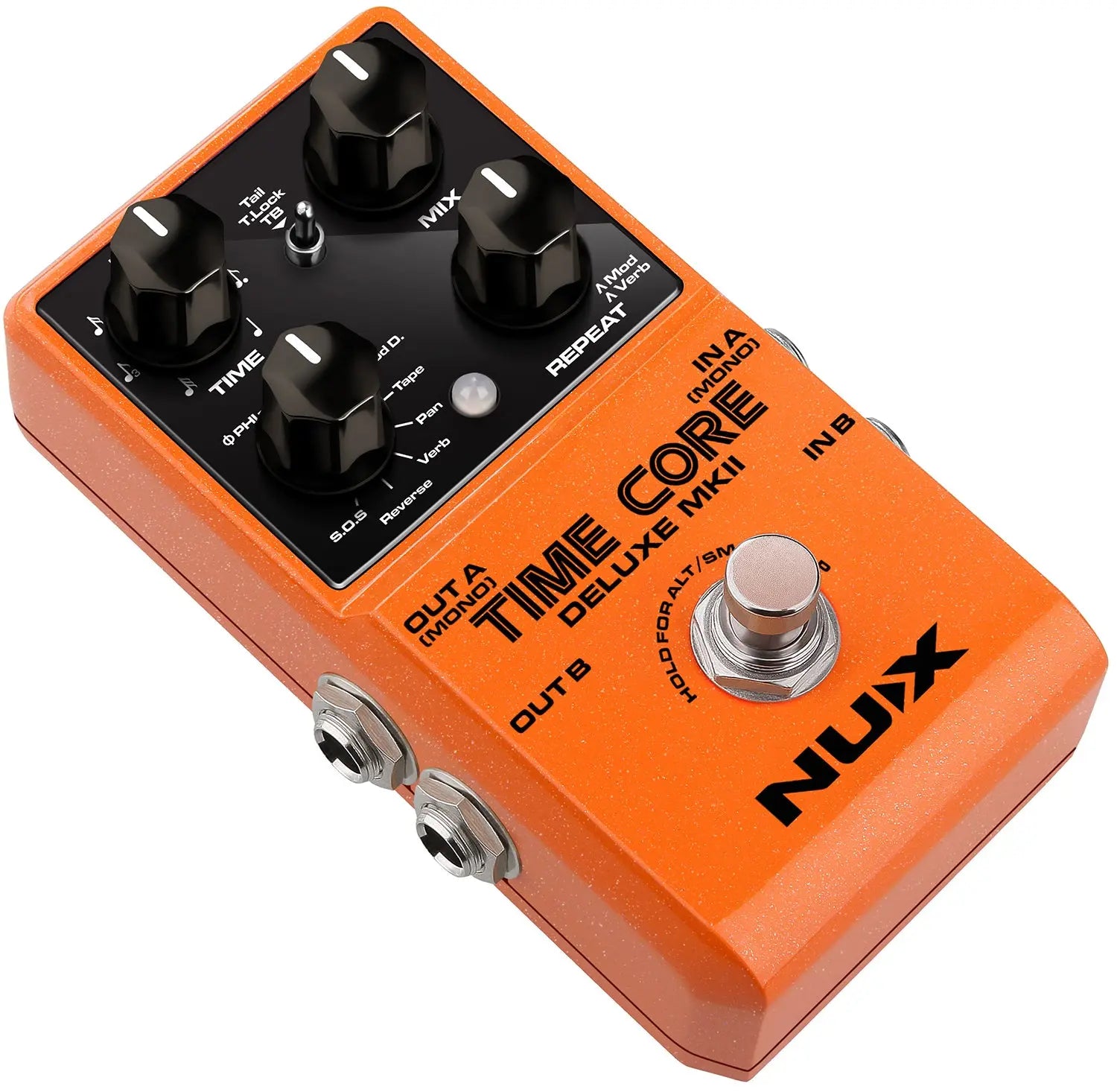

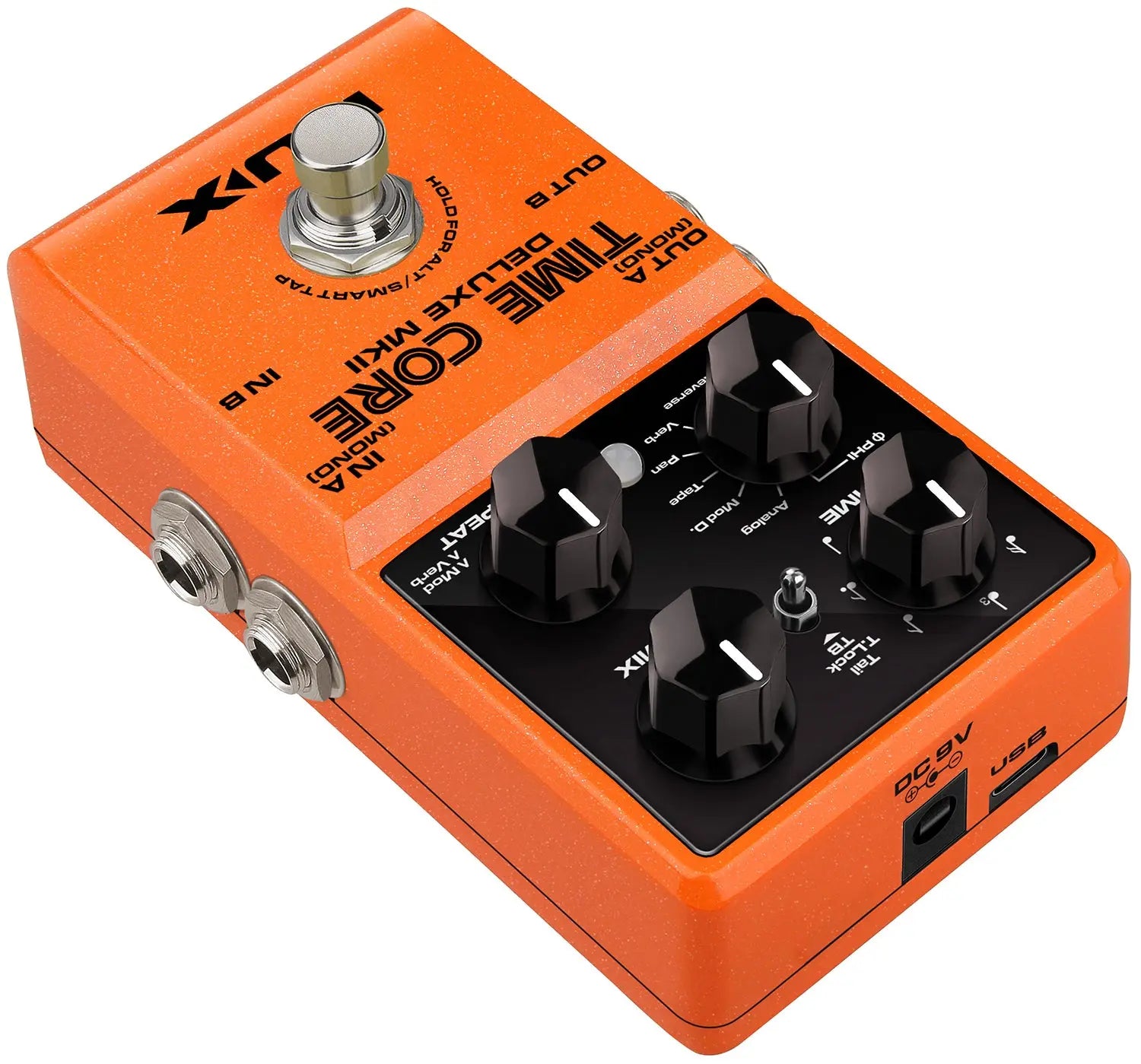

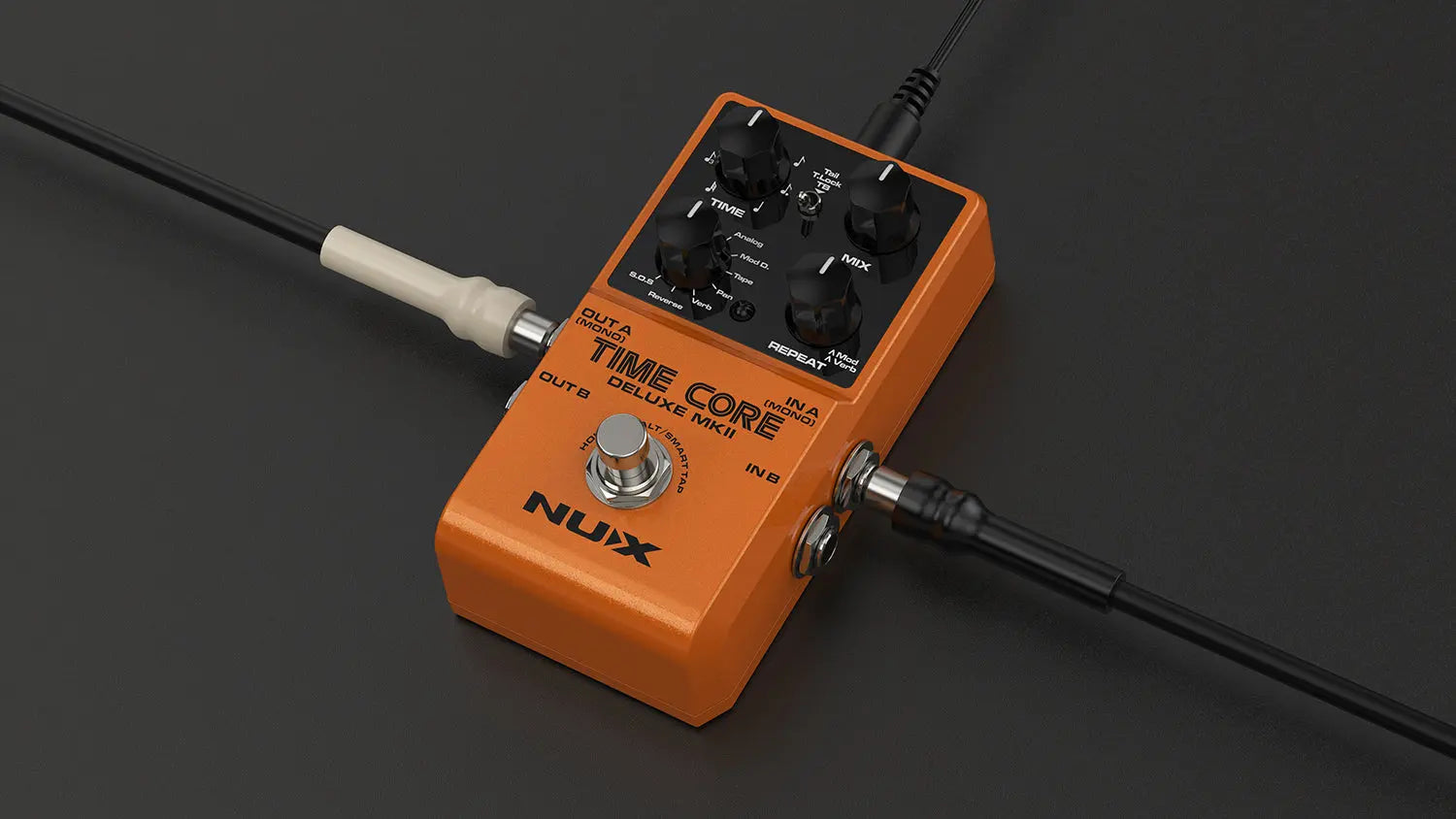

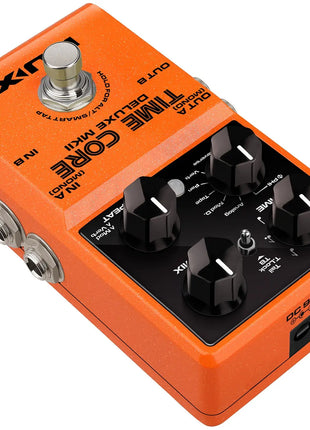

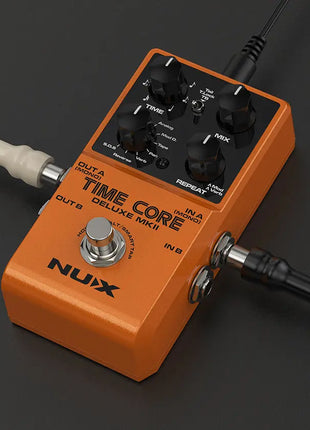

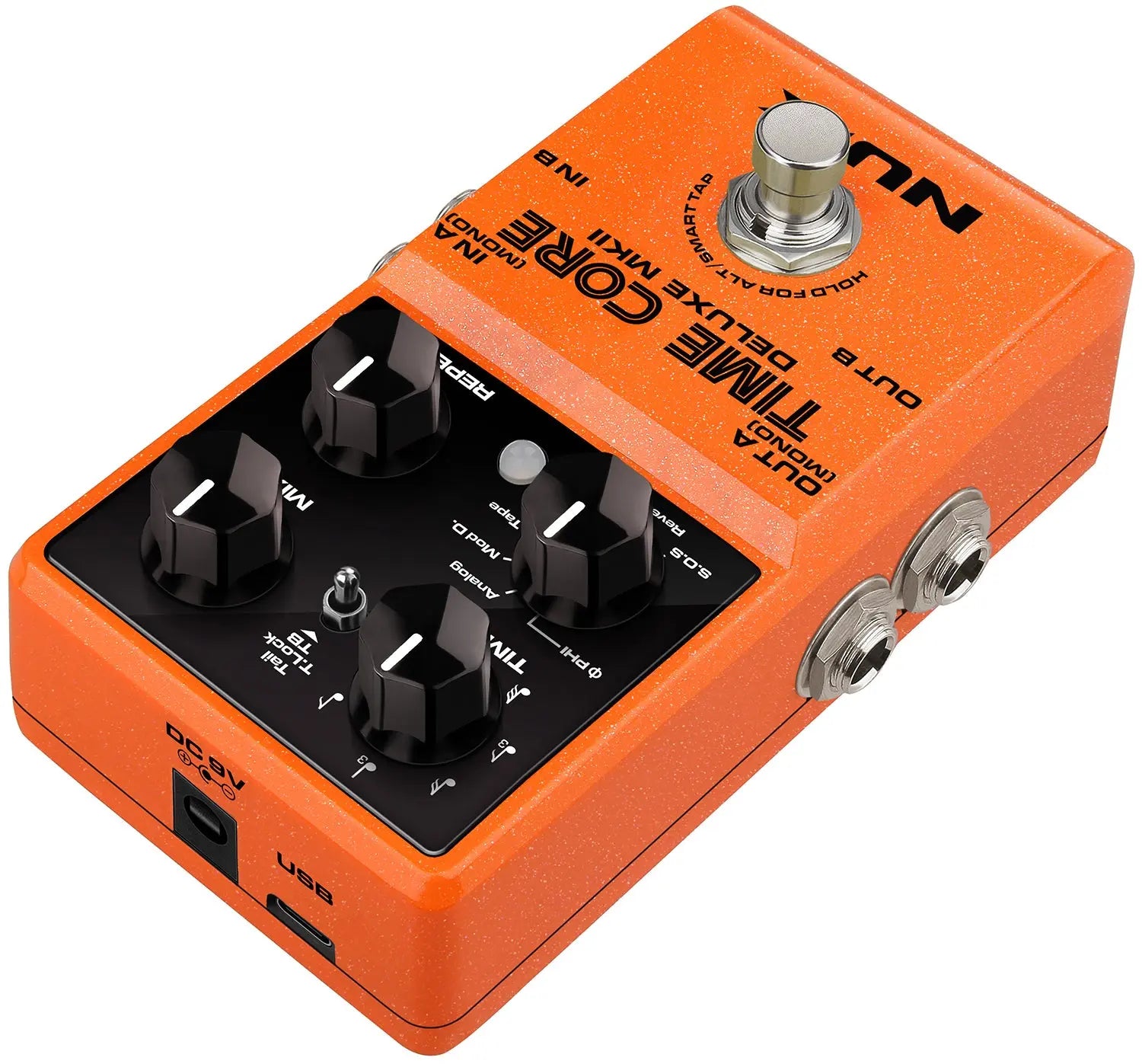

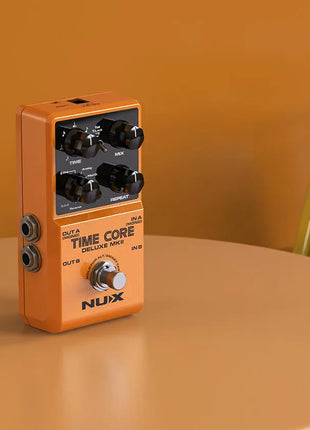

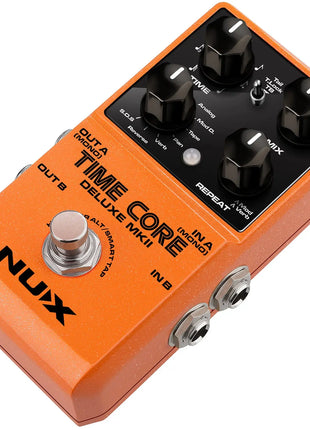

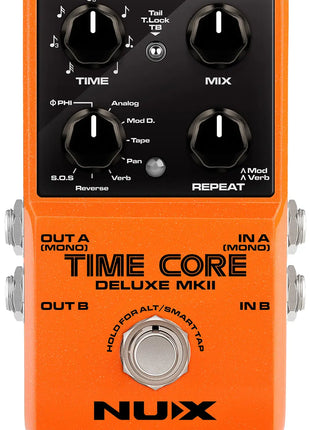

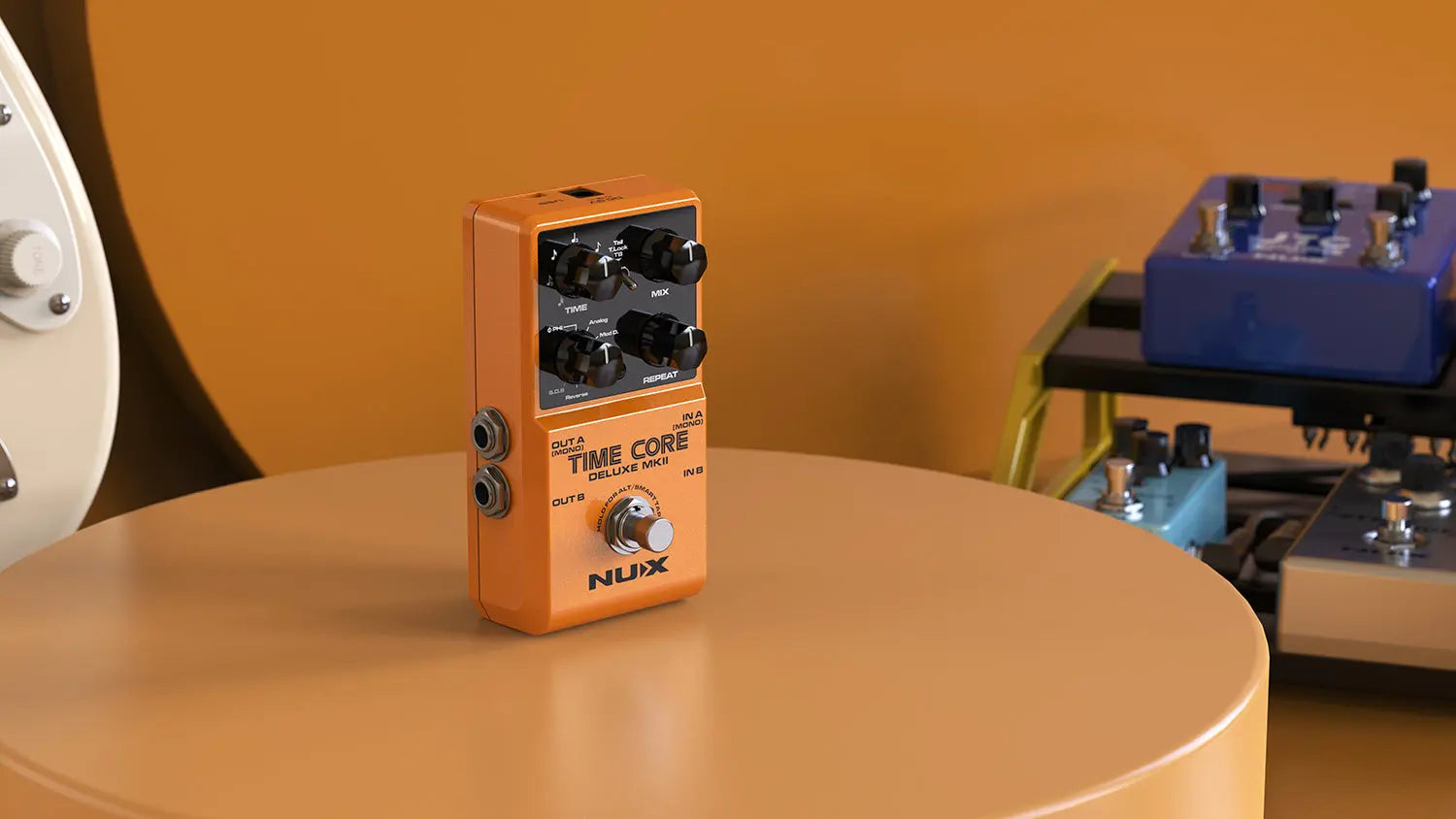

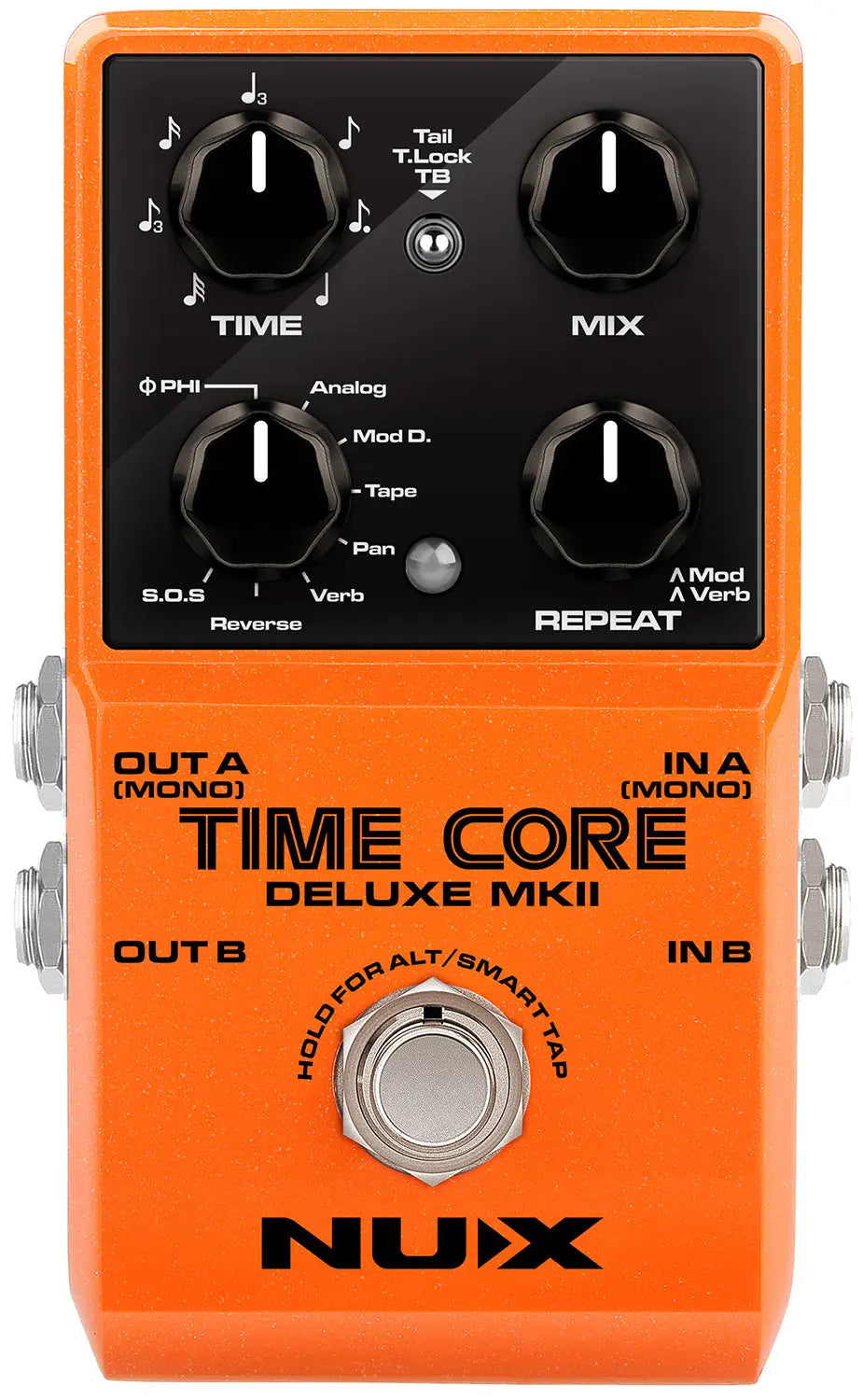

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility. New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.
Full stereo or mono signal path
True or buffered bypass options
7 distinct delay types
40 second looper function
USB-C port for firmware updates
Requires suitable 9Vdc power adaptor (e.g. 173.290UK)
Power supply 9Vdc power adaptor required

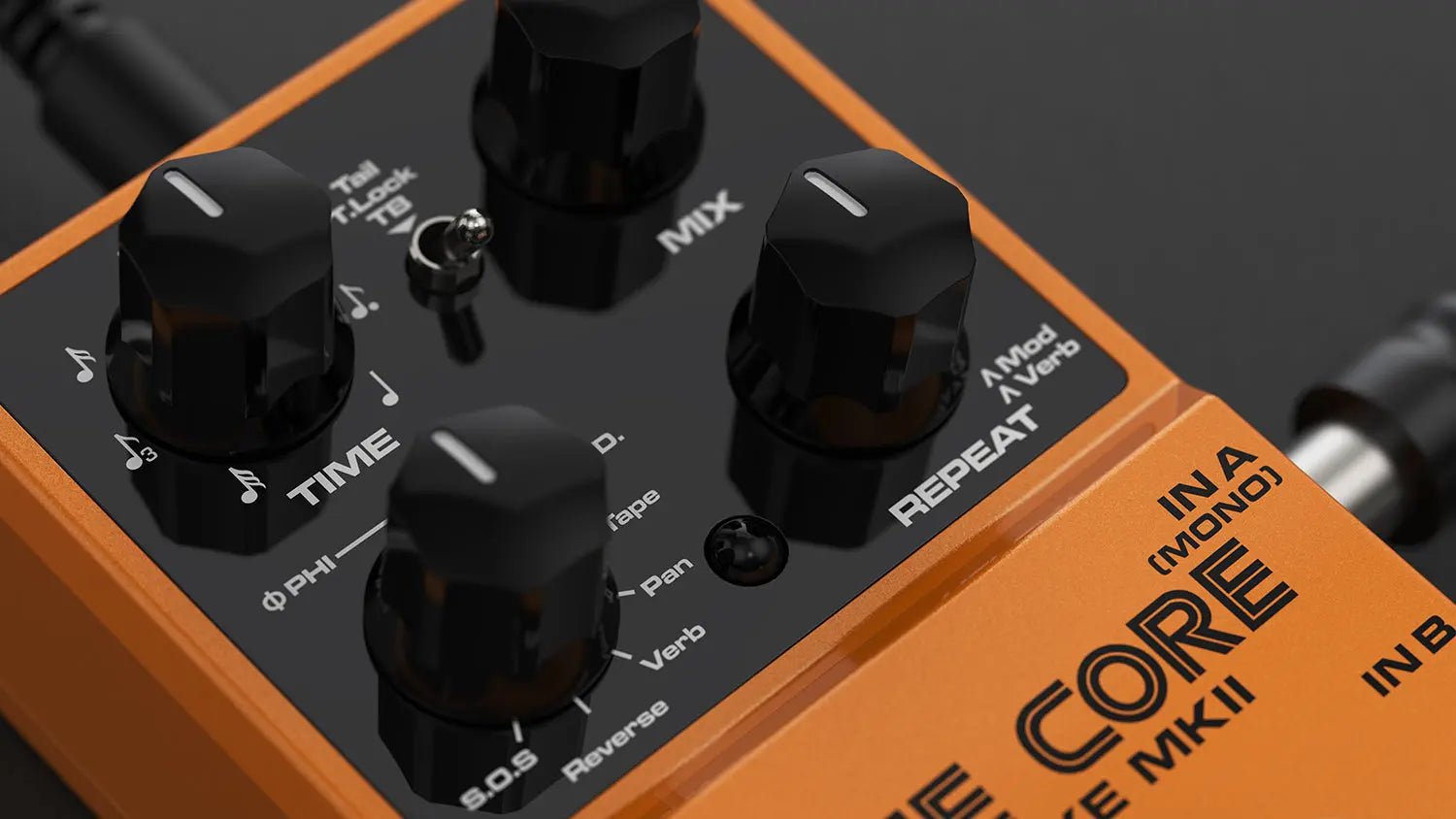

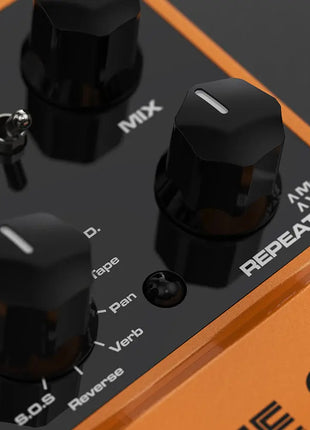

Controls Time, Mix, Repeat, Delay type
Recording mode 40 second sound-on-sound looper
Modes Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay
Inputs L+R 6.3mm mono jack
Outputs L+R 6.3mm mono jack
DC input connection DC5521 jack (for optional adaptor - pin-negative)
Dimensions 122 x 72 x 47mm
Weight 270g
Sampling format 48kHz, 24-bit
Input impedance 1M ohm
Output impedance 1k ohm
Dynamic range 104dB
Current consumption <120mA
