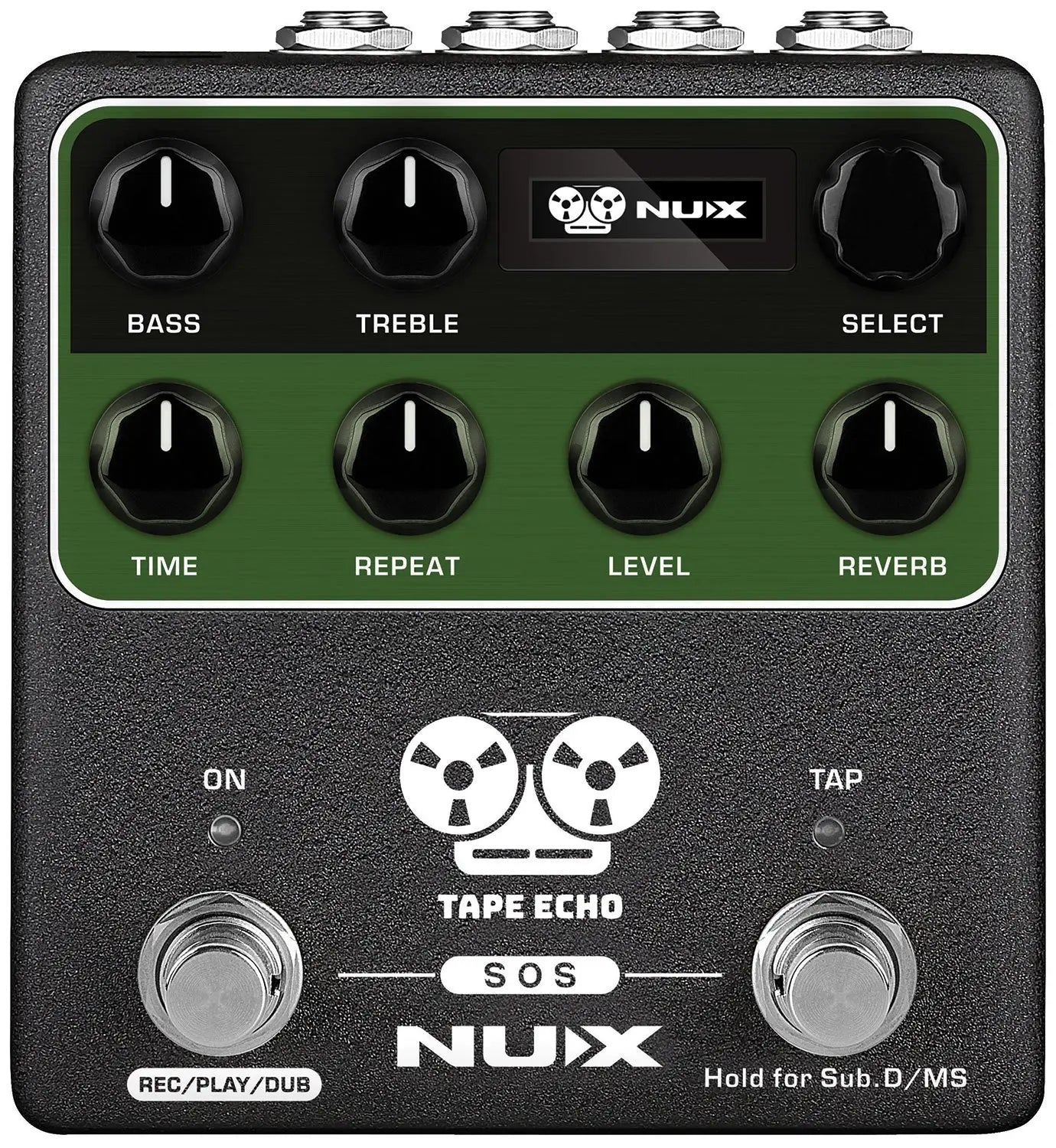

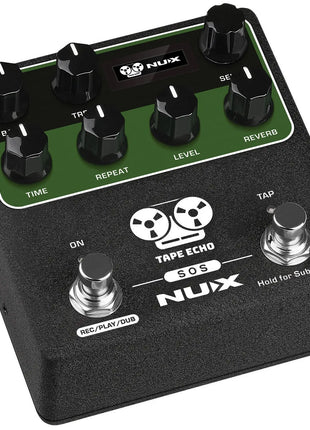

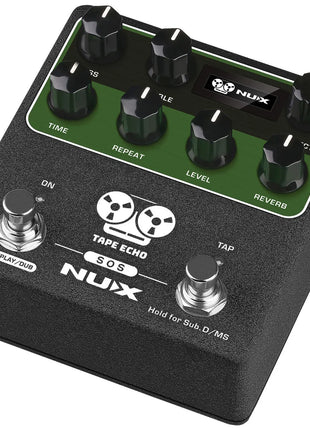

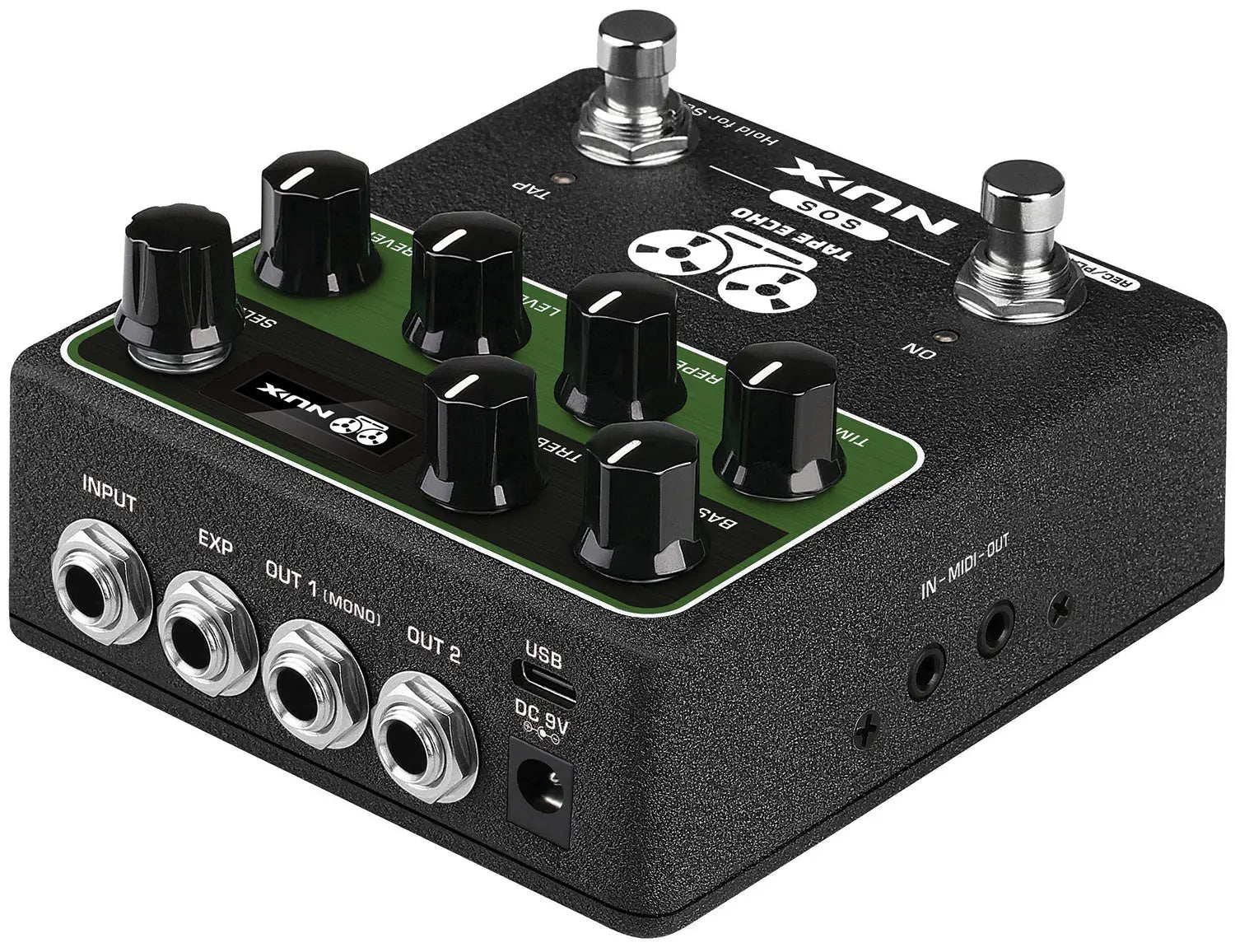

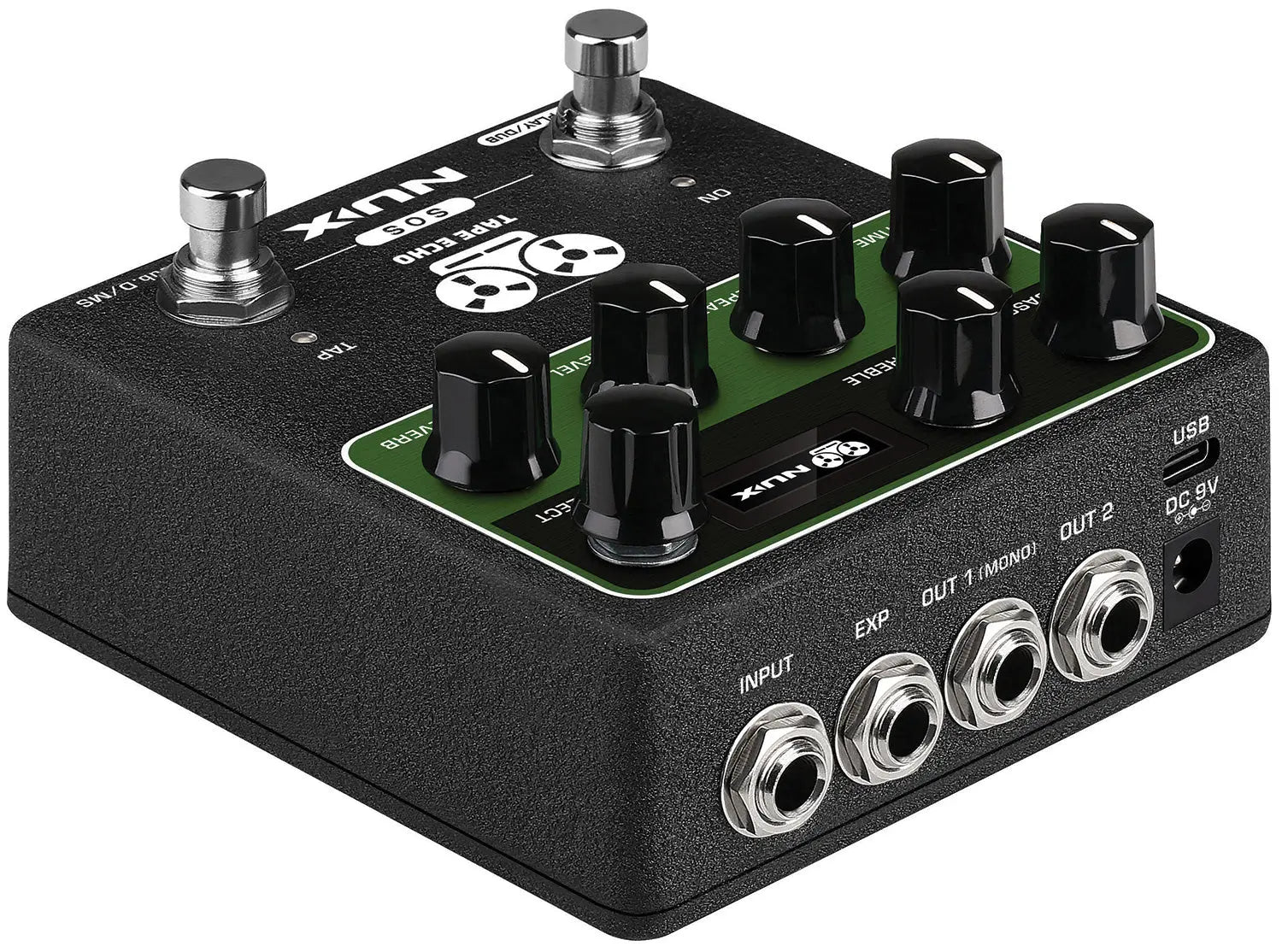

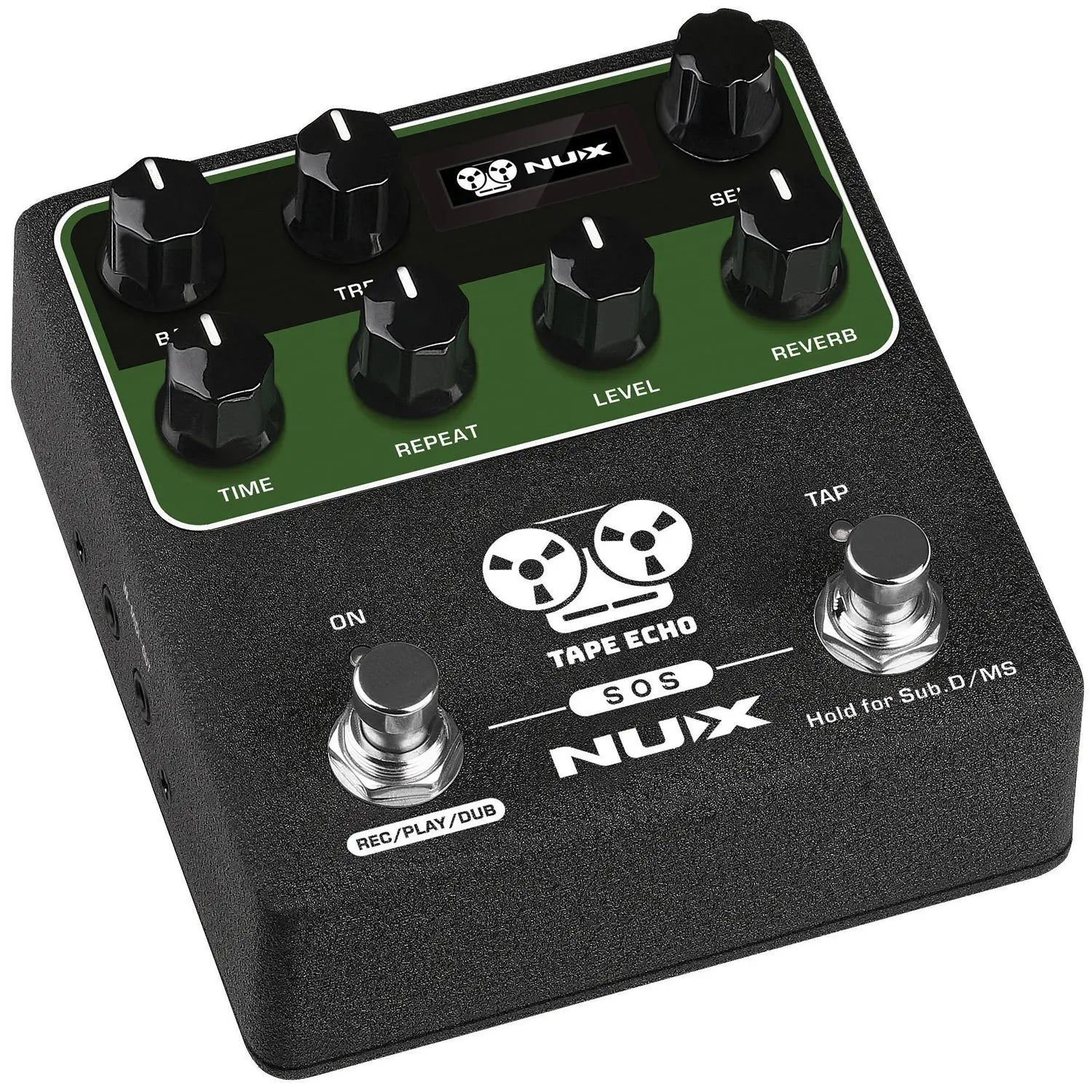

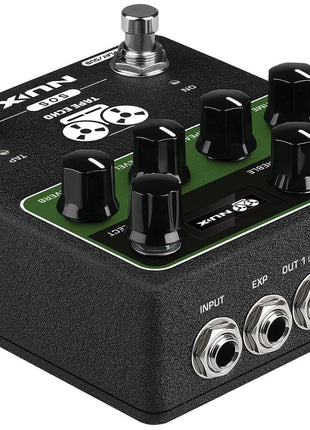

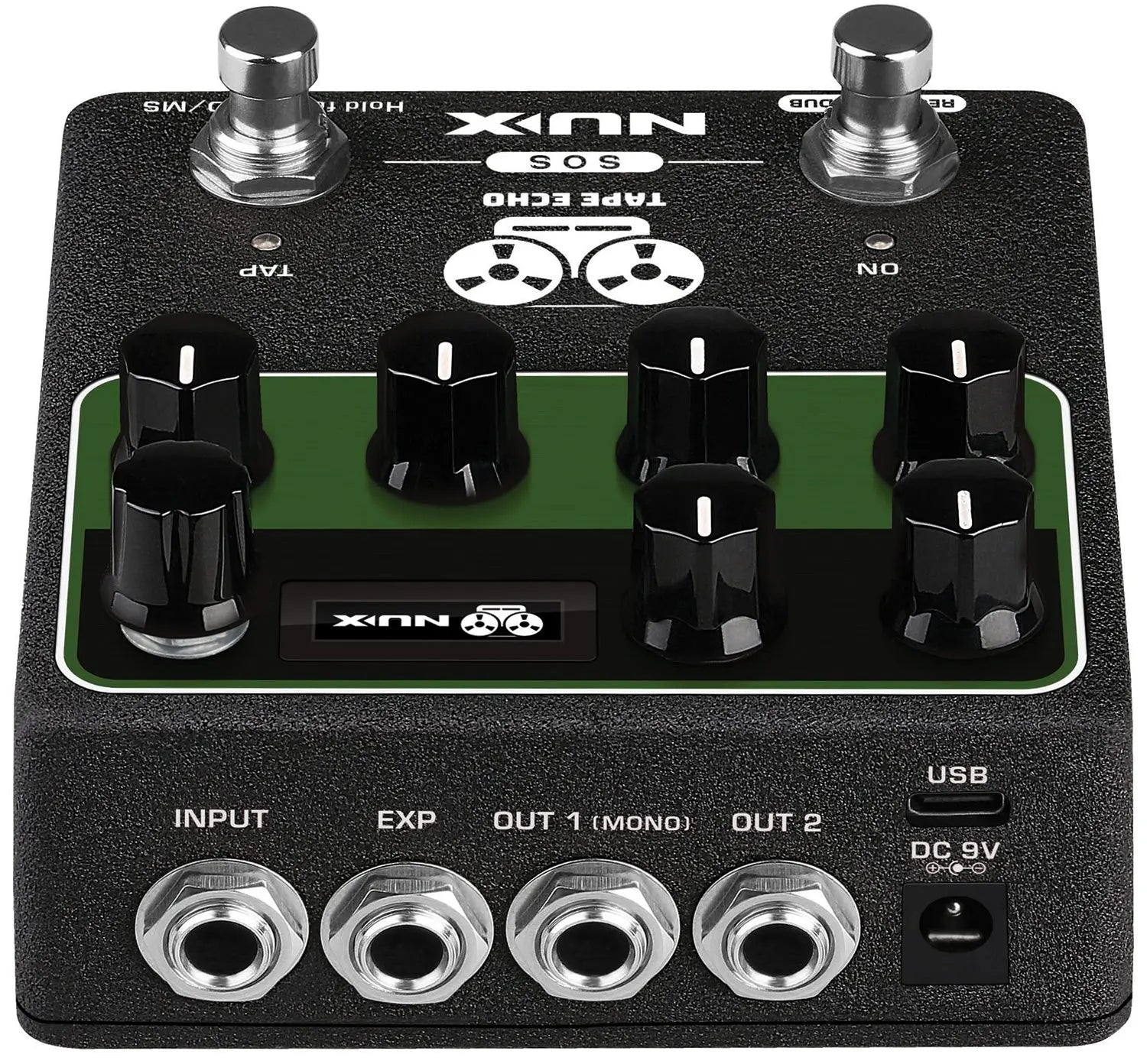

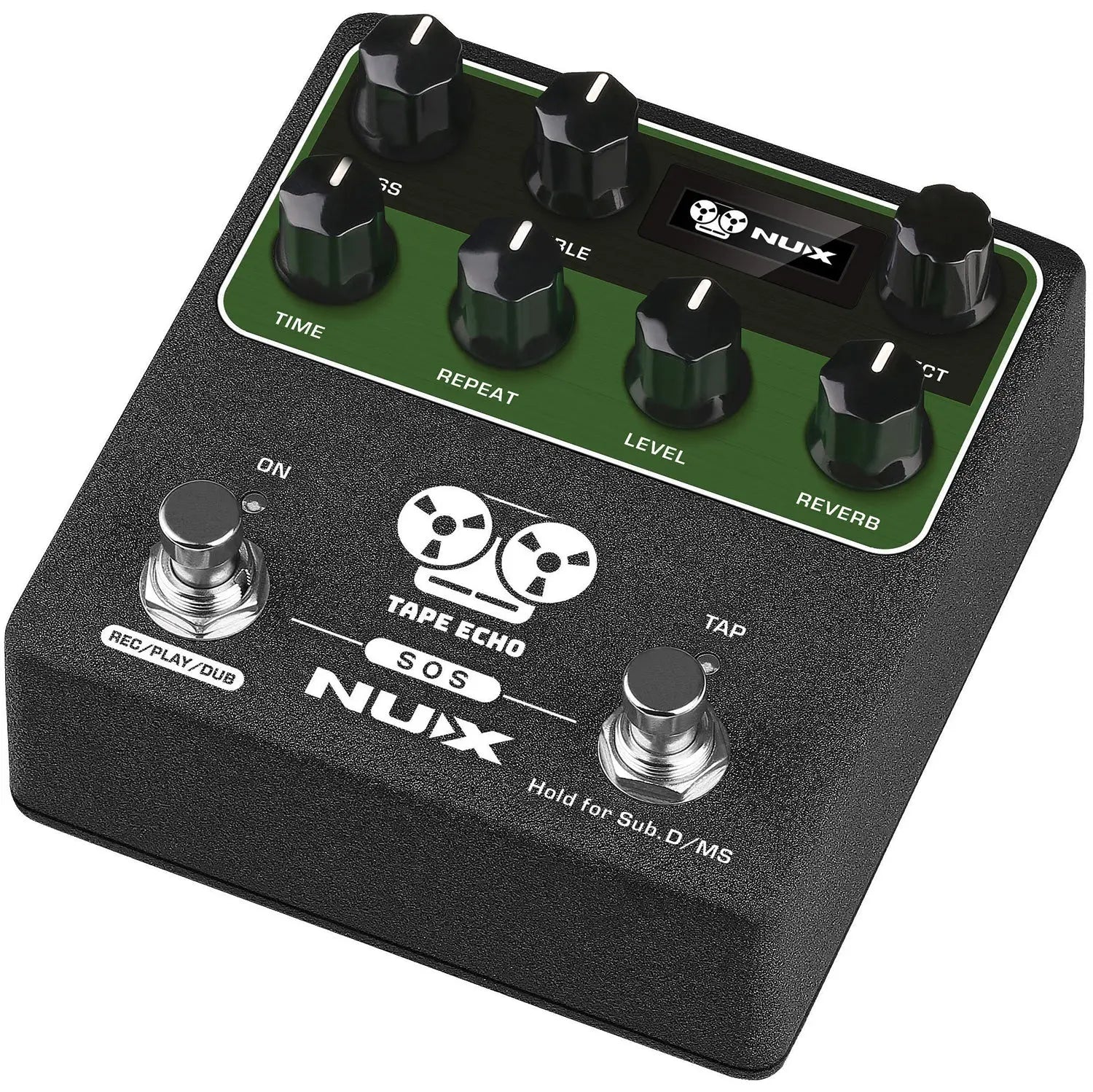

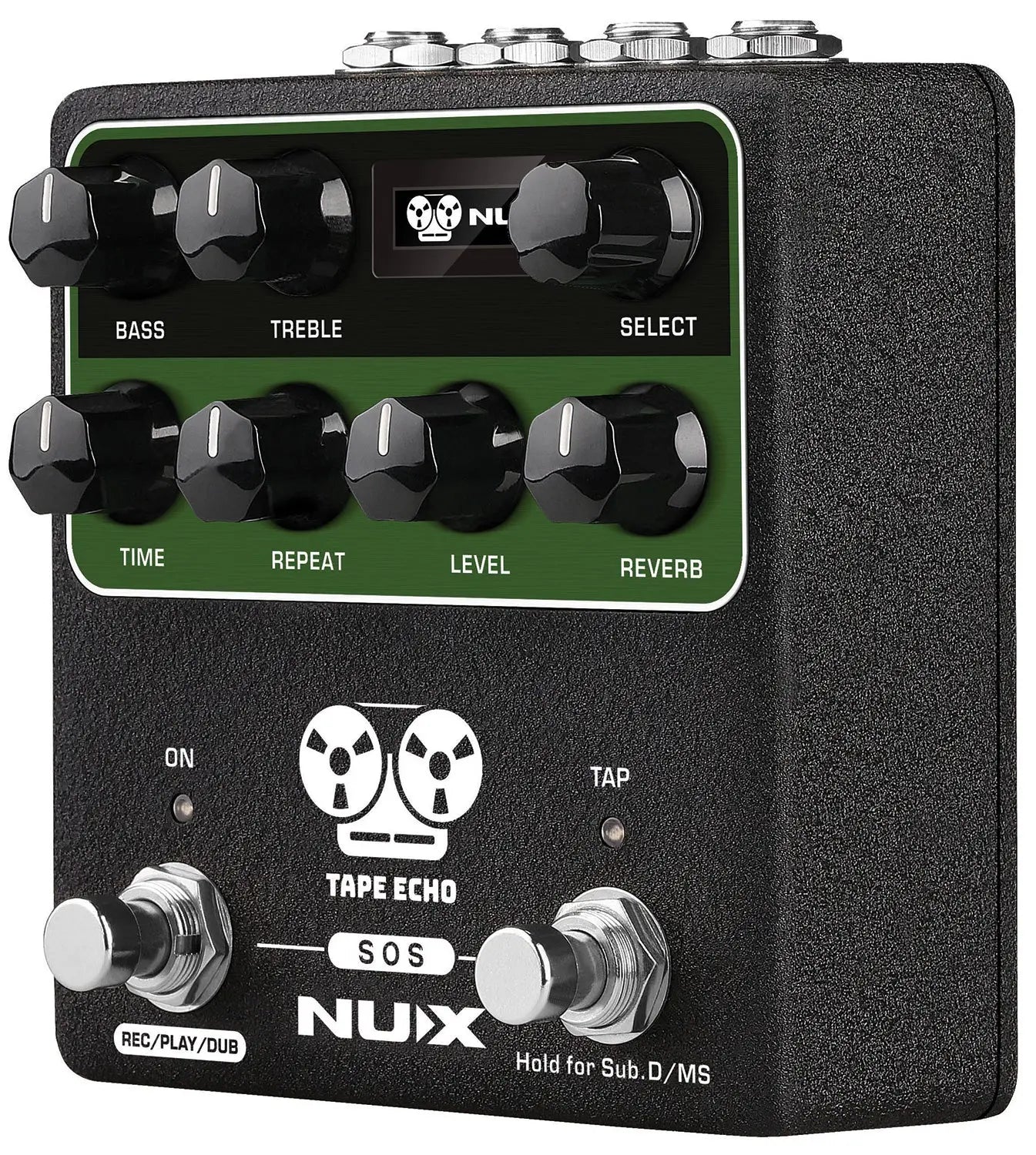

Tape Echo is an echo and delay processor with 7 different types of simulation to recreate the sound of vintage echo units. In addition to classic tape echo simulation, the NDD-7 has a separate spring reverb effect, sound-on-sound (SOS) for operation as a 40 second looper, and up to 1600ms of delay. For authenticity, the NDD-7 also has Wow & Flutter settings and Saturation adds natural compression and degradation, which can even drive into self-oscillation, like a true tape echo. Two foot switches operate as effect on/off and tap tempo and they double as looper and display controls. Above the foot switches are Time, Repeat, Level and Reverb controls and 2-band EQ governs the tone of repeats. USB connectivity and MIDI compatibility give further possibilities for deep control and integration with DAW and project studio setups. A full vintage echo collection in a single compact pedal for those seeking the genuine retro echo sound.
Authentic tape echo machine simulation
Independent spring reverb effect

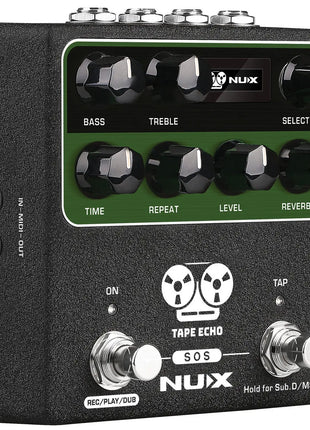

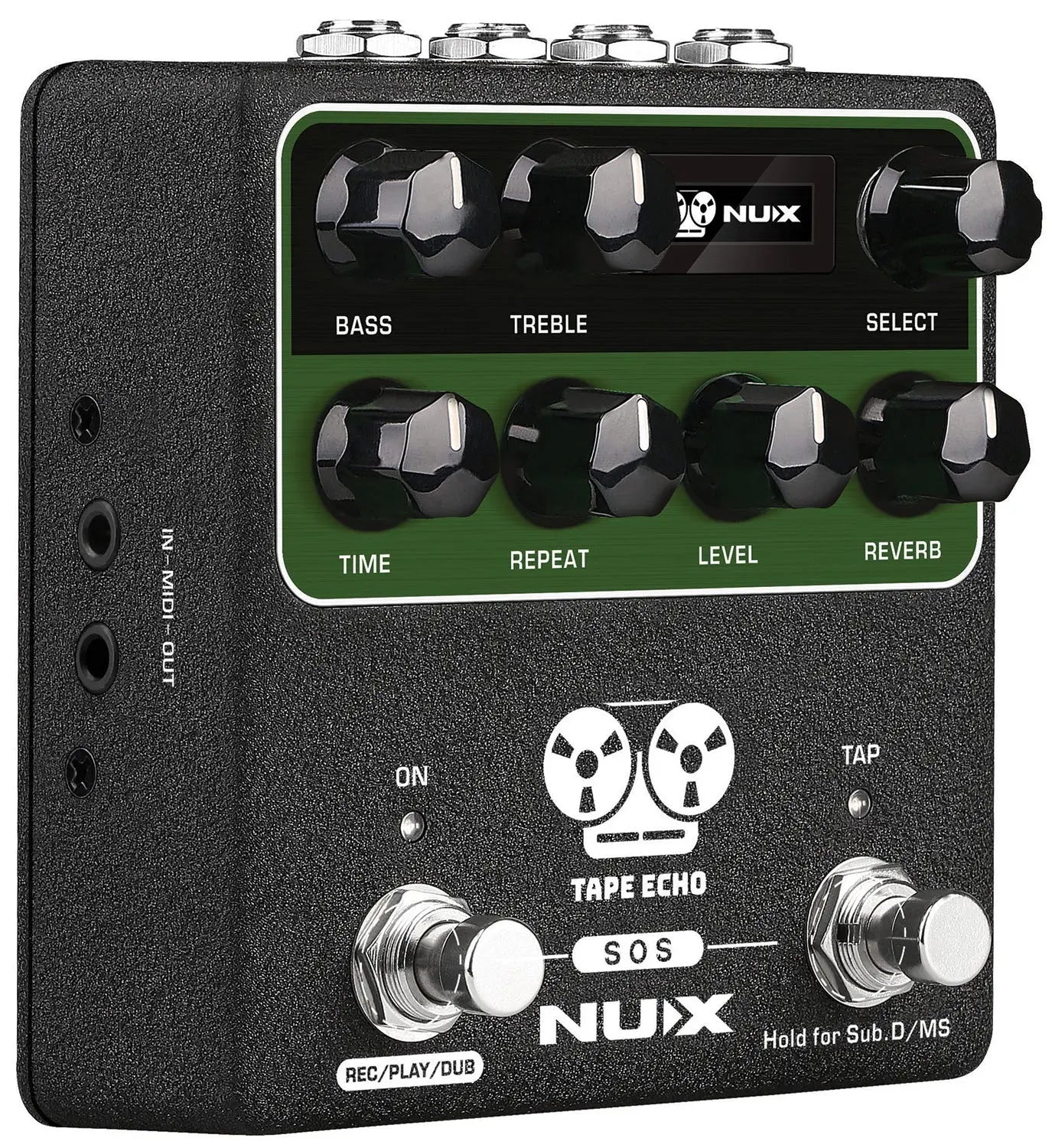

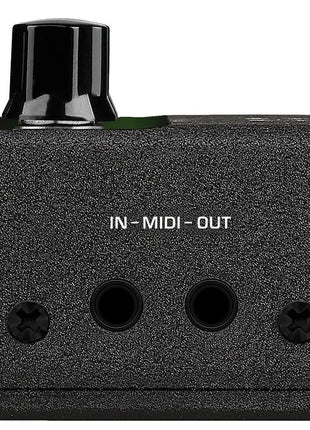

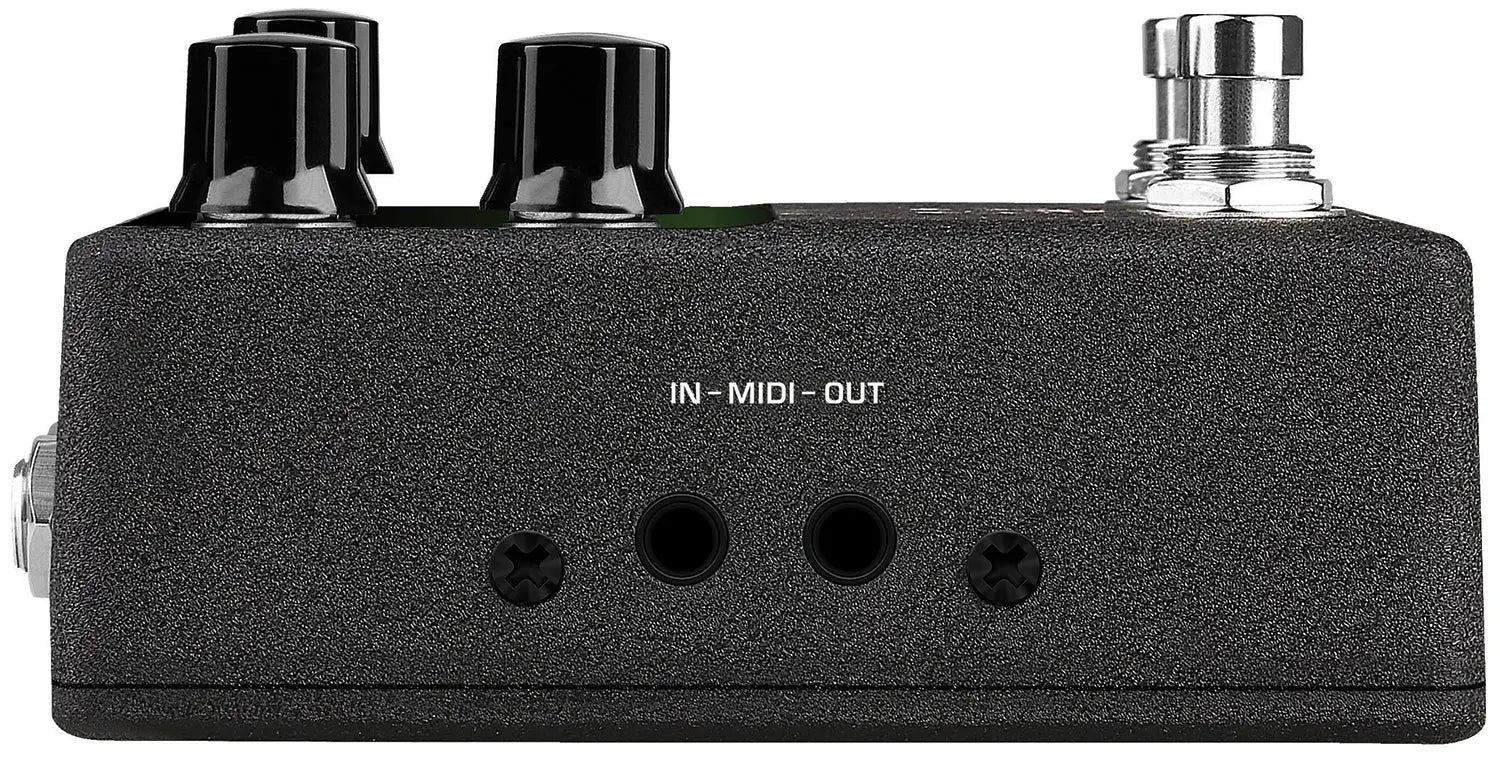

MIDI in and out

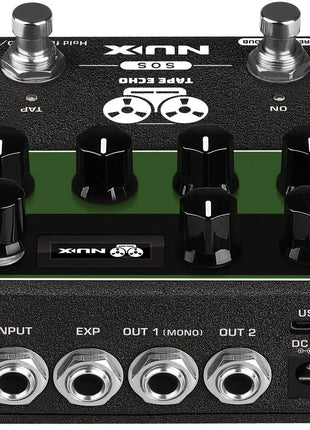

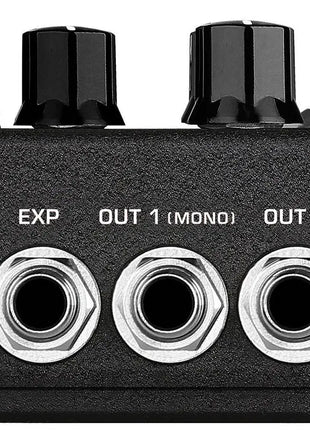

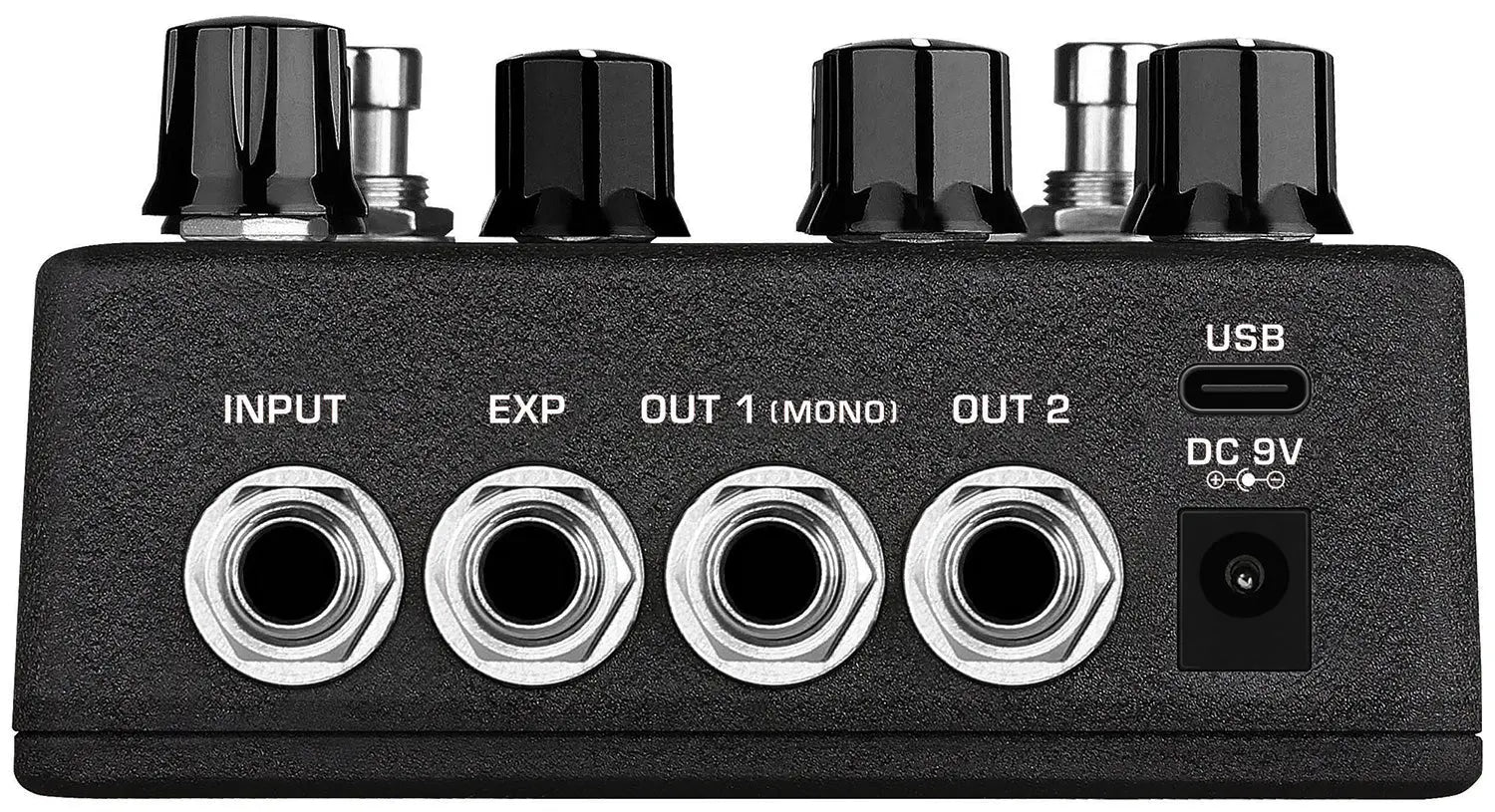

External expression pedal input
Stereo or mono output

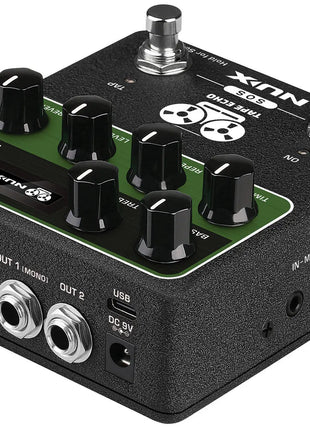

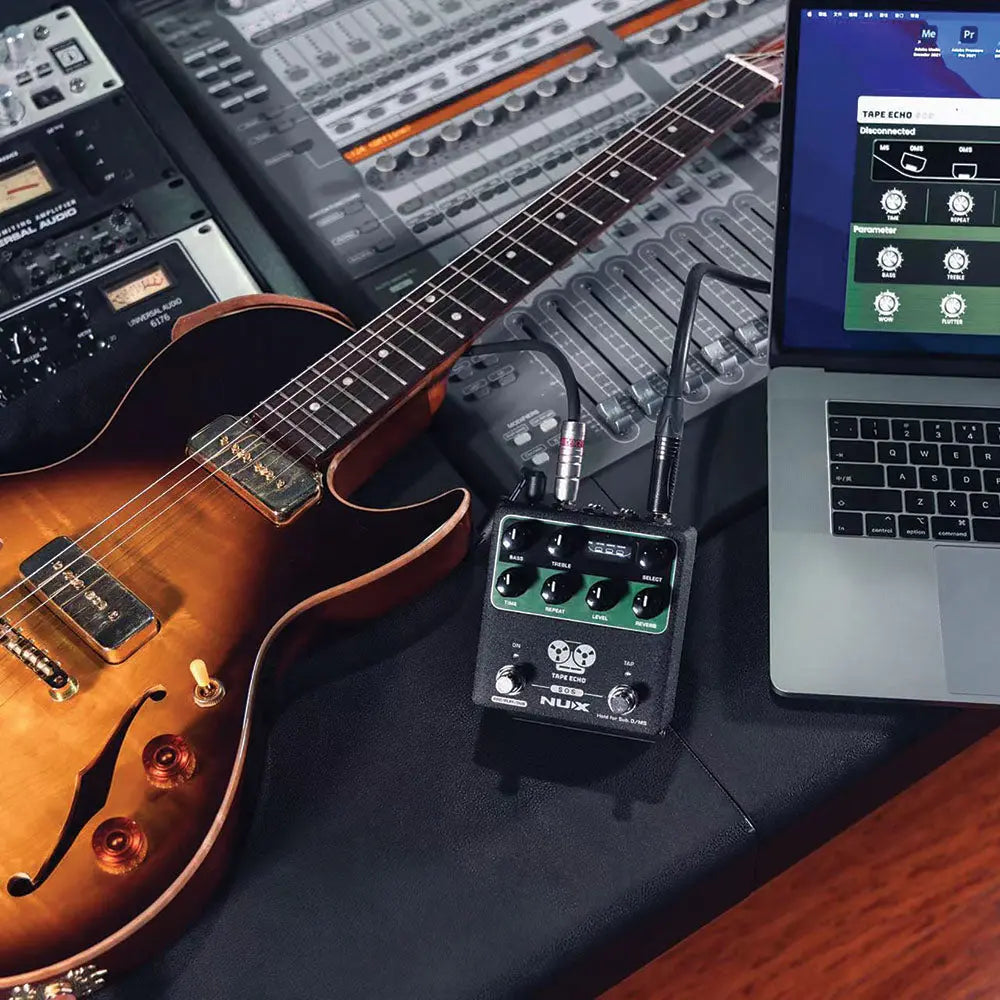

USB port for PC editor and firmware upgrades
Power supply 9Vdc, 300mA (min) pin-negative (not included)

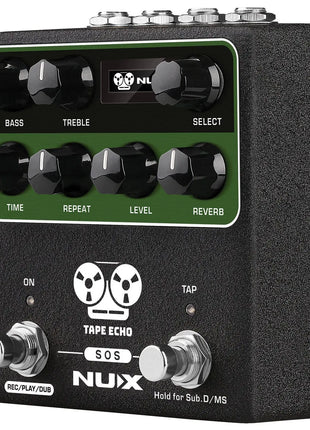

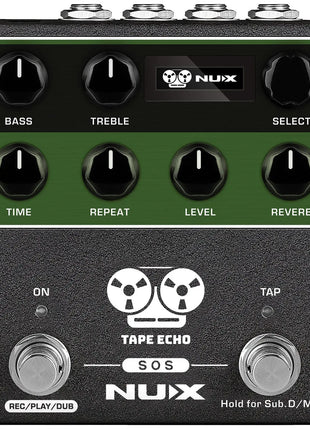

Controls Time, Repeat, Level, Reverb, Bass, Treble, Select
Dimensions 115 x 105 x 58mm
Weight 440g
Current consumption <150mA
Sampling Frequency 48kHz
Sampling format 32-bit
Frequency response 20Hz - 20kHz (-1dB)
Input impedance 5M Ohms
Input level 1.5V max
Output level 1.5V max
Output impedance 100 Ohms
Latency 1ms
Dynamic range 103dBu / 105dBu (A-weighted)
THD +N 0.0038% (1Vrms, 1kHz) / 0.01% (1Vrms, 1kHz)
