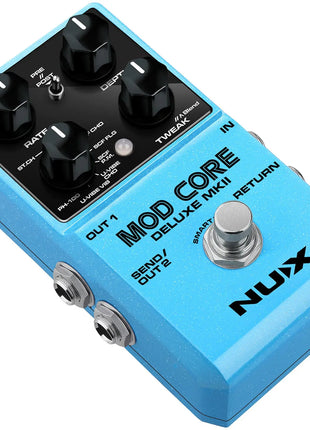

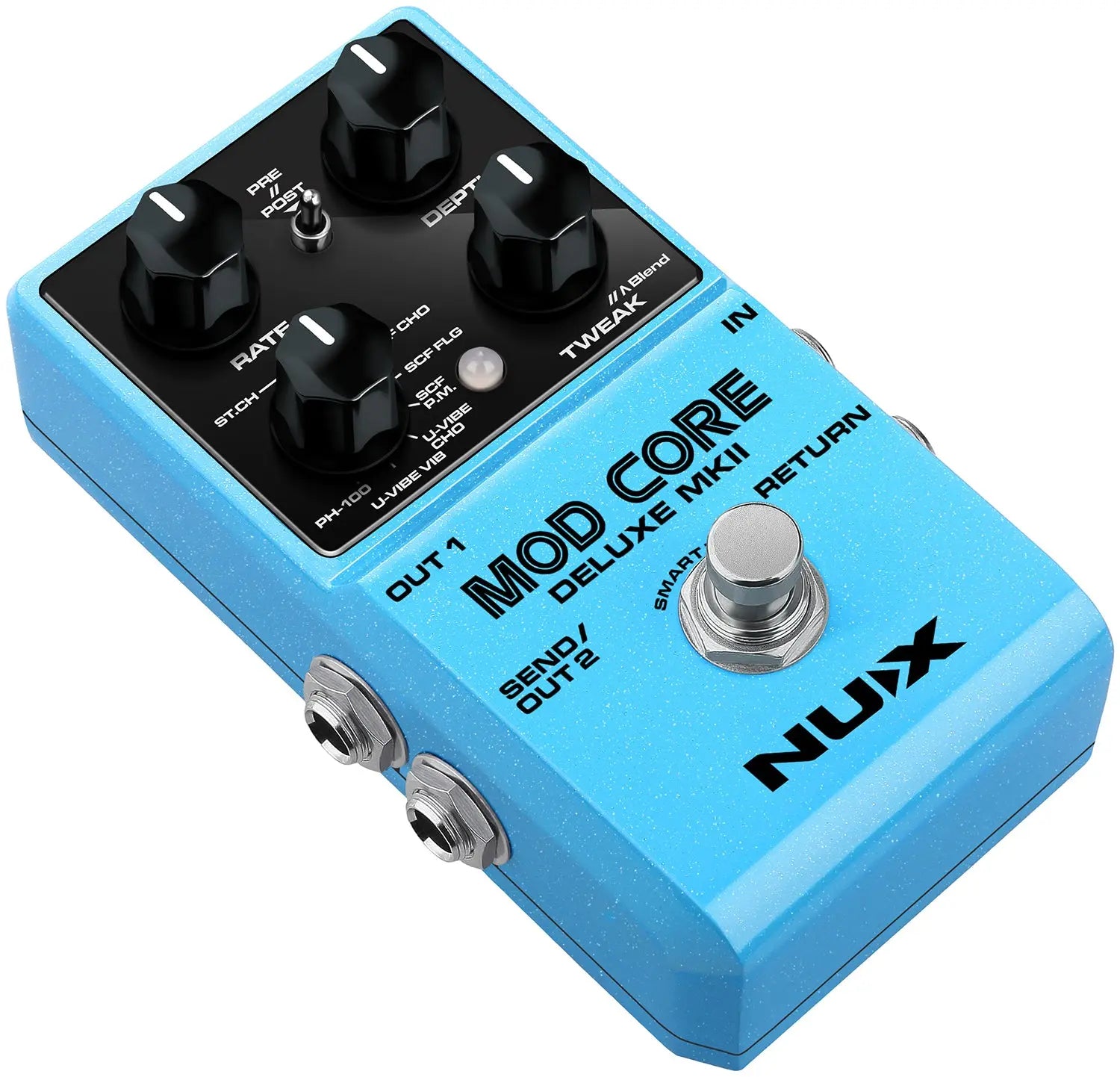

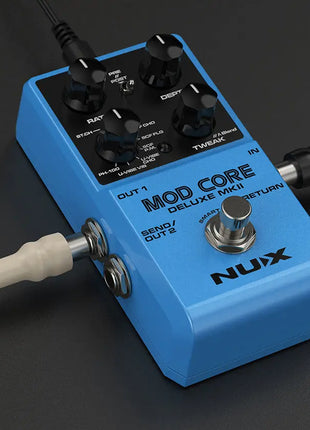

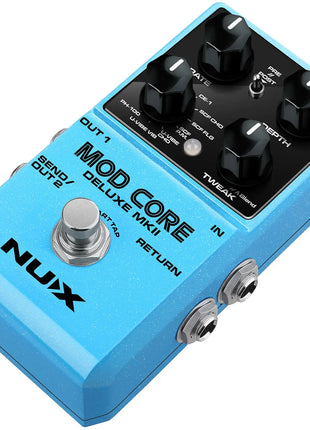

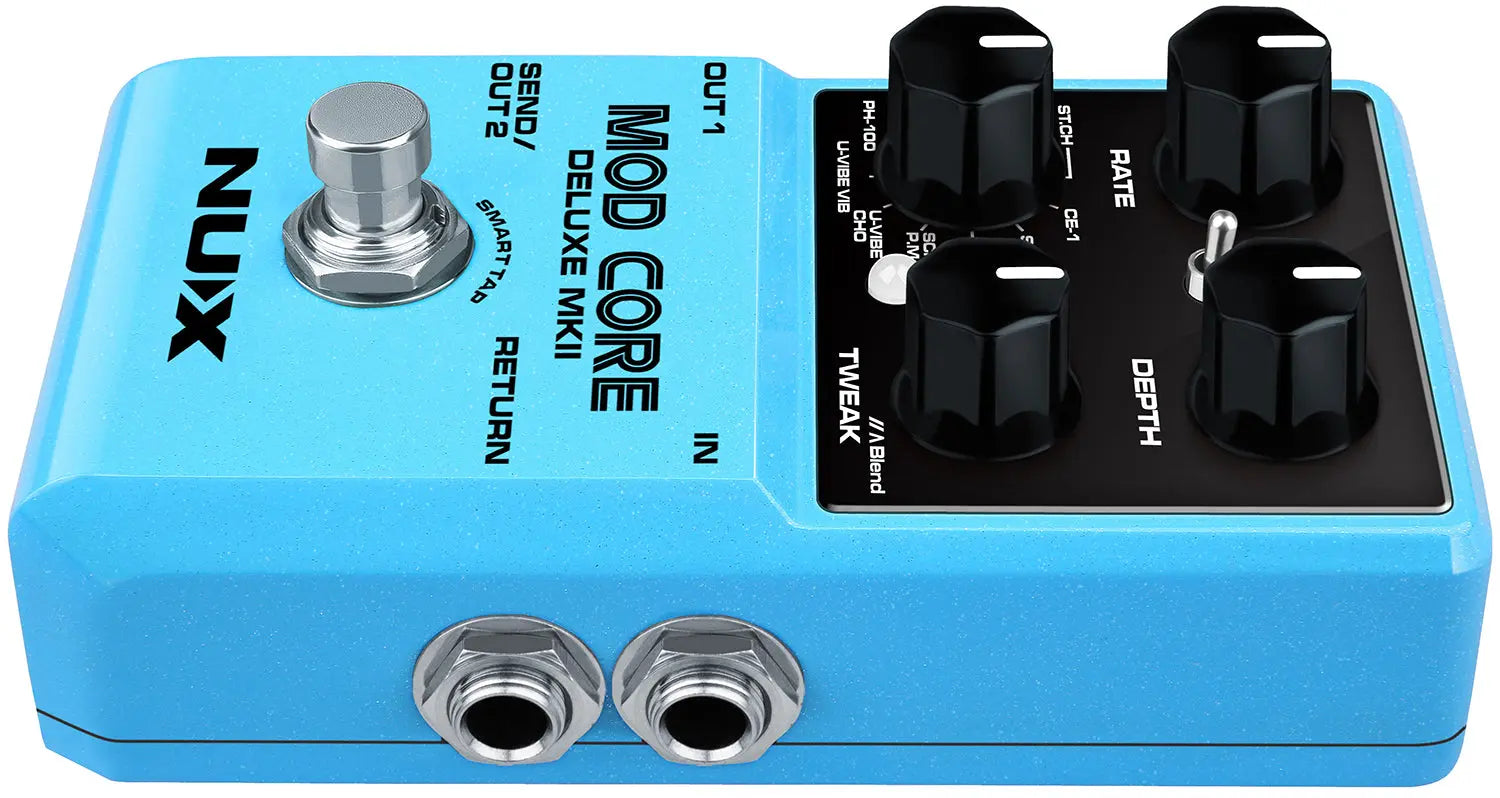

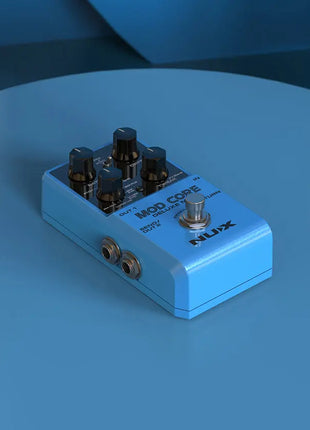

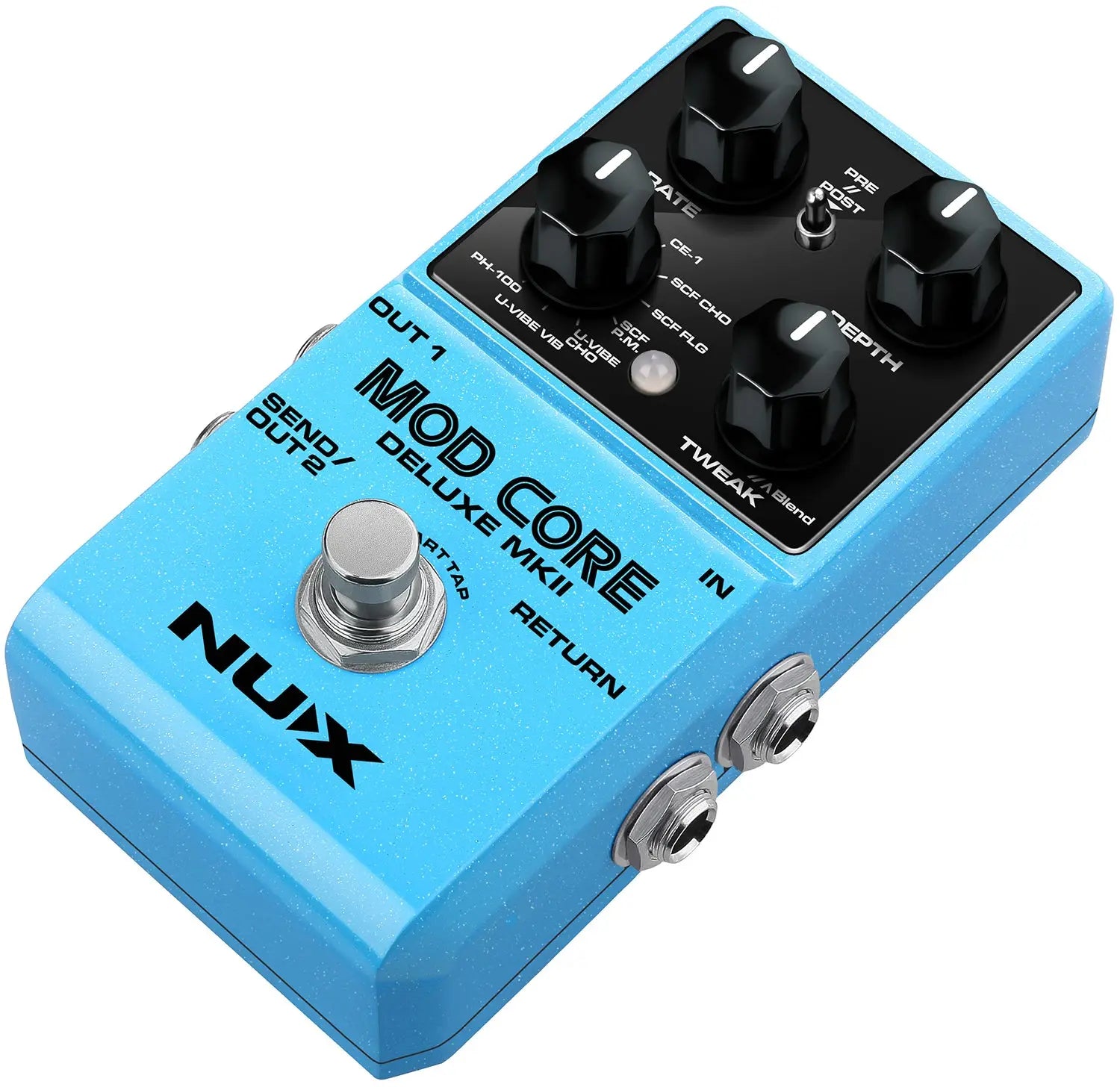

Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models range from chorus to phasing and vibrato, with Rate and Depth controls and an additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode. Rate can also be adjusted using a Tap Tempo function of the main footswitch. Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with send/return loop. When using the loop, there are 3 routing options for pre, parallel and post effect placement. If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high quality pedals in a single compact stomp box format.
Analog dry signal path for low noise and zero latency
Built-in send-return loop
4 parameter control for effect settings

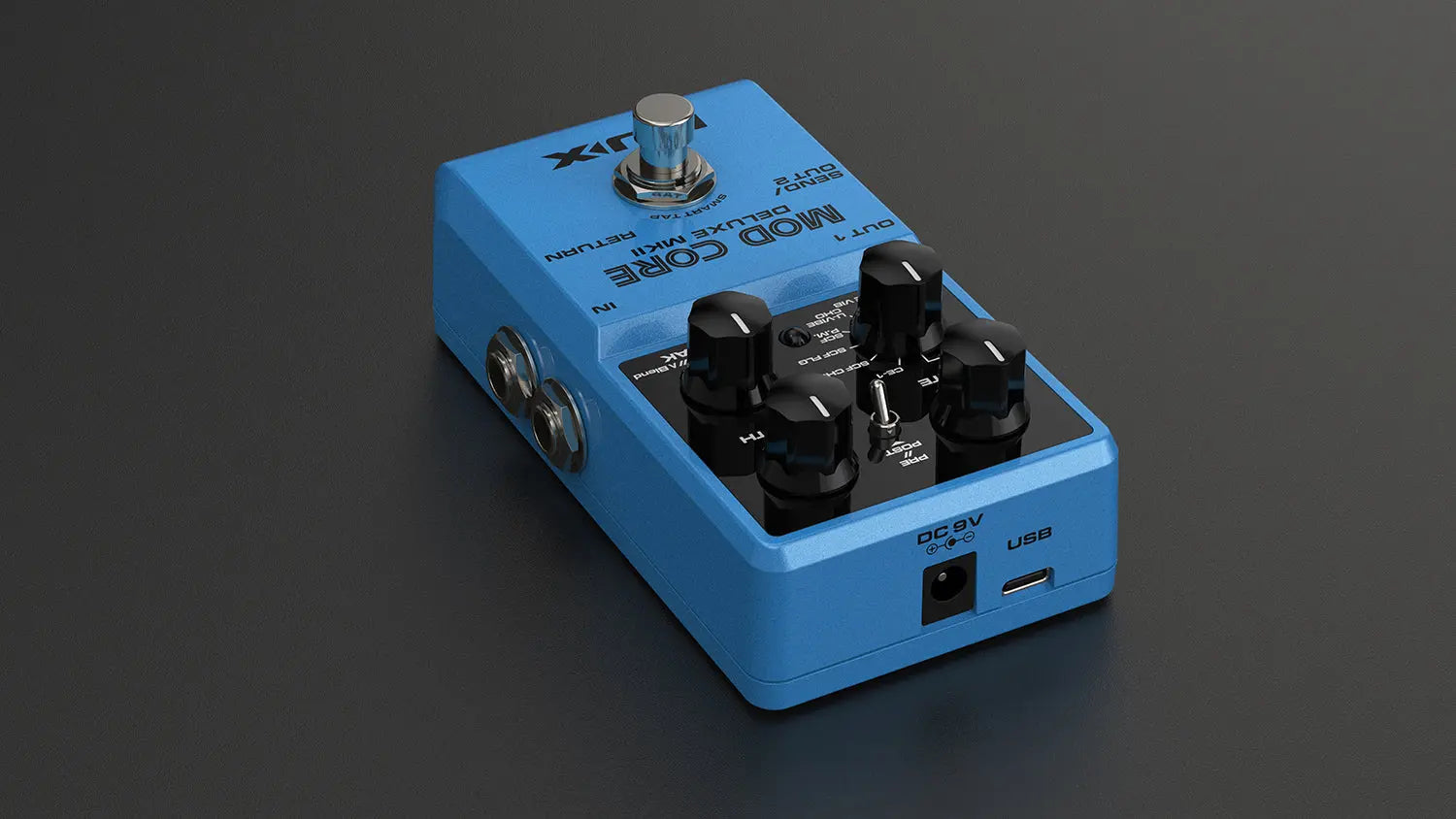

USB-C for firmware updates
8 distinct modulation effect models
Mono or stereo output
Power supply 9Vdc power adaptor required
DC input connection DC5521 jack (for optional adaptor - pin-negative)
Current consumption <120mA

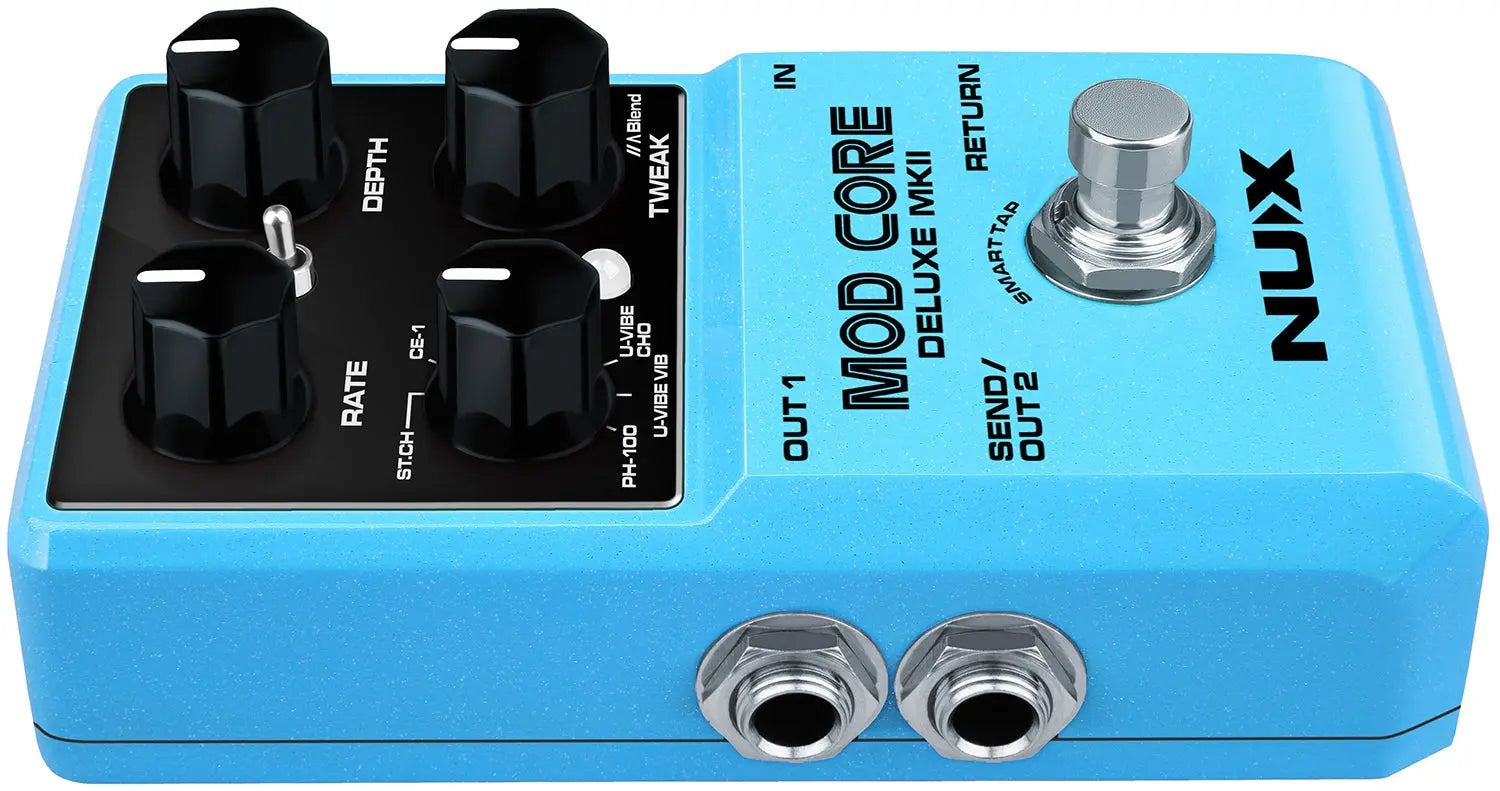

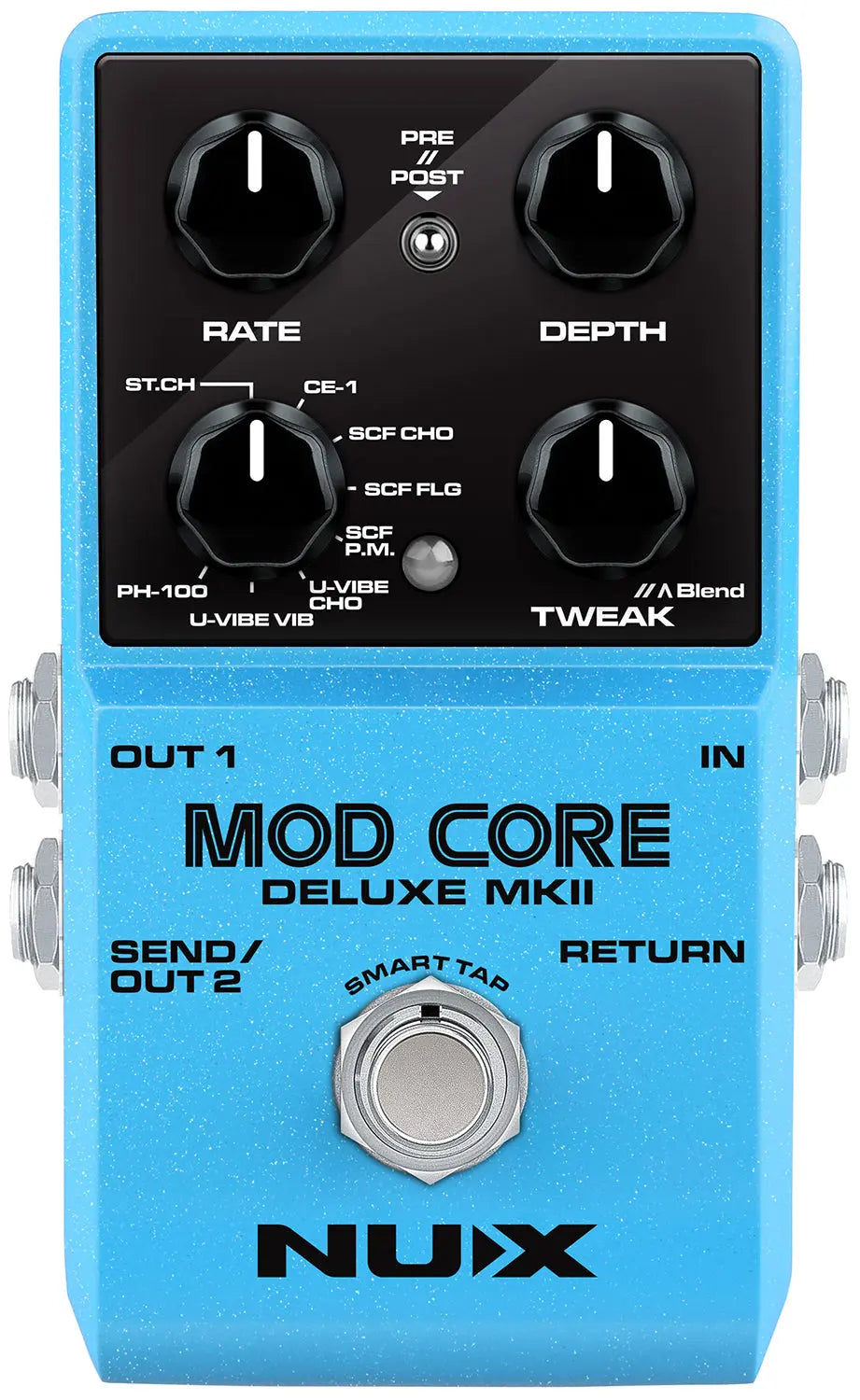

Controls Rate, Depth, Tweak & Mod type

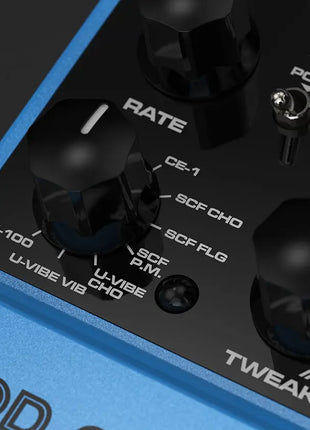

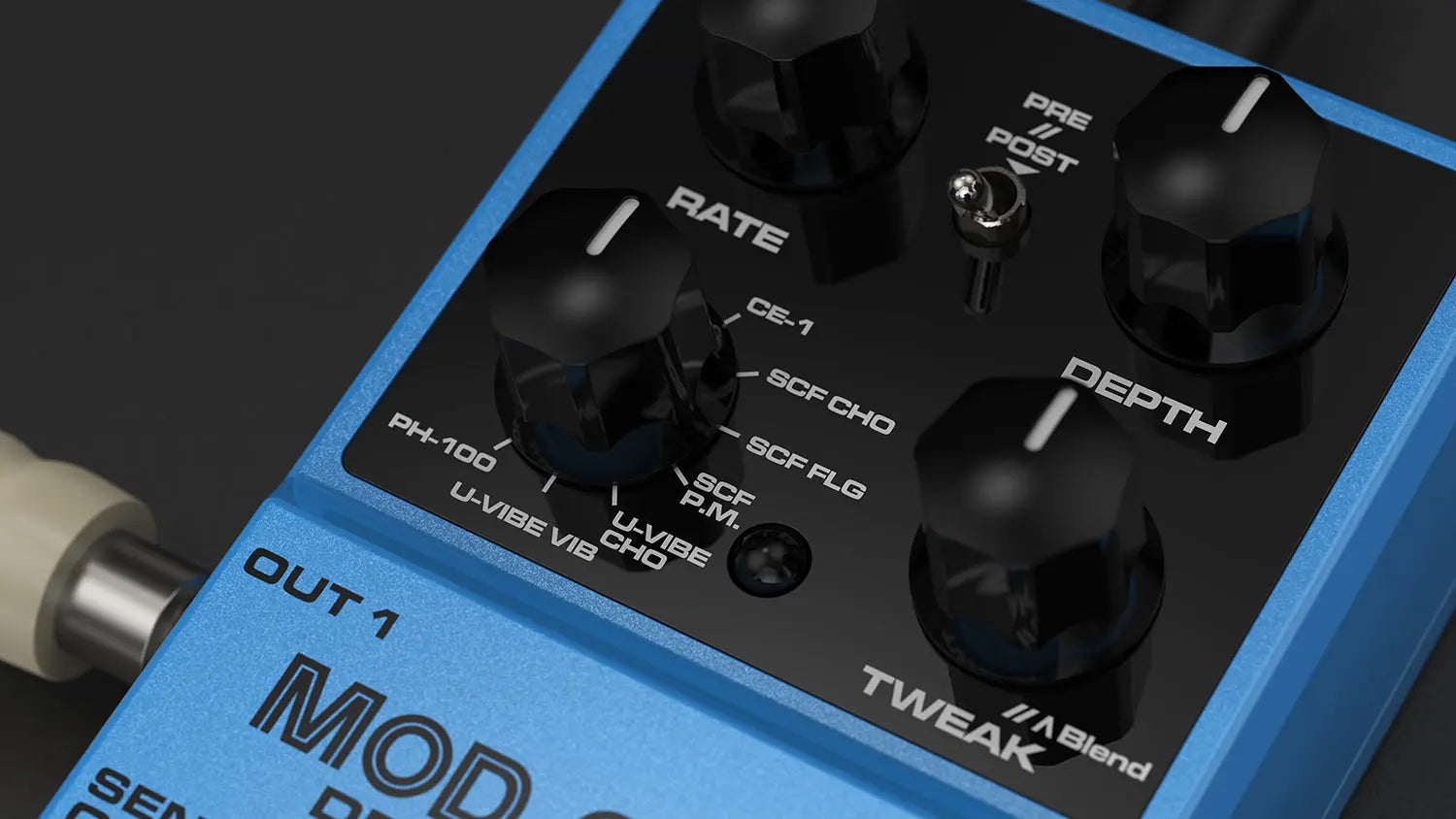

Modes ST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100

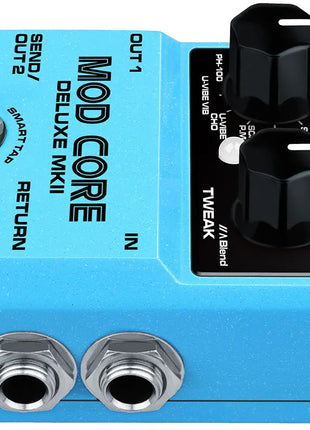

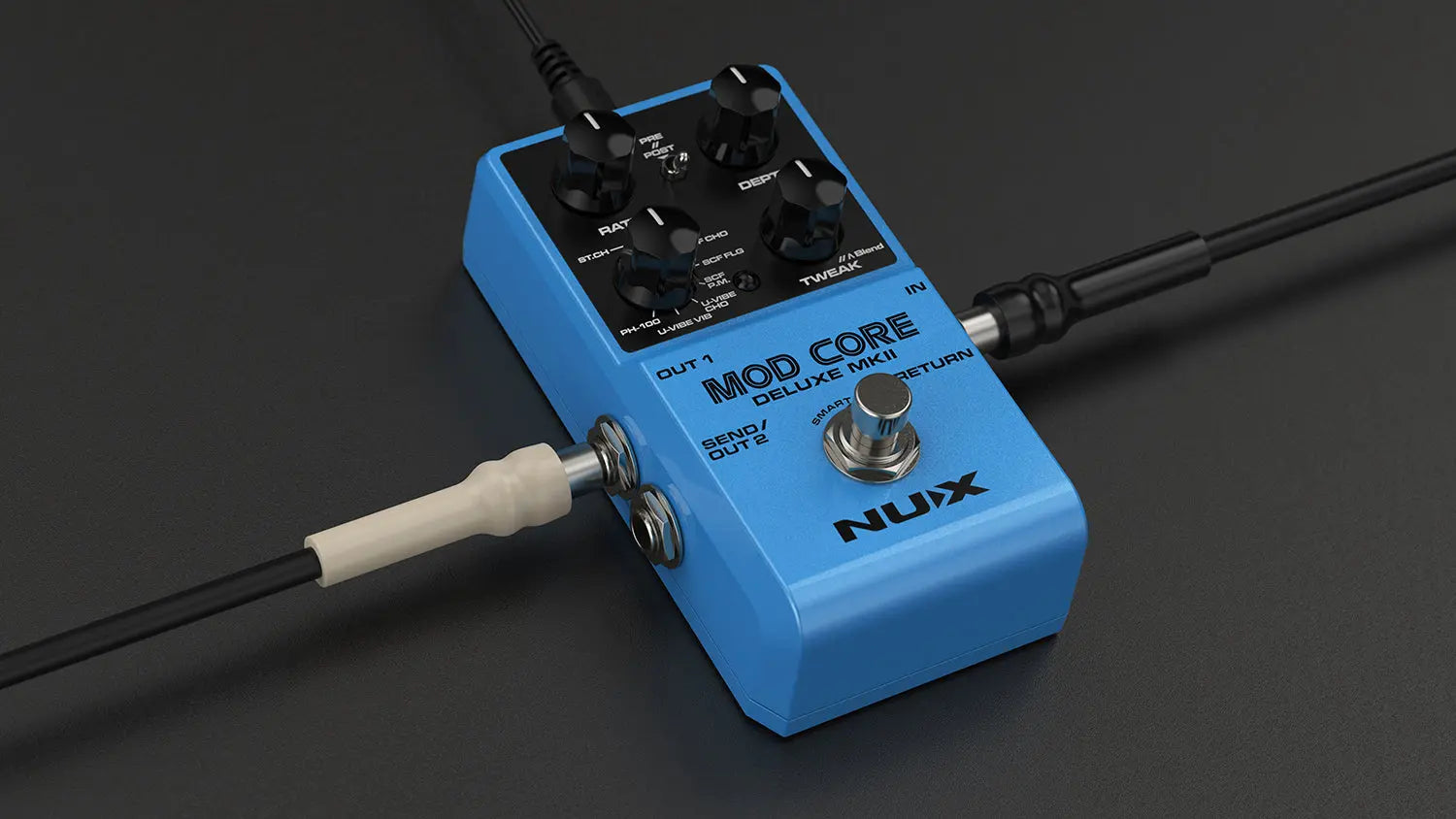

Inputs Instrument in & Loop return (6.3mm mono jack)
Outputs Out1 & Out2/Loop send (6.3mm mono jack)
Tempo range 50-200 bpm
Sampling format 48kHz, 24-bit
Input impedance 1M ohm
Output impedance 1k ohm
Dynamic range 104dB
Dimensions 122 x 72 x 47mm
Weight 270g
