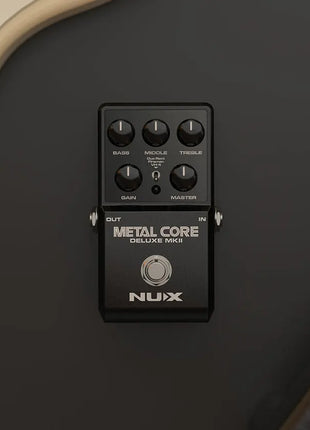

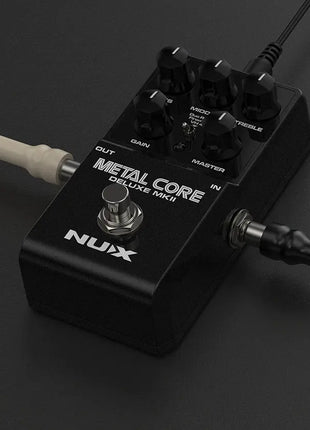

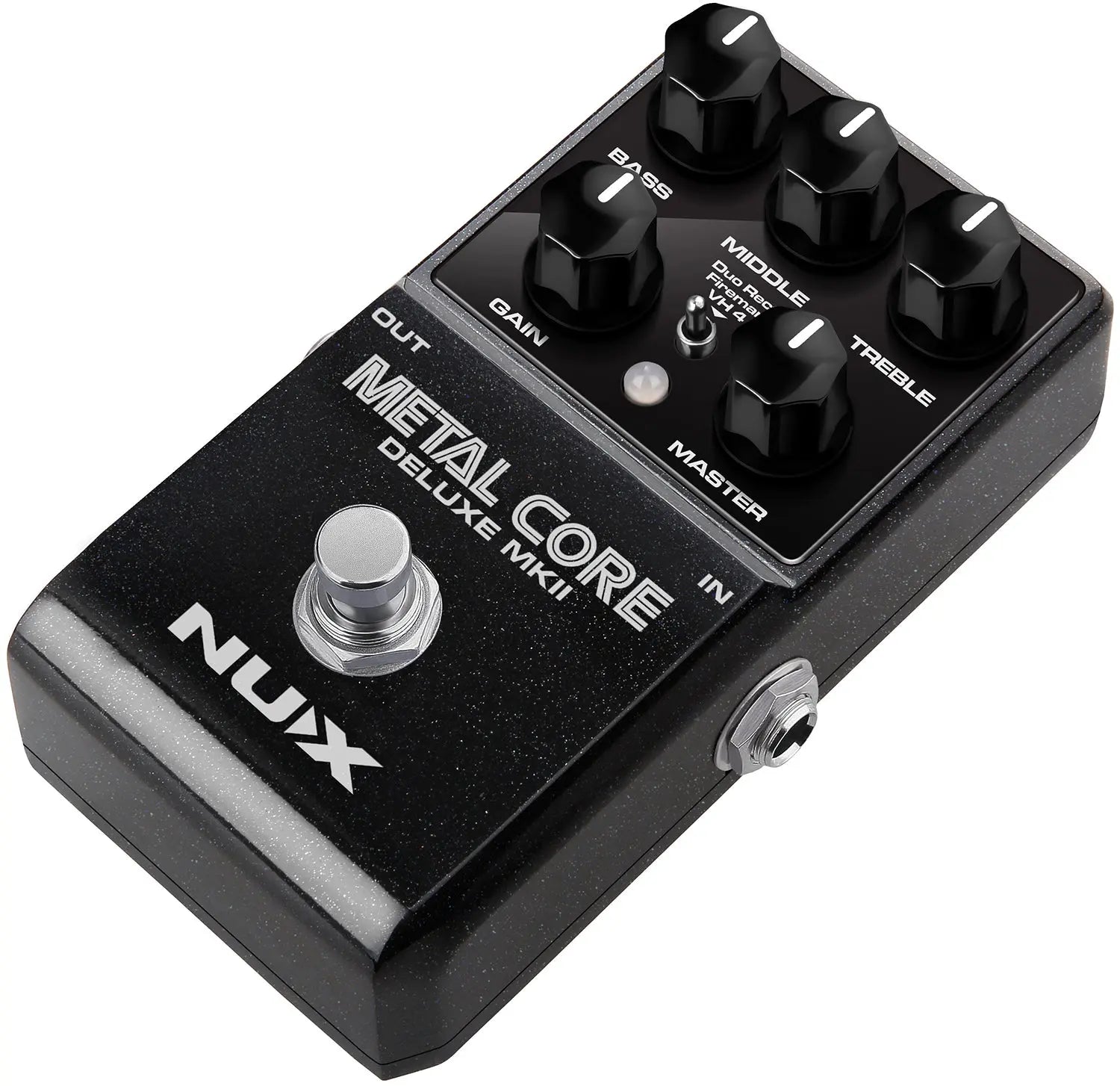

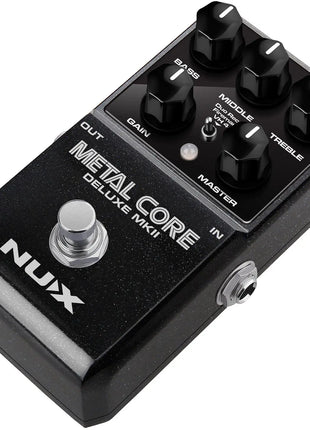

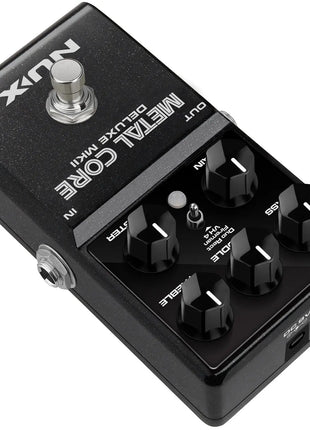

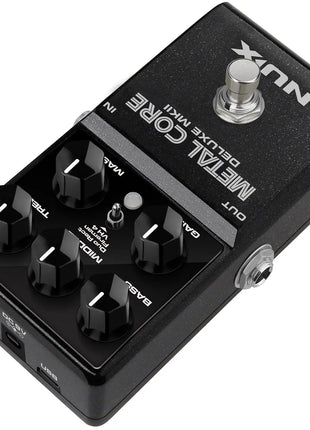

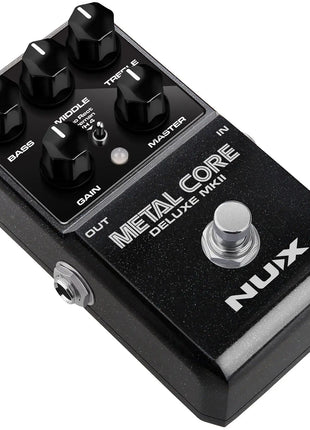

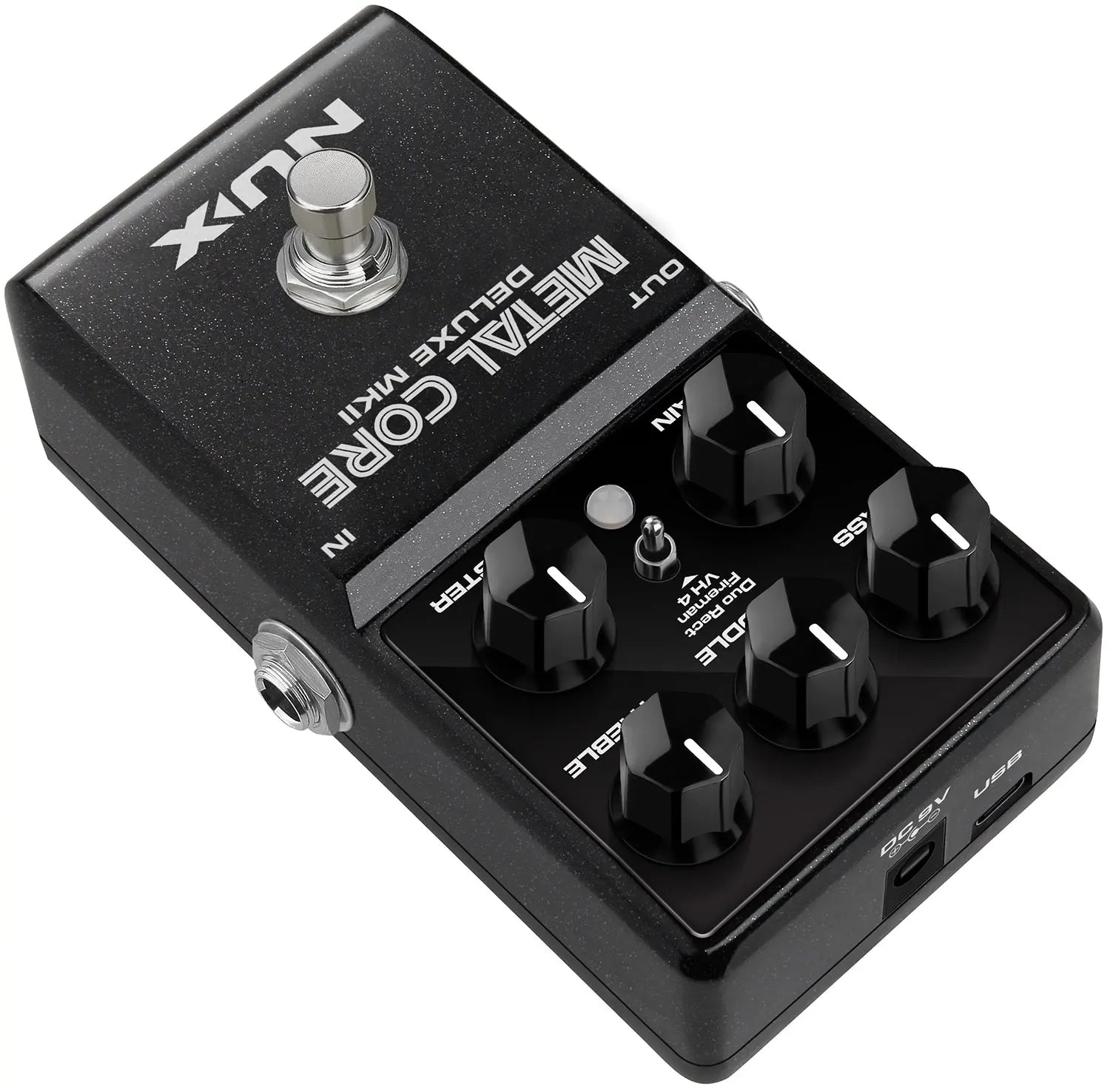

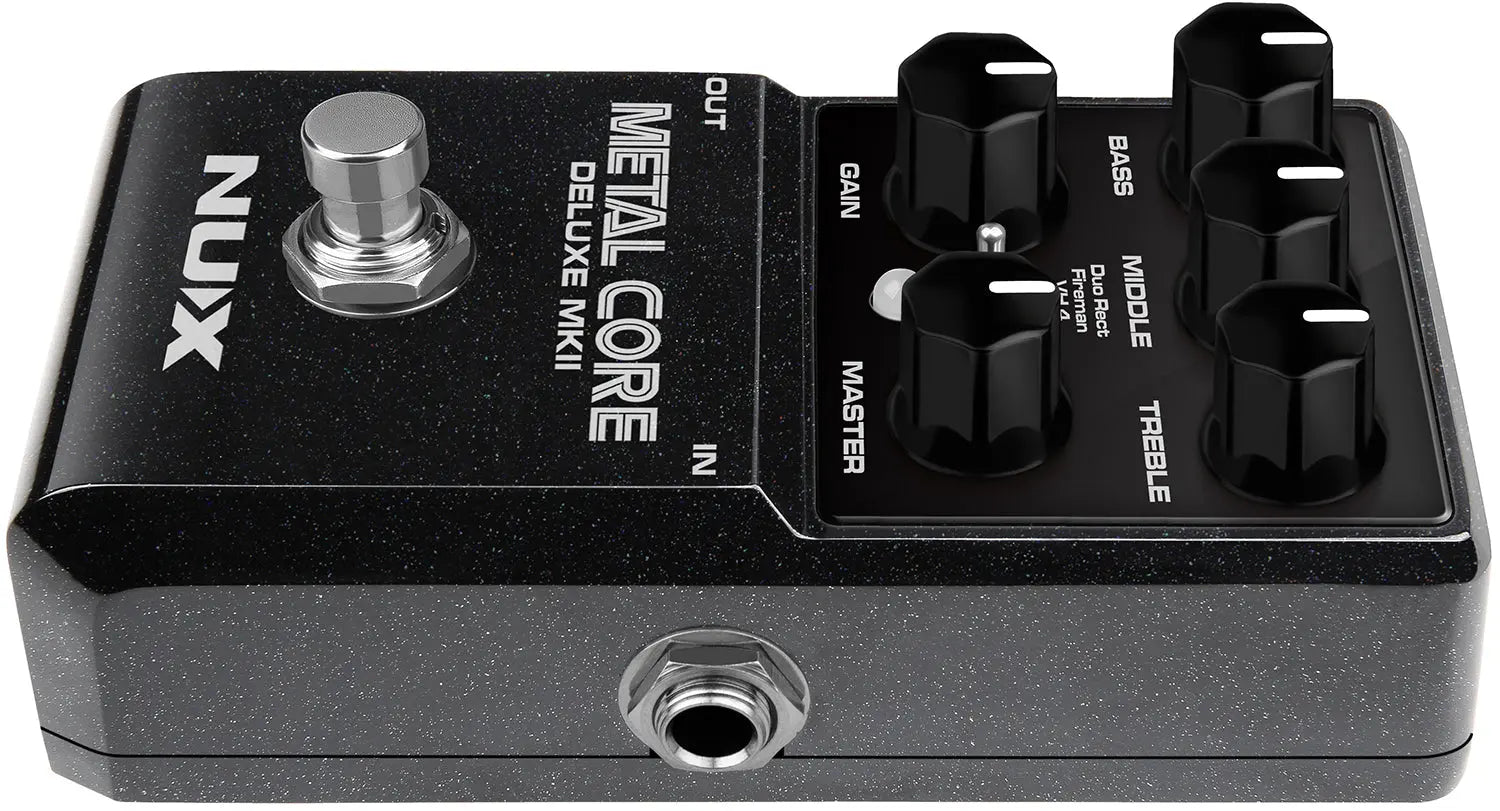

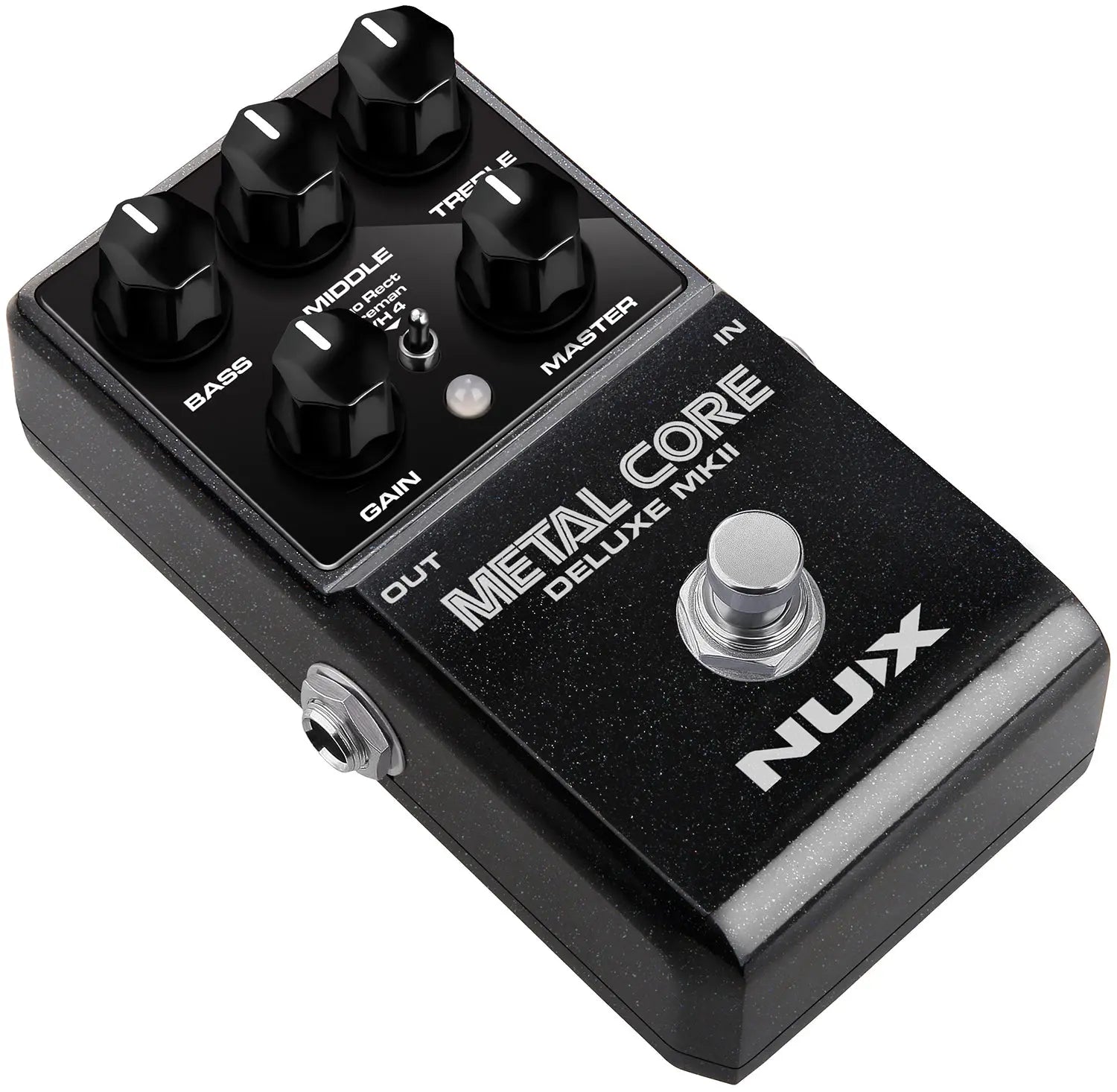

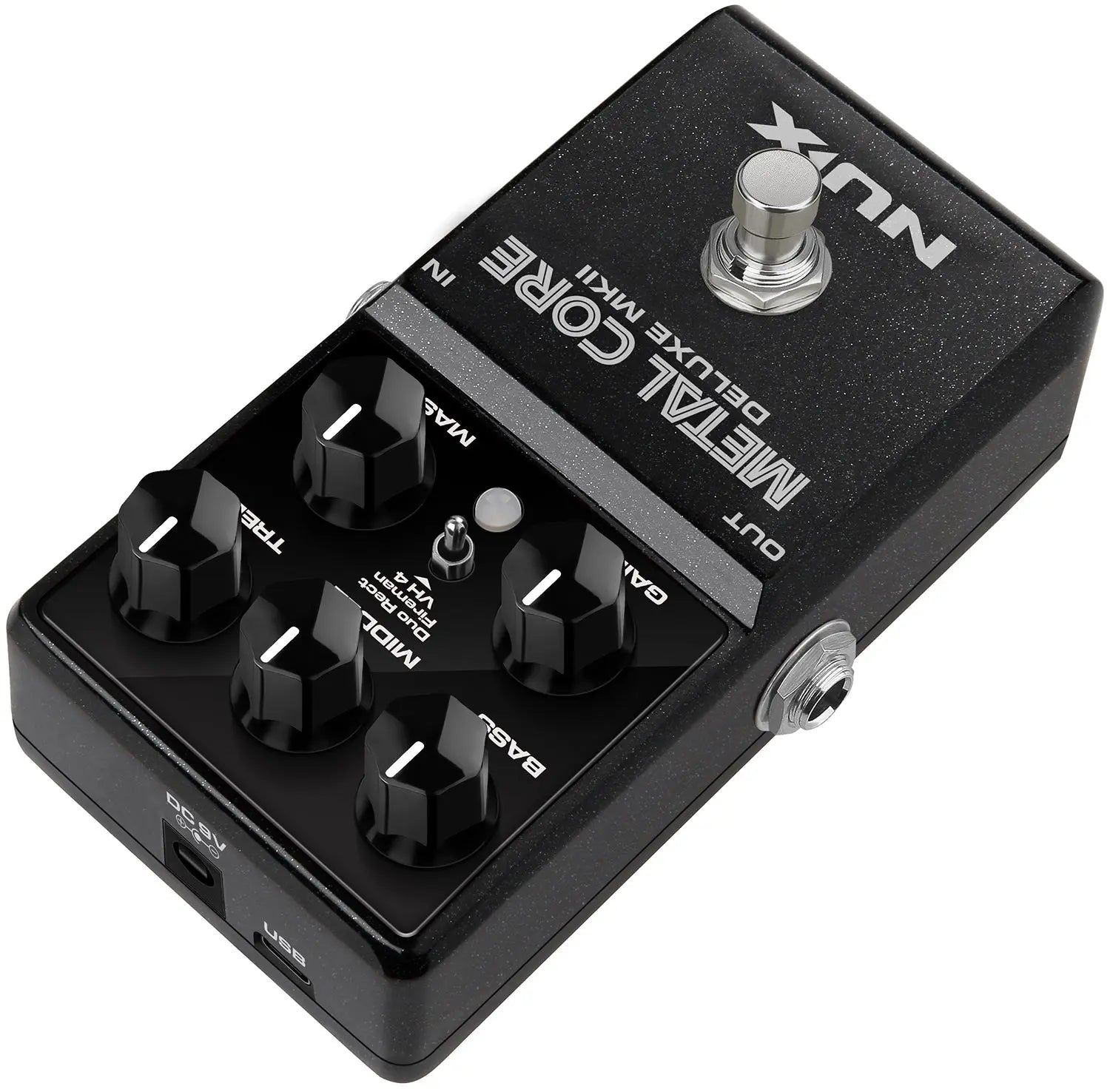

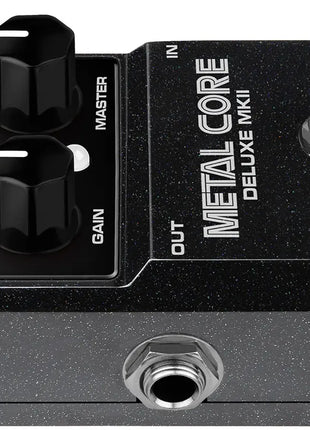

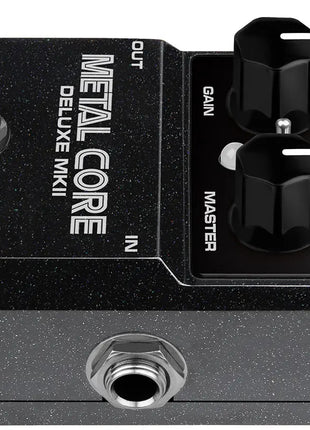

Evolving from the popular Metal Core Deluxe pedal, the mkII version now has 3 selectable amplifier models based on much-revered high gain valve amplifiers. Now with an additional Middle control, the 3-band EQ pairs with Gain and Master to offer a full completement of real amplifier controls, with settings stored into each of the 3 amp models for fast recall. Metal Core Deluxe mkII goes a step further to include IR cabinet simulation, meaning that it can be used directly into a full-range PA system, or without IR simulation into the front of a guitar amplifier as a hard-edged drive pedal. Whichever wiring method is used, Metal Core Deluxe mkII delivers the full breadth of metal tones for hard rock to thrash.
3 distinct high gain amplifier models
3-band EQ
Switchable IR cabinet simulation
Settings auto-stored for each model
True bypass

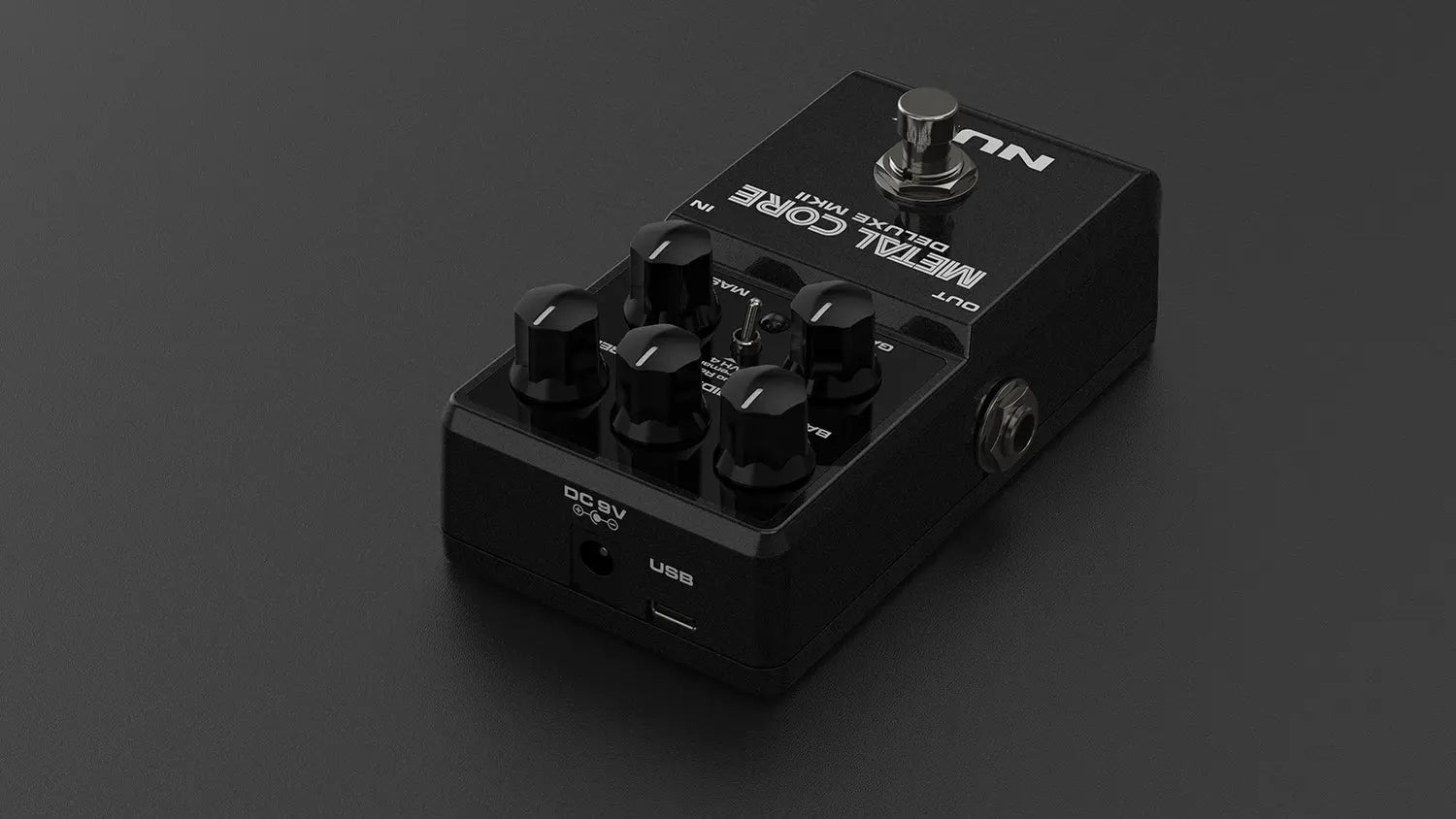

USB-C for firmware updates & future software
Requires suitable 9Vdc power adaptor (e.g. 173.290UK)
Power supply 9Vdc power adaptor required

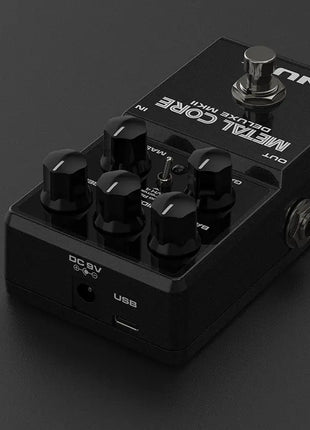

DC input connection DC5521 jack (for optional adaptor - pin-negative)
Current consumption <120mA

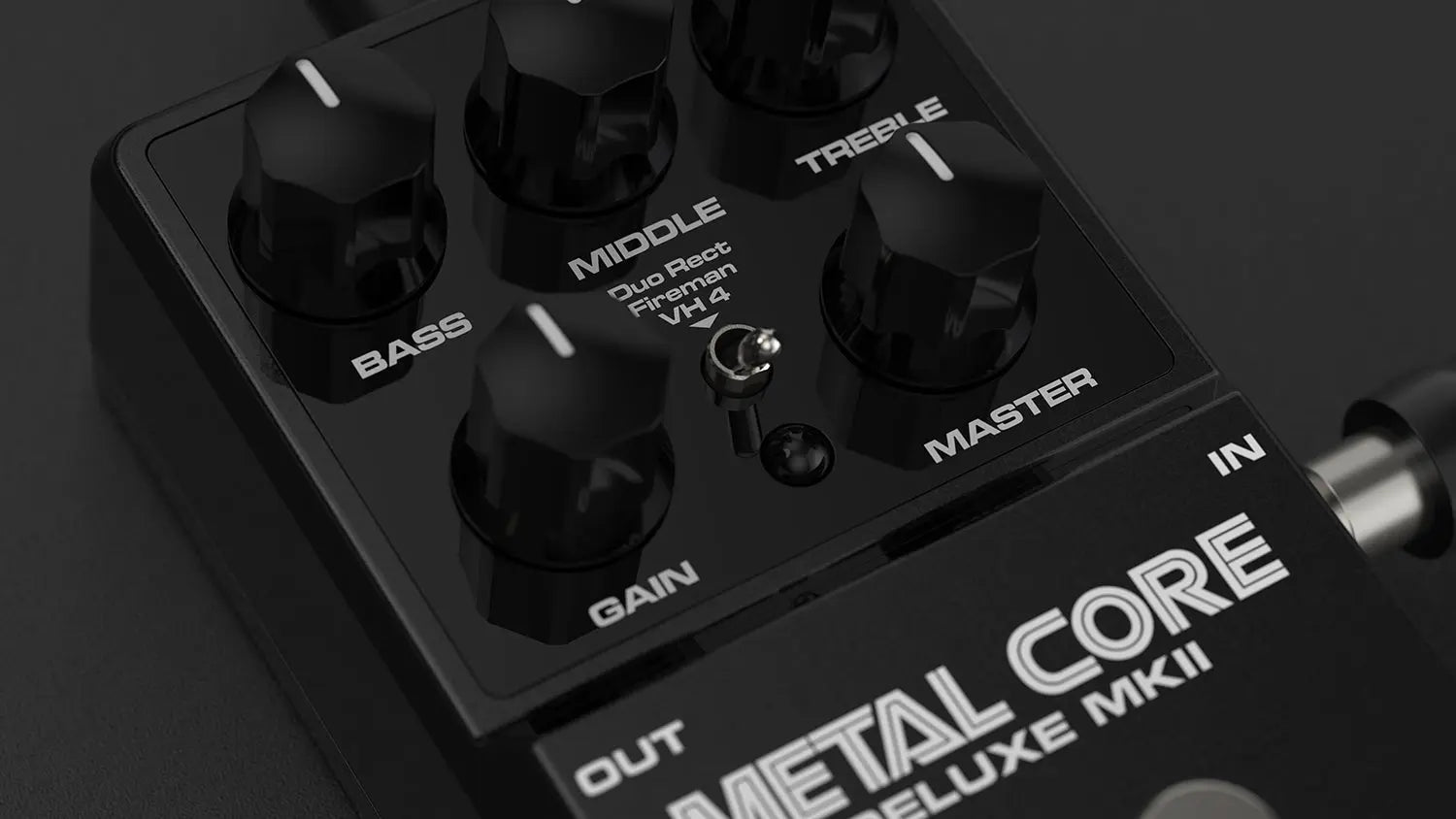

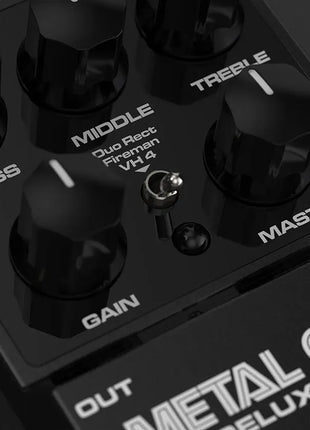

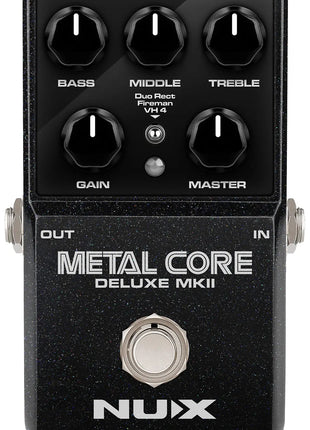

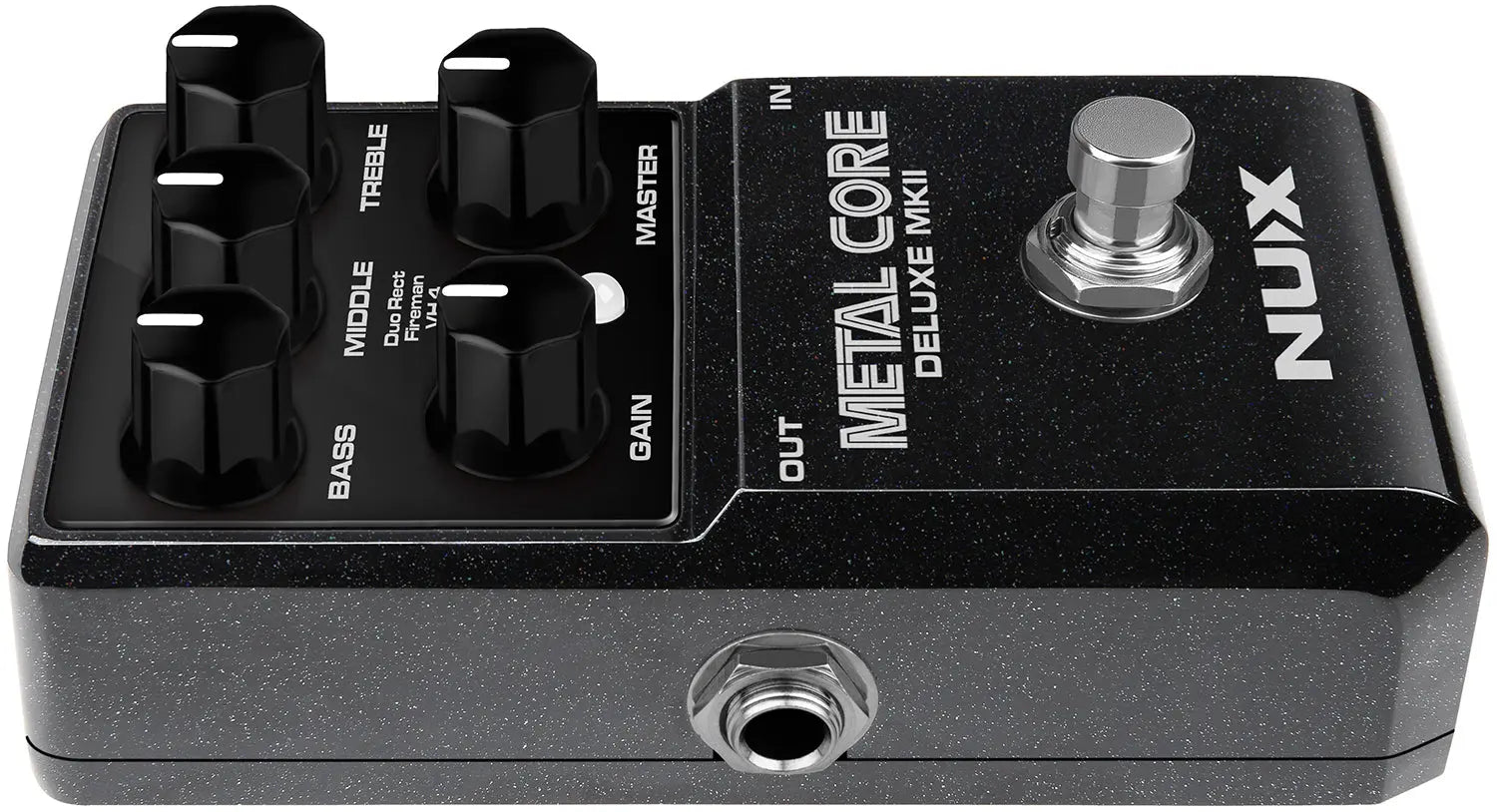

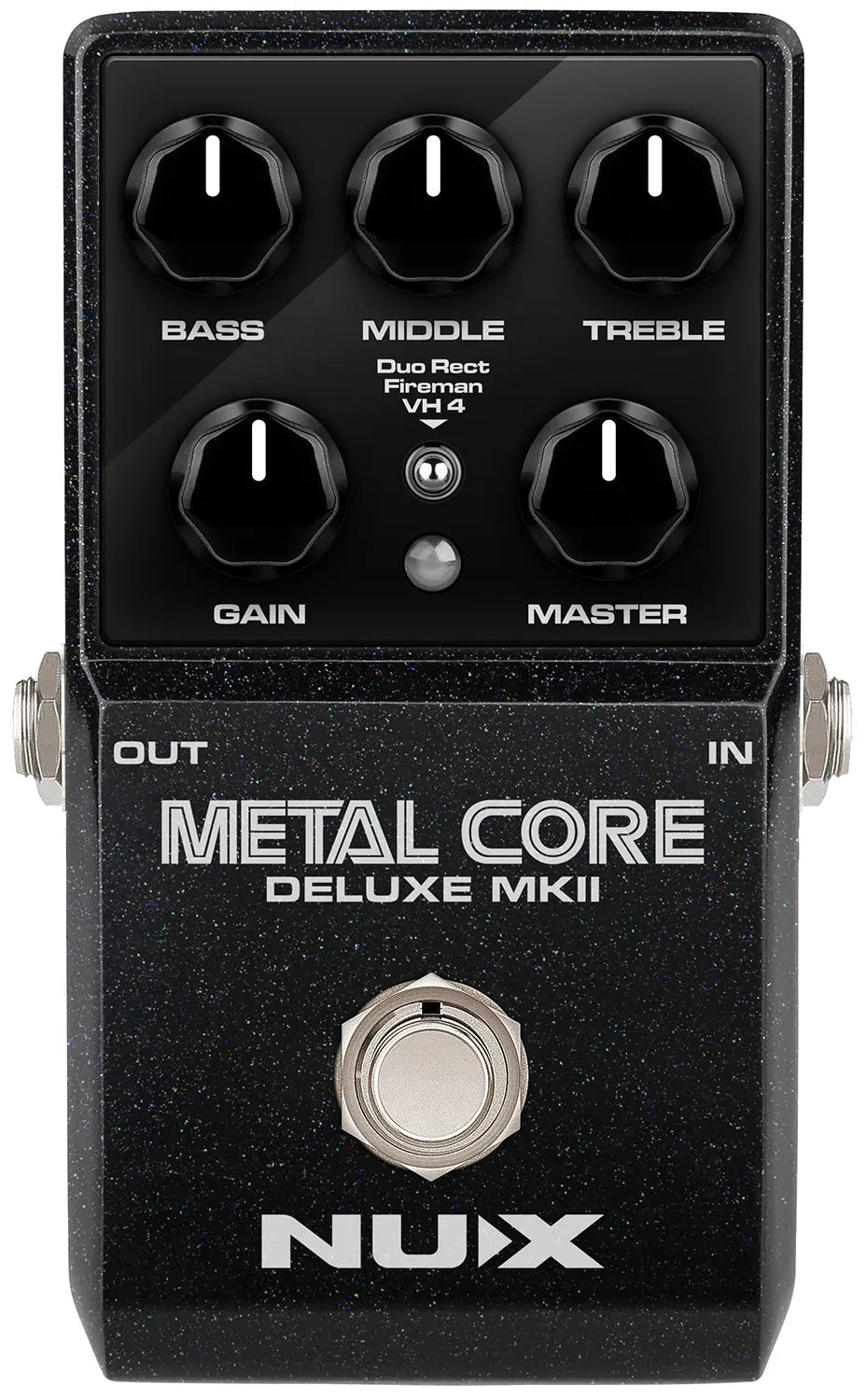

Controls Gain, Master, Bass, Middle, Treble, Model switch
Modes Duo Rect, Fireman, VH4

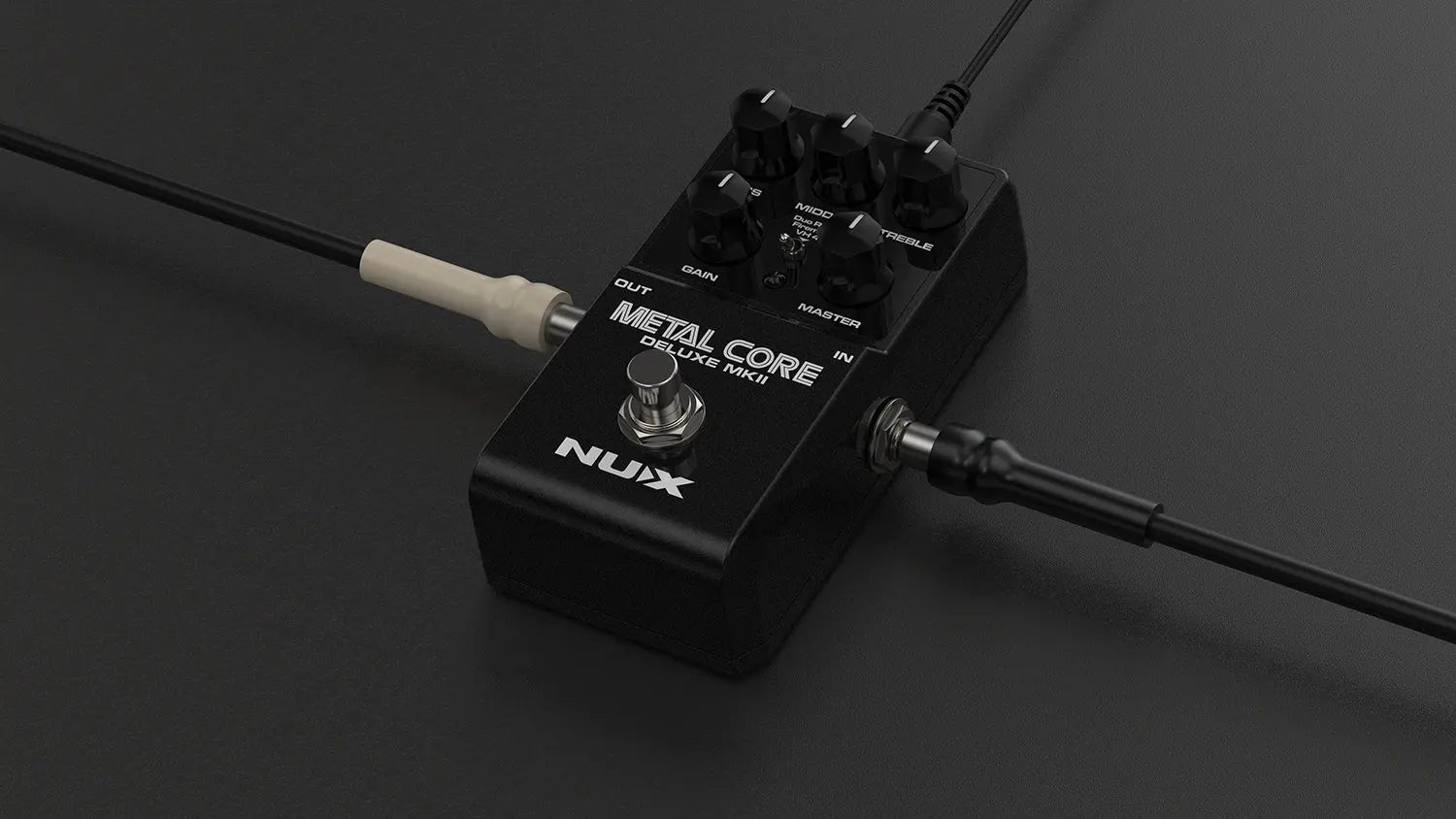

Input 6.3mm jack
Output 6.3mm jack
Input impedance 1M ohm
Output impedance 1k ohm
Dynamic range 104dB
Dimensions 122 x 72 x 47mm
Weight 270g
