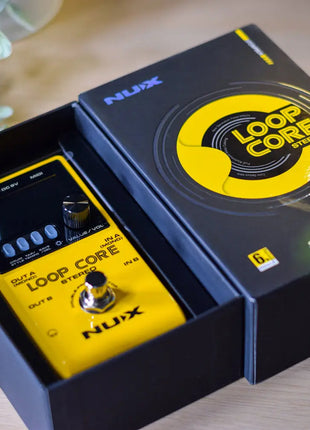

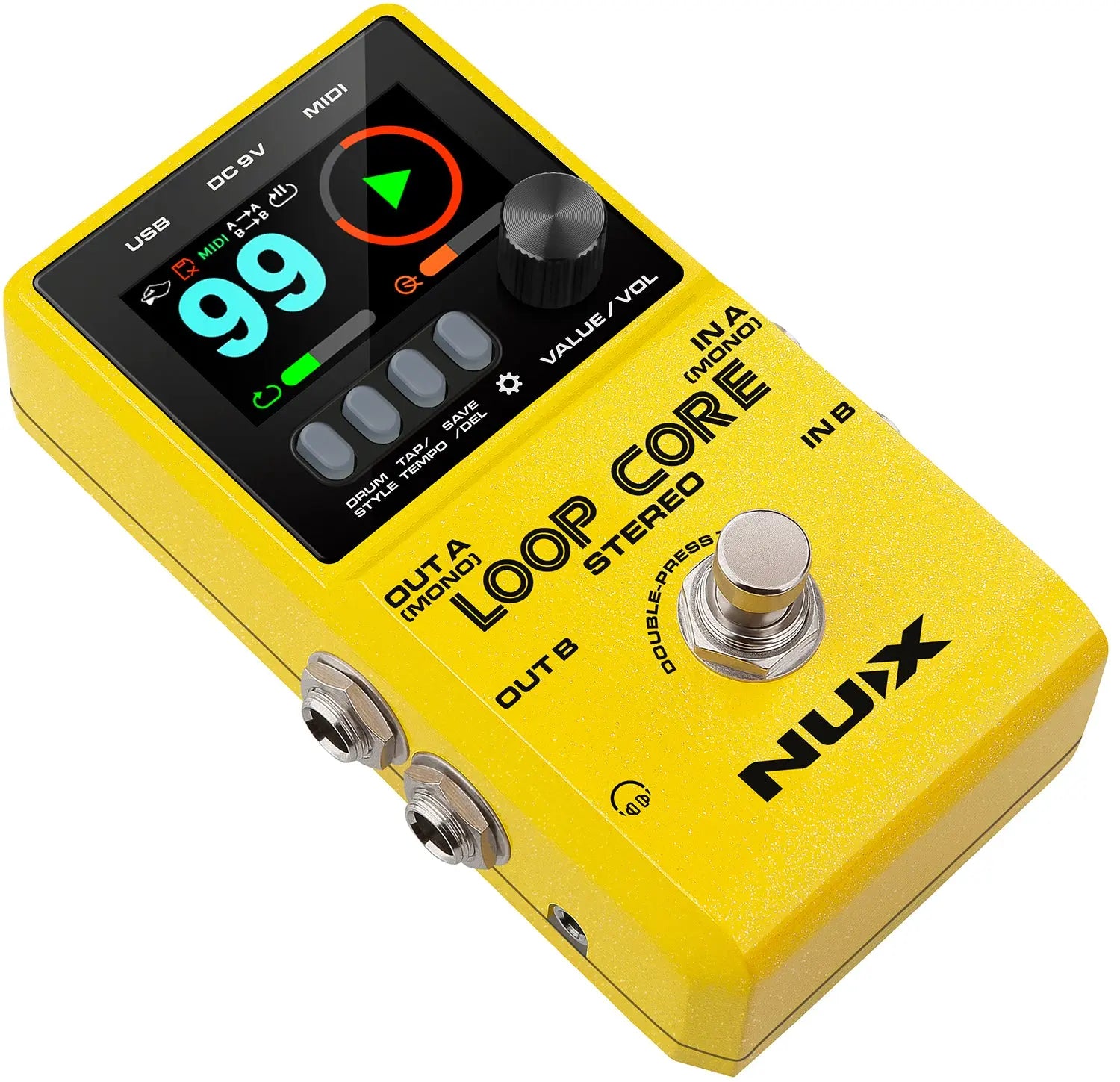

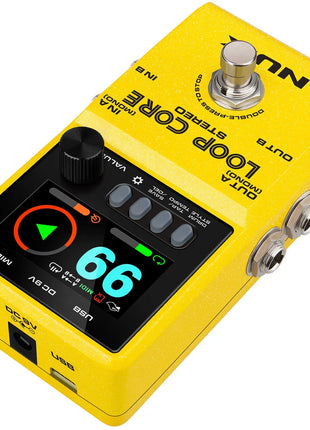

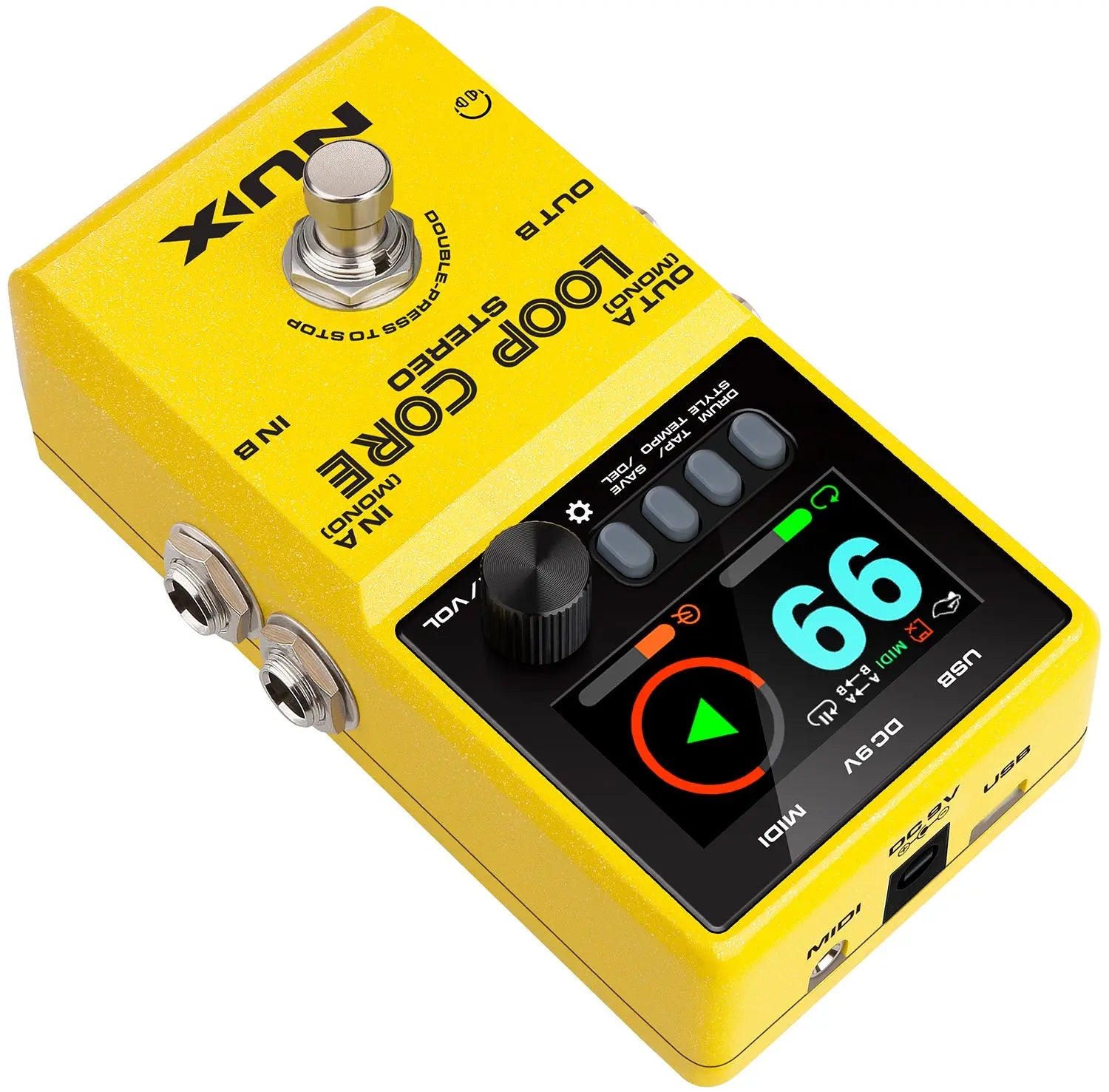

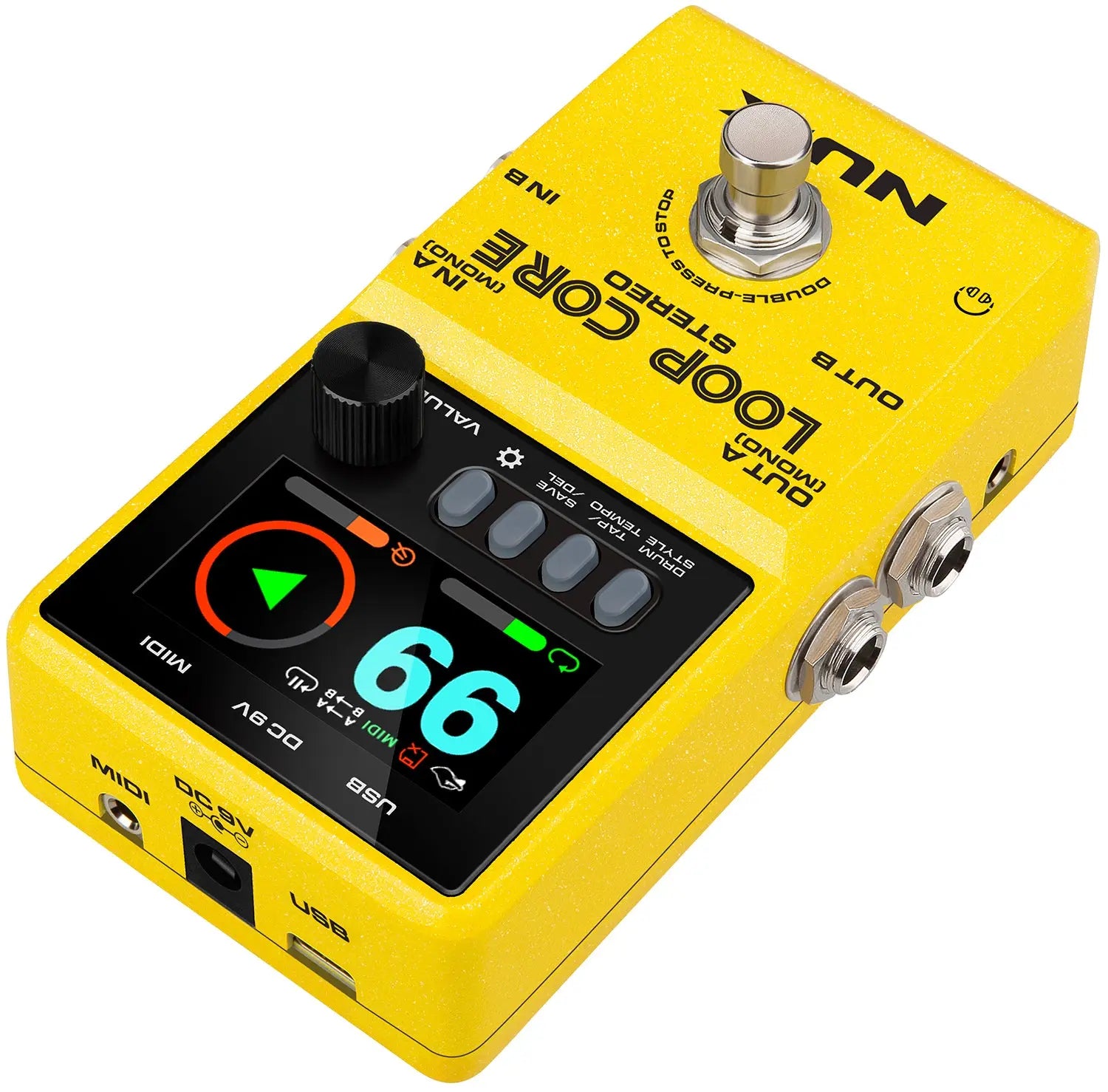

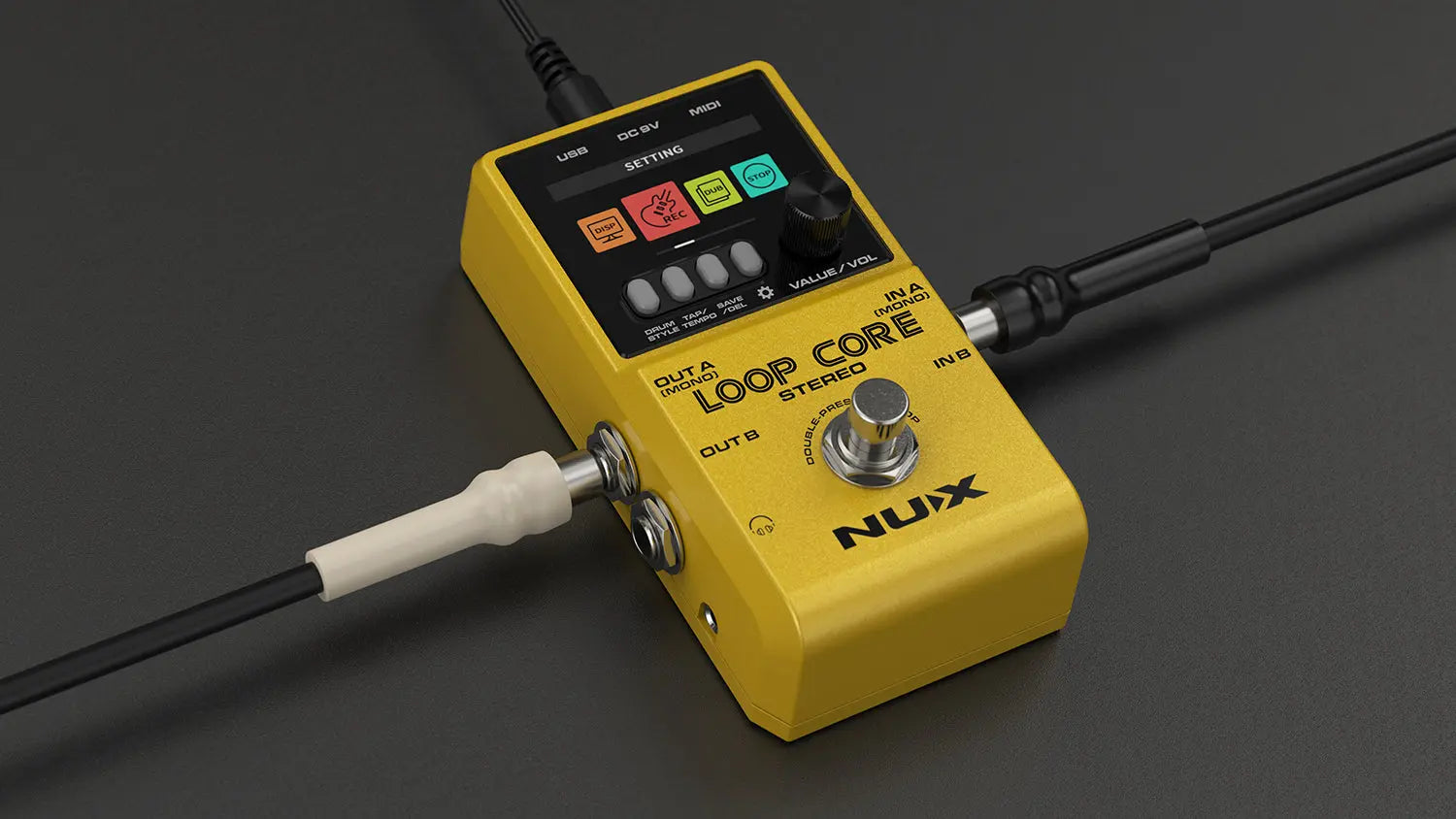

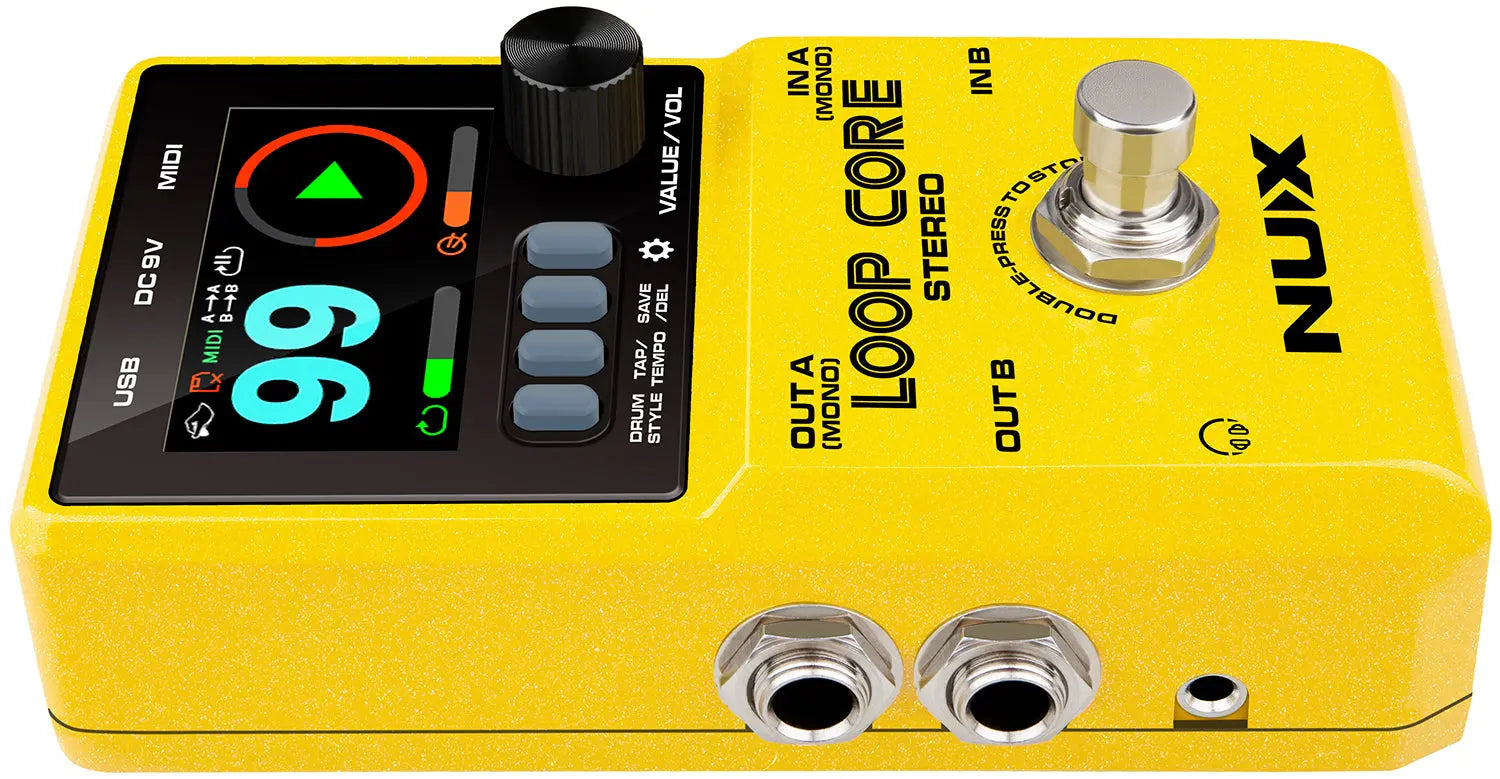

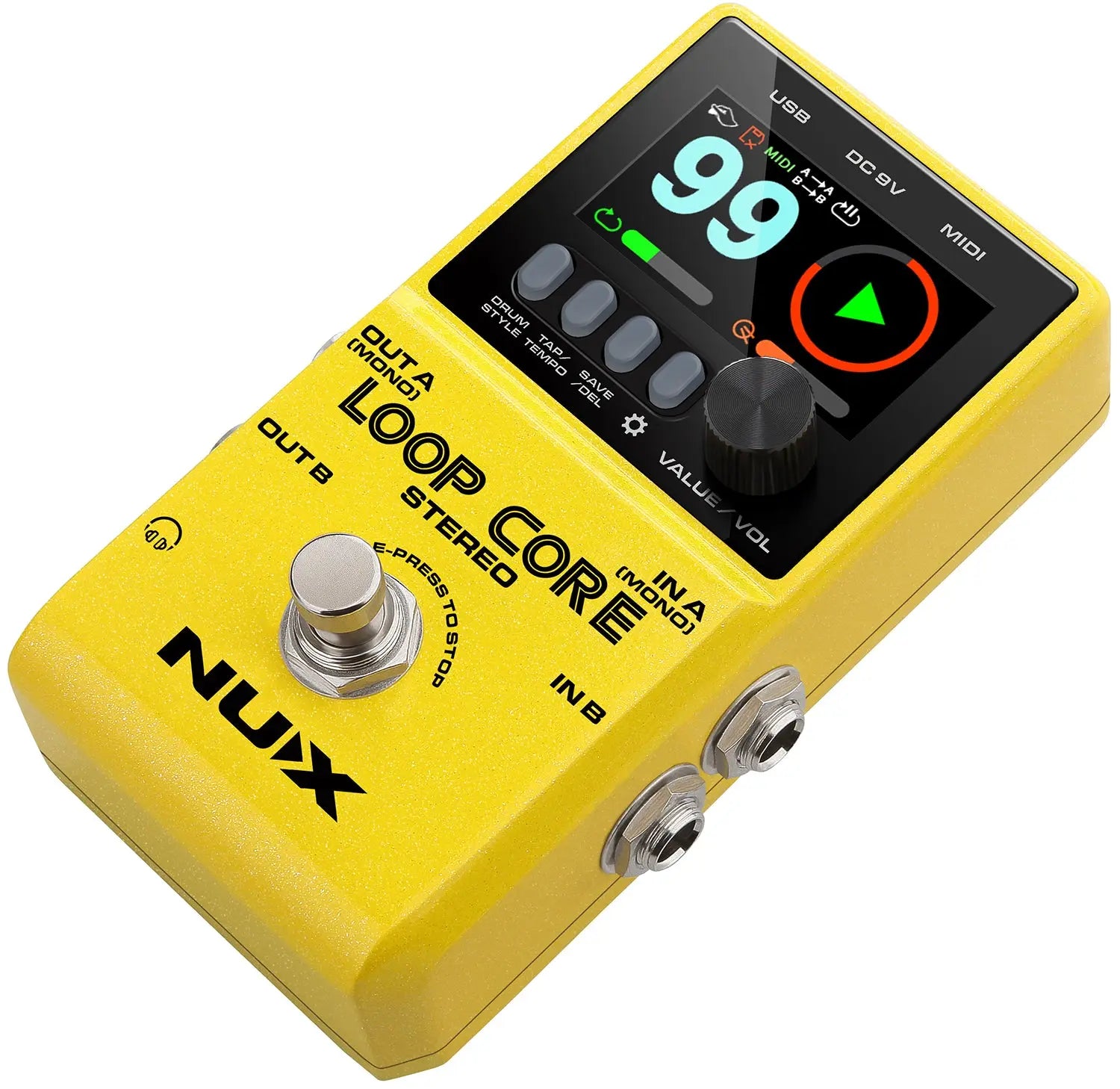

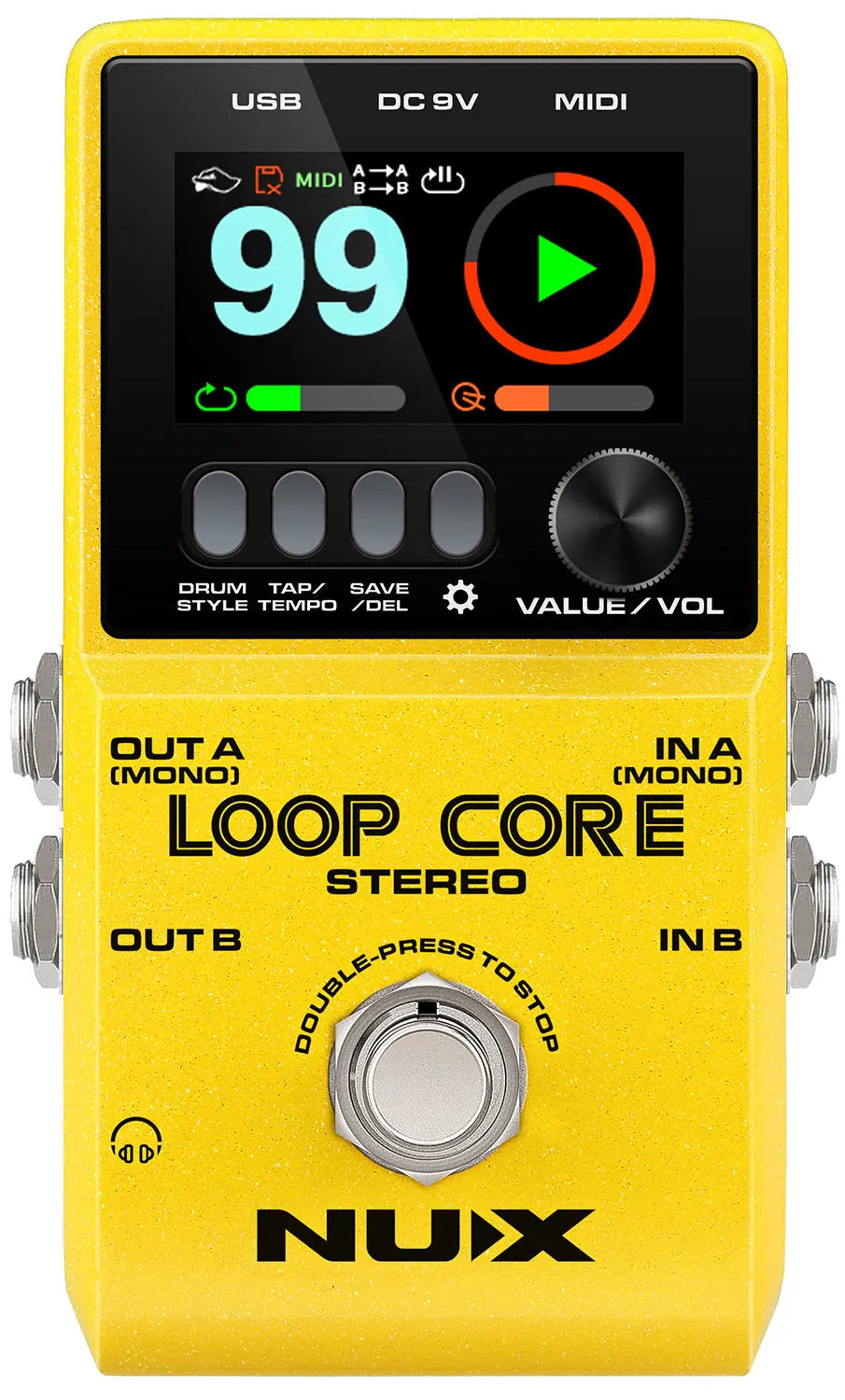

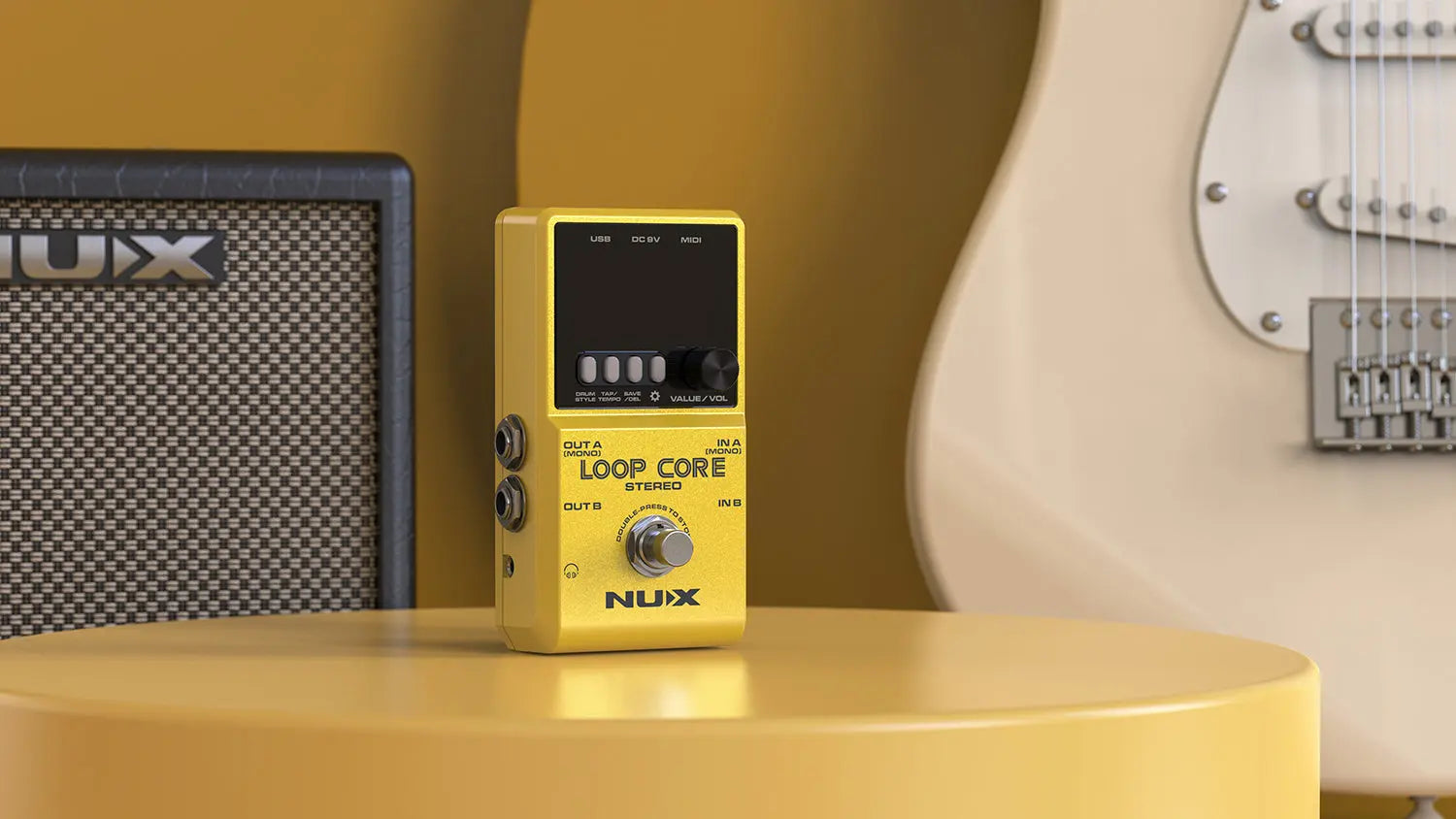

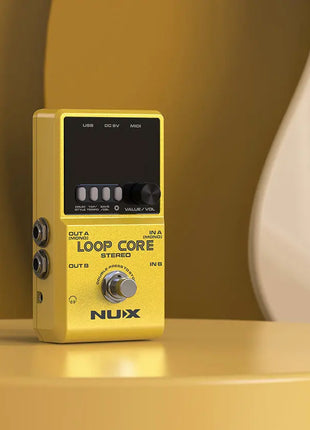

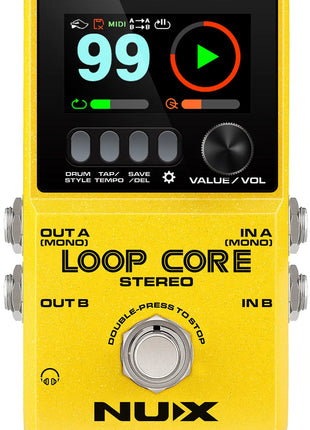

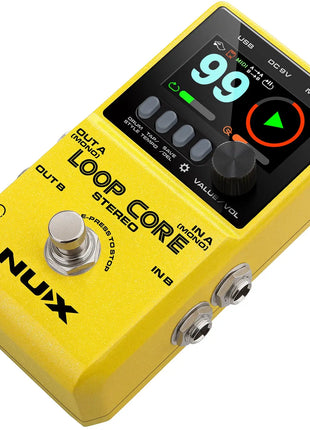

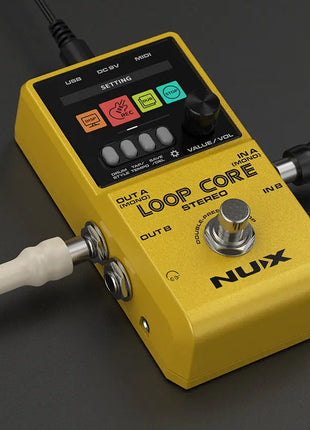

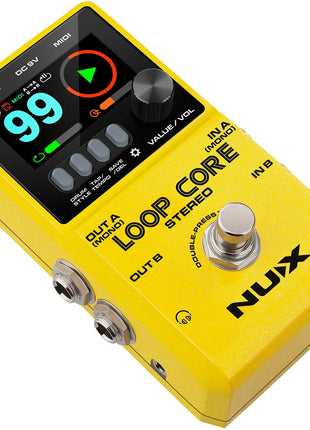

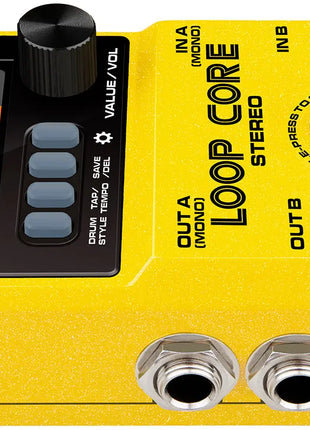

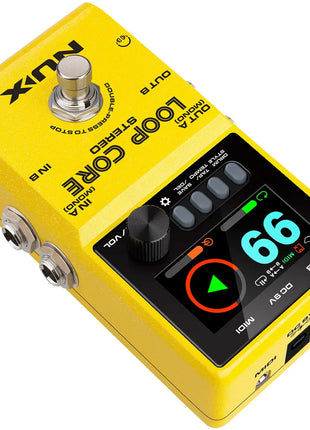

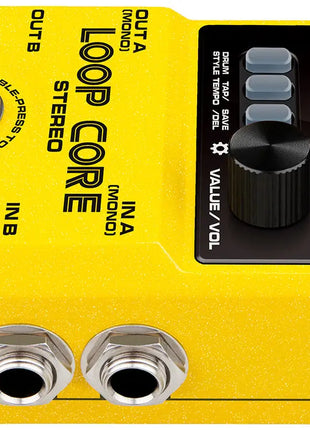

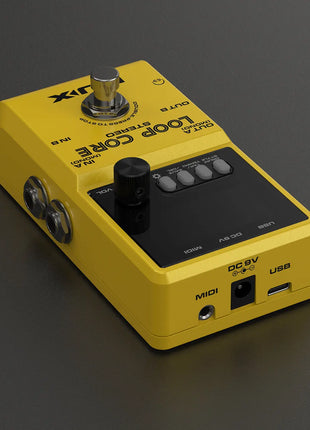

Next generation looper pedal with a high-definition colour LCD display, stereo inputs/outputs, and optional MIDI control. Loop Core Stereo allows you to create up to 6 hours of music phrases, save them in one of 99 provided memory slots, and play back as stereo loops or even backing tracks. 50 internal drum patterns can also be selected from for rhythm backing. Signal path can be mono, true stereo, split stereo (loop / drum machine) or direct to mixer (with cabinet simulation). A headphones output completes the package for silent loop practice or personal monitoring. A comprehensive looping machine in a standard compact pedal format.
Built-in drum machine with 50 patterns
Up to 6 hours recording time
99 loop storage slots
Built-in cabinet simulator
3.5mm MIDI control input
Full stereo signal path with headphones output
USB-C port for firmware updates
Requires suitable 9Vdc power adaptor (e.g. 173.290UK)
Power supply 9Vdc power adaptor required

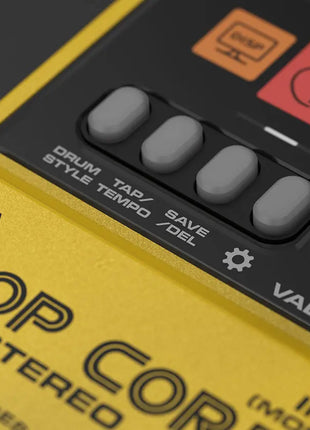

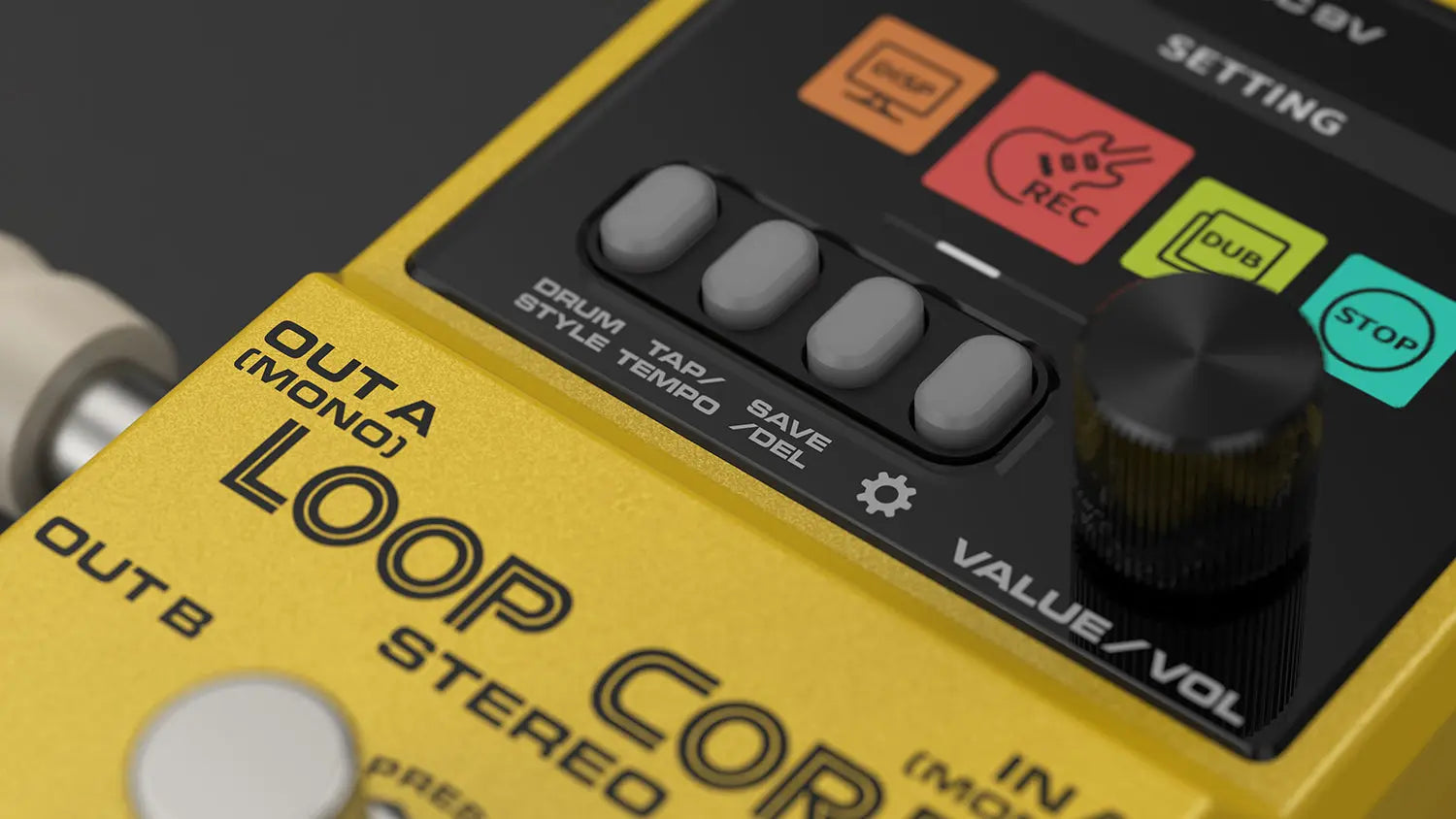

Controls Drum, Tap, Save, Settings buttons & rotary Value control

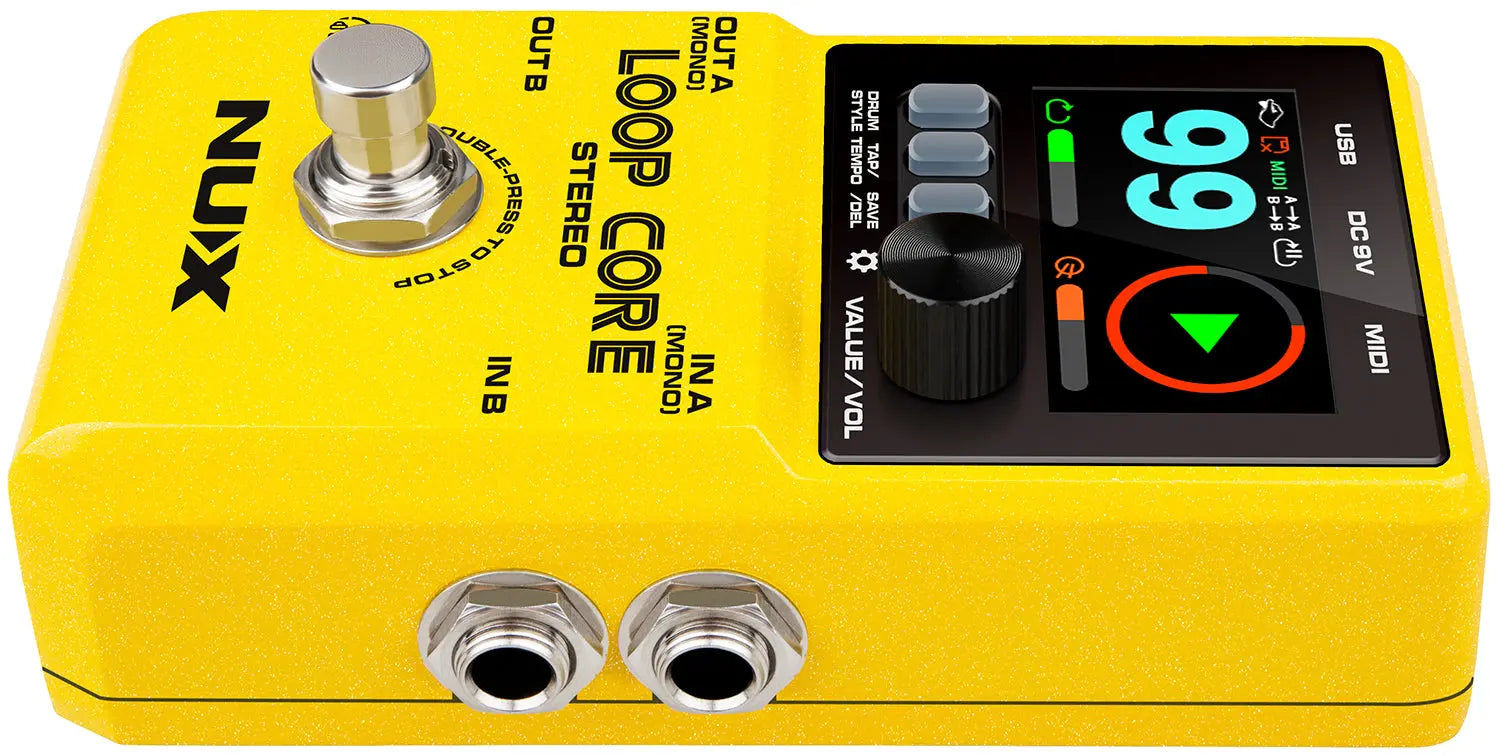

Inputs L+R 6.3mm mono jack (instrument or line), 3.5mm MIDI jack
Outputs L+R 6.3mm jack outputs, 3.5mm headphones output
Recording Up to 6 hours
Sampling format 44.1kHz, 24-bit
Memories 99
Dimensions 122 x 72 x 48mm
Weight 264g

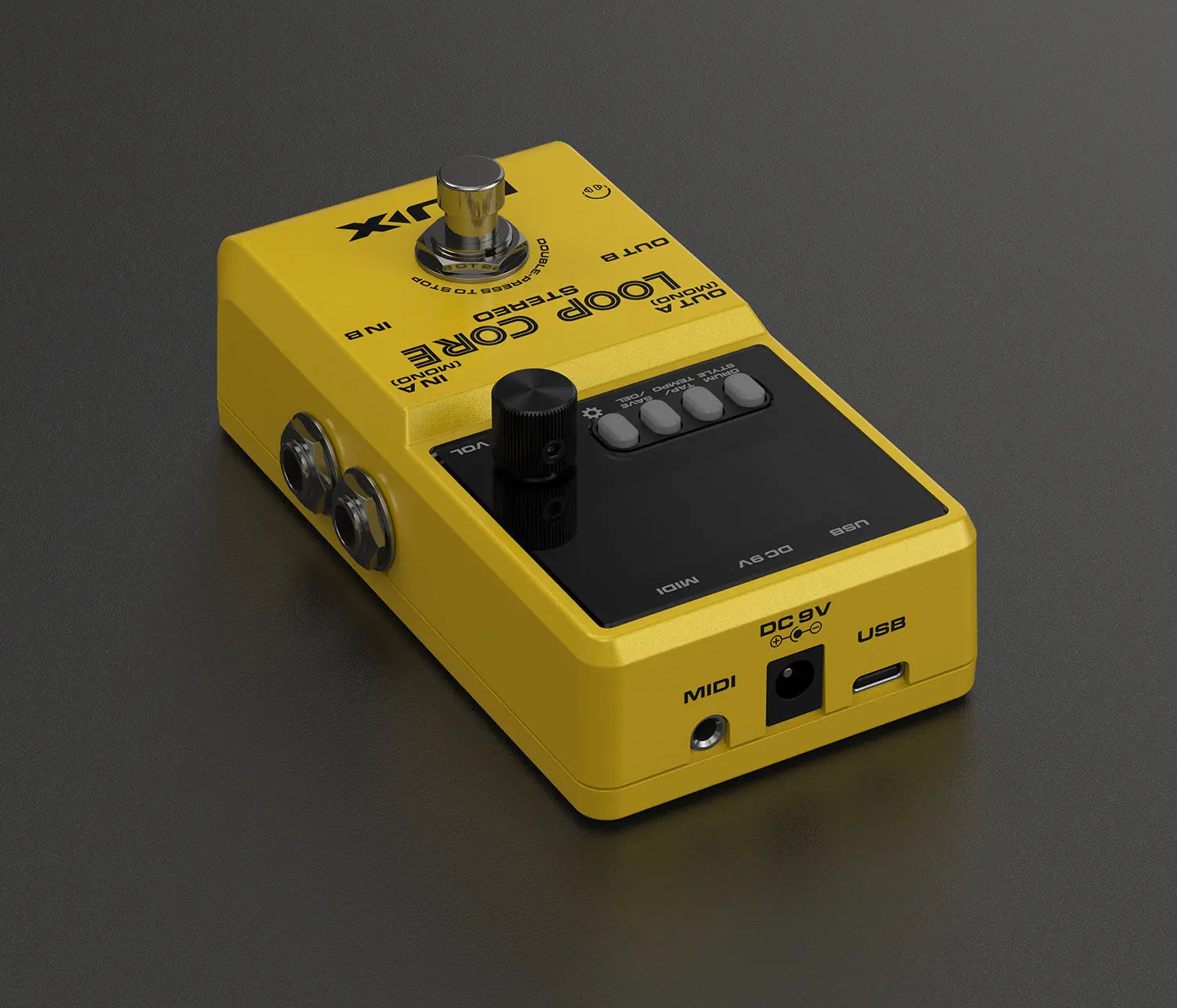

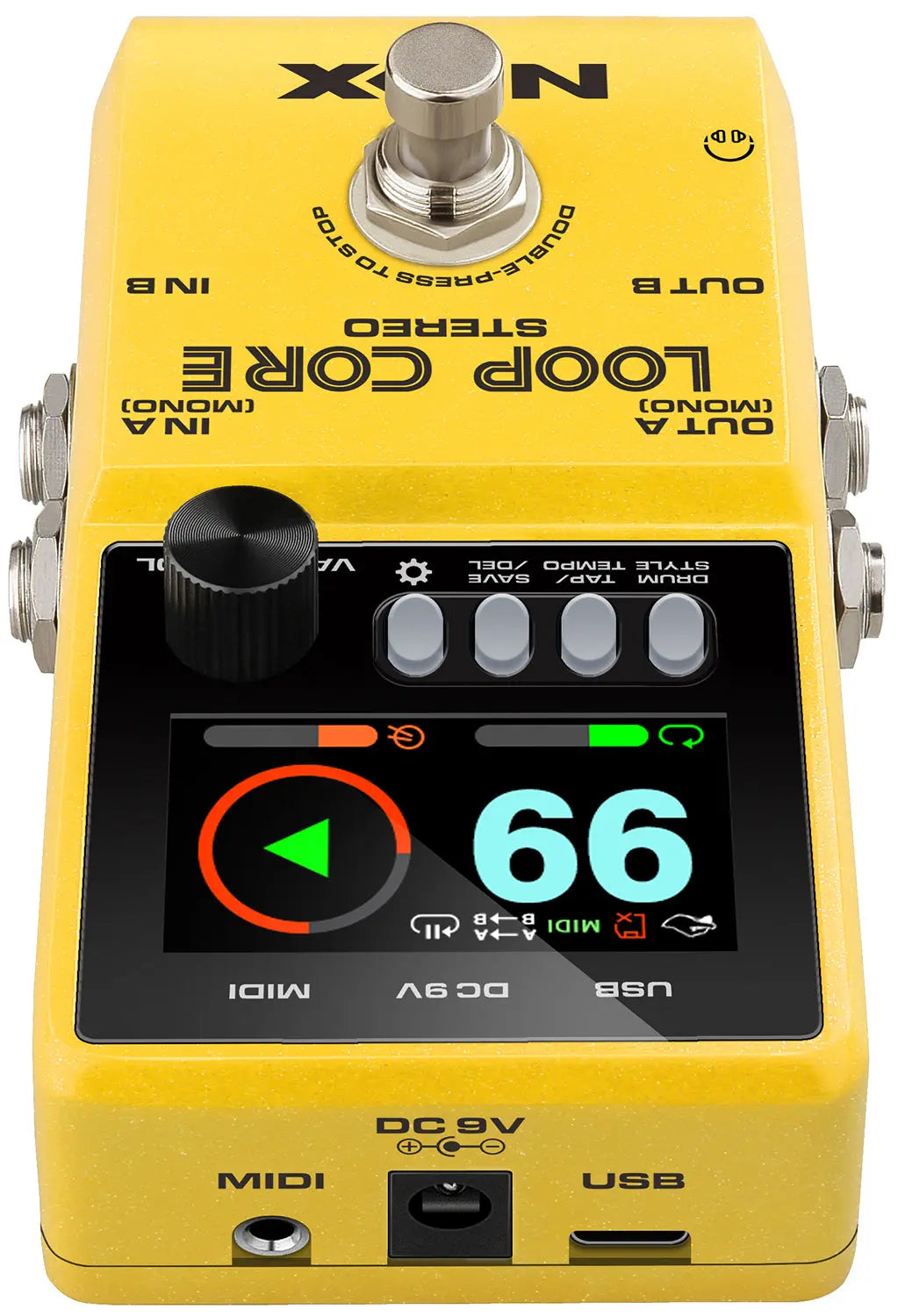

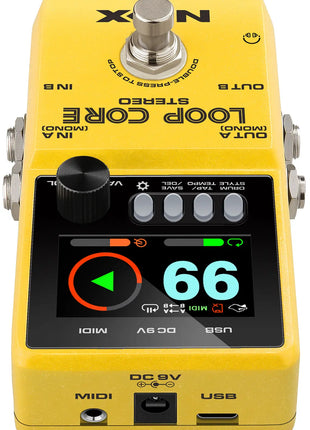

DC input connection DC5521 jack (for required adaptor - pin-negative)
Noise -100dBu
Current consumption <120mA
Dynamic range 108dB
Frequency response 20Hz - 20kHz
