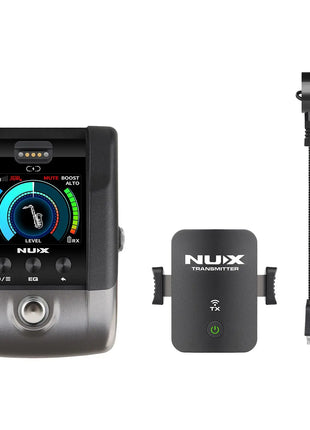

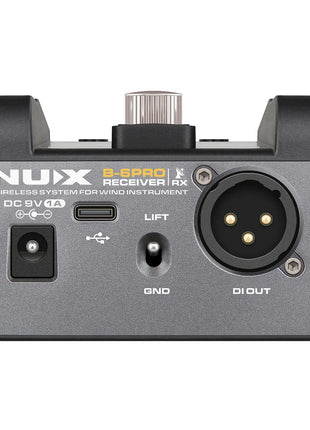

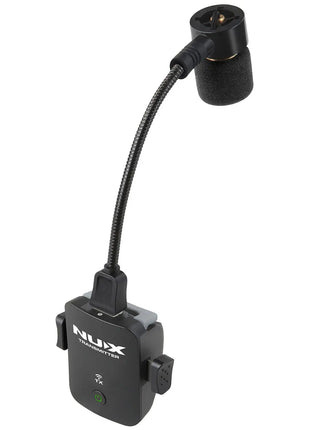

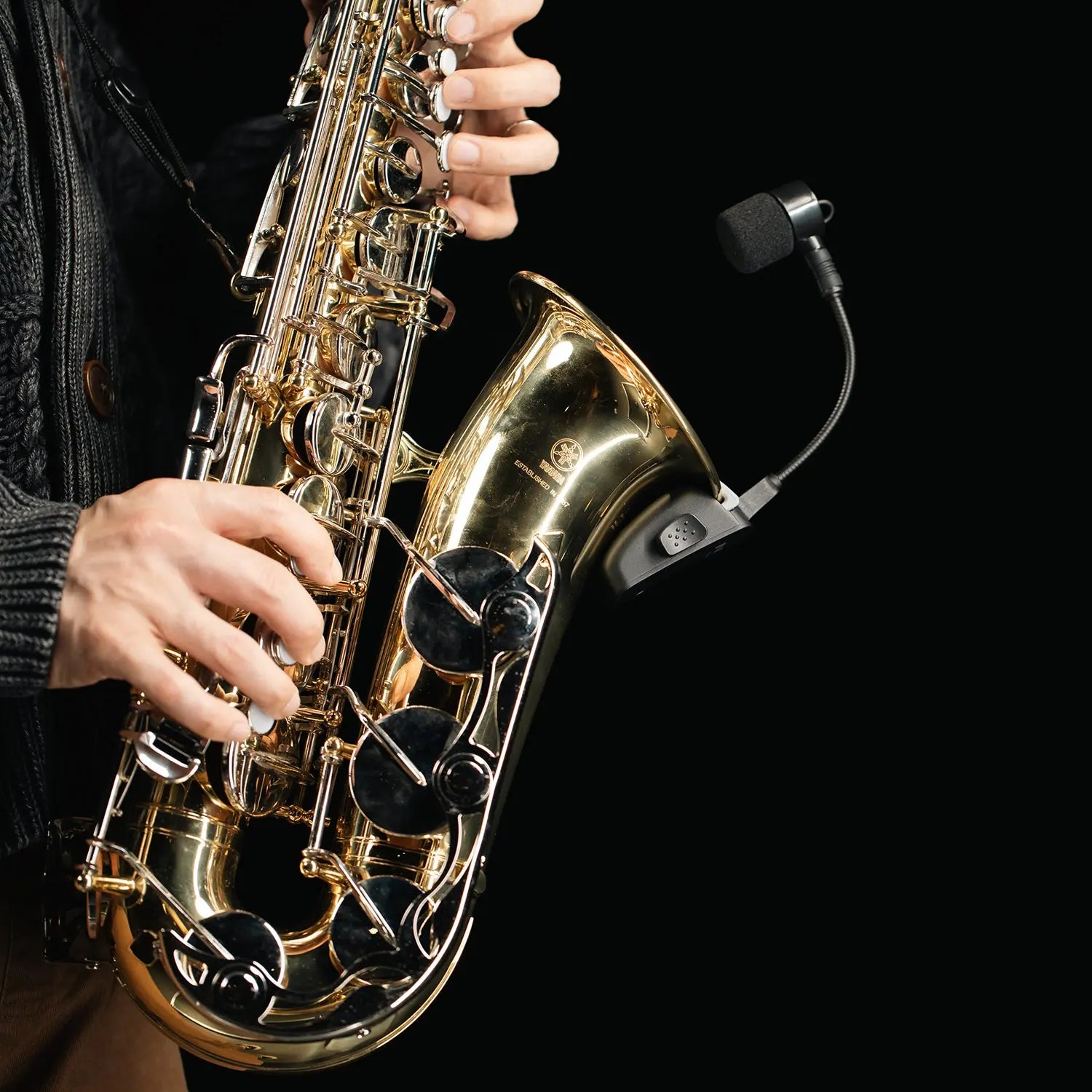

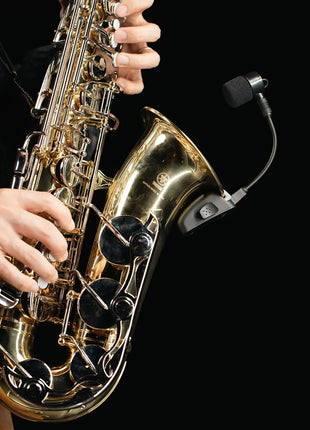

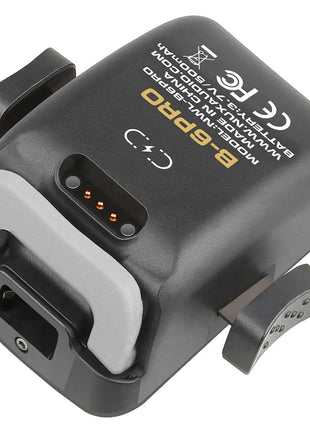

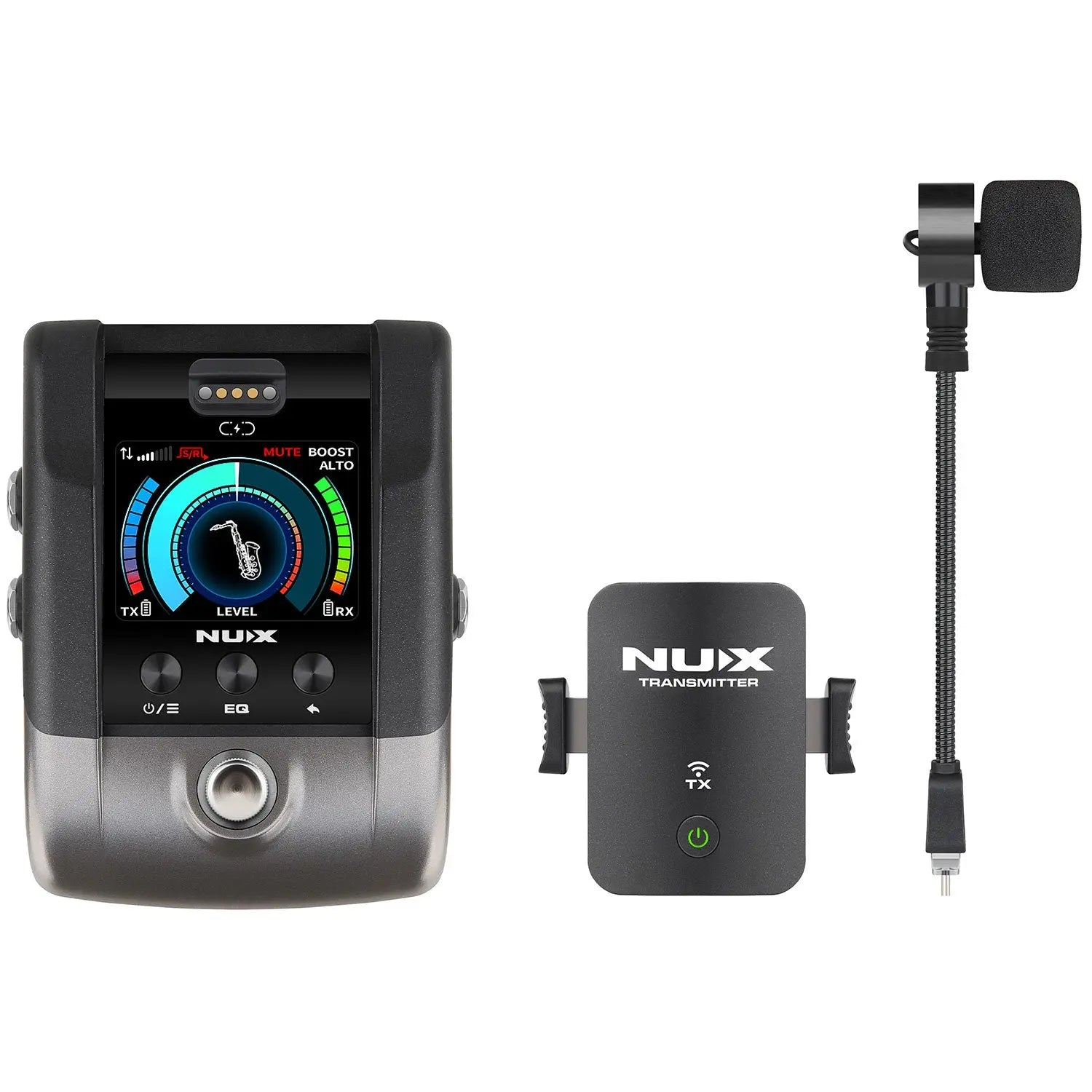

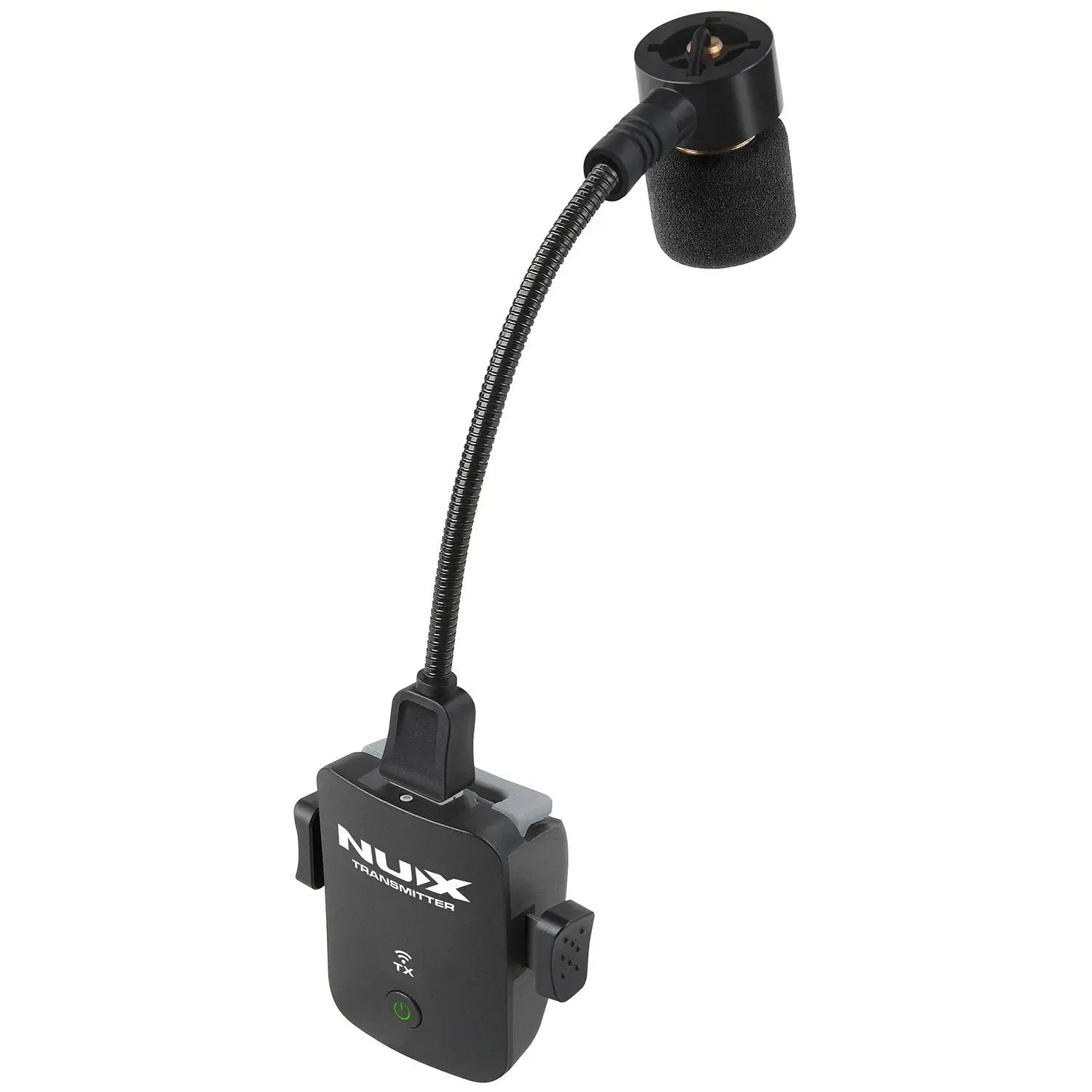

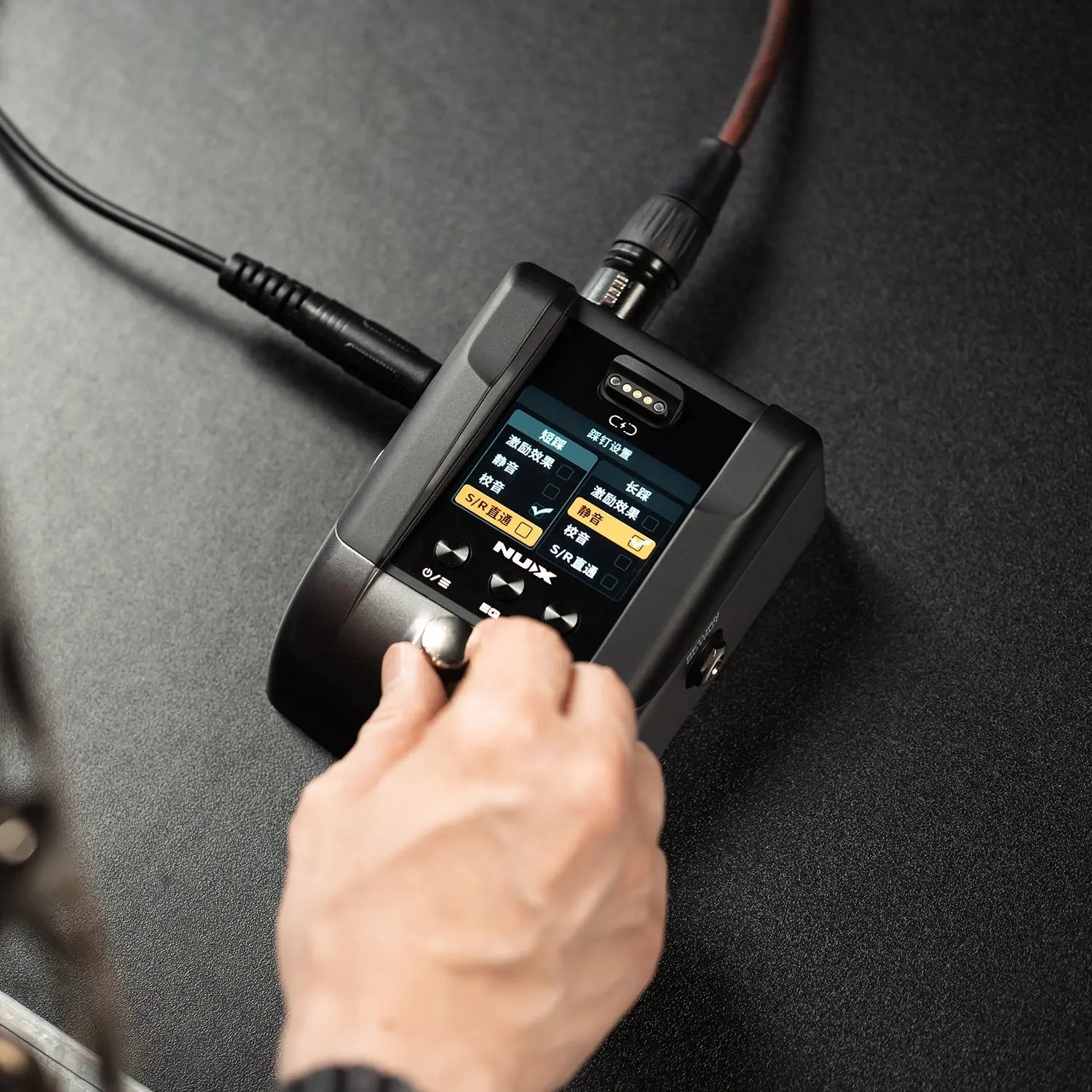

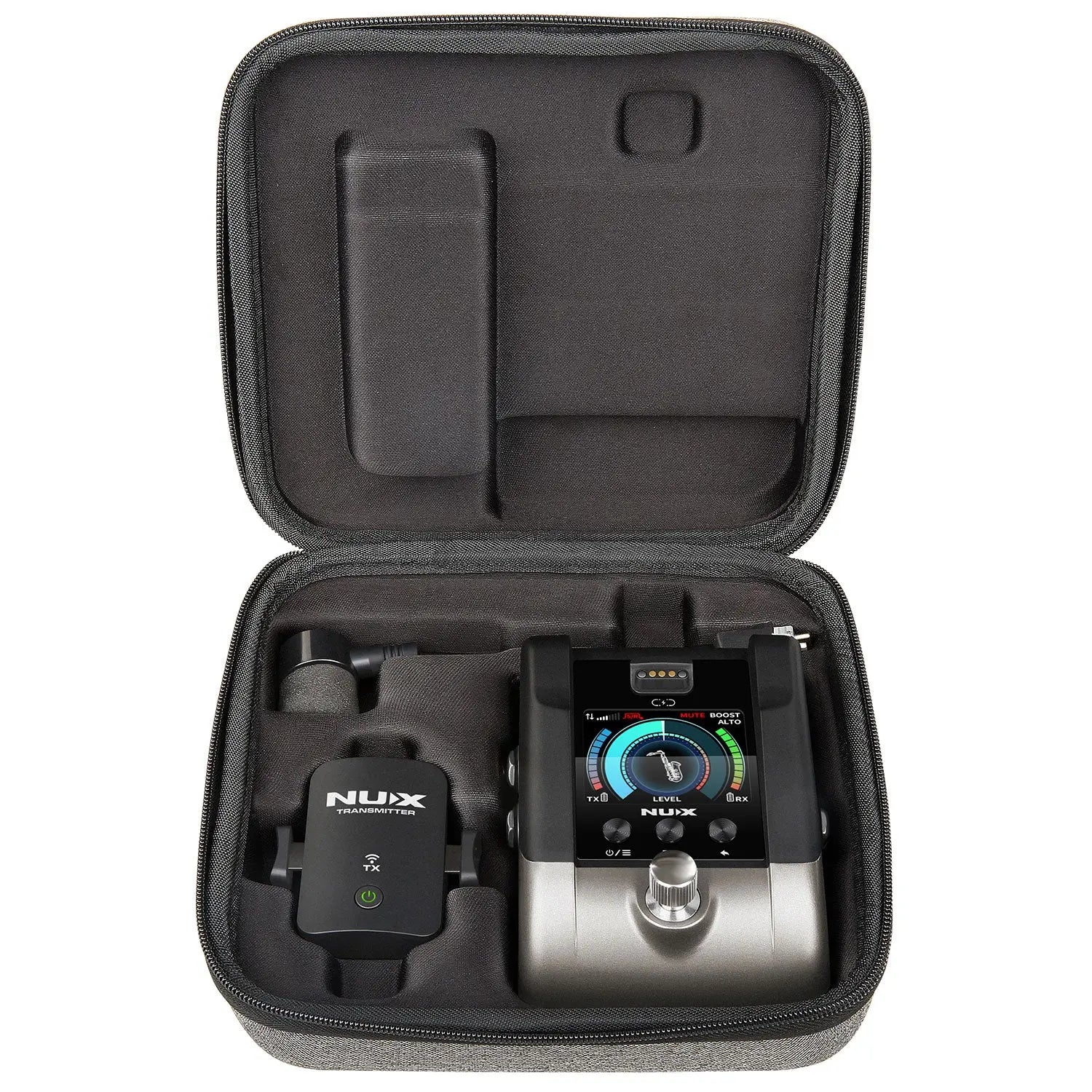

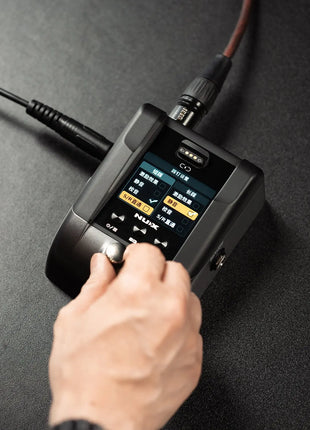

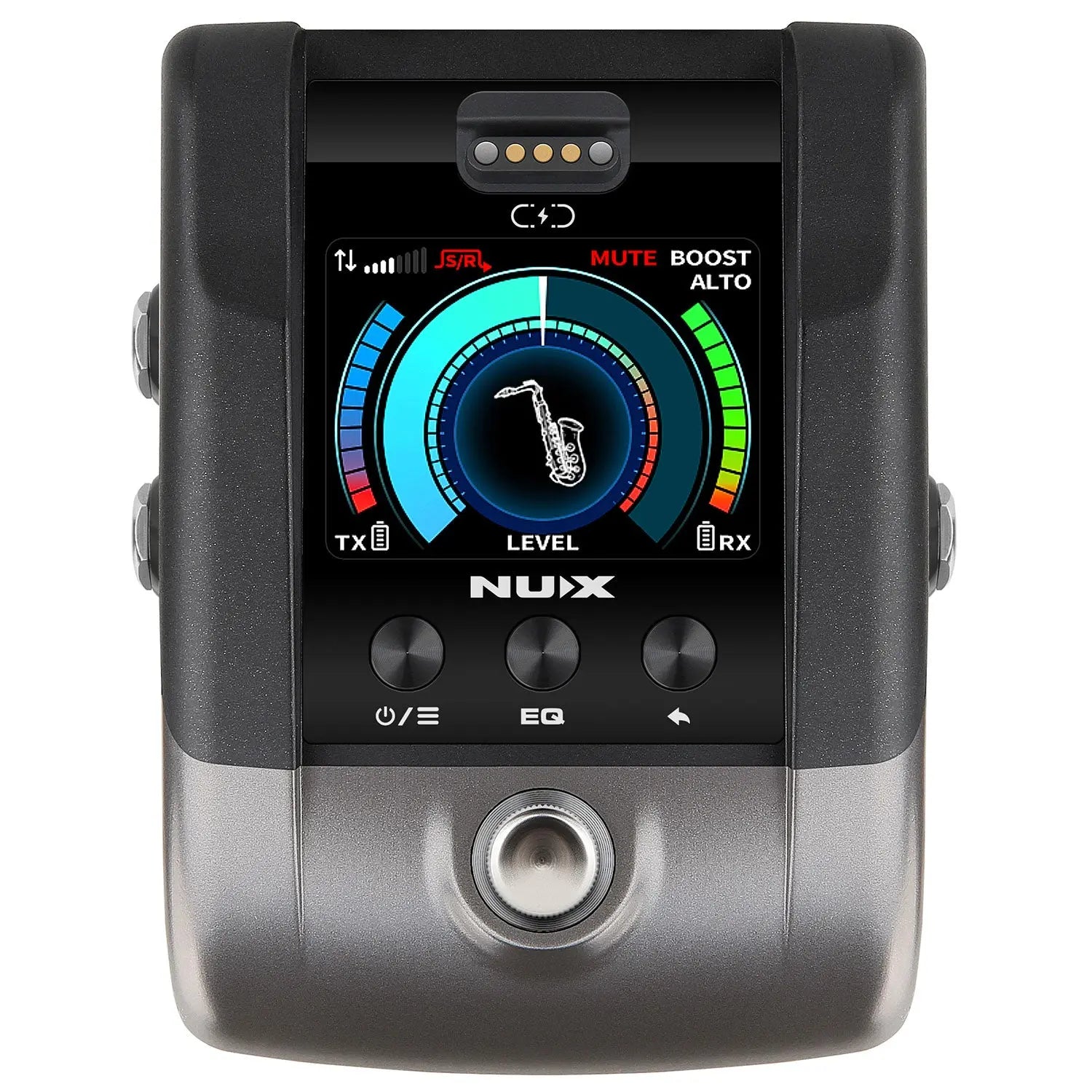

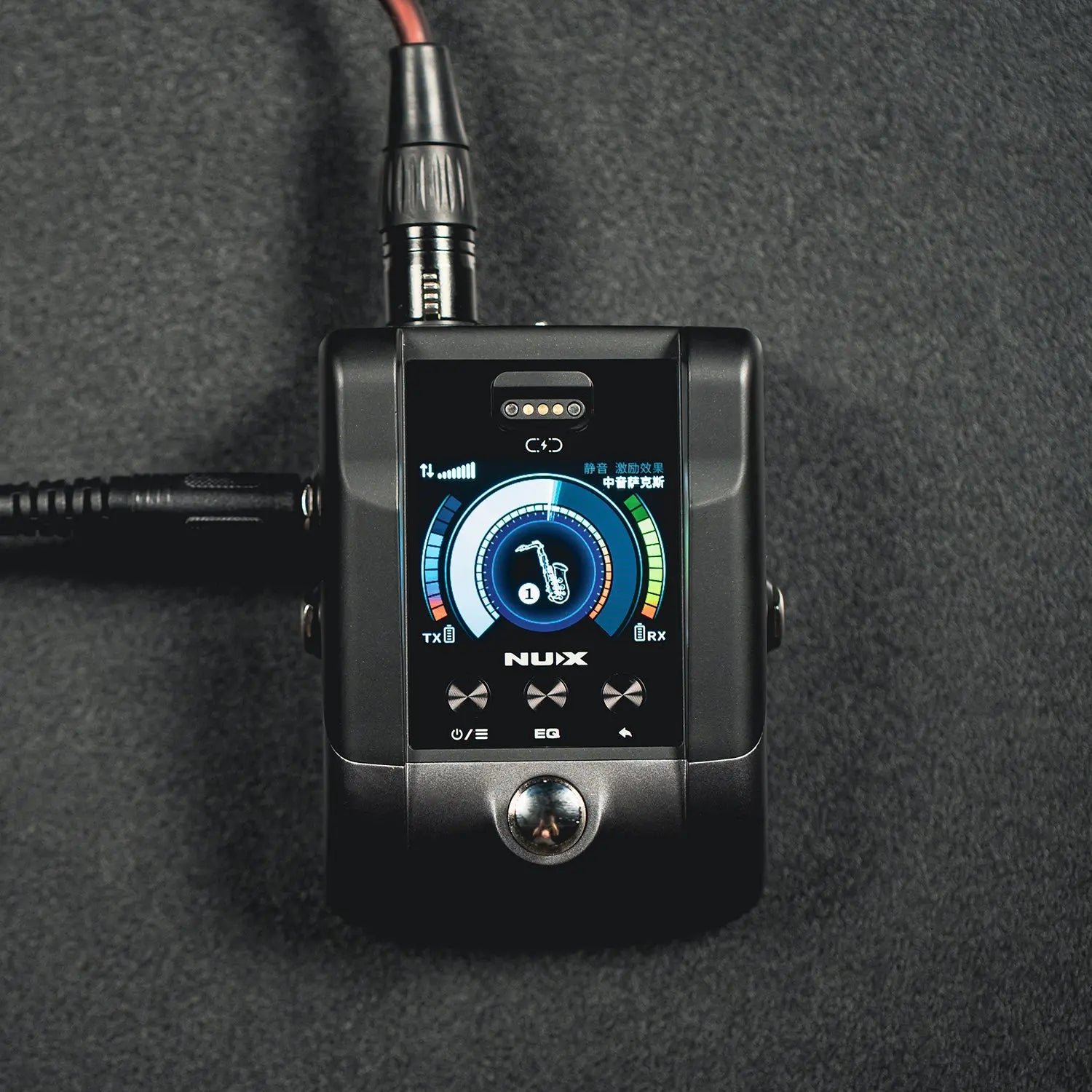

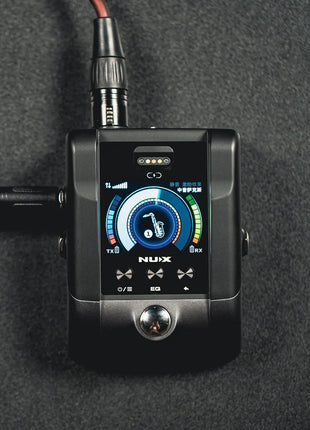

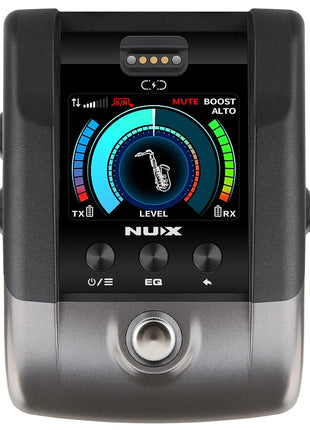

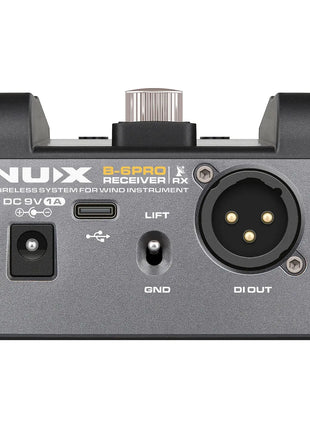

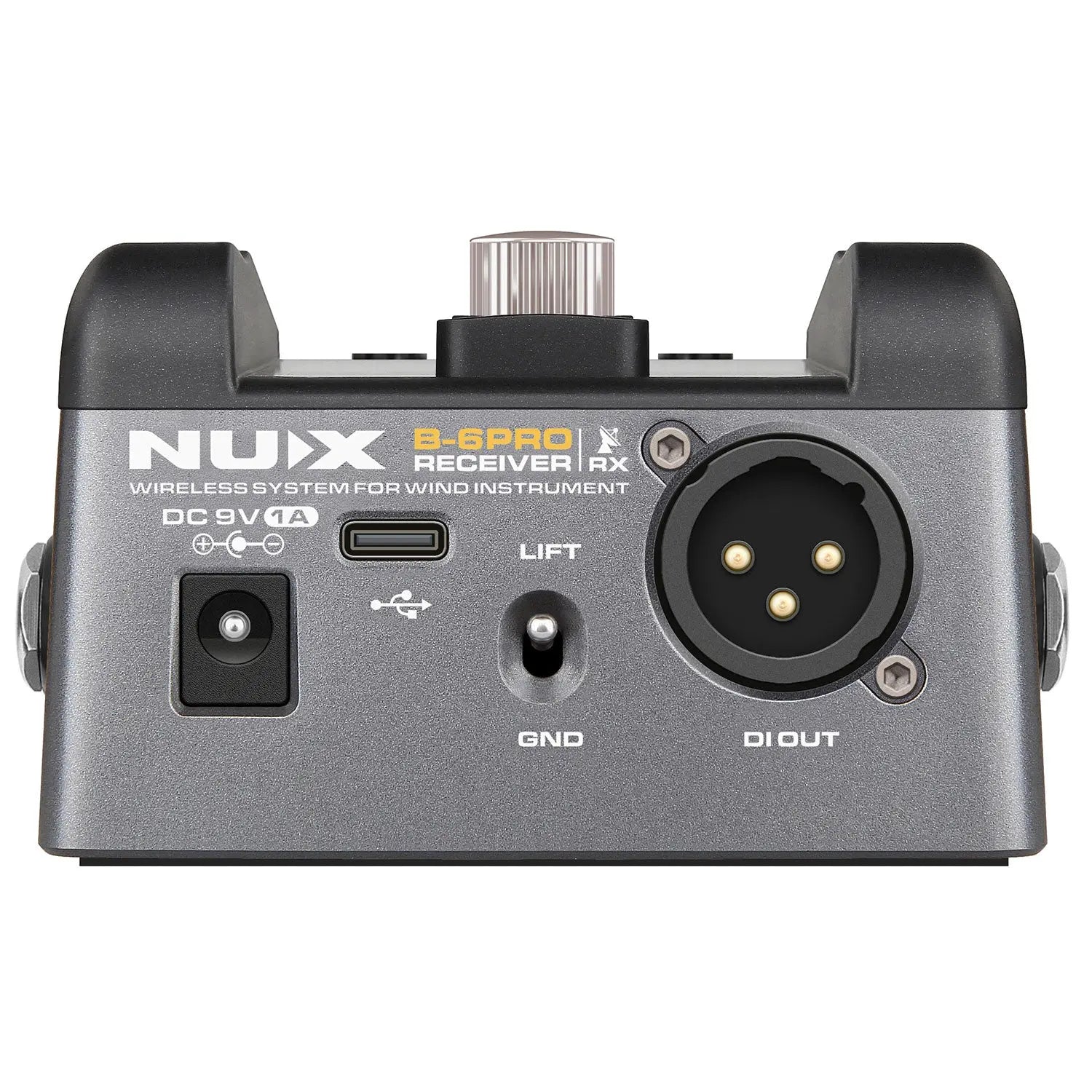

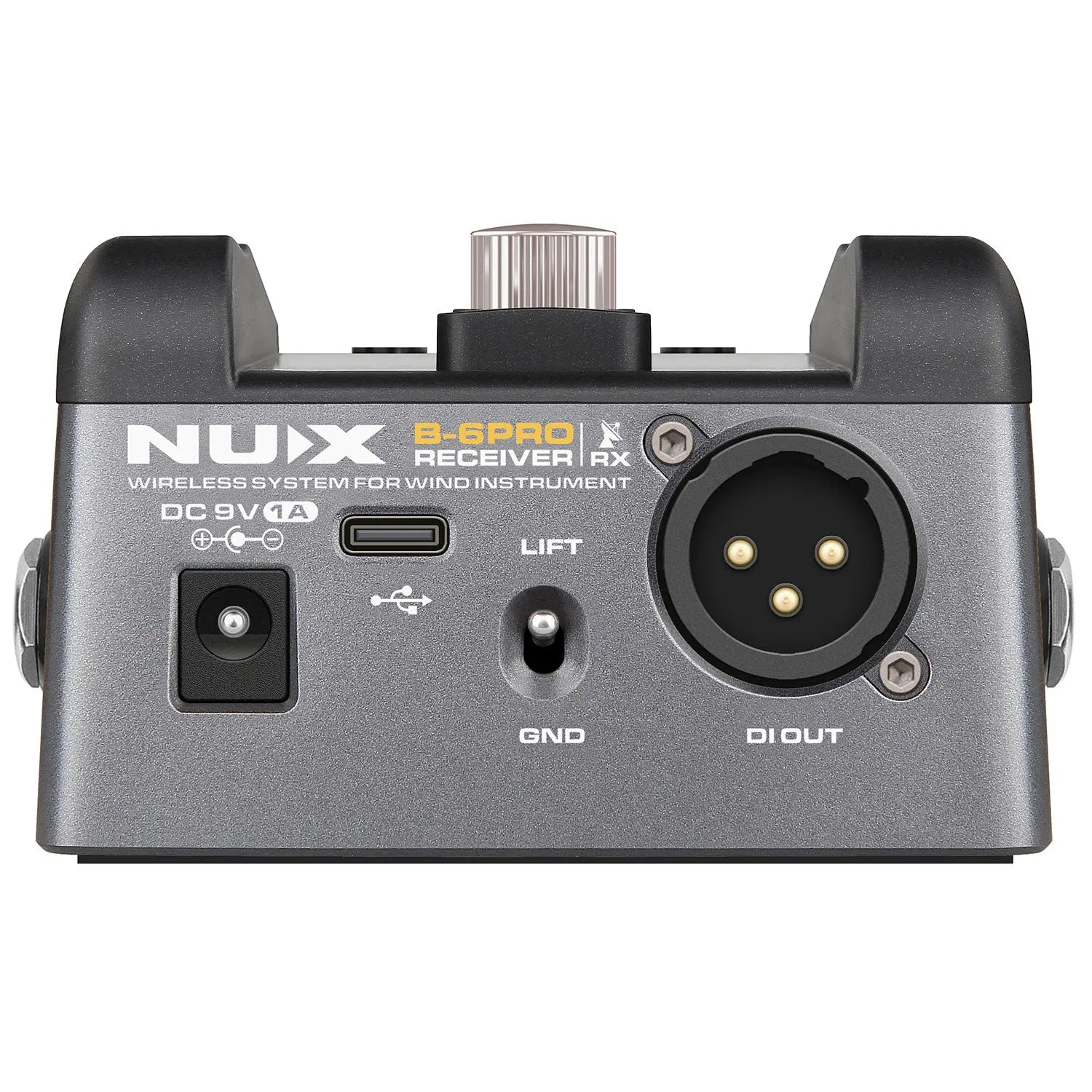

B-6 Pro represents the next level in wireless solutions for saxophones. The transmitter has a precision clamp that adjusts to fit the bell of a saxophone or trumpet. A flexible gooseneck microphone connects to the transmitter and locks in place to be directed for optimum sound pickup. The custom designed electret condenser capsule is mounted into a purpose-built suspension to avoid keying noise and unwanted resonant frequencies. When powered up, the transmitter auto-pairs with the rechargeable stomp-style floor receiver, which also doubles as a digital tuner, DI box and charging station for the transmitter. Wireless transmission is on the license-free 2.4GHz band with an all digital signal path and frequency hopping for continuous and reliable connection. 11 preset EQ profiles and 2 user-editable EQ settings are accessible from the colour on-screen menu, along with tuner display and wireless settings. The top mounted footswitch can be set to switch a signal boost, mute, the tuner or engage the send-return loop, and the footswitch also doubles as a rotary encoder for the onboard menus. Main output is via balanced XLR on the rear of the receiver, with additional send-return and output jacks and a USB-C port for updates and PC audio streaming. B-6 Pro brings the convenience of wireless to saxophone and trumpet players with more professional needs and offers functions above and beyond the feature set of most radio systems.
Selectable EQ profiles including 2 user slots
Switchable boost function for solos
Rechargeable transmitter with up to 7 hours play time
2.4GHz band with auto-pairing and frequency hopping
Send-return loop for effects
XLR and 6.3mm jack outputs
Ultra low latency down to 3.6ms
Power supply 9Vdc 1A, pin-negative (adaptor included)
Microphone : sensitivity -51dB
Carrier frequencies 2400 - 2483.5MHz
RF output power Maximum 10mW E.I.R.P.
Range 50m max.
Latency 3.6 - 6.1 - 9.9ms selectable
Sampling format 48kHz 24-bit
Frequency response 20Hz - 20kHz
Audio output 6.4dBV (send/output)
THD +N <0.01% (typical)
Dynamic range 112dBA (send/output)
Battery capacity 3.7Vdc 500mAh (transmitter), 3.7Vdc 3000mAh (receiver)
Battery life 7 hours (transmitter), 11 hours (receiver) approx.
Auto power off After 10 minutes no wireless connection
Dimensions (transmitter) 61 x 60 x 30mm
Weight : transmitter 60g
Dimensions : receiver 120 x 93 x 60mm
Weight : receiver 420g
