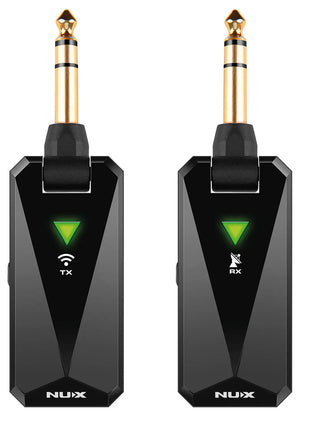

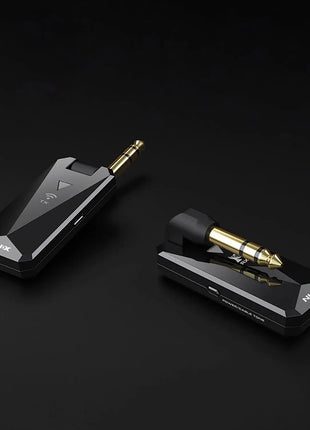

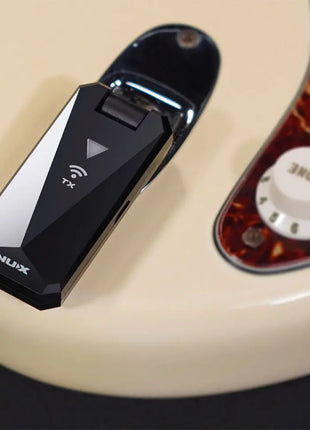

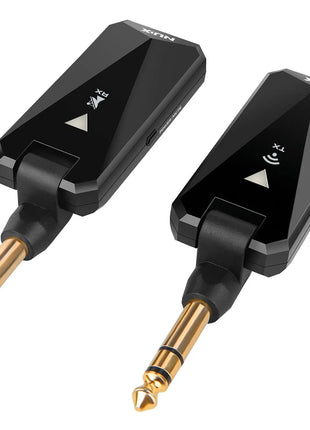

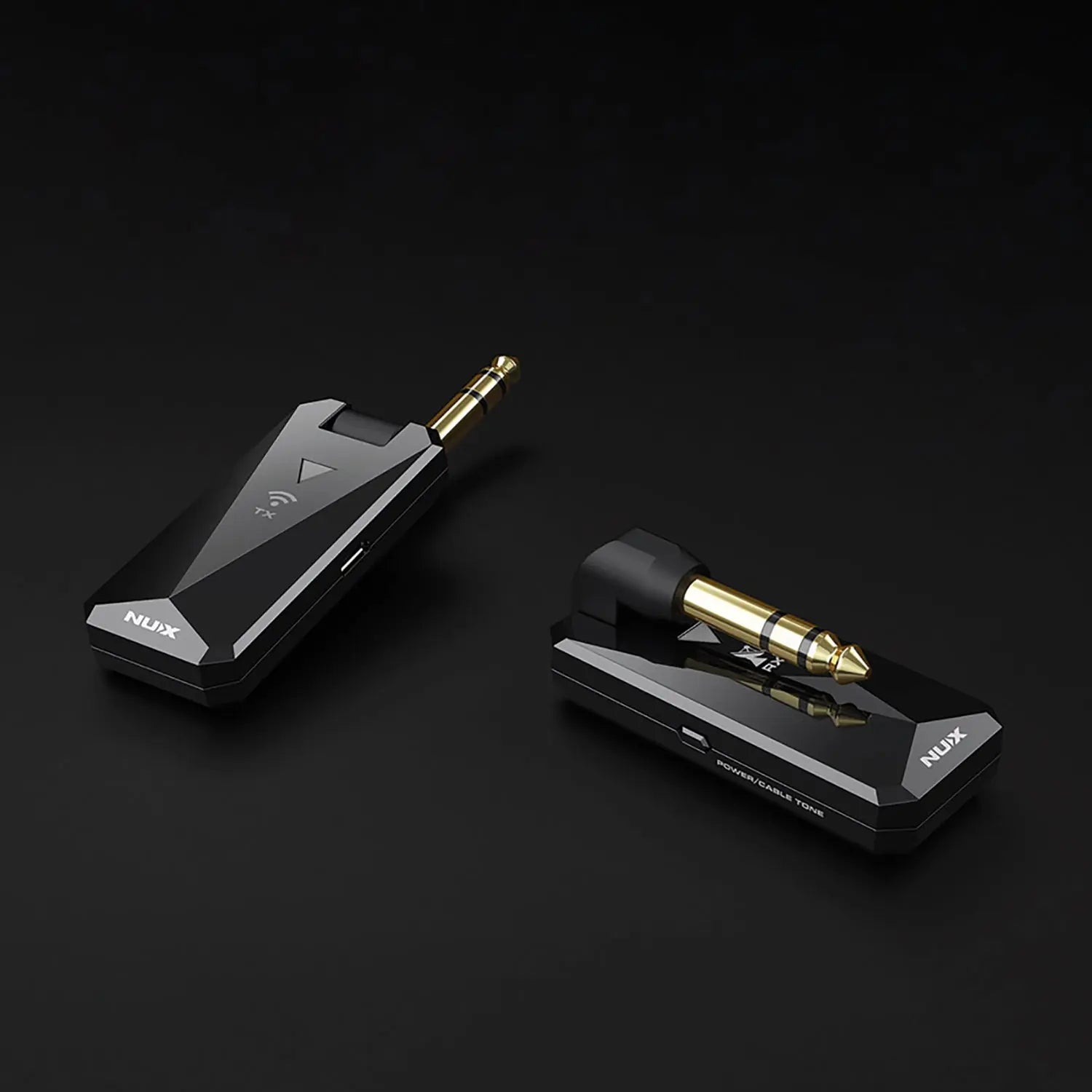

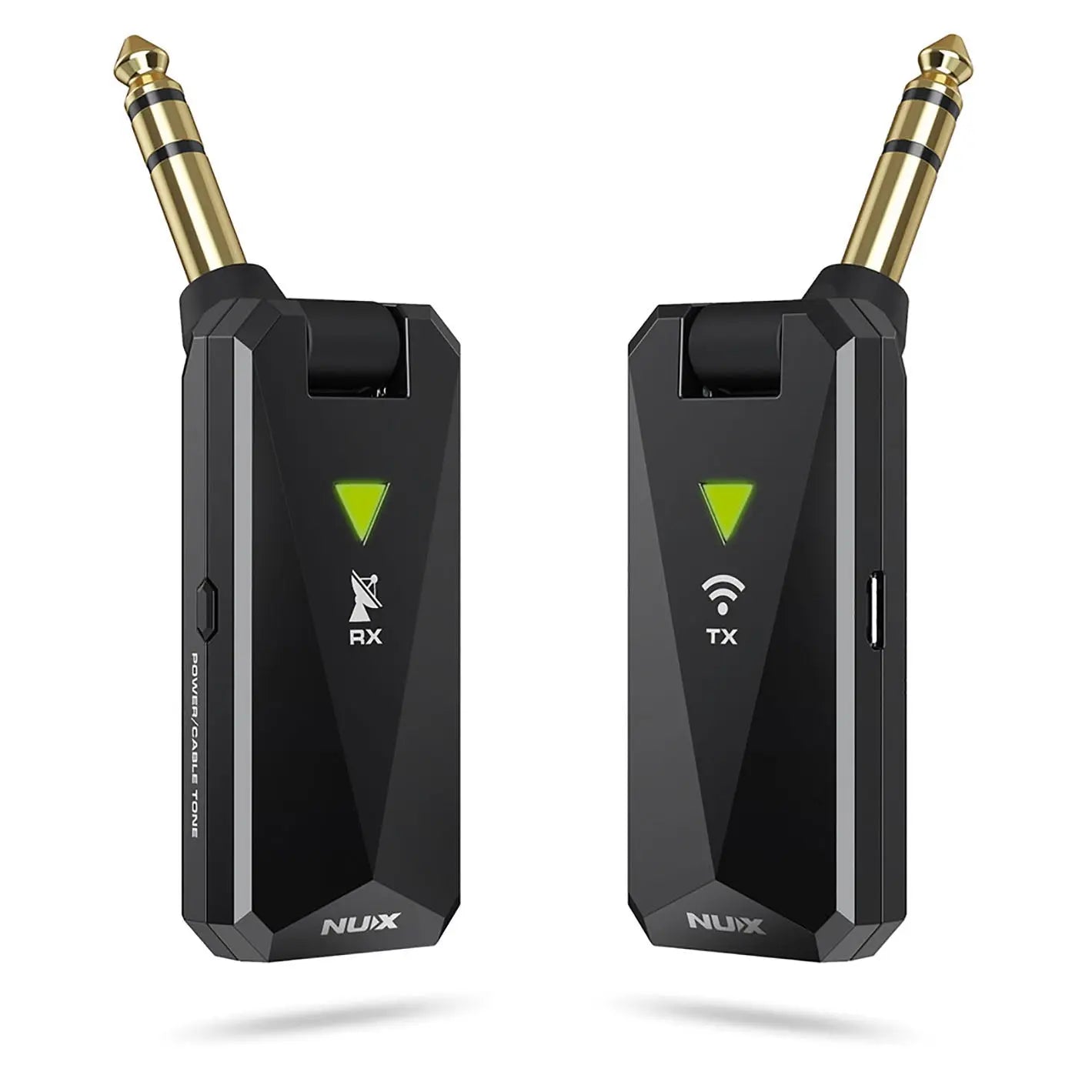

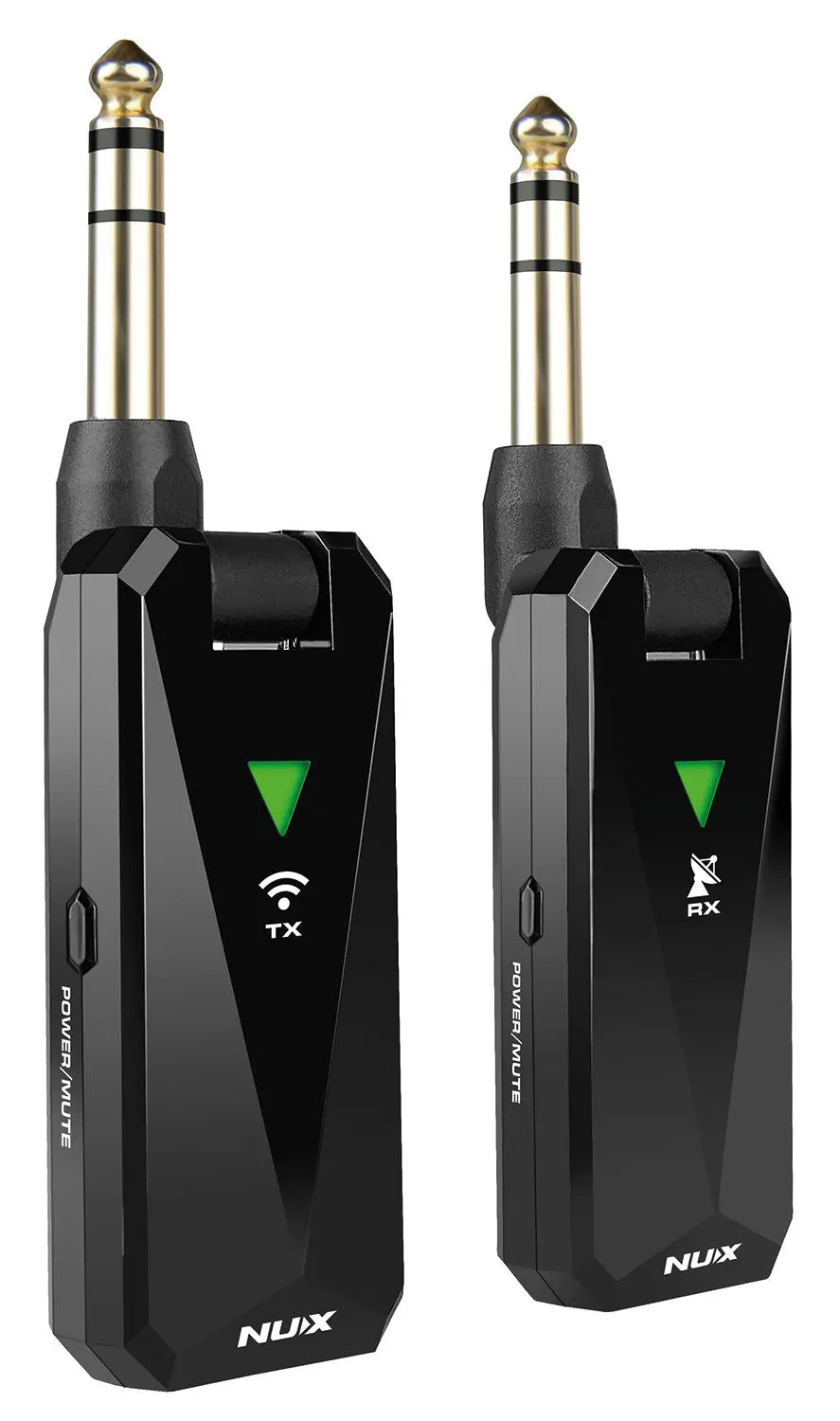

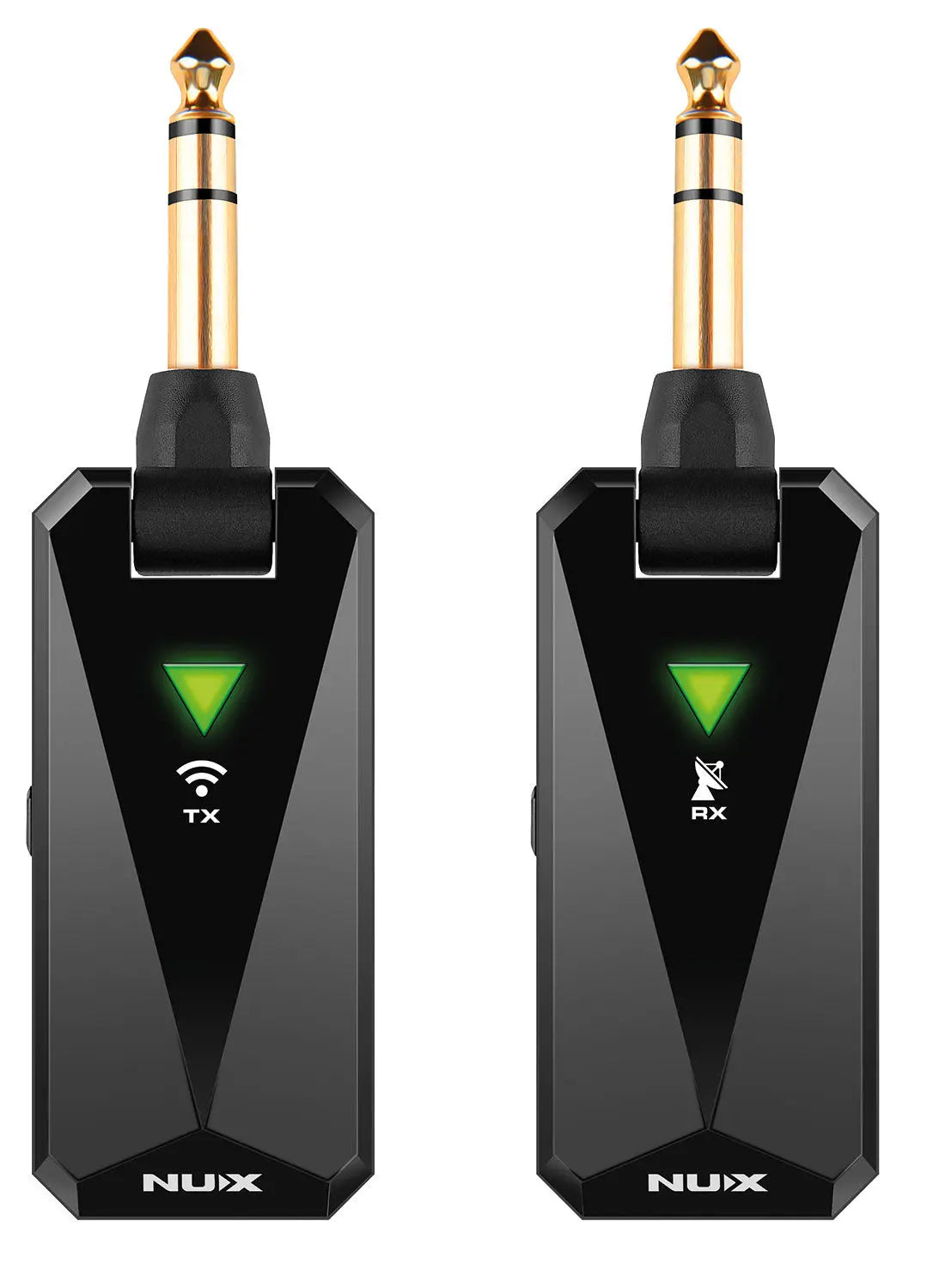

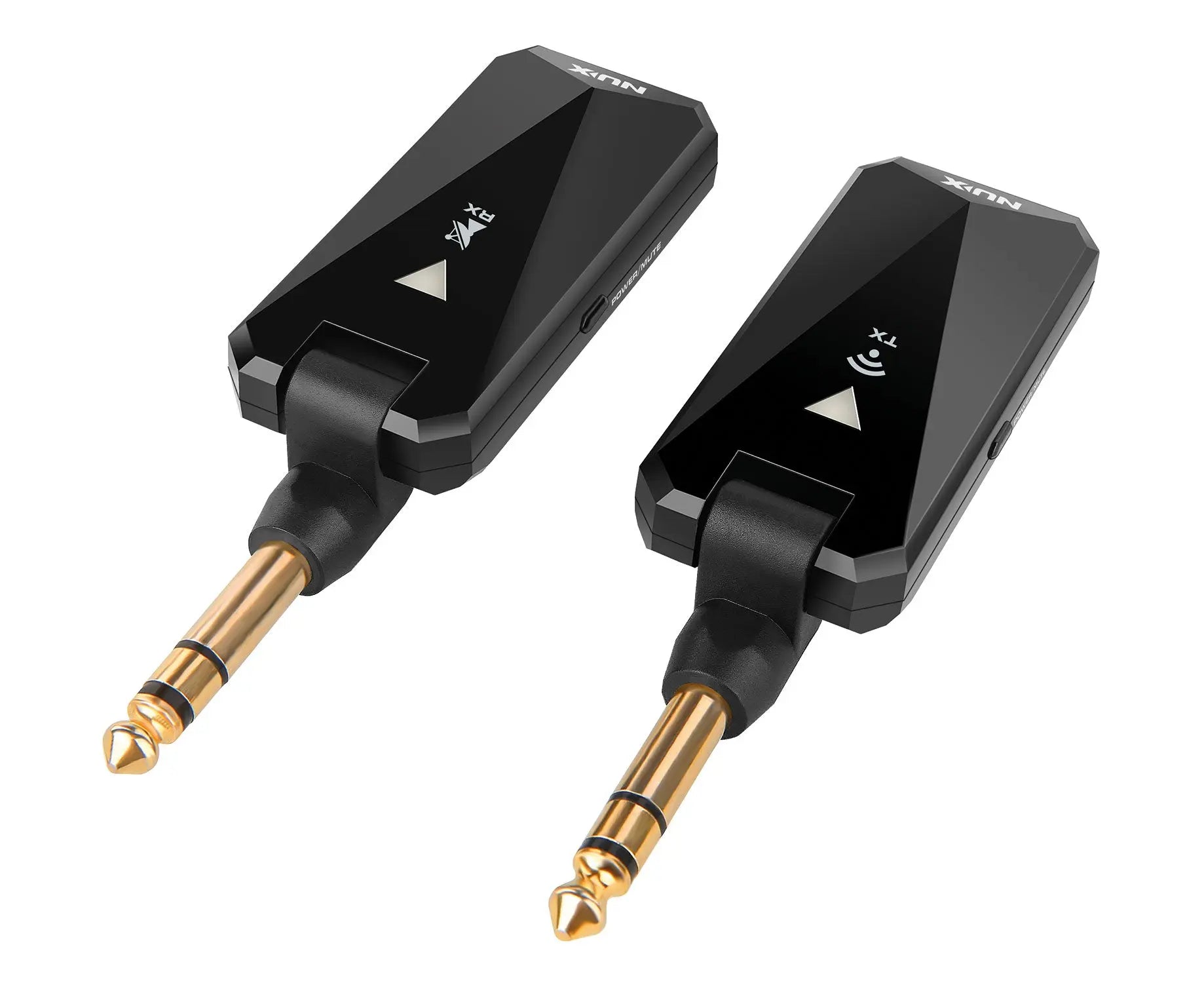

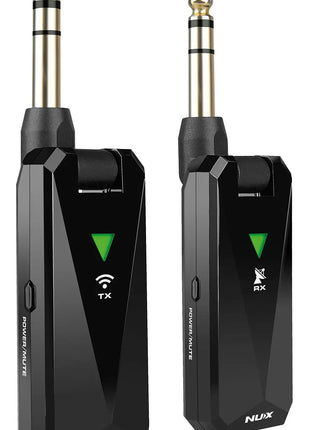

The B-5RC 2.4GHz wireless system is the ultimate in convenience for players that need the freedom of wireless connection.
Enhanced by the latest NU-X technology and using their upgraded algorithm, the B-5RC fits perfectly with all types of electric guitars, electro-acoustic guitars, bass guitars and ukuleles, even with active or passive, piezo or magnetic pickups.

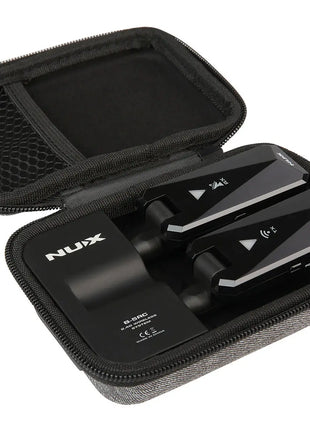

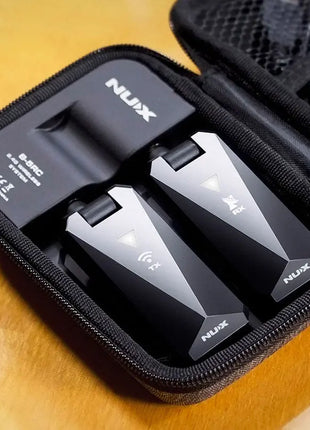

The B-5RC delivers remarkable 24-bit audio quality, simple plug & play setup, super-low latency (<5 ms) and a solid signal for distances up to 30m line-of-sight. The set also comes with a portable Power Case to recharge the transmitter and receiver up to 3 times.
Licence free operation worldwide
2.4GHz digital wireless system
Up to 4 sets can be operated simultaneously
Auto-pairing for instantaneous setup
Rechargeable transmitter & receiver

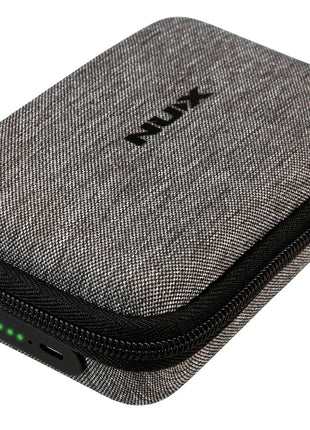

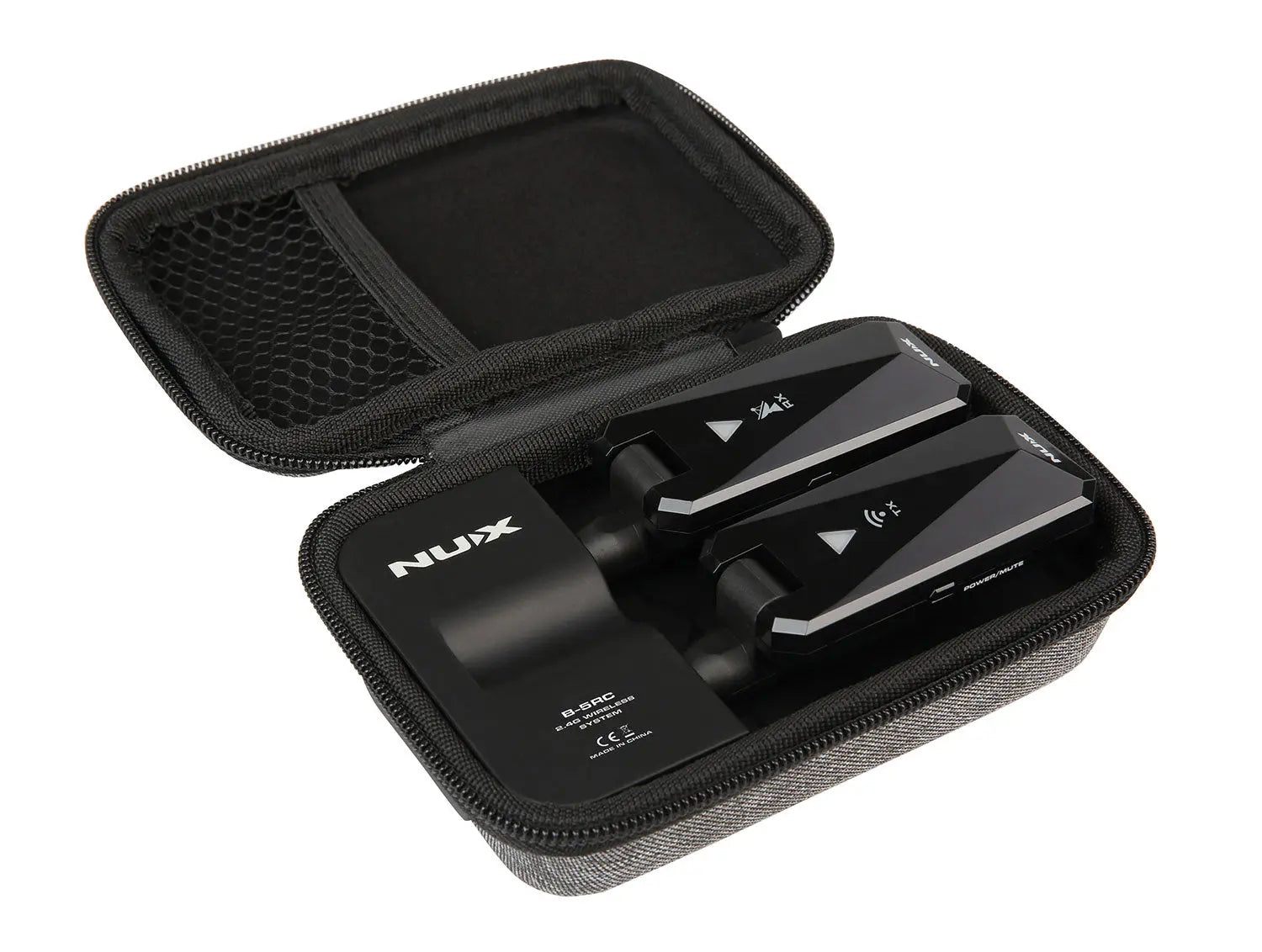

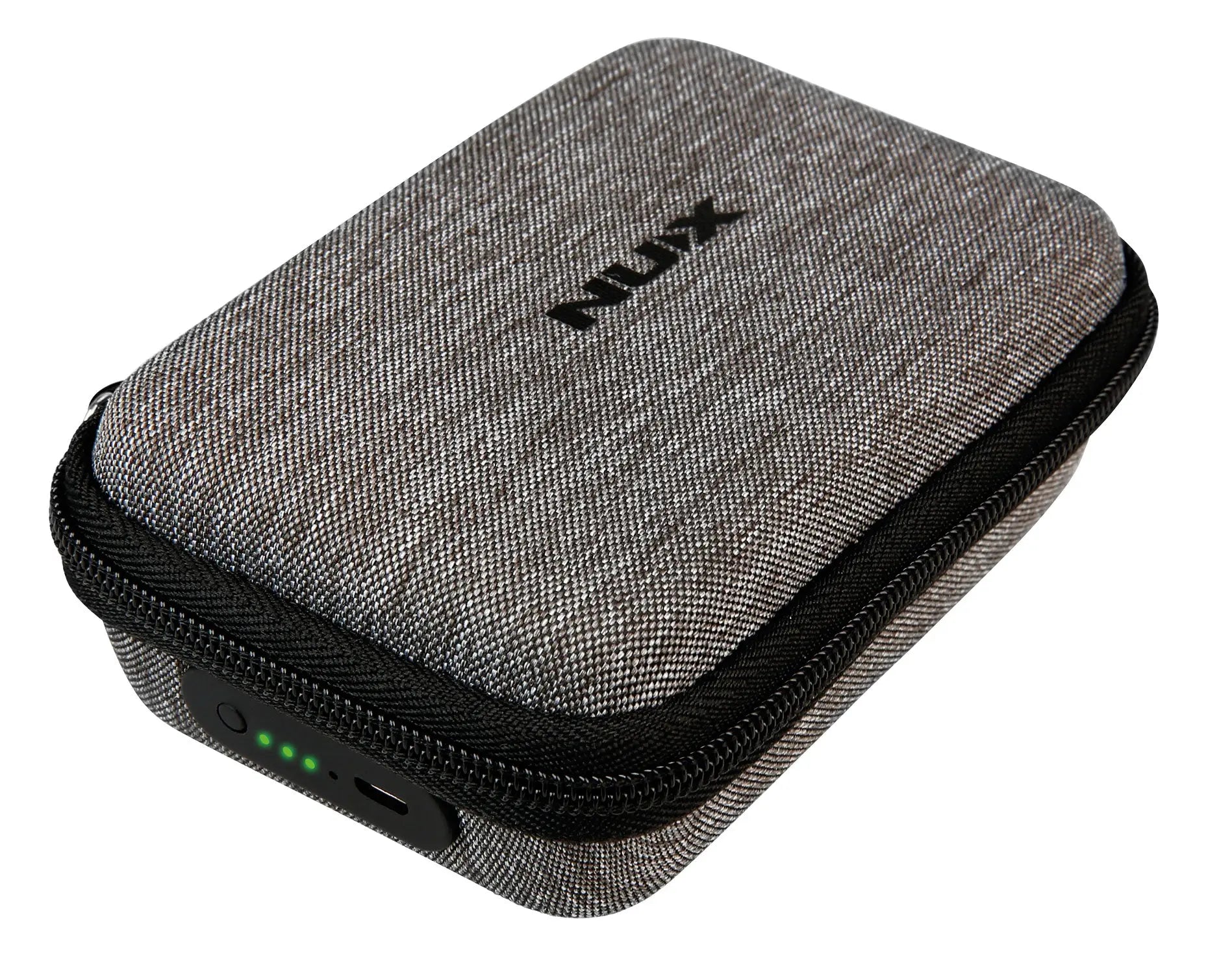

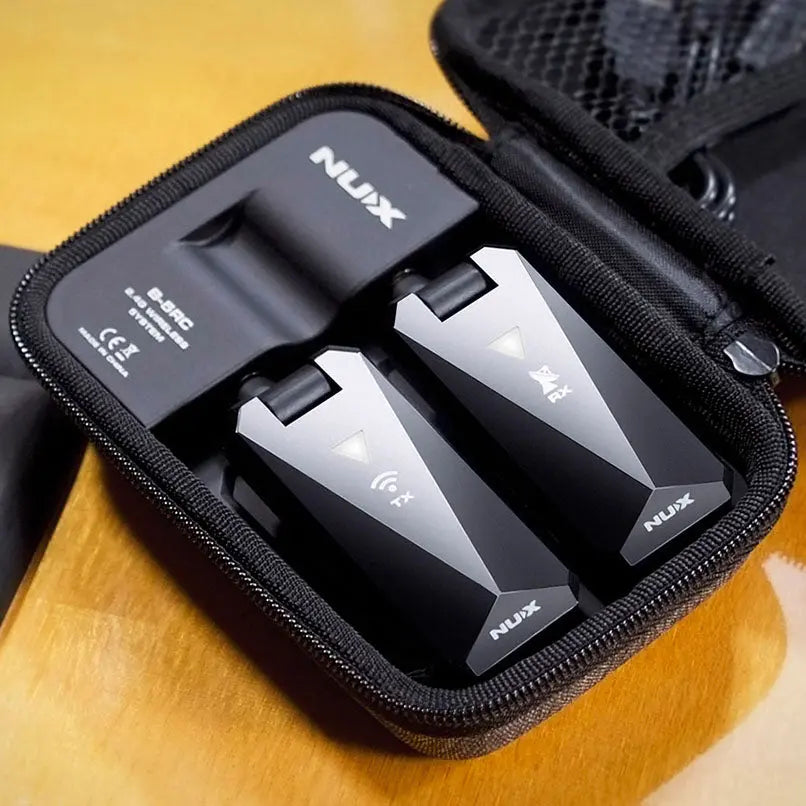

Power Case included for portable re-charging
Fully compatible with active pickups and EQ
Sampling format 44.1kHz, 24-bit
Carrier frequency 2.4GHz band (frequency agile)
Latency <5ms
THD +N <0.05% (1kHz @ -10dBFS)
Frequency response 20Hz - 20kHz
Auto power off Sleep mode after 10 minutes no audio
Battery pack 3.7V, 500mAh (transmitter & receiver), 4000mAh (Power Case)
Power supply Rechargeable from 5V USB
Connection 6.3mm jack plug (transmitter & receiver), micro-USB charging
Battery operation time 3.5 hours (approx.)
Dimensions : transmitter 107 x 29 x 21mm
Weight : transmitter 34g
Dimensions : receiver 107 x 29 x 21mm
Weight : receiver 34g
Max. range 30m (line of sight)
Input impedance 1M Ohm (transmitter)
Output impedance 1k Ohm (receiver)
