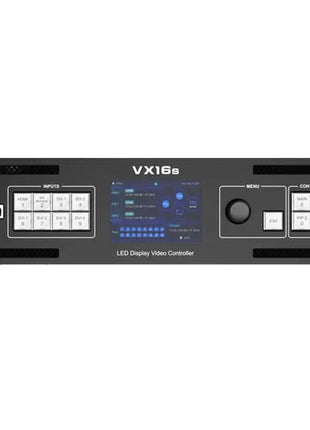

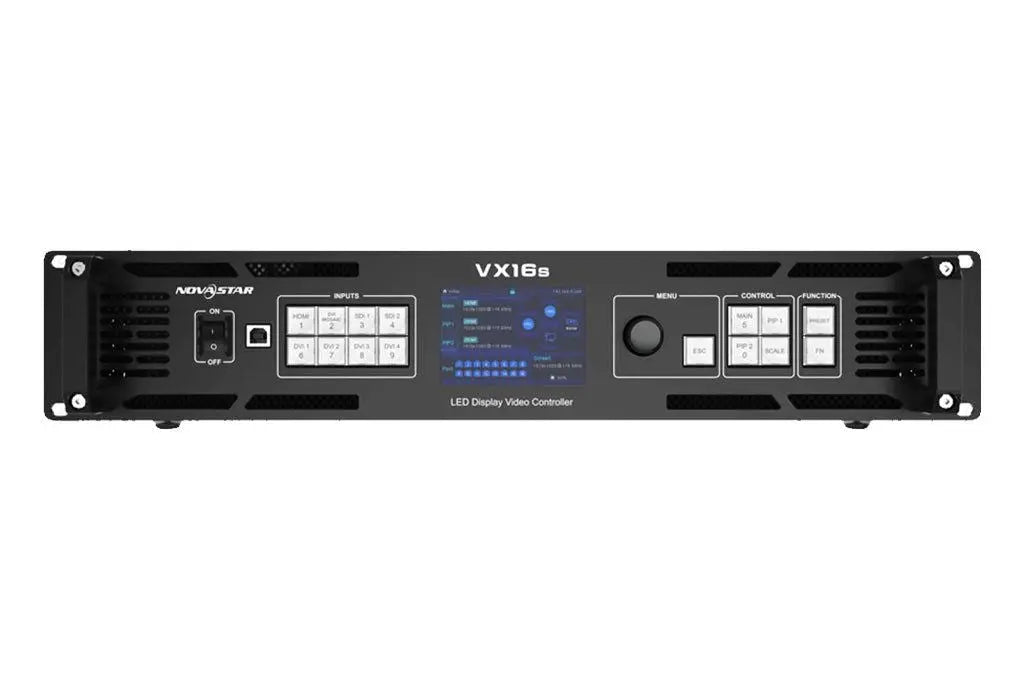

The VX16s is NovaStar’s new all-in-one controller that integrates video processing video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software it enables richer image mosaic effects and easier operations.
The VX16s supports a variety of video signals Ultra HD 4K×2K@60Hz image processing and sending capabilities as well as up to 10400000 pixels.
Thanks to its powerful image processing and sending capabilities the VX16s can be widely used in applications such as stage control systems conferences events exhibitions high-end rental and fine-pitch displays.

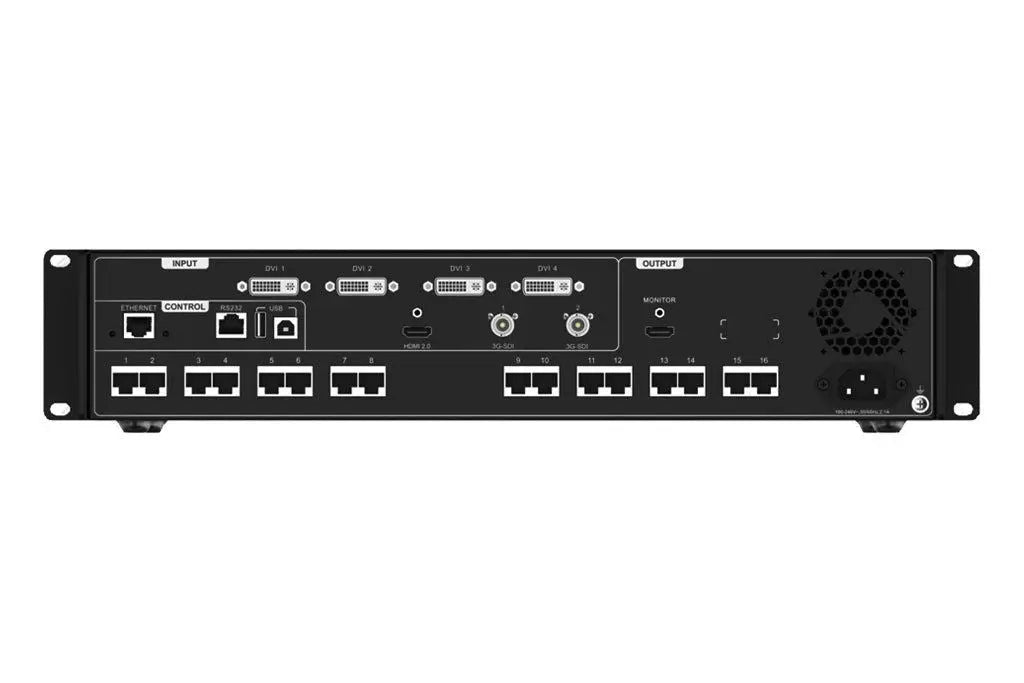

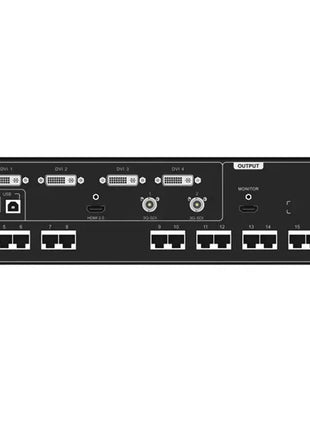

Industry-standard input connectors
2x 3G-SDI (Interlaced and Progressive scan supported) 1x HDMI 2.0 (Interlaced signal NOT supported) 4x SL-DVI (Interlaced signal NOT supported)
Output
16 Ethernet output ports load up to 10400000 pixels. 3 independent layers 1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2) Adjustable layer priorities Output Frame rates: 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 47.95 Hz 48 Hz 50 Hz 56 Hz 59.94 Hz 60 Hz 70 Hz 71.93 Hz 72 Hz 75 Hz 85 Hz 100 Hz 119.88 Hz and 120 Hz.
DVI mosaic
Up to 4 DVI inputs can form an independent input source which is DVI Mosaic.
Input resolutions/Frame Rates
Supported standard frame rates/resolutions:
- 1024×768 @ (48/50/59.94/60/75/85)Hz
- 1280×720 @ (23.98/24/25/29.97/30/48/50/59.94/60)Hz
- 1280×1024 @ (48/50/59.94/60/75/85)Hz
- 1364×768 @ (50/59.94/60)Hz
- 1366×768 @ (50/59.94/60)Hz
- 1440×900 @ (60/75/85)Hz
- 1600×1200 @ (48/50/59.94/60)Hz
- 1680×1050 @ 60Hz
- 1920×1080 @ (23.98/24/25/29.97/30/48/50/59.94/60)Hz
- 1920×1200 @ (50/59.94/60)Hz
- 2048×1080 @ (30/48/50/59.94/60)Hz
- 2048×1152 @ (30/60)Hz
- 2560×1080 @ (50/59.94/60)Hz
- 2560×1600 @ (50/59.94/60)Hz
- 2560×1600 @ 120Hz
- 3840×1080 @ 30Hz
- 3840×1080 @ (50/59.94/60)Hz
- 3840×1080 @ 120Hz
- 3840×2160 @ (23.98/24/25/29.97/30)Hz
- 3840×2160 @ (50/59.94/60)Hz
3D
Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.
Personalized image scaling
Three scaling options are pixel-to-pixel full screen and custom scaling.
Image mosaic
Up to 4 devices can be linked to load a super large screen when used together with the video distributor. Easy device operation and control through VCan Up to 10 presets can be saved for future use.
EDID management
Custom EDID and standard EDID supported
Device backup design
In backup mode when the signal is lost or the Ethernet port fails on the primary device the backup device will take over the task automatically.
