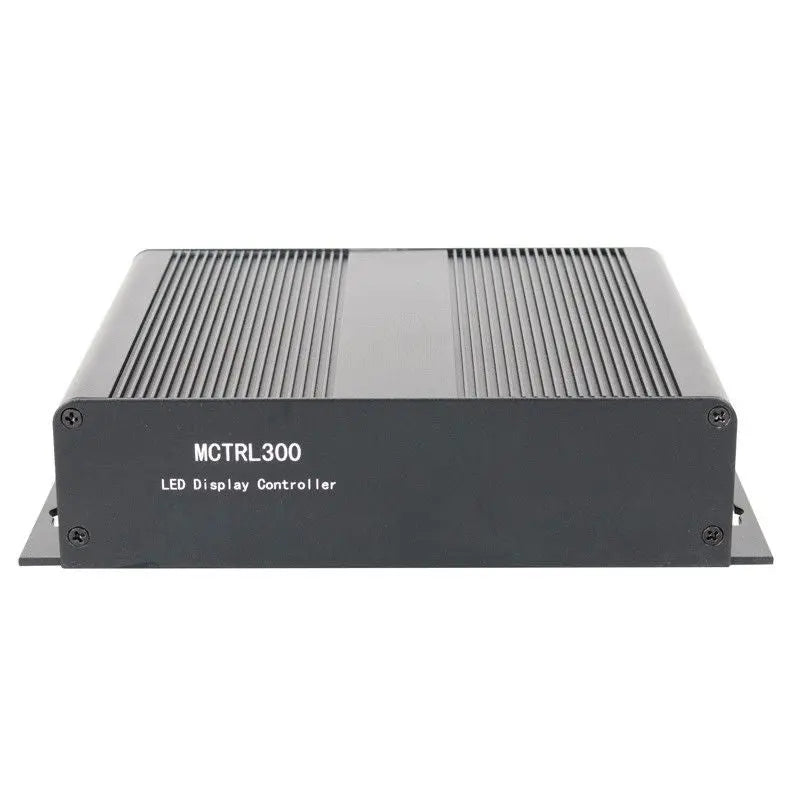

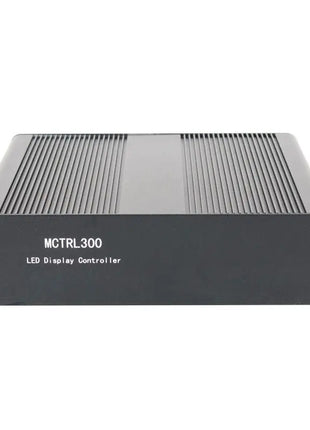

The MCTRL300 is the Novastar’s smallest LED controller which enables LED displays to be set up within a very short time. The sending card is built into a stable metal housing and is delivered with a DVI input. In addition the controller has a light sensor connection to which the NovaStar NS060 can be connected for automatic brightness monitoring (available on demand only).
The MCTRL300 is ideal for small to medium-sized LED displays and is compatible with all ADJ Video Panel Series : VS2/VS3/VS5/AV2/AV3/AV4IP & AV6X
This controller is supporting the following resolutions: 1280 x 1024 1024 x 1200 1600 x 848 1920 x 712 2048 x 668.
Specifications:
Control

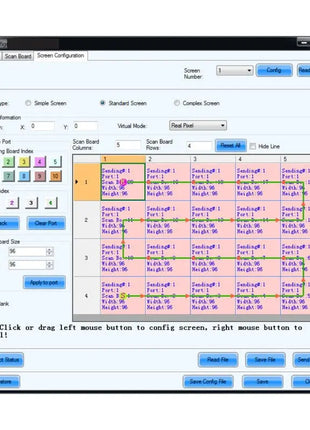

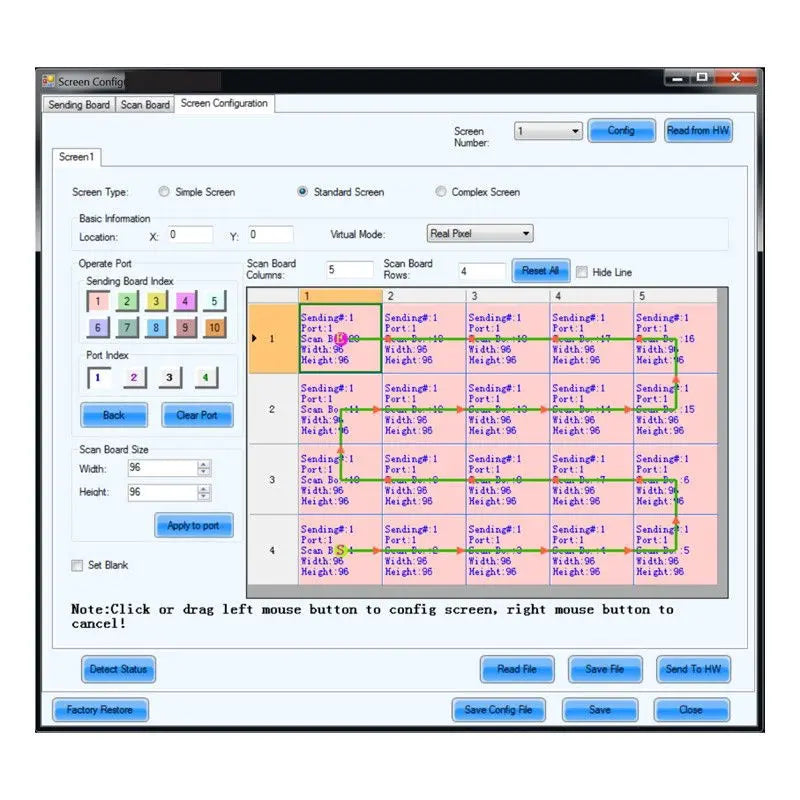

• Detailed control of Video Walls via LCTMars PC-Software
• Brightness Correction : Pixel Module Cabinet
• Control Mode: Synchronous Display with Control PC by DVI
• Requires Windows-PC
• Cascading of multiple MCTRL300 via UART
Resolution
• Max resolution capacity : 1.3 million pixels
• Supported resolutions: 1280 x 1024 1024 x 1200 1600 x 848 1920 x 712 2048 x 668
• Scan Mode 1/12 Duty
• Supported Input : Composite S-Video Component VGA DVI HDMI HD_SDI to DVI
Construction
• Aluminium Metal Housing
Electrical
• Multi-voltage operation: AC 100-240V 50/60Hz
• Power Draw: 10W

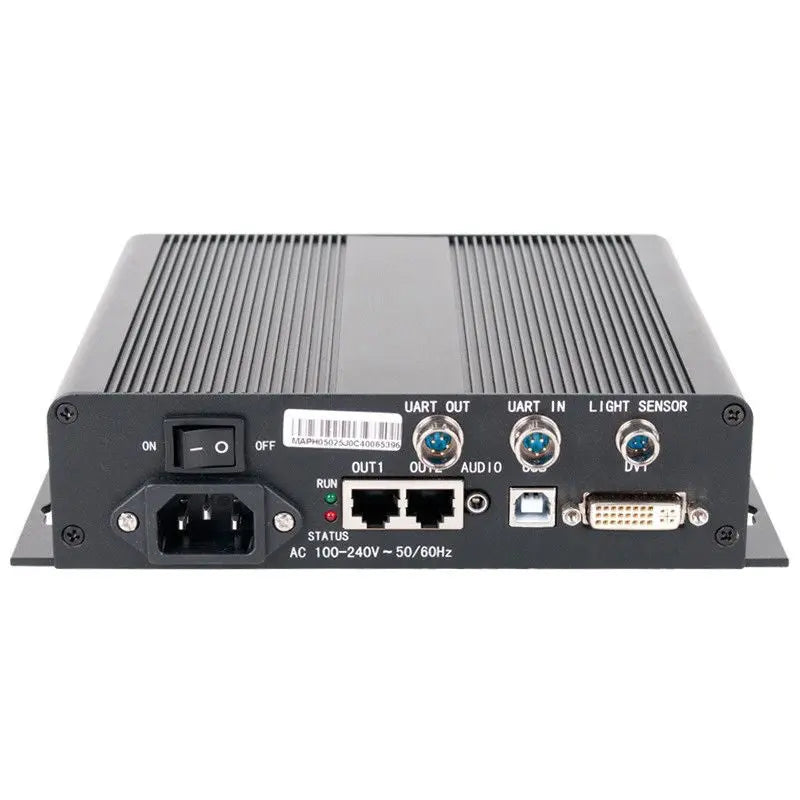

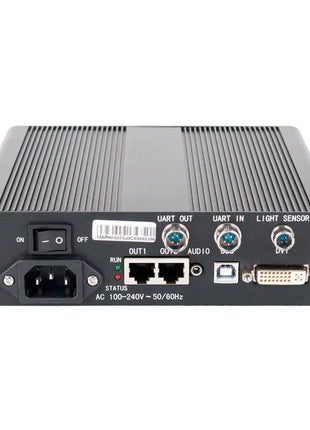

Connections
• Inputs
1x DVI
1x IEC Power connector
1x Light Sensor Connector
1x USB Type B for PC connection
• Outputs
2x RJ45 CAT6 Ethernet Screen outputs (mirrored or independent content or as redundancy)
Dimensions & Weight
• Dimensions (LxWxH): 204 x 160 x 48mm
• Weight: 1kg.
