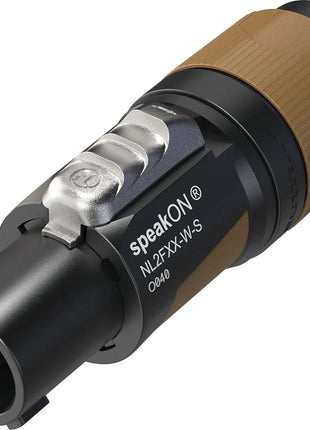

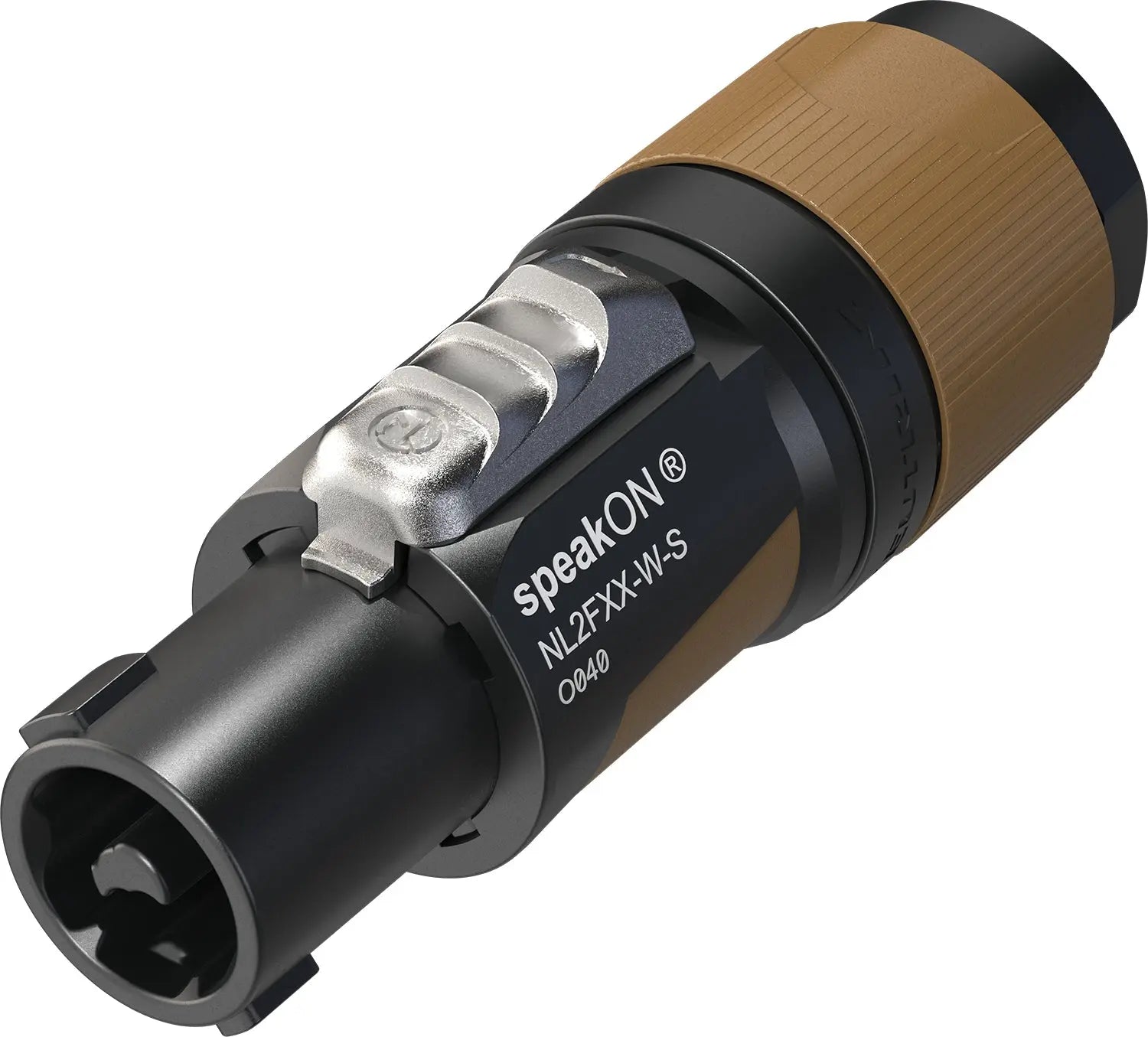

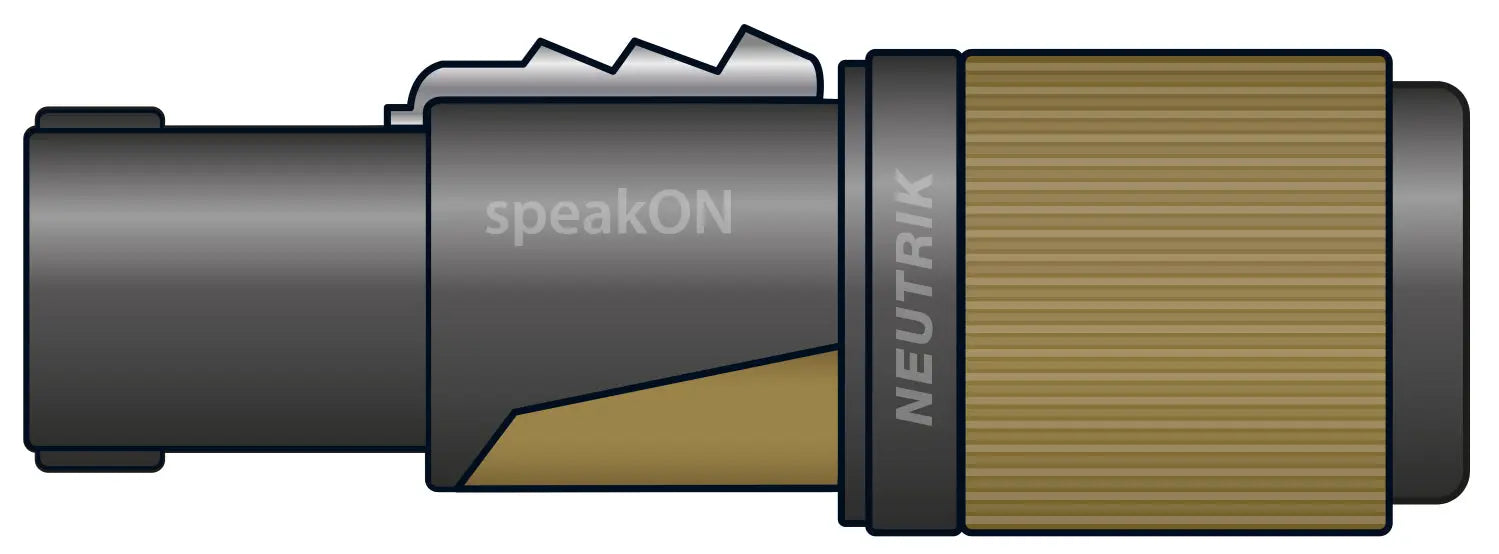

2 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm.
Speakon connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection
Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
Up to 37 A rms current rating
Easy and reliable twist lock system
Improved kink protection by two-component bushing
Ergonomic design with slip-proof two-component molded housing
Contact resistance ≤ 2 mΩ
Cable : diameter 6-12mm
Lifetime Typically 5’000 mating cycles
Terminals Screw type
Temperature range -33 °C to +80 °C
IP rating IP20
