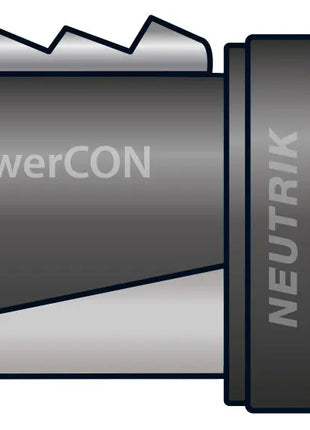

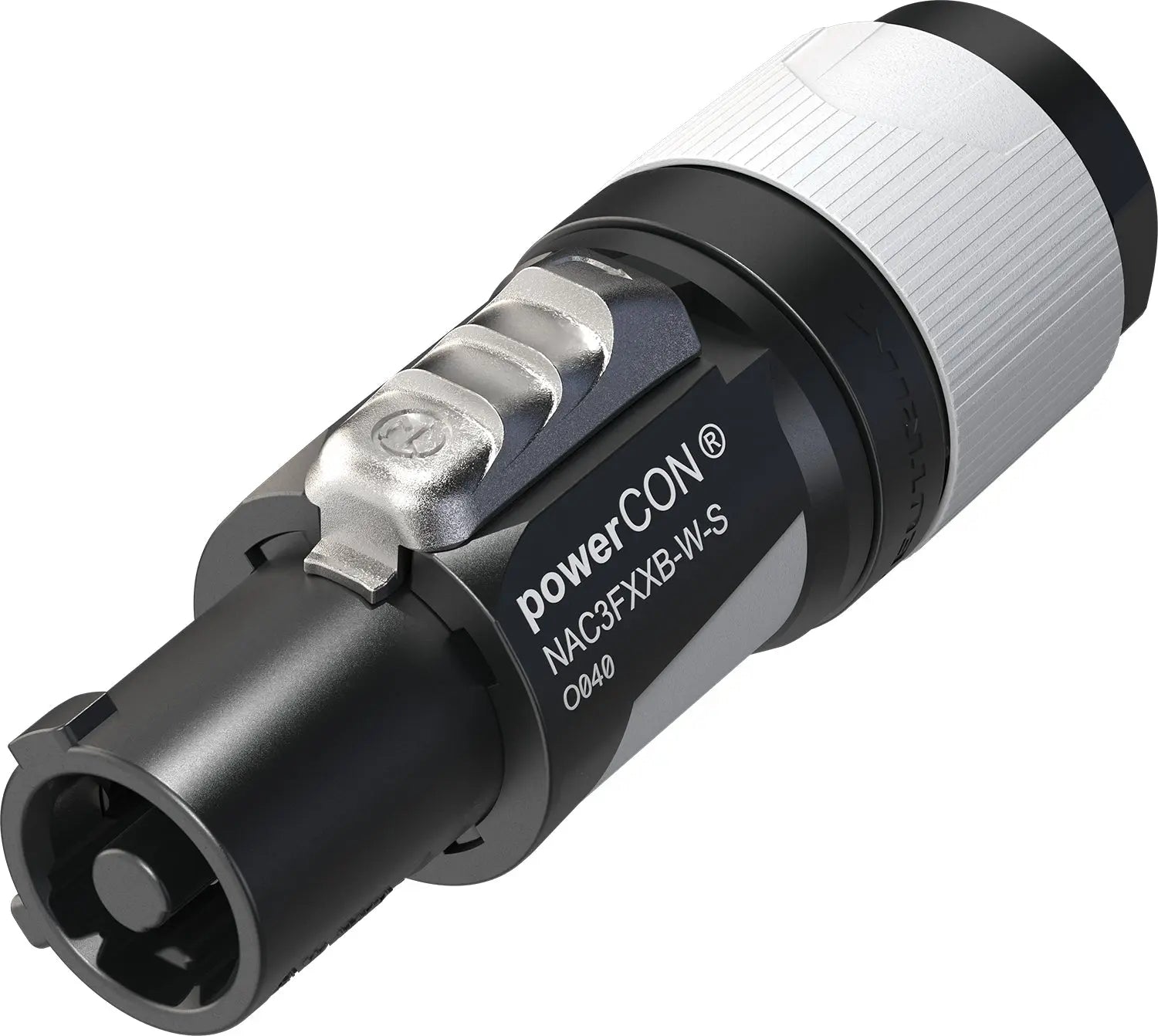

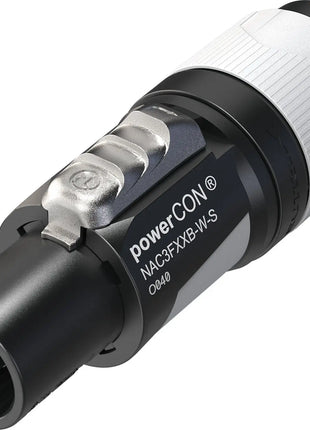

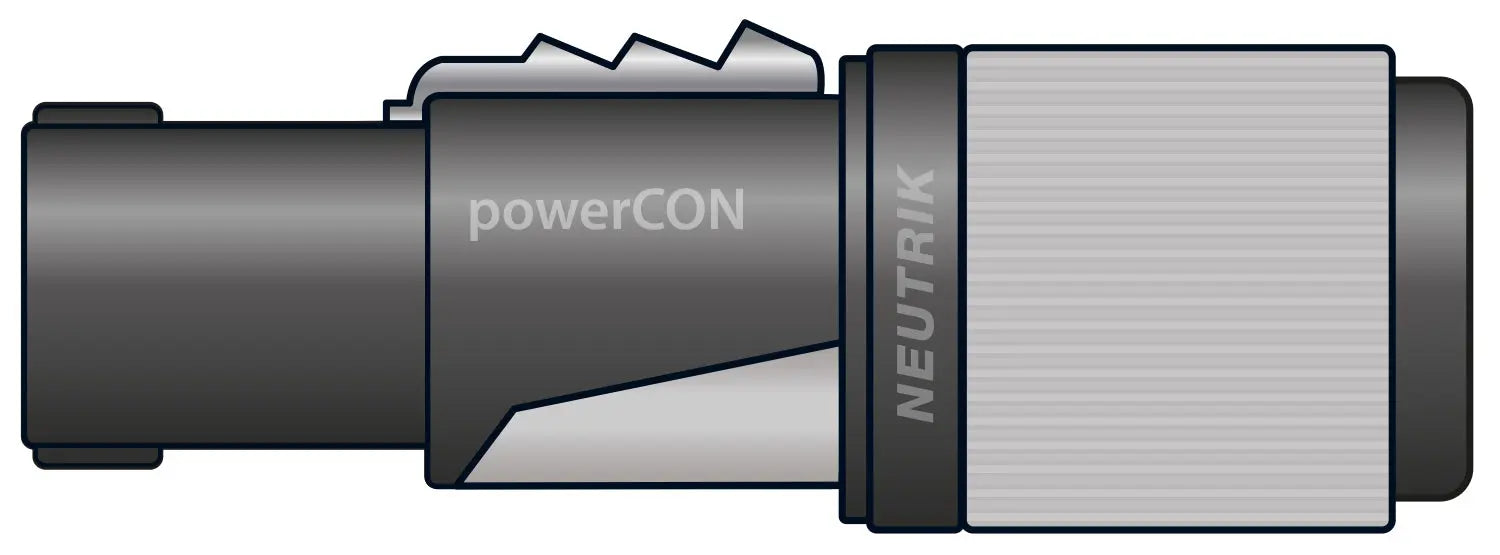

Locking AC mains cable connector, keyed and colour coded for power-out, screw terminal assembly, for cable diameters 6-12mm and 10-16mm.
The powercon FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powercon XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
Easy and reliable twist lock system
Superior NEUTRIK quality standard, extremely robust and reliable
Contact resistance ≤ 2 mΩ
Lifetime Typically 5’000 mating cycles
Terminals Screw type
Temperature range -33 °C to + 80 °C
IP rating IP20
