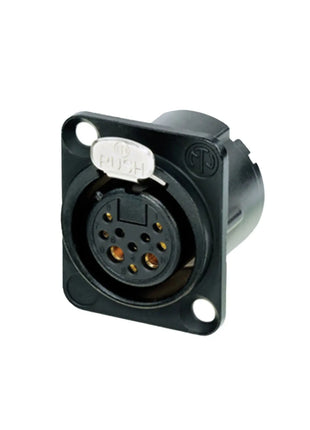

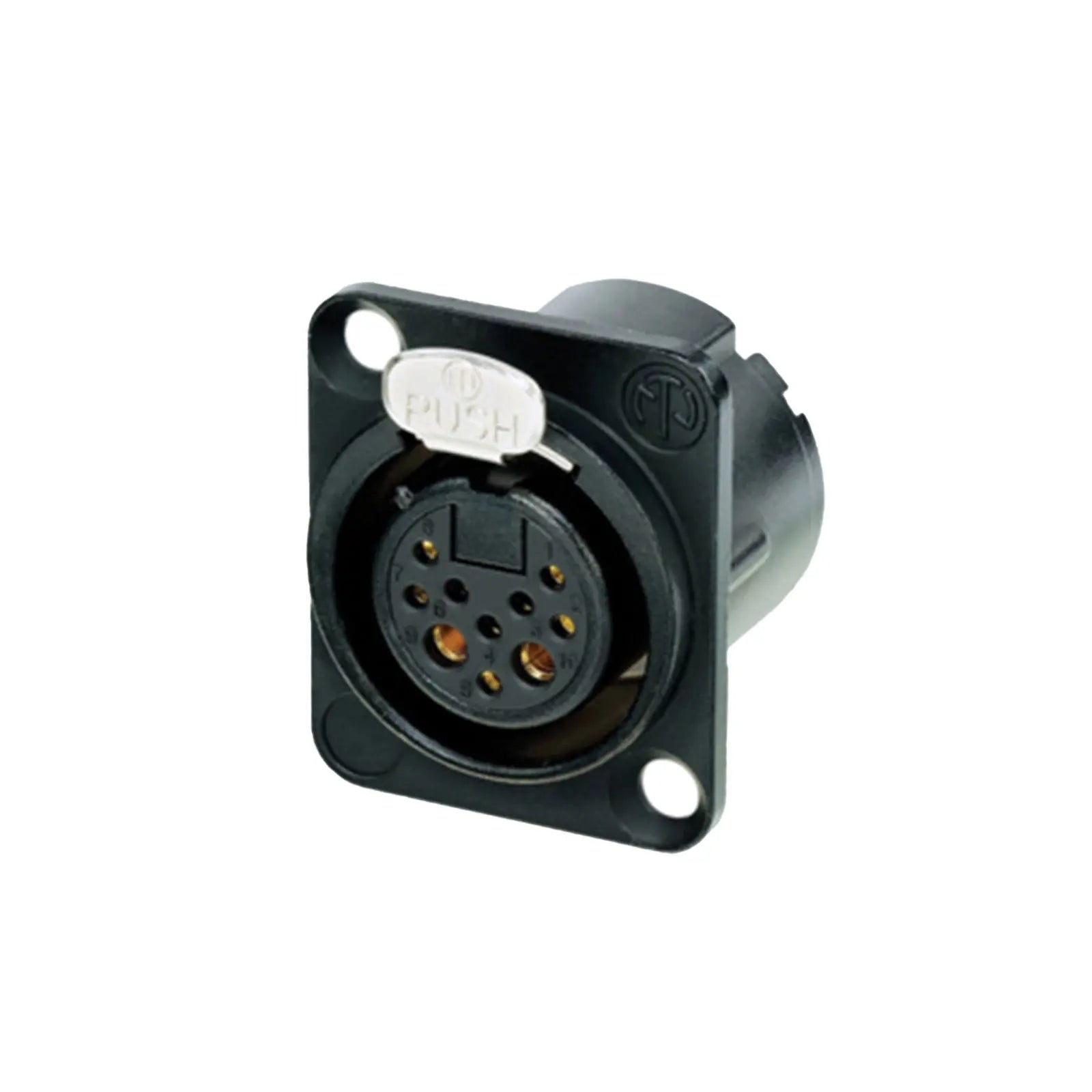

With the irresistible evolution of networking standards like Dante AvB AES67 Cobranet etc. The RJ45 connector has become commonplace in the professional AV and lighting industry. The Neutrik 8 + 2 pole XLR offers a solution above that of the RJ45 with a rugged contact system making the data connection road proven while offering the ability to carry power within the same connector. Neutrik have not simply squashed 10 pins into a standard insert instead the 8 thinner pins are intended for twisted pair data up to 1Gb bandwidth while the 2 larger pins can be used for either a power supply or additional control data. 10 pole female D-size receptacle black chrome metal housing duplex ground contact Suitable for data offering CAT 5e performance and power up to 16A and 50V - exceeds PoE+ capabilities Superior ruggedness compared to RJ45 type connectors All metal housing offers best overall RF protection and electromagnetic shielding D-size housing provides installation compatibility with industry standard D mounting dimensions Receptacle with duplex ground contact for excellent signal integrity
