Description

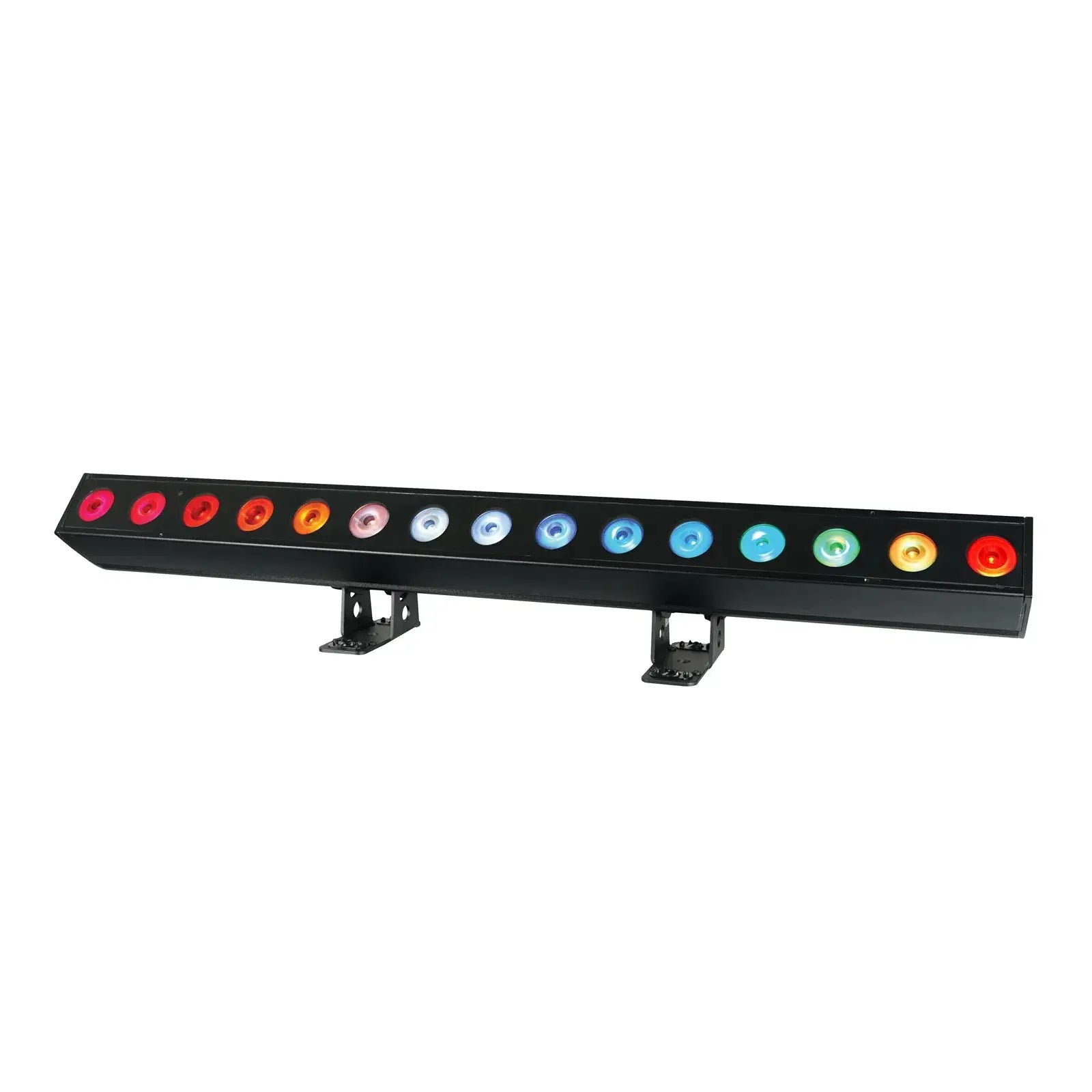

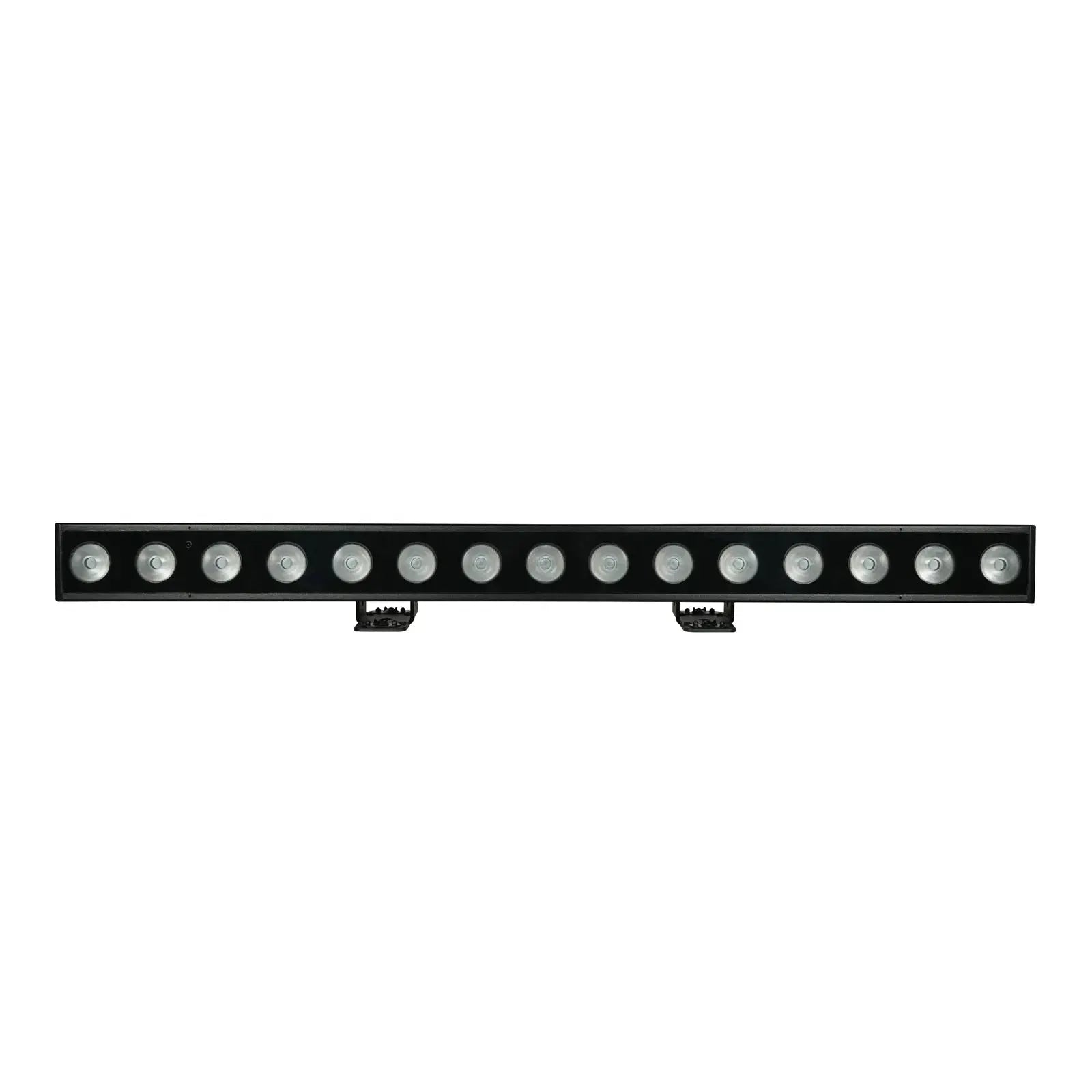

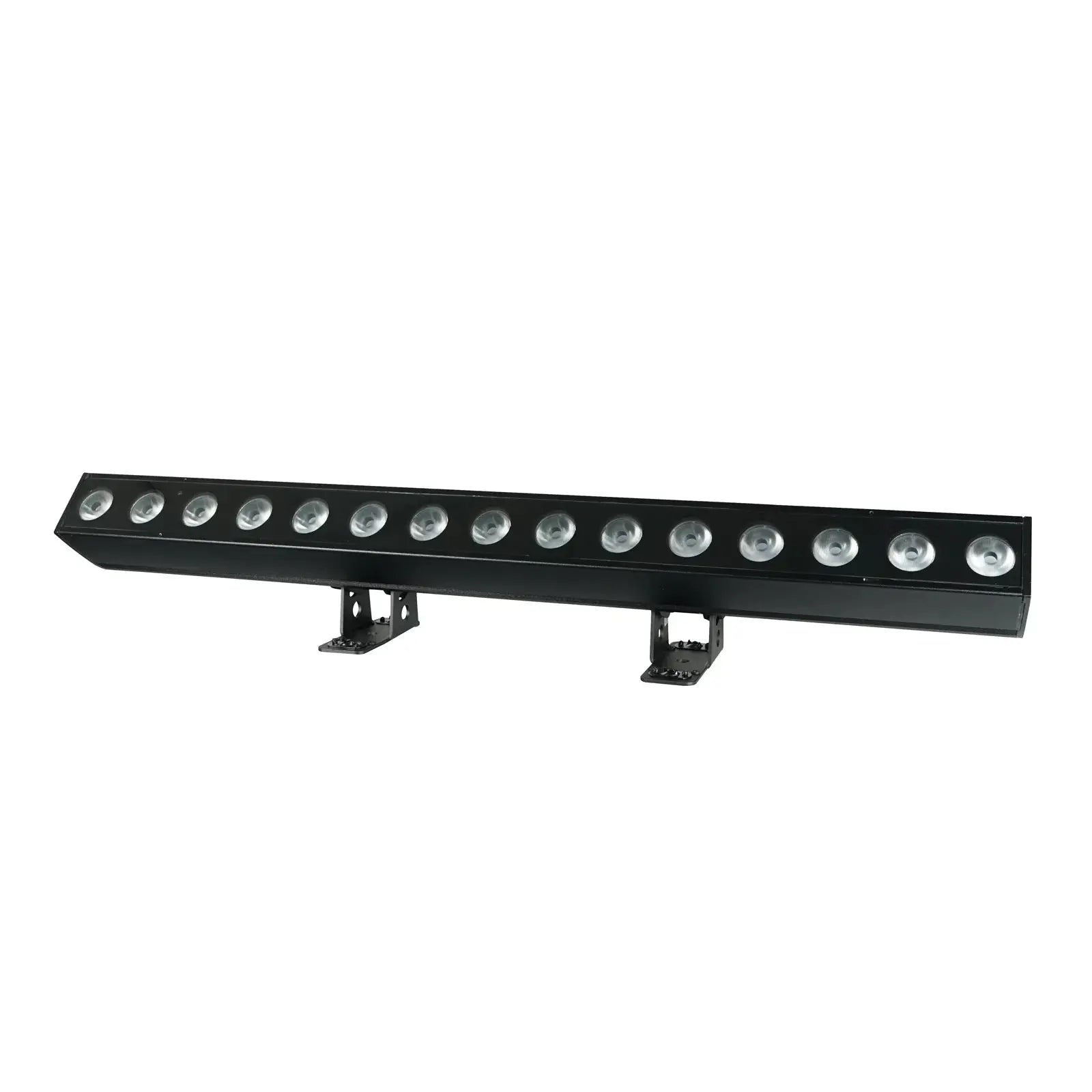

Equinox Meteor 150 RGBW IP Pixel Batten
The Equinox Meteor 150 RGBW IP Pixel Batten is a versatile lighting fixture designed for both indoor and temporary outdoor use. Housed in a rugged IP65-rated enclosure, it features high-output quad-color LEDs and individual pixel control for creating dynamic and colorful lighting effects.
Key Features
15 x 10W Quad-Colour LEDs (RGBW)
Beam angle: 20° x 30°
High output
Full pixel mapping capabilities
Selectable DMX channels: 4/6/9/60 or 65
Static colour, colour change, colour fade and master/slave modes
0 - 100% dimming
4 dimming curves: Linear, square law, inverse square law and S-curve
Variable strobe
RDM (Remote Device Management)

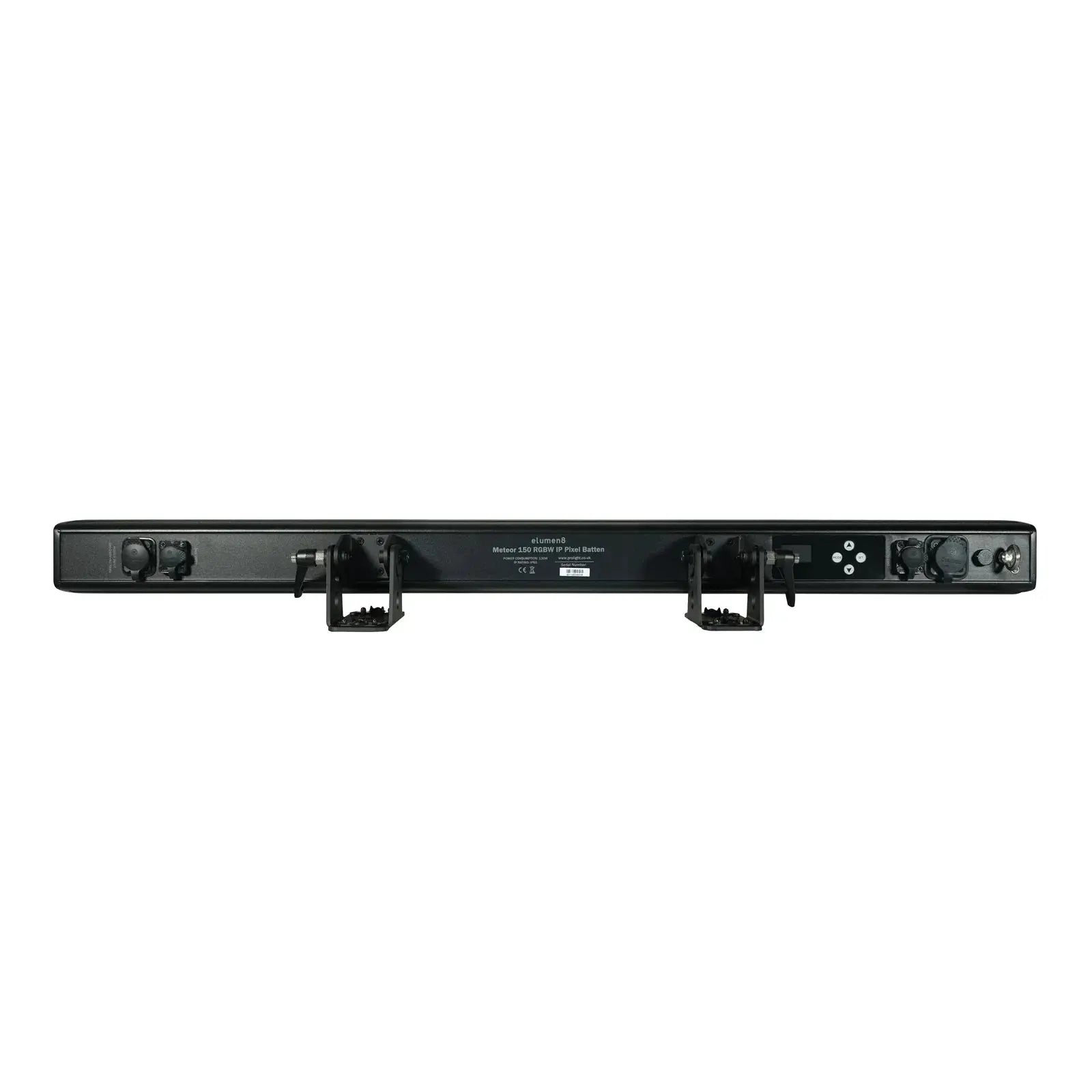

4 button menu with OLED display

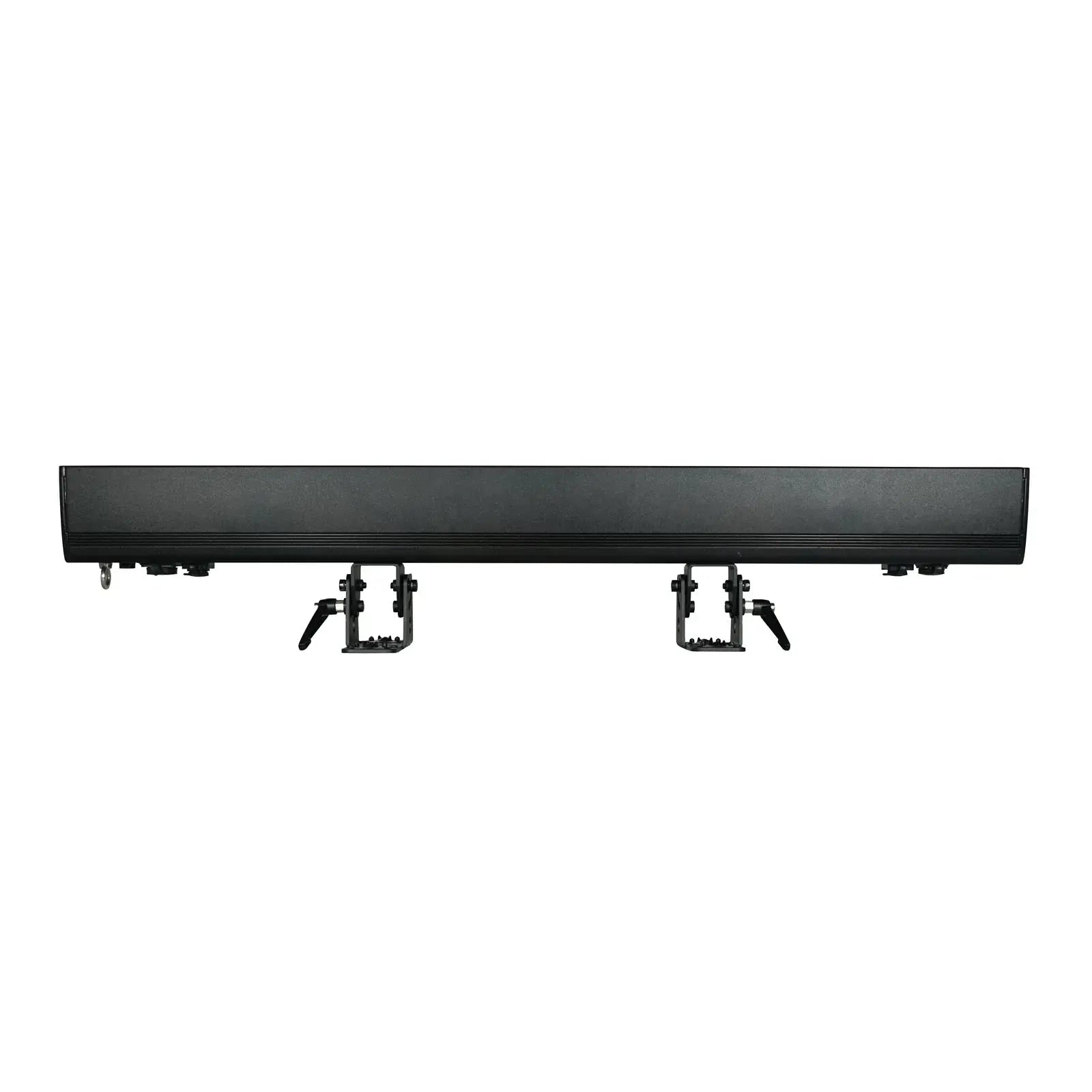

Bracket allows for multiple rigging or floor standing applications

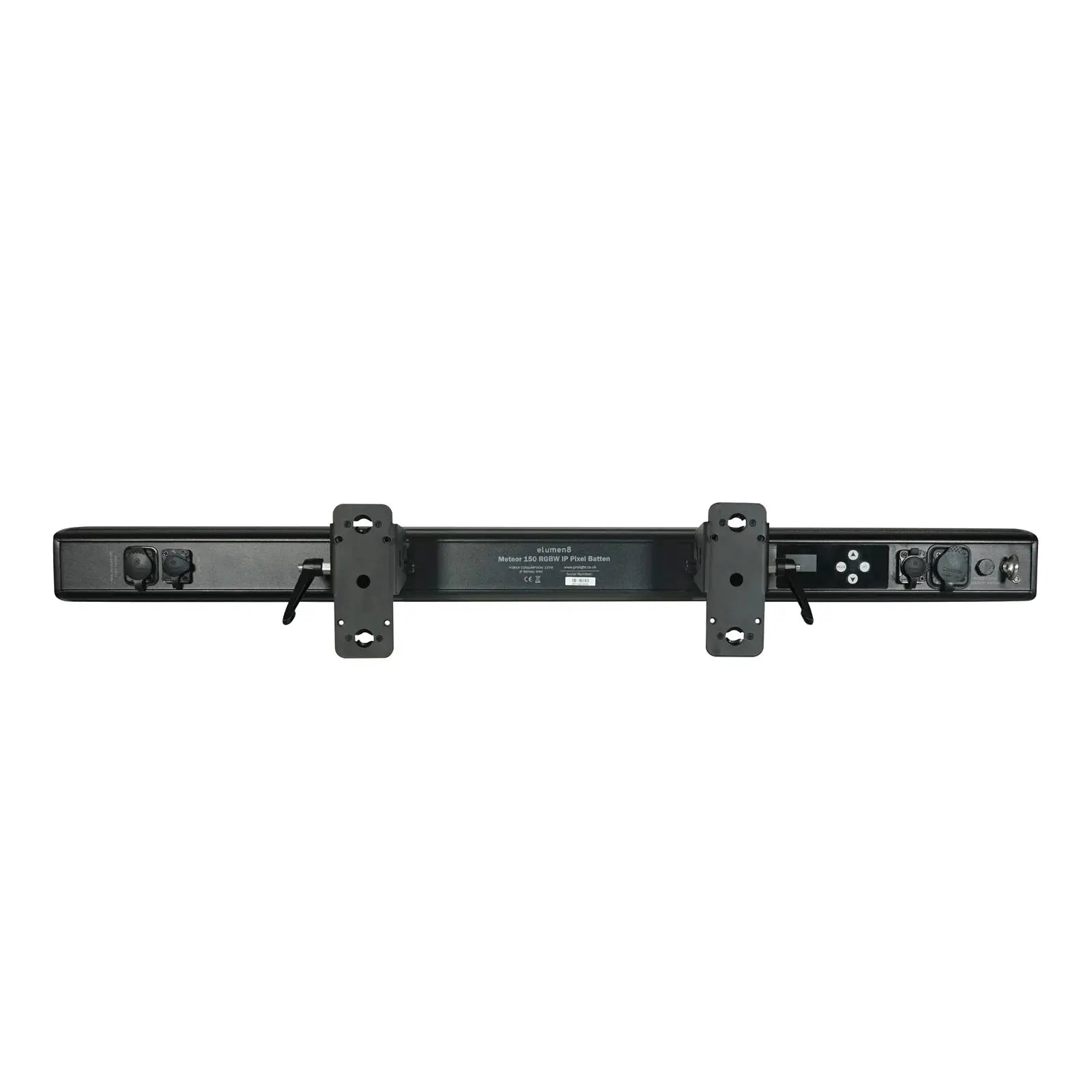

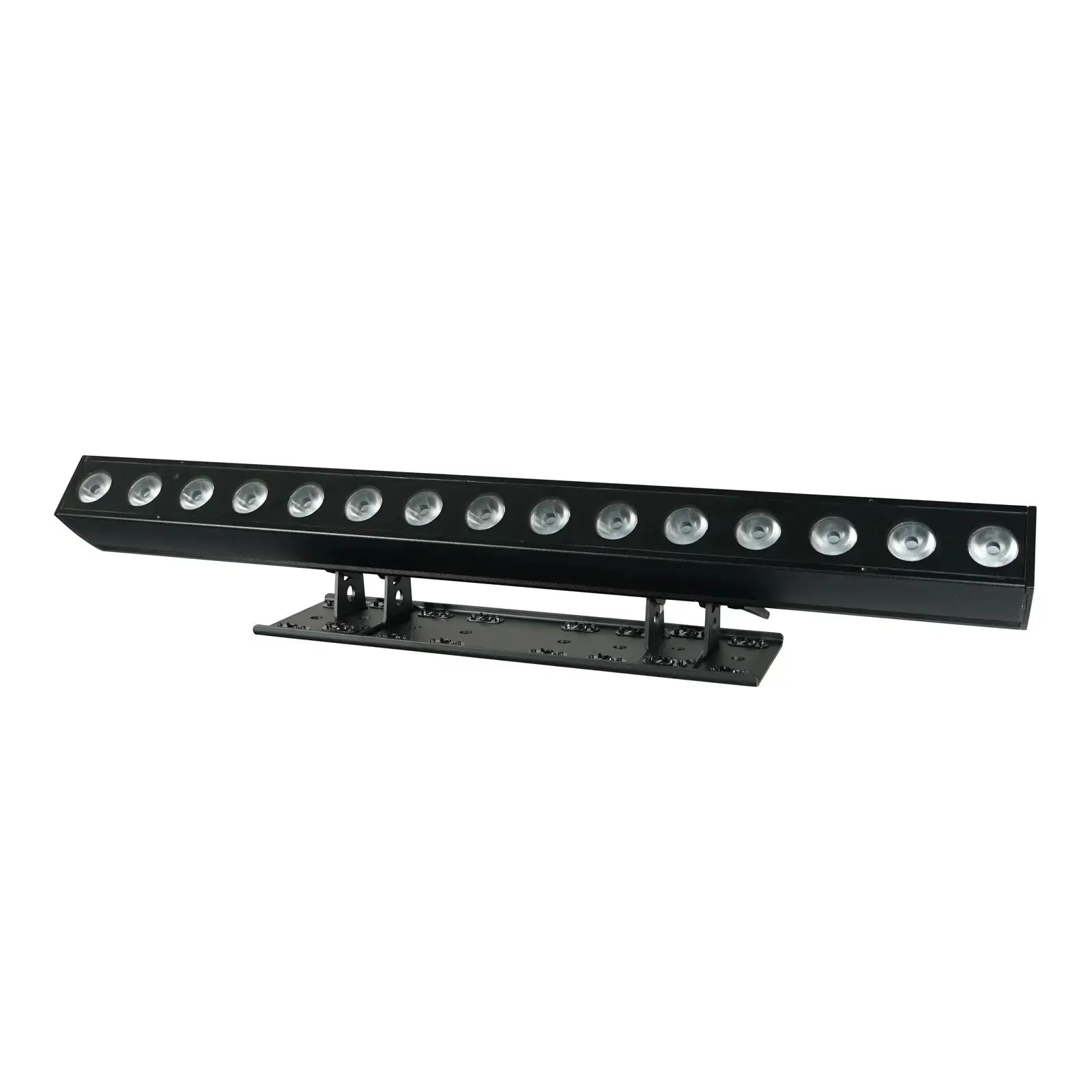

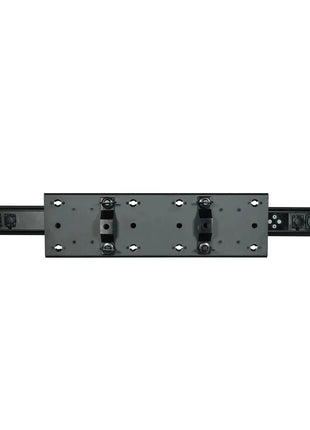

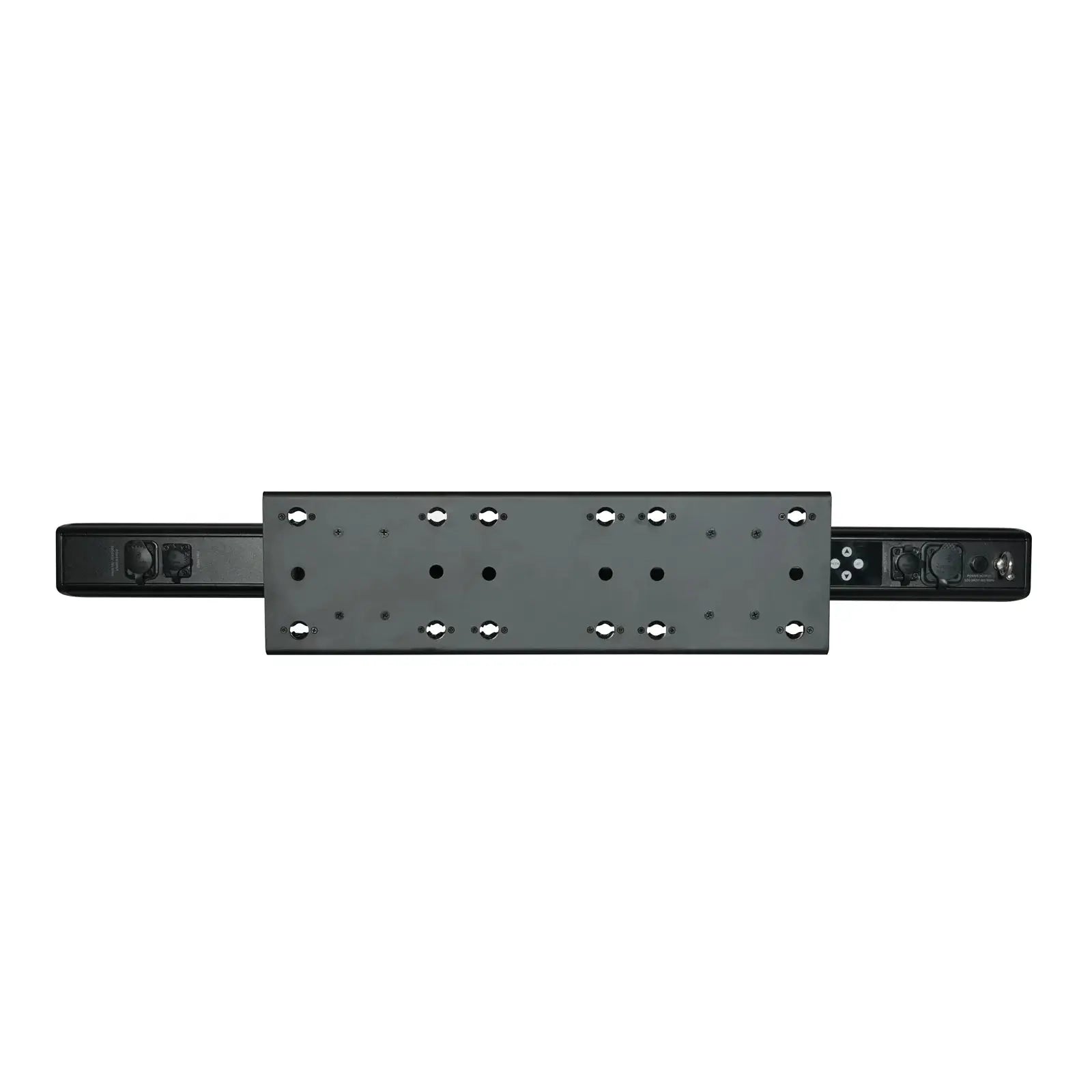

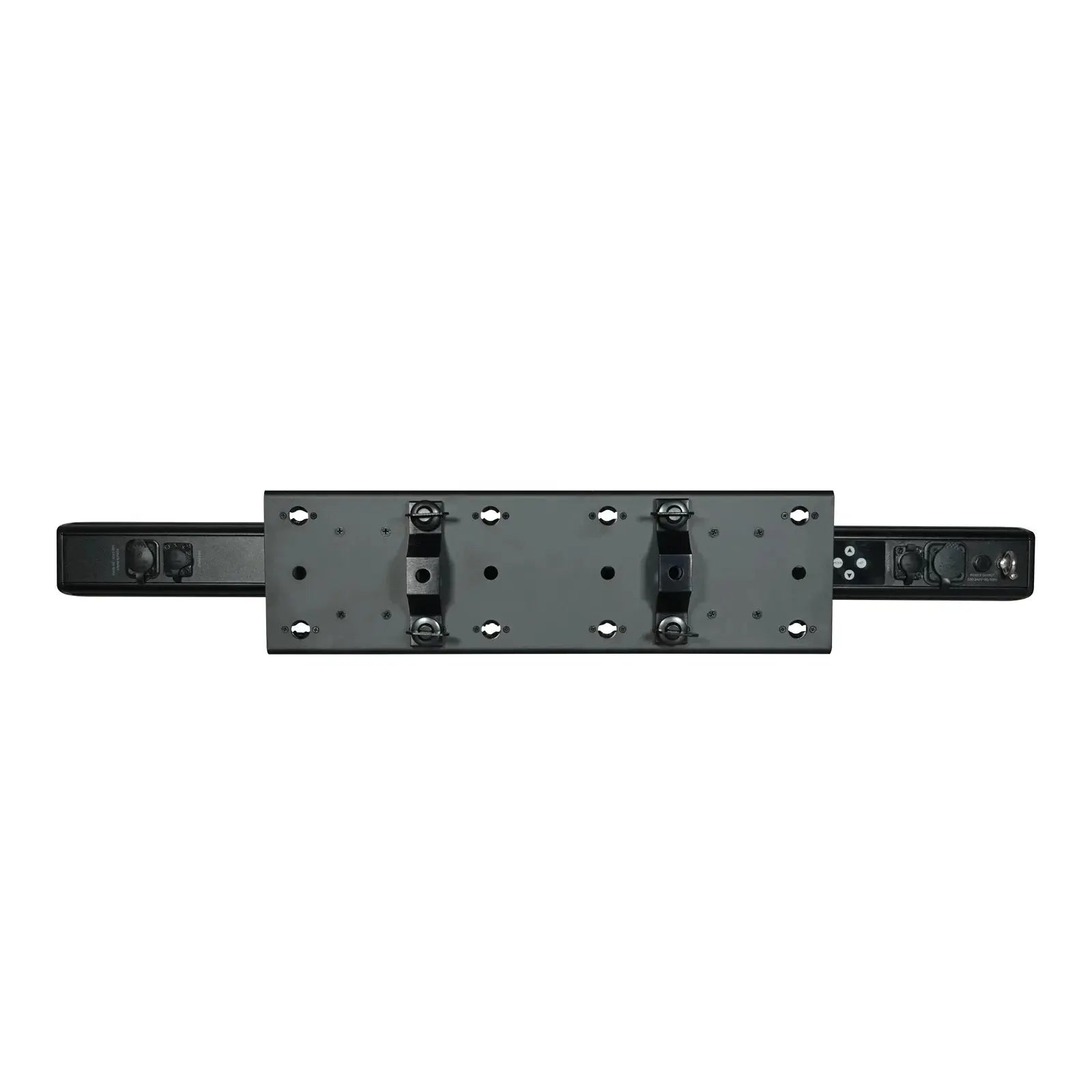

Removable base plate included enables omega clamps to be rigged multiple positions to avoid truss cross braces

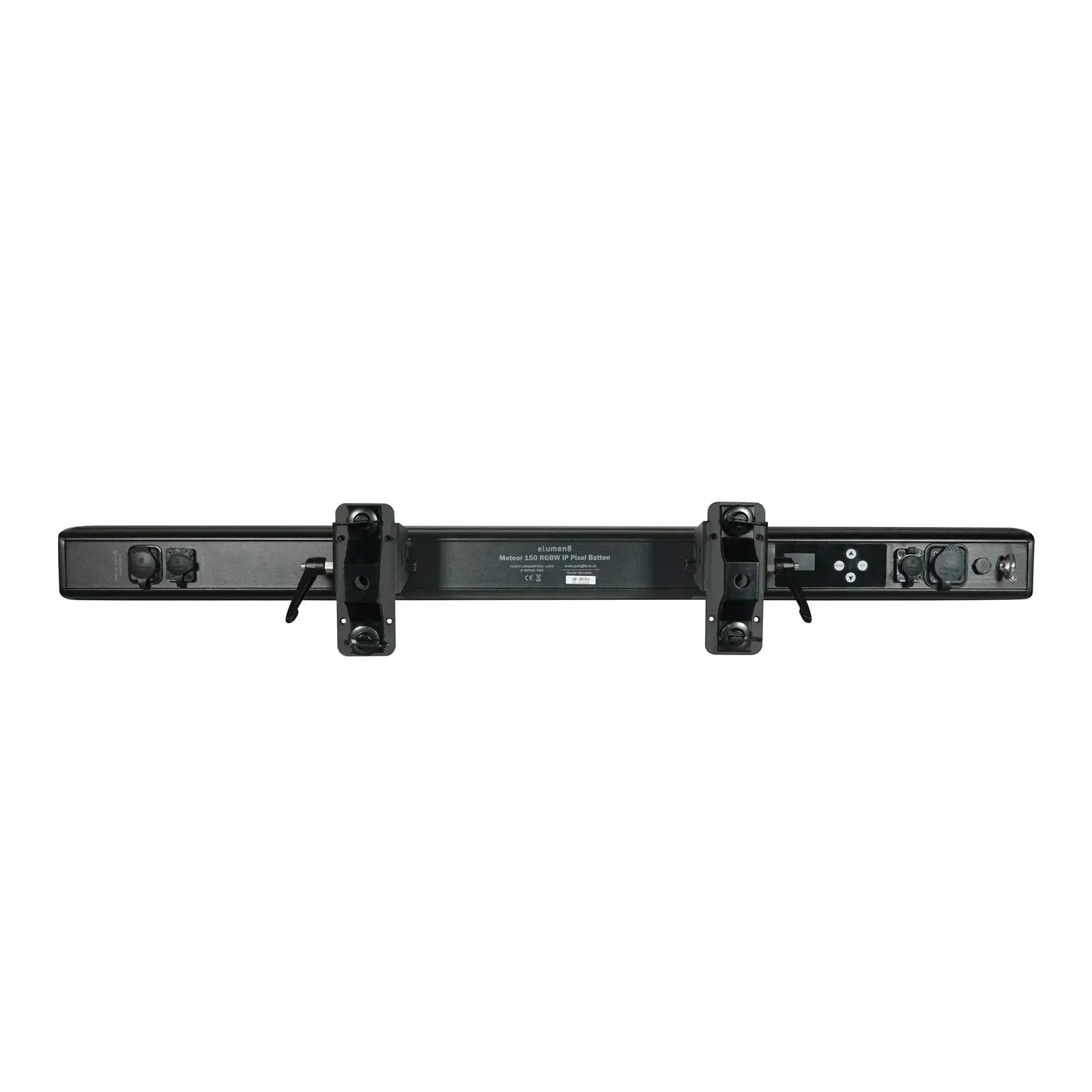

Quick release omega clamps included
PowerTwist TR1 input/output
IP rated 5-Pin XLR input/output
Convection cooled
2 year warranty
Technical Specifications
LEDs: 15 x 10W quad-colour LEDs (RGBW)
Beam angle: 20° x 30°
Lux: 3,267 Lux @ 2m (full on)
Refresh rate: 1kHz, 4kHz, 8kHz or 16kHz selectable
DMX channels: 4/6/9/60 or 65 selectable
Dimming: 0 - 100%
Dimming curves: Linear, square law, inverse square law and S-curve
Strobe: Variable
IP rating: IP65
Power consumption: 130W
Power supply: 100~240V 50/60Hz
What's in the box
Equinox Meteor 150 RGBW IP Pixel Batten
Quick release omega clamps
Removable base plate
PowerTwist TR1 input/output cable
User manual
