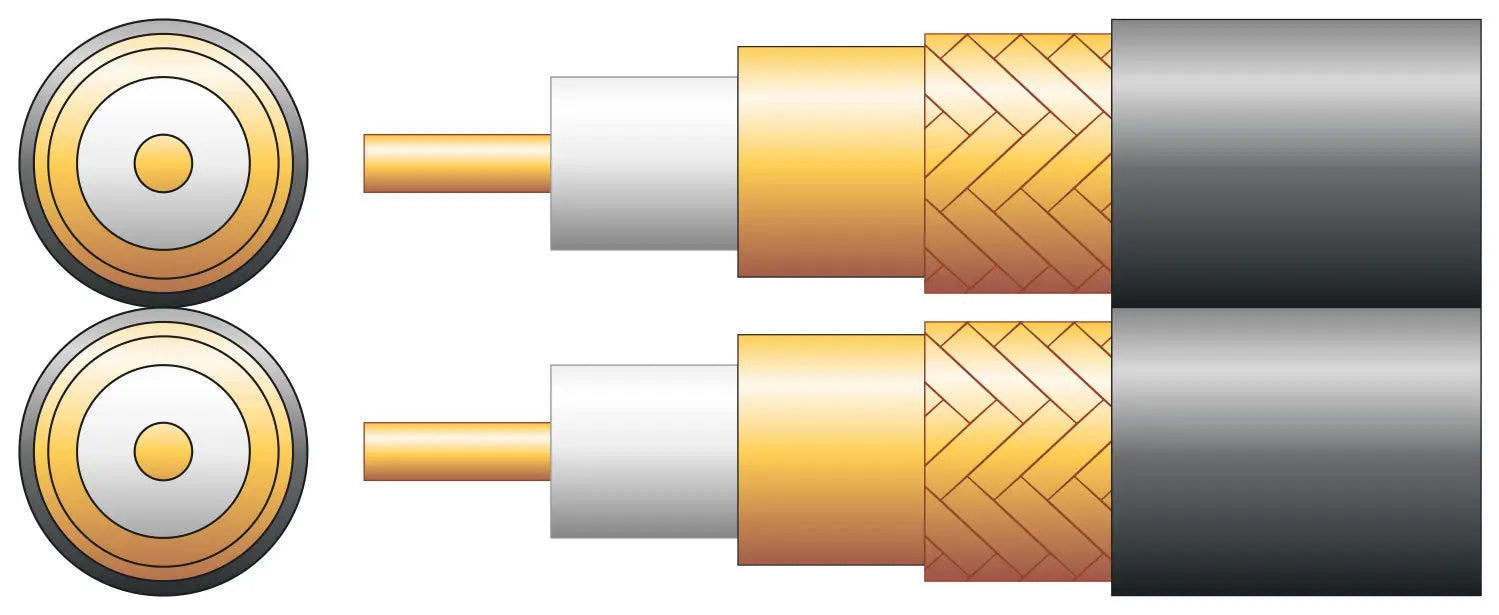

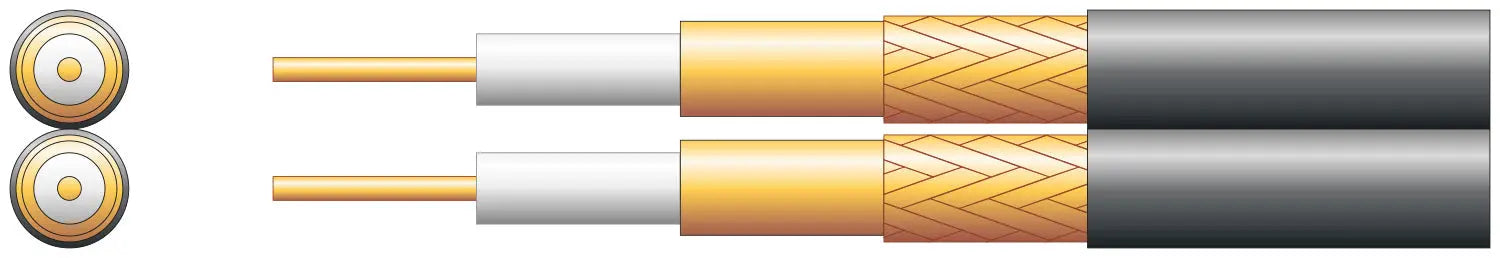

Twin 75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, oxygen free copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB or for CCTV signal transmission.
Solid OFC conductor
Foam filled PE dielectric
Copper foil screen
OFC braid
Supplied in 100m reel with metric cut markers
Conductor diameter 2 x 0.65mmØ
CSA 2 x 0.33mm²
Dielectric 3mmØ foam PE
Screen Copper foil
Braid 2 x 48/0.14mmØ
Cable : diameter 2 x 5mmØ
Impedance 75 Ohms
Capacitance 67pF/m
Length 100m
Colour Black
Velocity factor 83%
Weight 5.7kg
Return loss 5-400MHz 30dB min./100m
Return loss 450-1000MHz 22dB min./100m
Return loss 1000-2150MHz 18dB min./100m
Attenuation @ 50MHz 6.5dB max./100m
Attenuation @ 100MHz 8.9dB max./100m
Attenuation @ 200MHz 12.3dB max./100m
Attenuation @ 400MHz 17.6dB max./100m
Attenuation @ 860MHz 24.7dB max./100m
Attenuation @ 1000MHz 26.9dB max./100m
Attenuation @ 1750MHz 35.7dB max./100m
Attenuation @ 2150MHz 42.2dB max./100m
Conductor material Solid OFC
Braid material OFC
