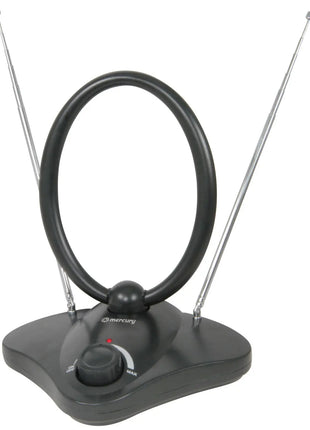

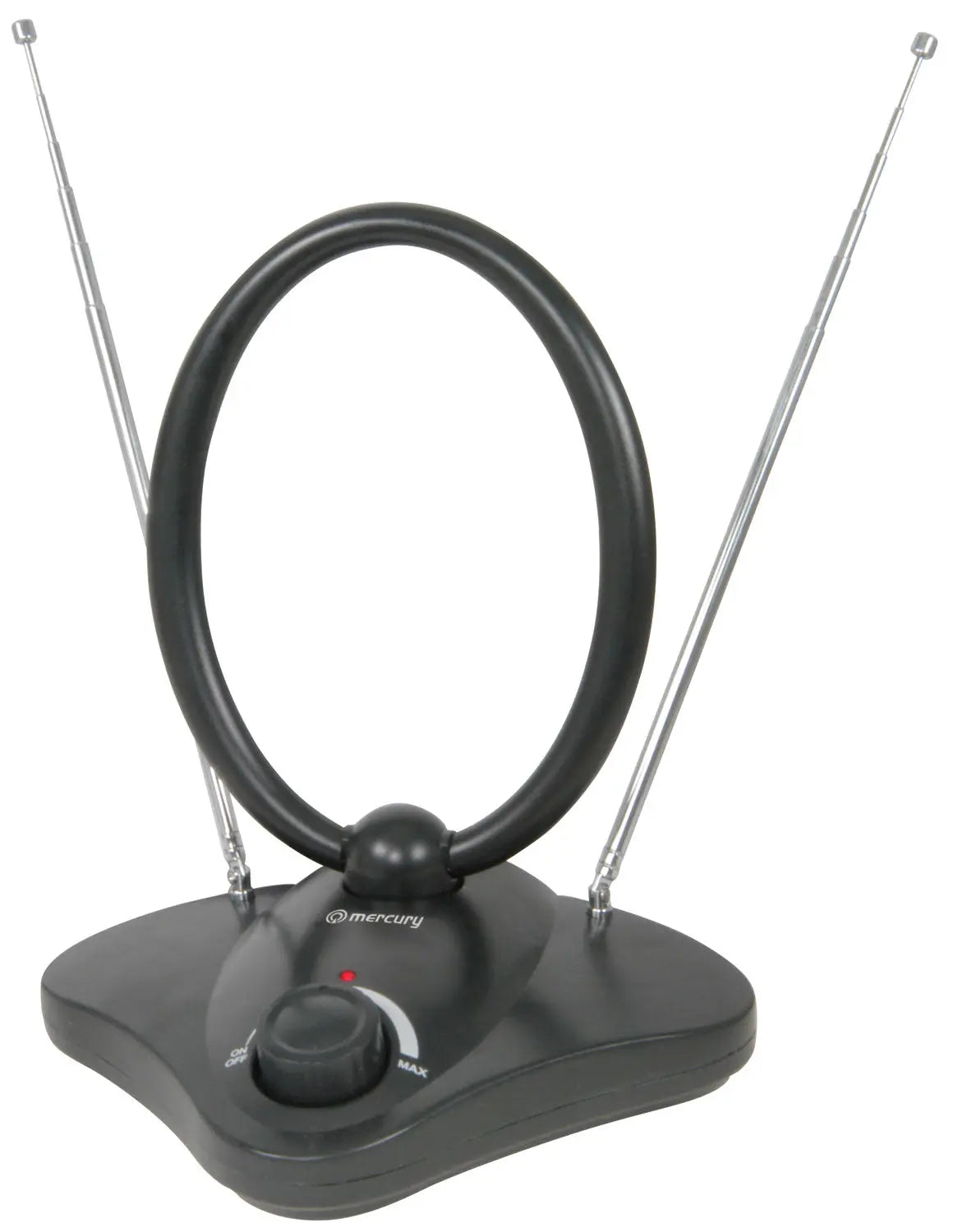

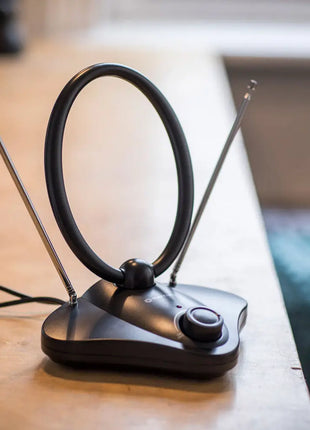

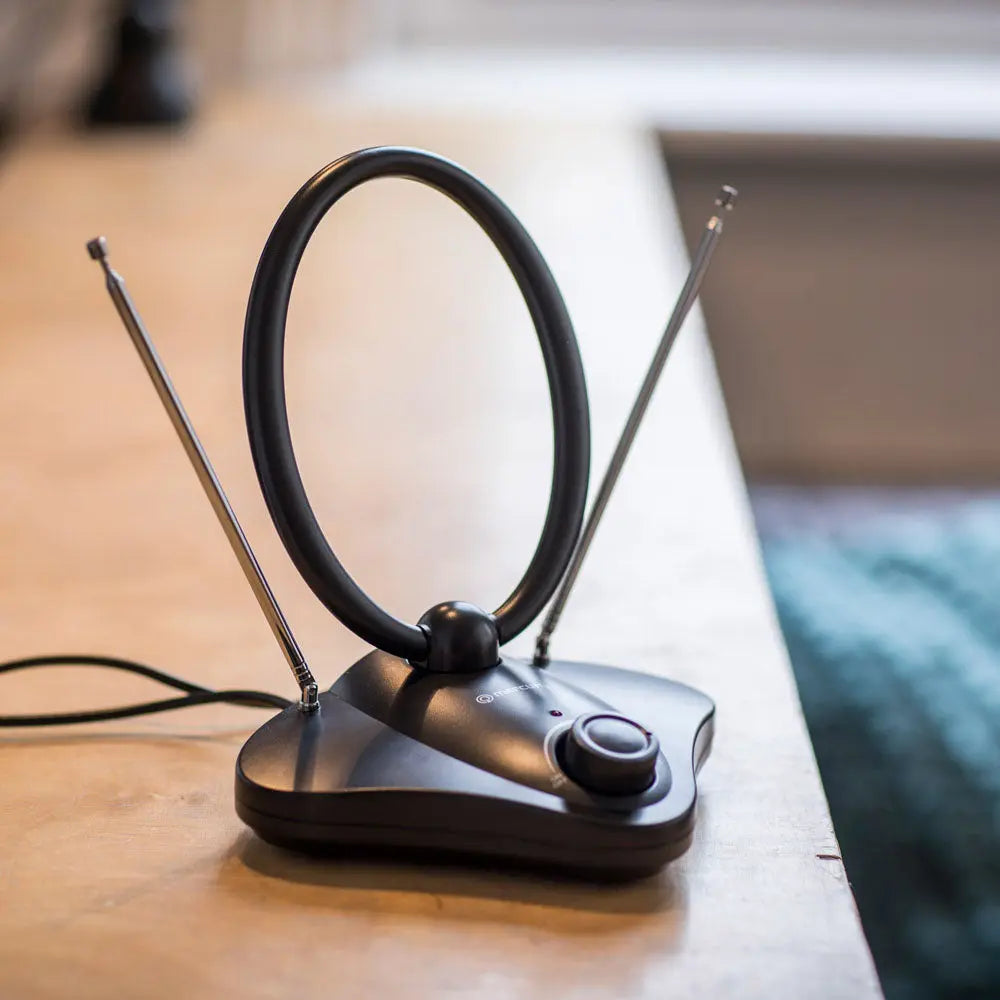

A mains powered, amplified aerial compatible with Digital Terrestrial TV and DAB/FM radio signals. With an adjustable loop aerial for UHF TV signals and two telescopic aerials for VHF and FM radio signals, providing maximum flexibility even in low signal areas. Gain can also be manually adjusted on the unit and there is an LED indicator showing power supply.
Variable gain control knob and Power LED indicator
Compatible with Digital Terrestrial TV and DAB/FM radio signals within a 45-65 mile radius
Built-in high gain low noise amplifier for areas with poor signal strength
Adjustable loop aerial, pans and tilts for best UHF TV reception
2 x 728mm telescopic antennas for optimum VHF and FM radio reception
Integrated LTE signal filter avoids interference from 4G/5G mobile signals
Power supply 230Vac, 50Hz or 12Vdc 50mA
Gain 36dB
Frequency range : UHF 470-694MHz(5G)
Frequency range : VHF 40-230MHz
Impedance 75 ohms
Dimensions 195 x 144 x 230mm
Weight 500g
Current consumption 50mA @12Vdc
Lead length 1.2m
Reception distance Up to 65 miles
